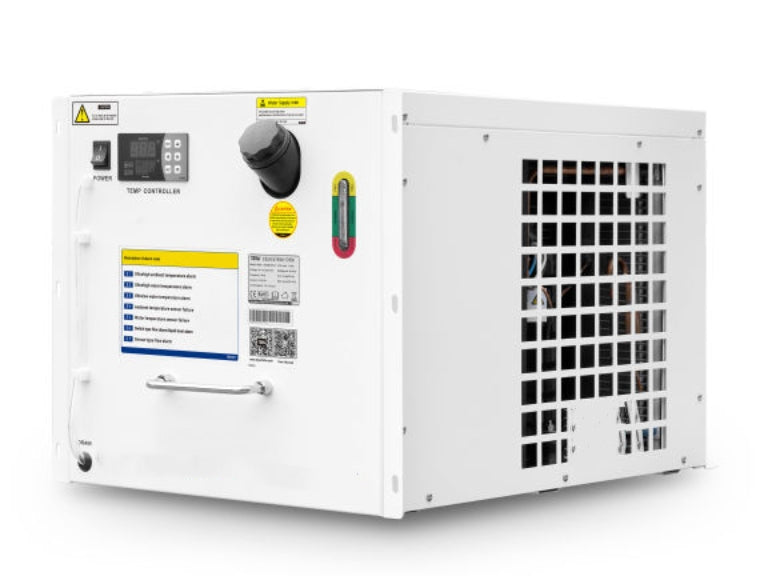

The rack-mount industrial chiller has been specifically engineered to cool 1.5KW handheld laser welding, engraving, cutting, and cleaning machines. It's designed to be seamlessly integrated into a 19-inch rack system. This unique rack-mount configuration of the compact, air-cooled chiller allows for the convenient stacking of related devices, exemplifying a remarkable degree of flexibility and portability.
With an impressive temperature stability of ±0.5°C and a temperature control range spanning from 5°C to 35°C, the refrigerated recirculating chiller offers precise and reliable temperature control.
Featuring a high-performance water pump, this chiller is equipped for dual-temperature control, making it ideal for simultaneously cooling both the fiber laser and the optics or laser gun. The front-mounted water fill and drain ports, along with a convenient water level check, enhance user-friendliness.

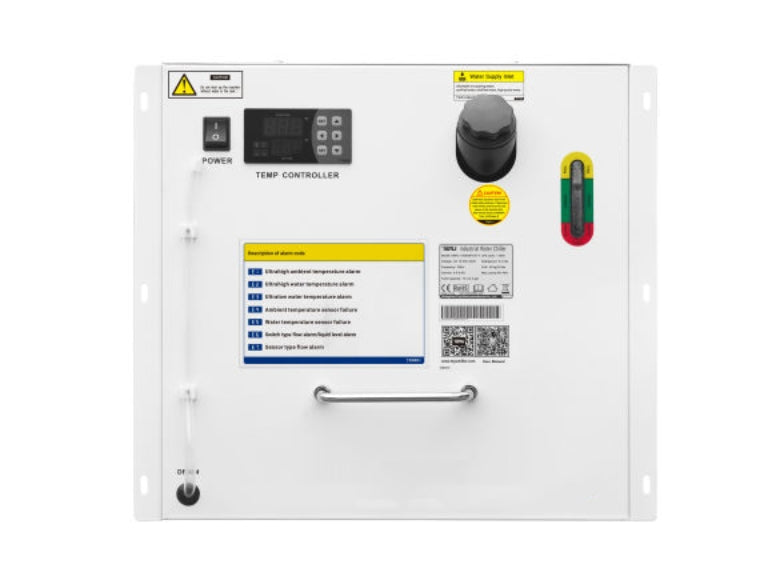

An intelligent digital control panel displays temperature readings and provides built-in alarm codes for added convenience. The exceptional flexibility and mobility of the chiller make it the perfect cooling solution for handheld industrial processing applications.
Main Features:
-
Rack mount design
- Dual cooling circuit
- Active cooling
- Temperature stability: ±0.5°C
- Temperature control range: 5°C ~35°C
- Refrigerant: R-410a
- Intelligent digital control panel
- Integrated alarm functions
- Front mounted water fill port and drain port
- Integrated front handles
- High level of flexibility and mobility
Technical Data
| Model |
CH0130 |
| Voltage |
AC 1P 220-240V No plug included for safety concerns |
| Frequency |
60HZ |
| Current |
0.9~7.2A |
| Max. power consumption |
1.32kW |
| Compressor power |
1.08kW |
| 1.44HP |
| Refrigerant |
R-410a |
| Precision |
±0.5℃ |
| Reducer |
Capillary |
| Pump power |
0.13kW |
| Tank capacity |
16L |
| Max. pump pressure |
40M |
| Rated flow |
2L/min+＞10L/min |
| Net weight |
45Kg |
| Gross weight |
56Kg |
| Dimension |
75x48x43cm (LxWxH) |
| Package dimension |
88x58x61cm (LxWxH) |
The working current can be different under different working conditions.
The above information is for reference, for more detail or different chillers, please contact us now.
