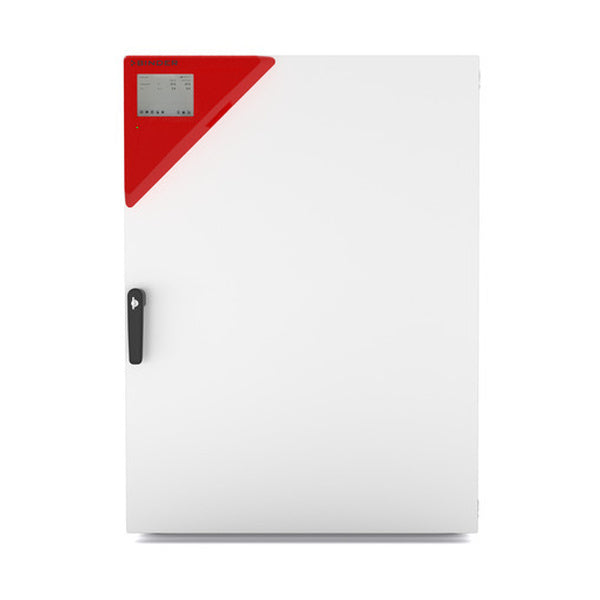

BINDER CO2 incubator CB-S 260
The BINDER CO2 incubators from the CB-S series are specially designed for the safe and efficient cultivation of cell cultures. The model is ideal for routine laboratories and research facilities and impresses with its consistently high process reliability. The combination of 180 °C hot air sterilisation and a reliable infrared CO2 sensor guarantees optimum growth conditions and maximum freedom from contamination of sensitive samples. Thanks to its robust design and low maintenance requirements, this device proves to be an extremely economical solution that offers decisive advantages compared to alternative incubators.
Reliable temperature and humidity control
Cell cultures require precisely controlled environmental conditions in order to develop optimally. In the CO2 incubator, a fanless design and a PID controller ensure a uniform temperature distribution from +6 °C above room temperature to 50 °C. With a spatial deviation of just ±0.4 K at 37 °C and a temporal deviation of ±0.1 K, researchers and laboratory staff are on the safe side. The integrated humidification unit also provides effective protection against evaporation and offers a homogeneous climate with 90-95 % relative humidity.
The fast recovery time is particularly advantageous: after briefly opening the door (30 seconds), the interior only needs eight minutes to return to the original temperature of 37 °C. At a target concentration of 5% CO2 by volume, the gas level is even stable after just five minutes - an important point in order not to jeopardise sensitive cell lines.
Modern anti-contamination concept
The interior of the incubator is seamlessly made of stainless steel and has a discreet beaded structure as a slide-in support. This design is easy to clean and minimises possible deposits. In combination with the 180 °C hot air sterilisation and the reliable IR CO2 measurement technology, the risk of contamination is drastically reduced. The infrared sensor regulates the CO2 concentration drift-free and ensures exact values even over longer periods of use.
An integrated fault diagnosis system with visual and acoustic alarm serves as a further safety measure and provides immediate information if device parameters deviate. This enables a rapid response before cell cultures are damaged.
Central features briefly summarised
- Temperature: +6 °C above room temperature up to 50 °C
- Humidity range: 90...95 % r.h.
- CO2 range: 0...20 % by volume
- 180 °C hot air sterilisation and stainless steel interior
- Internal volume: 267 litres
- IR probe for precise CO2 measurement
- CO2 recovery time at 5% by volume after door opening: 5 minutes
In addition, this model can accommodate up to eight shelves. Each drawer can carry a maximum load of 10 kg, so that extensive sample series can be processed simultaneously. The outer door has a solid finish and keeps the temperature stable inside.
Easy operation and cost-effectiveness
One of the greatest advantages of this incubator is its ease of use. All settings are made using the easy-to-read LCD display, while the internal data recording can be read out via the USB interface. The Ethernet interface enables smooth integration into existing data networks. At the same time, the device operates energy-efficiently at 37 °C with a consumption of just 55 Wh-h. There are no consumables at all, which keeps operating costs low in the long term.
Relevant standards and certifications
In many laboratories, devices such as this CO2 incubator are indispensable for cultivating sensitive samples in accordance with applicable quality standards. The manufacturer produces in accordance with applicable European safety regulations (CE labelling). In addition, strict design and production specifications are met to ensure reliable laboratory results.
Concrete application examples
- Academic cell production: routine cultivation of various cell lines for research projects in molecular biology
.
- Tissue culture: Optimal conditions for maintaining sensitive cell clusters, for example for the reconstruction of tissue samples.
- Pharmaceutical development: Efficient incubation for investigating cell interactions with active substances such as antibodies or recombinant proteins.
- Microbiological test series: Controlled CO2 atmosphere for bacterial or fungal cultures that are dependent on an increased CO2 concentration.
FAQs
How often should the interior be cleaned
Regular cleaning is advisable so that surfaces are wiped down and hot air sterilisation is carried out at least once a month to minimise the risk of contamination.
Can the device continue to be used during the sterilisation cycle?
No, the incubator is emptied for 180 °C hot air sterilisation, as the high temperatures would damage samples. Regular incubation operation then starts up again.
Which gas cylinders are recommended
Lab-quality CO2 gas should be used. It is important that the purity ensures a constant CO2 concentration in the interior when connecting, thus guaranteeing stable conditions.
What are the advantages of IR measurement technology?
The infrared sensor measures without drifting and responds quickly to changes in the CO2 level, keeping a precise CO2 concentration constant.
Conclusion
The CB-S 260 CO2 incubator combines reliability, user-friendliness and cost-effectiveness in one device. With its high temperature and CO2 precision, fanless interior and reliable hot air sterilisation, it is a powerful laboratory instrument that is particularly suitable for academic and research-related applications. With low maintenance and energy requirements, the incubator is a future-proof investment for demanding cell cultivation under strictly controlled conditions.
