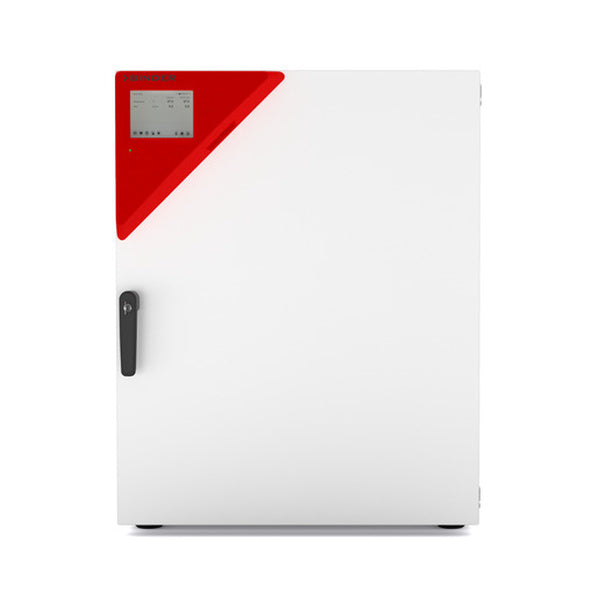

BINDER CO2 incubator CBF 170
Precise control of temperature, CO2 content and humidity is essential for cell culture work and microbiological applications. This device offers maximum contamination protection thanks to its sophisticated design and advanced features. It is characterised by economical operation and versatile application options, making it a convincing solution in demanding laboratory environments.
Detailed description
Thanks to hot-air sterilisation at 180 °C and the integrated anti-contamination concept, maximum safety is guaranteed for sensitive cell cultures. The system works without a water tray and instead humidifies via a contamination-protected system, which minimises the cleaning effort. An IR CO2 sensor ensures precise and reproducible CO2 regulation in the range from 0 to 20% by volume. The optionally available O2 control (0.2 to 20 vol.% or 10 to 90 vol.%) also makes the device suitable for hypoxic applications where precise oxygen conditioning is crucial.
The fanless interior concept with Venturi gas mixing nozzle enables a homogeneous distribution of CO2, which ensures constant growth conditions. An intuitive touchscreen controller supports the precise setting of all parameters. Data is logged automatically and can be read out and documented via USB. With this combination of precision, user-friendliness and freedom from contamination, the device fulfils the highest demands in GMP-compliant environments.
Main technical features (extract)
- Temperature range: +6 °C above room temperature to 50 °C, fast recovery time after door openings
- Humidity control: 50 to 95 % relative humidity, humidification-optimised interior design
- CO2 control: 0 to 20 % CO2 by volume, rapid stabilisation in just 5 minutes
- O2 option: 0.2 to 20 vol.% or 10 to 90 vol.% O2 for a wide range of cell culture requirements
- Internal volume: 170 litres with seamless stainless steel inner vessel and high resistance
- Hot-air sterilisation at 180 °C: reliable protection against contamination
- Data management: Ethernet and USB interfaces and internal data logger
In addition, the appliance scores points for its low operating noise of just 41 dB(A) and average energy consumption of 55 Wh-h. With its robust stainless steel housing and a net width of 680 mm, height of 870 mm and depth of 715 mm, it can be integrated into many laboratories to save space.
Certifications and standards
The CO2 incubator fulfils all current standards regarding electrical safety and EMC compatibility that are required in modern laboratories. Thanks to its GMP-compliant documentation options, it fits seamlessly into validated processes. Certifications such as CE and compliance with important hygiene and material selection standards emphasise the quality.
Application examples
- Cell culture research in biotechnology: optimal environment for mammalian cell lines, such as CHO cells or HEK293 cells
- Pharmaceutical research: In vitro tests for drug development, for example for screening active ingredients in multi-well plates
- Microbiological assays: precise cultivation of sensitive microorganisms
- Clinical laboratories: examination of tissue samples that require constant conditions for cell growth
The option of a hypoxic shelf life with adjustable O2 content makes the incubator particularly interesting for research projects in the field of cancer cells and tumour cell lines. Its high level of contamination protection also makes it ideal for GMP-compliant areas in which quality and hygiene standards have the highest priority in every handling process.
FAQs
How easy is it to clean
The appliance boasts a smooth, seamless inner bowl and does not have a water tray. This makes it particularly easy to clean. Hot air sterilisation at 180 °C also ensures contamination-free conditions all round.
Can the incubator be integrated into an existing GMP environment?
Yes, the extensive data export options and compatibility with common documentation requirements make the device very suitable for GMP applications.
What consumables are required?
The device does not require any permanent consumables as it is operated without a water tray and using a robust IR sensor. This contributes to low operating costs.
Can the device be set to more specific O2 values?
Yes, if you need O2 values below 20% or in the higher range up to 90%, you can select the corresponding model variant with O2 control and thus create optimum growth conditions for special cell cultures.
Conclusion
This CO2 incubator offers a high level of safety for sensitive cell and tissue cultures in laboratories that work in compliance with GMP and pay attention to optimised processes. With its hot-air sterilisation, fanless interior and precise humidity and gas control, it makes a decisive contribution to the quality and reproducibility of laboratory data. Its wide range of applications, reliable control technology and simple maintenance and documentation make it a reliable and economical solution for biotech, pharmaceutical and research laboratories.
| Load max.: | 11 - 50 kg |
| Width outside (incubators,...): | 680 mm |
| Width inside (incubators,...): | 560 mm |
| Maximum temperature (heat): | + 50 °C |
| Height outside (incubators,...): | 870 mm |
| Height inside (incubators,...): | 600 mm |
| Incubator model: | incubatorCO2 incubator |
| Interior volume: | 101 - 200 l |
| Maximum power: | 1,4 kW |
| Cabinet type: | incubator |
| Depth outside (incubators,...): | 715 mm |
| Depth inside (incubators,...): | 500 mm |
| Shipping weight: | 95,00 Kg |
| Product weight: | 95,00 Kg |
| Dimensions: | × × cm |
