An excellent quality set with the advanced features of Welch Allyn's MacroView™ otoscope.

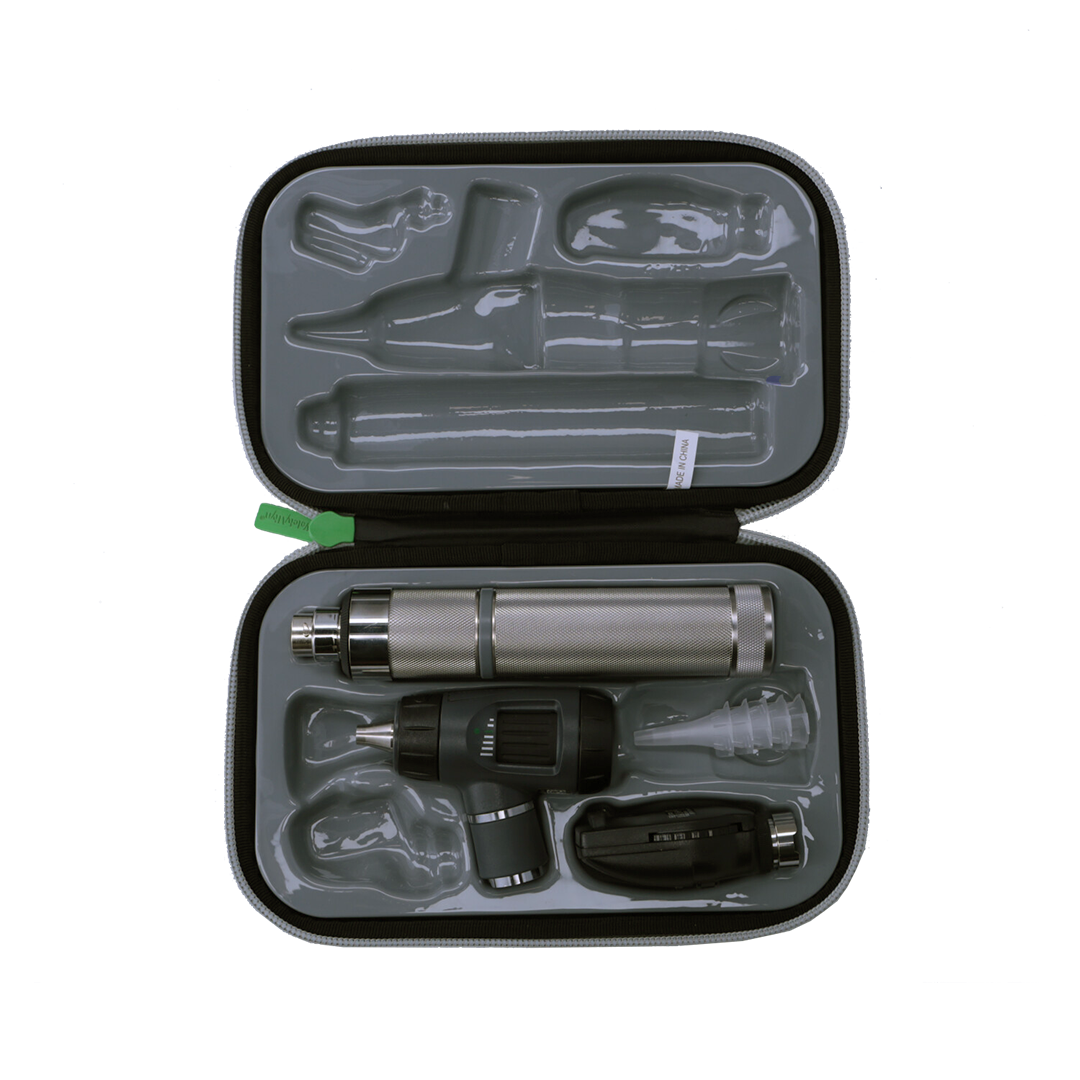

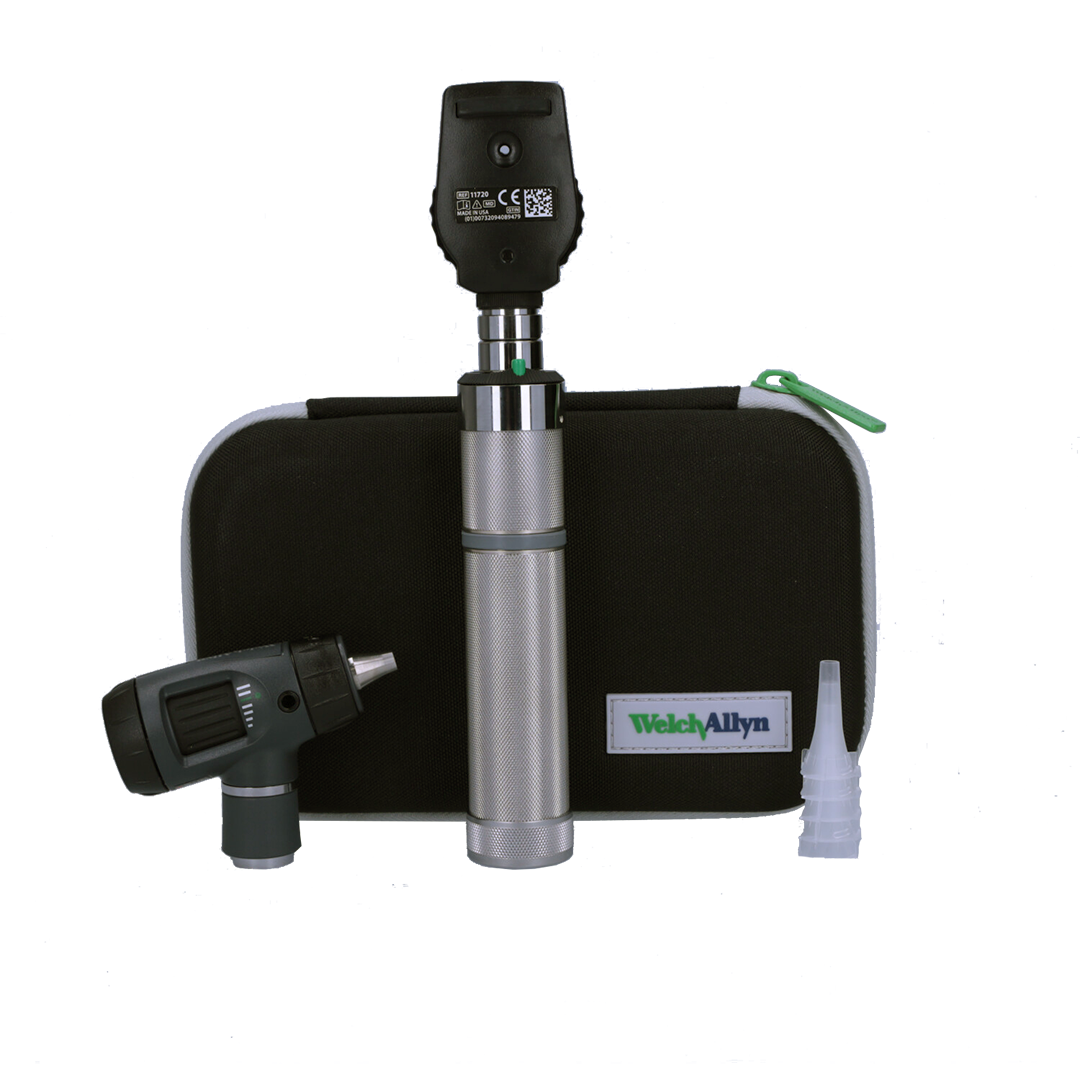

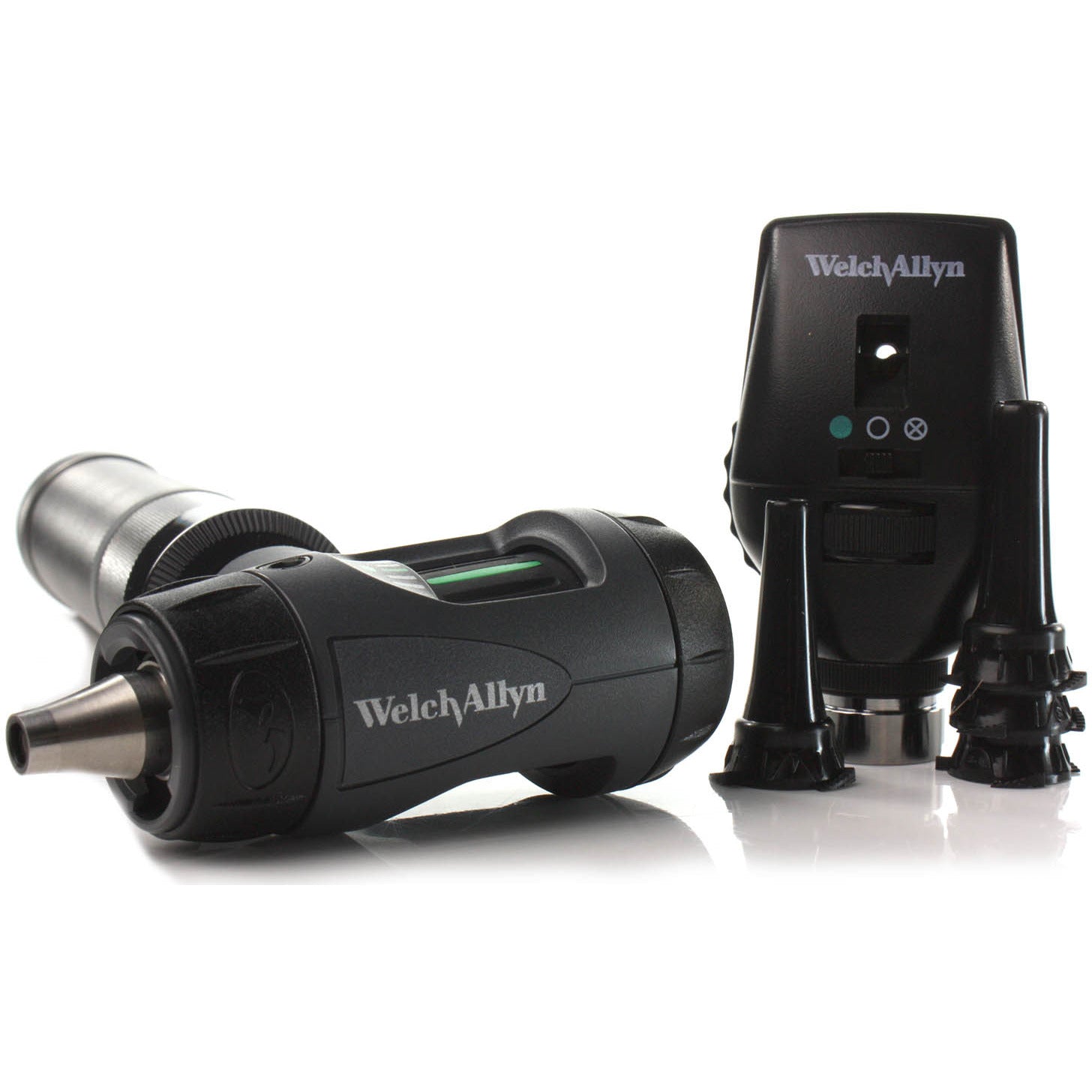

The set consists of:
- 1x MacroView otoscope
- 1x Coaxial ophthalmoscope
- 1x C-Cell battery handle

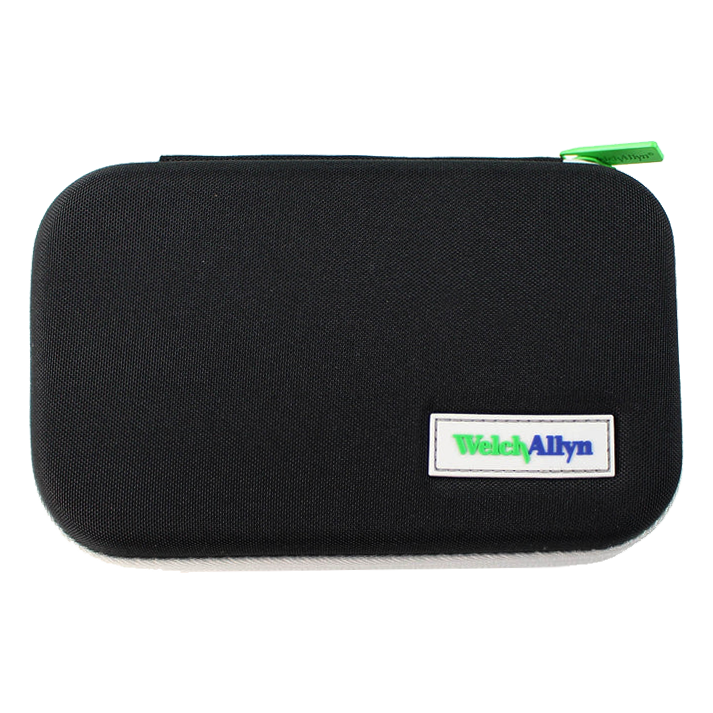

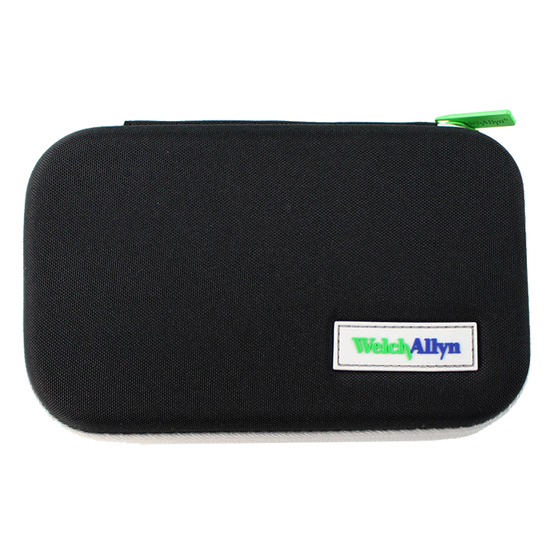

- 1x Hard carry case
- Includes 3 LumiView adult-sized specula & 2 paediatric sized specula.
- Batteries Included In Handle

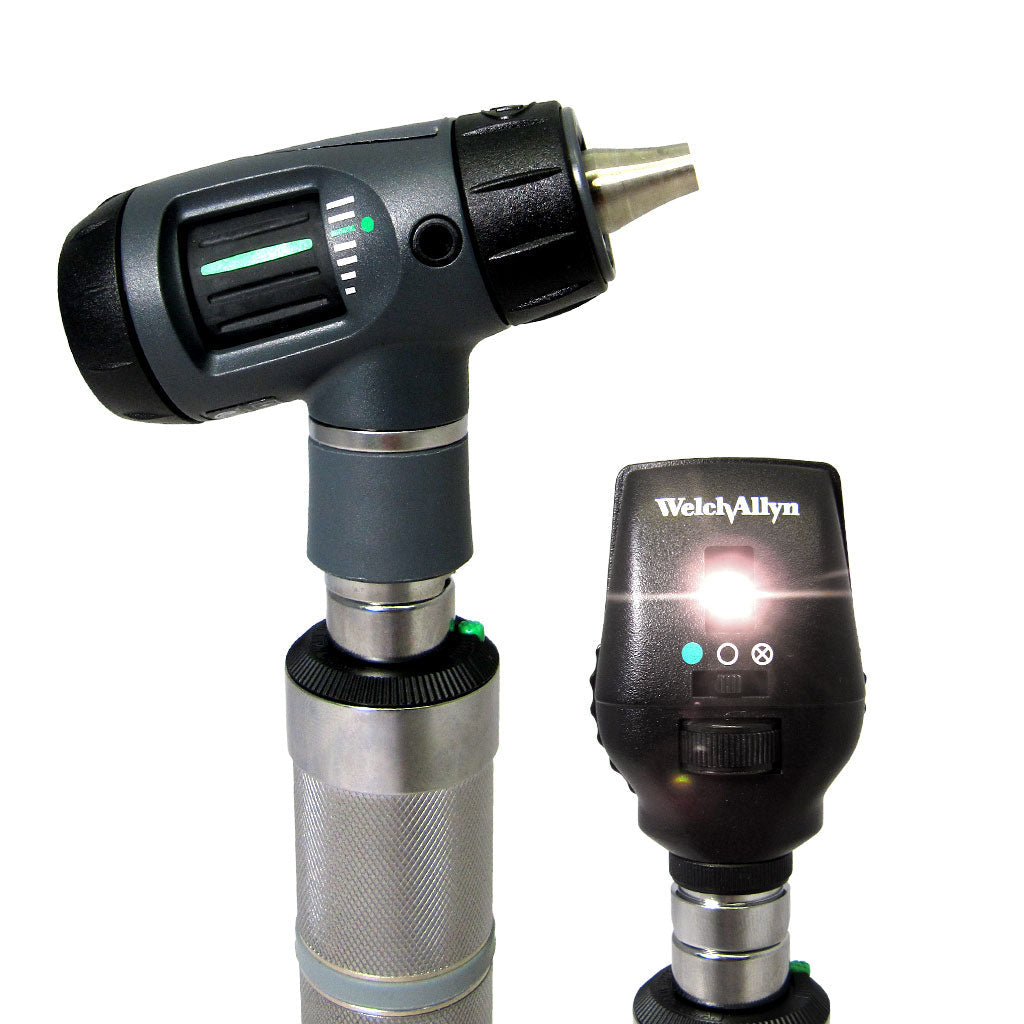

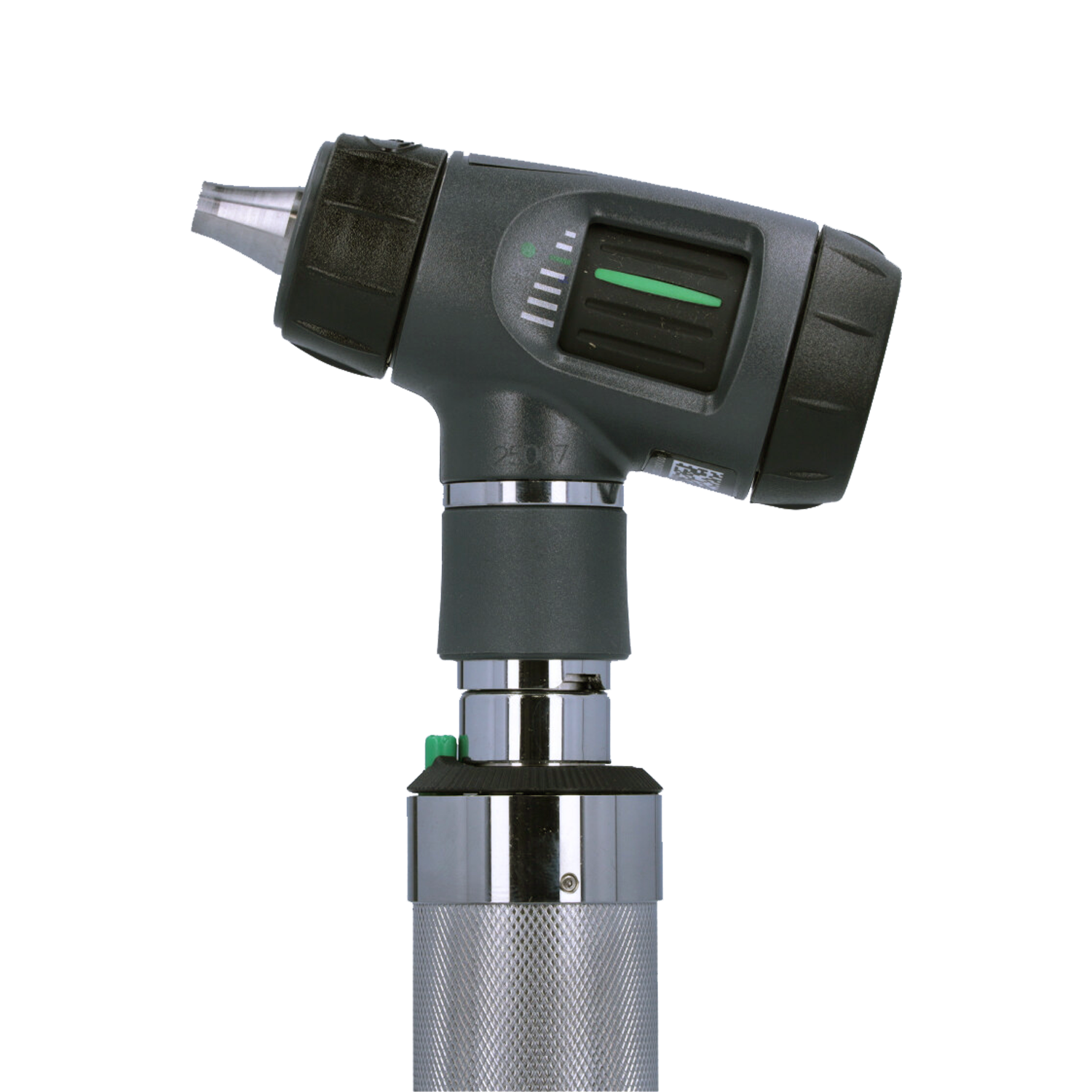

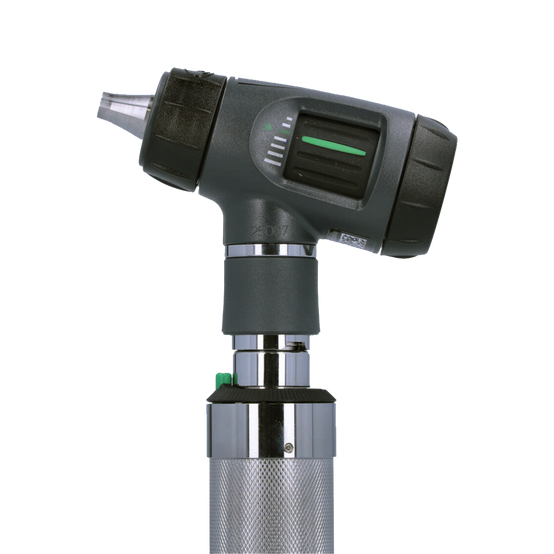

23810 | MacroView™ Otoscope
- 30% greater magnification and twice the field of view of a conventional otoscope give a large, almost complete view of the tympanic membrane.
- Focusing wheel allowing for adjustable focal depth on the area in view without the need to move the otoscope, compensating for both the practitioner's vision and variable length of the patient's ear canal.
- Better clarity and definition of landmarks than a conventional otoscope.
- The Halogen HPX™ lamp provides light output for true tissue colour and consistent, long-lasting performance.
- Fibre optics produce a ring of cool light with no reflections or obstructions for glare free viewing and easier examination.
- Specula ejector for hygeinic touch-free disposal of used speculae.
- Insufflation port for manipulation of the tympanic membrane.
- A sealed system for pneumatic otoscopy and accurate diagnosis of otitis media.
- Variable illumination strength via the handle rheostat dial.
Halogen + Fibre Optics
360° ring of light allows a completely unobstructed view in true tissue colour.
Rheostat Control
Vary the power of illumination with the smooth turn of a dial.
Wide-angle Viewing Lens
With twice the field of view of a conventional otoscope.
Insufflation port
Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.
Focus Wheel
Turn to smoothly focus without the need to move the device.
Specula Ejector
Twist the Tip Grip to fasten or eject specula.

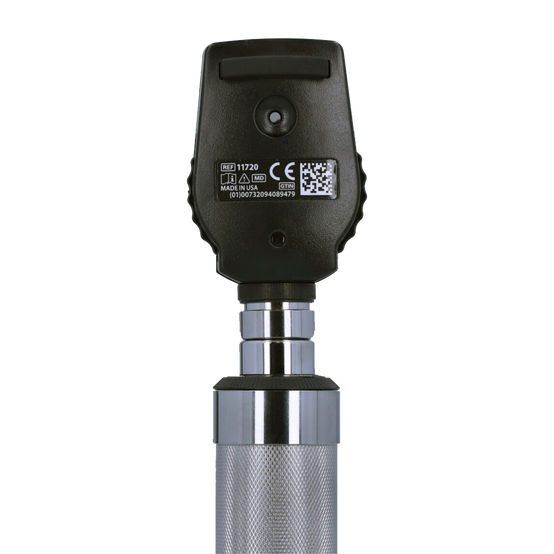

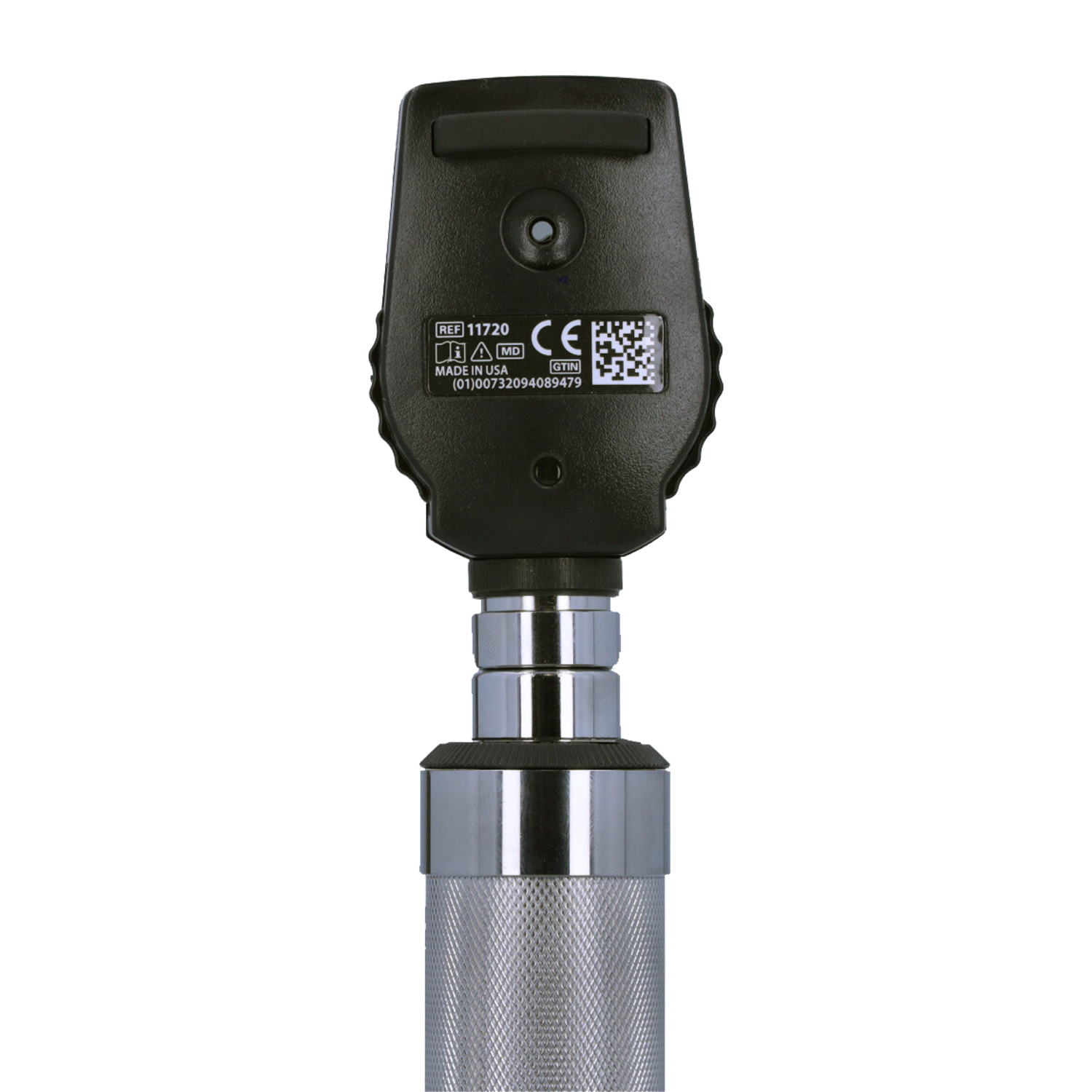

11720 | Coaxial Ophthalmoscope
- Halogen light for true tissue colour and consistent, long-lasting performance.
- The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
-

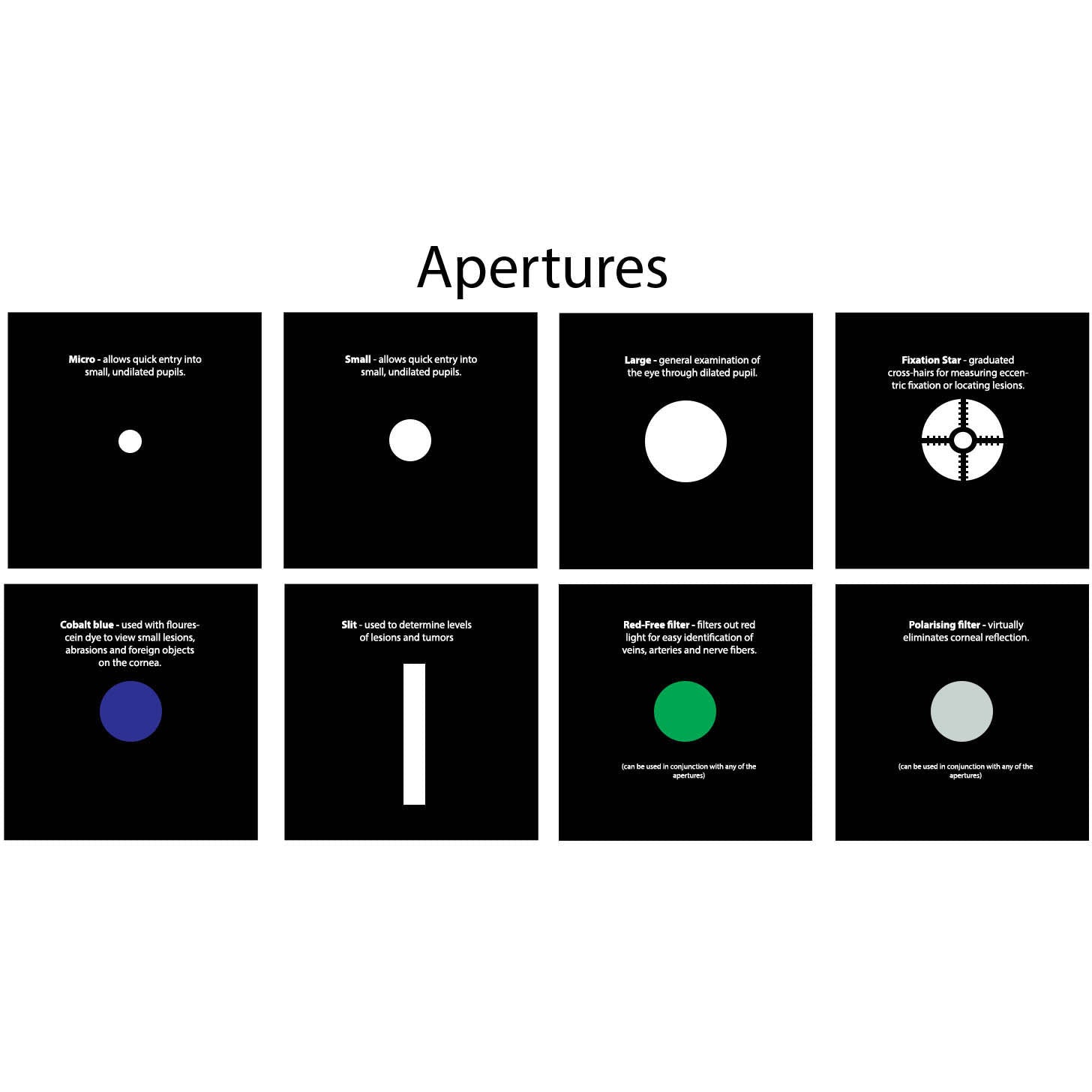

6 apertures:
-
Micro - allows quick entry into small, undilated pupils. -
Small - provides excellent view of fundus through an undilated pupil. -
Large - general examination of the eye through dilated pupil.
-
Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions. -
Slit - used to determine levels of lesions and tumors. -
Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
-
-
2 filters can be used in conjunction with any of the above apertures:
-
Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers. -
Polarising filter - virtually eliminates corneal reflection.
-
- 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
- Rubber brow-rest prevents scratching of eyeglasses.
- Variable illumination strength via the handle rheostat dial.
Rheostat Control
Vary the power of illumination with the smooth turn of a dial.
Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.
Six Apertures
A wide range of practical apertures to select from.
LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.
Two Filters
Red-free or polarising filter can be used in tandem with any aperture.
71020-B | C-Cell Battery Powered Handle
- Smooth, nonabrasive knurled finish ensures a no-slip grip.
- Chrome-plated brass construction for durability and reliable long-life.
- Takes two 'C' size alkaline batteries (included).
Easy Attachment
Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.
Rheostat Control
Smoothly control the applied power with the easy grip dial.
Battery power
Powered by standard 'C' size alkaline batteries (included).

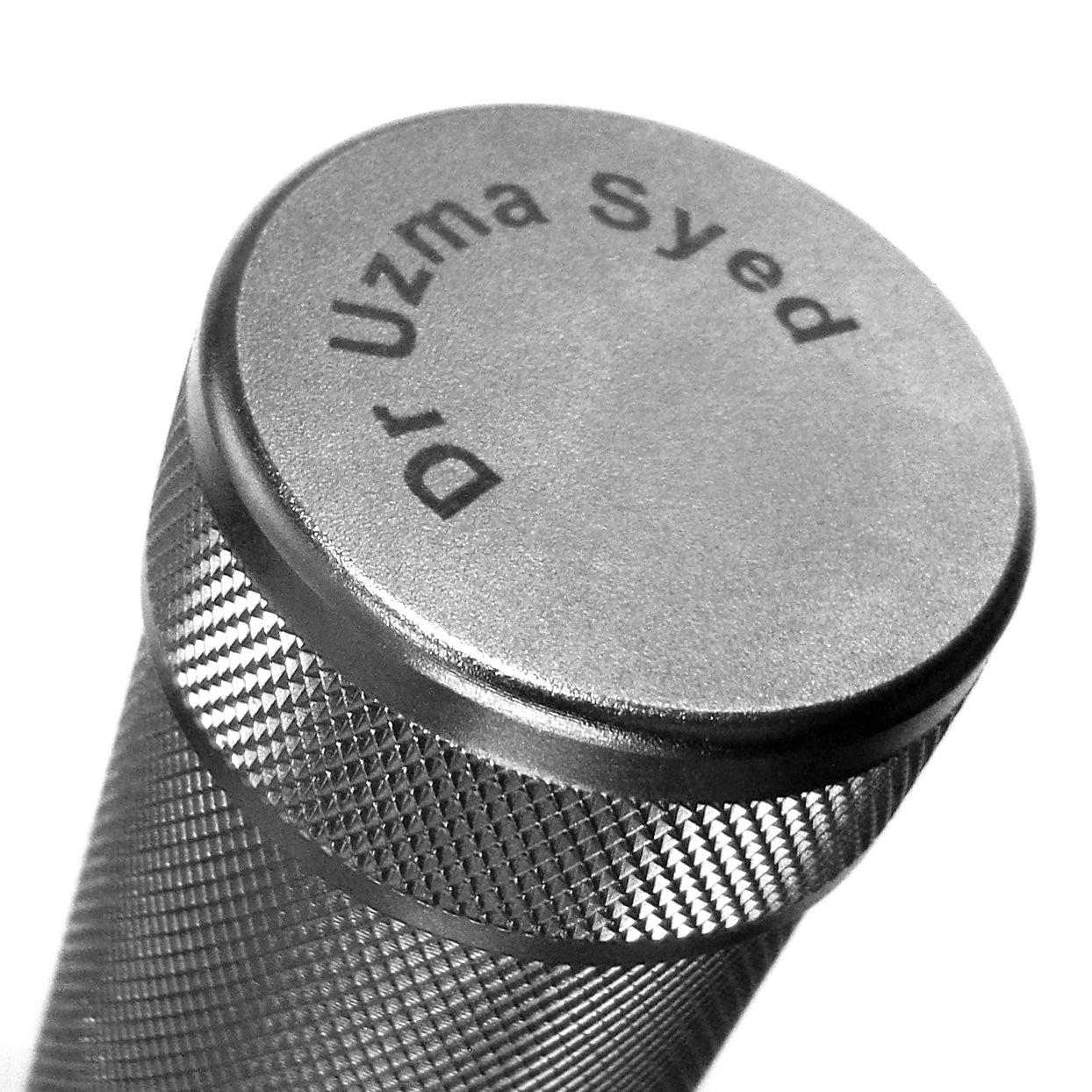

Laser Engraving
Medisave offer a laser engraving service on the handle of this diagnostic set. Because we recognise the value and quality of your tools we have invested in the highest quality equipment and technicians to give you probably the finest engraving service available in the UK (superior to our competitor’s efforts). The end result is an elegant, permanent, precision mark on the surface of the handle, allowing you to show a little of your personality and, more importantly, deterring thieves and making it easier to retrieve your scope should you misplace it. The service does not delay your order and next day delivery services are available.
HIGH QUALITY | NO DELAY | NEXT DAY DELIVERY![]()
More information: Using Ophthalmoscopes in Eye Examinations
Medisave recommends:
"This product gets a fantastic response whenever we demonstrate it to GP’s and alike. When demonstrated directly against a standard Otoscope the operator can clearly see the magnification difference between the standard and Macroview heads. The speculae ejection is easy to use and helps with sanitation. The 11720 coaxial ophthalmoscope head is standard across the range of non Panoptic Welch Allyn diagnostic sets (barring the 97150-BI) and offers features generally not seen on a diagnostic set of this price. The heads are fully interchangeable with any other Welch Allyn power source as all operate the same 3.5v illumination sources. Personally I think this represents the best value Welch Allyn diagnostic set in the sub £300 price bracket."
