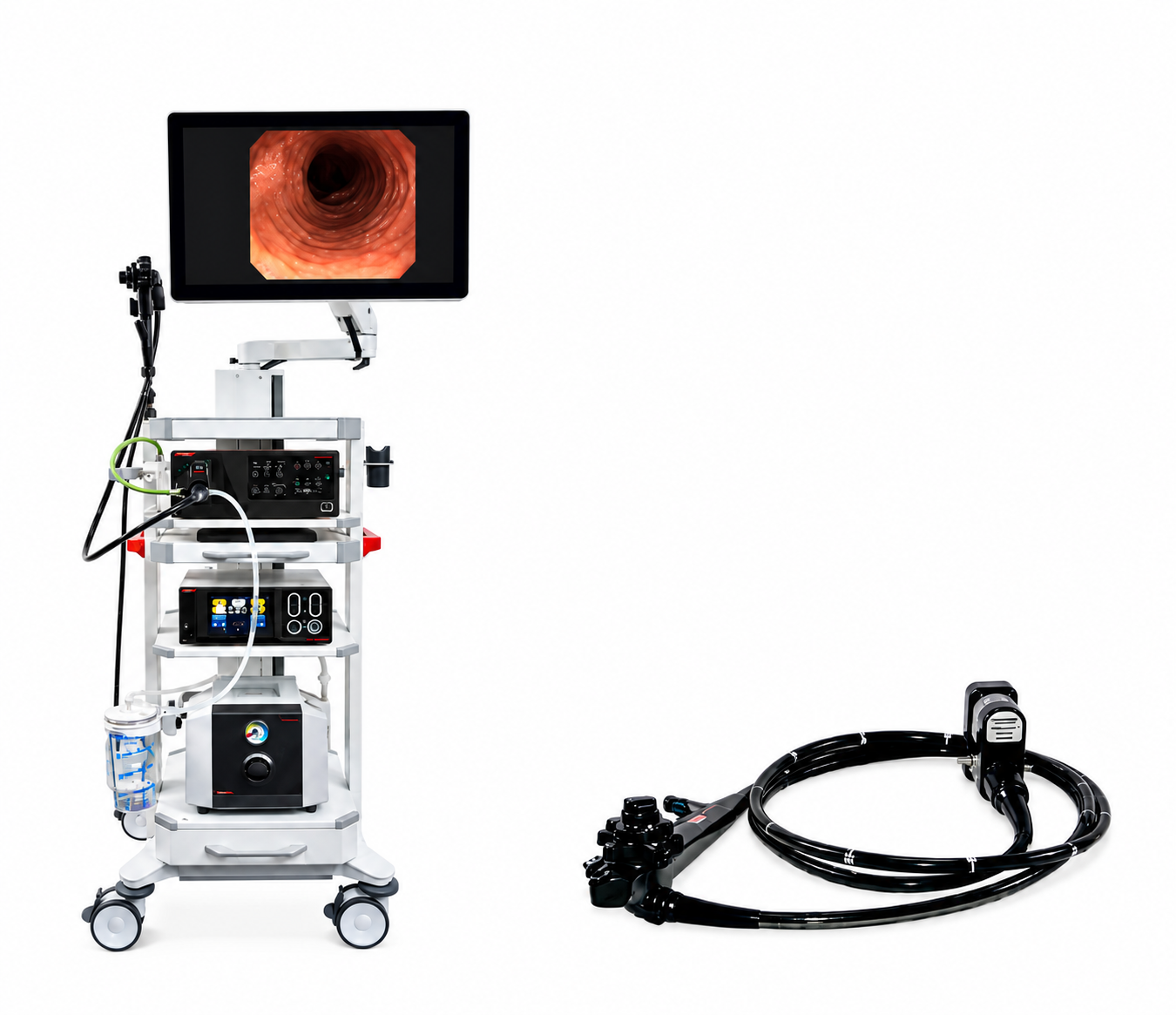

EndoMed Systems COMBO-3 C34S & C34L Video Colonoscopes
HD Flexible Video Colonoscopes for the COMBO-3 Endoscopy System
The EndoMed Systems COMBO C34S and COMBO C34L are flexible video colonoscopes designed for colonoscopic examinations. The two models differ primarily in insertion tube length, allowing healthcare facilities to select the configuration best suited to their clinical requirements.
Their integrated video chain provides HD images for detailed visualisation during lower gastrointestinal examinations. Both colonoscopes are designed specifically for use with the COMBO-3 video processor.
Developed as economical and cost-effective video colonoscopes, the C34S and C34L combine HD imaging, practical handling and a design intended to support low-cost maintenance.
Key Features
HD Imaging
The integrated video chain provides high-definition images for clear and detailed visualisation during colonoscopic examinations.
Two Insertion Lengths
Choose between the 1350 mm C34S and the 1650 mm C34L to suit different colonoscopy requirements.
3.7 mm Instrument Channel
Both models incorporate a 3.7 mm instrument channel for compatible endoscopic instruments and accessories.
140° Field of View
A wide 140-degree field of view supports comprehensive visualisation during lower gastrointestinal examinations.
Wide Bending Range
The distal section provides 180° upward, 180° downward, 160° right and 160° left angulation for controlled manoeuvrability.
Economic & Cost-Effective
Designed as economical video colonoscopes with an emphasis on cost-effective operation and low-cost maintenance.
COMBO C34S vs COMBO C34L
Both colonoscopes share the principal imaging and operating specifications. The main difference between the models is the insertion tube length.
| Specification | COMBO C34S | COMBO C34L |
|---|---|---|
| Insertion Tube Length | 1350 mm | 1650 mm |
| Insertion Tube Diameter | 12.8 mm | 12.8 mm |
| Instrument Channel Diameter | 3.7 mm | 3.7 mm |
| Field of View | 140° | 140° |
| Direction of View | 0° | 0° |
| Depth of Field | 3–100 mm | 3–100 mm |
Bending Section & Manoeuvrability
The distal bending section provides a wide range of controlled movement to support navigation during colonoscopic examinations.
- Up: 180°
- Down: 180°
- Right: 160°
- Left: 160°
Technical Specifications
| Specification | COMBO C34S / C34L |
| Insertion Tube Length | C34S: 1350 mm | C34L: 1650 mm |
| Insertion Tube Diameter | 12.8 mm |
| Instrument Channel Diameter | 3.7 mm |
| Bending Section | Up 180°, Down 180°, Right 160°, Left 160° |
| Field of View | 140° |
| Direction of View | 0° |
| Depth of Field | 3–100 mm |
| Control Body Dimensions (W × H × D) | 130 × 280 × 100 mm |
| Universal Tube Length | 1550 mm |
| Weight | 1750 g |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electrical Safety Class | I |
| EMC Classification | 1B according to DIN EN 60601-1-2 |
Imaging & Features
| Remote Switch | One remote switch equipped on the control body |
| Control Body | Lightweight medical-grade plastic |
| CCD Chip | 1/6" colour chip |
| Resolution | HD |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
| Air Pressure – Operation | 700–1060 mbar |
| Air Pressure – Storage | 600–1300 mbar |
Standard Accessories
The manufacturer's standard accessory package includes:
- 1 × Transportation Case
- 1 × Air/Water Valve
- 1 × Suction Valve
- 5 × Biopsy Valves
- 1 × Biopsy Forceps – Oval Cup
- 1 × Water Bottle
- 2 × Mouth Pieces
- 1 × Silicone Oil, 5 ml
- 1 × Cleaning Adapter
- 1 × All-Channel Irrigator Set
- 1 × 50 ml Syringe for Manual Irrigation
- 1 × Long Cleaning Brush
- 1 × Short Cleaning Brush
- 1 × Operation Manual
Product Information
| Model | Description | Item No. |
|---|---|---|
| COMBO C34S | Video Colonoscope for COMBO-3 Endoscopy System, 1350 mm | 600170 |
| COMBO C34L | Video Colonoscope for COMBO-3 Endoscopy System, 1650 mm | 600171 |
COMBO-3 System Compatibility
The COMBO C34S and C34L video colonoscopes are designed for use with the EndoMed Systems COMBO-3 Video Processor, forming part of the complete flexible gastrointestinal endoscopy platform.
Configure Your COMBO-3 Colonoscopy System
Contact Nass Ventures for pricing, model selection, processor configuration, compatible accessories, monitors, endoscopy trolleys, suction equipment, installation requirements and technical support.
