Best Seller
Flex Endoscopic video systems

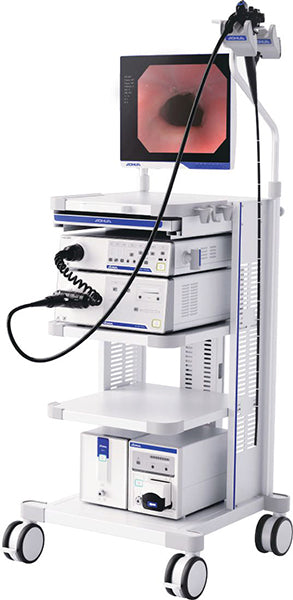

Aohua AQ-90 HD Video Endoscopy System
The Aohua AQ-90 is an HD video-endoscopy system intended for everyday gastrointestinal diagnostic work. The product page describes it as a stable and cost-effective system combining HD imaging, a long-life LED light source and a wide set of image-enhancement functions.
Clinical use and workflow
Suitable for everyday endoscopic diagnosis in GI departments, with optional use in pulmonary or ENT workflows when compatible endoscopes are supplied.
Key features
- HD processor and CMOS image sensor for high-resolution clinical images.
- Designed for daily gastrointestinal procedures where detail and contrast are important.
- LED light source with life stated at more than 10,000 hours to reduce maintenance requirements.
- HbE hemoglobin-enhancement mode helps distinguish vascular patterns from mucus.
- Digital chromoendoscopy and contrast/edge enhancement support a variety of imaging needs.
- Slim 9.0 mm gastroscope option is noted to help insertion and difficult examinations.
- System can be used across GI endoscopy, pulmonology and ENT departments depending on compatible endoscope selection.
- USB storage, white balance, freeze-frame and playback functions are noted on the source page.
Technical details from the product page
- Image enhancement emphasizes endoscopic structures.
- IRIS modes: peak and average.
- Colour correction: R, B and Y channels with adjustment range up to +50.
- Manual image enhancement.
- VGT-R30T video gastroscope: working length 1050 mm, total length 1350 mm, 9.0 mm distal end/insertion tube, 2.8 mm channel, depth 3 to 100 mm, 140-degree field of view.
- VGT-R30 video gastroscope: working length 1050 mm, total length 1350 mm, 9.6 mm distal end/insertion tube, 2.8 mm channel, depth 3 to 100 mm, 140-degree field of view.
- VCC-R30I video colonoscope: working length 1330 mm, total length 1600 mm, 12.8 mm distal end/insertion tube, 3.7 mm channel, 140-degree field of view.
- VCC-R30L video colonoscope: working length 1680 mm, total length 1650 mm, 12.8 mm distal end/insertion tube, 3.7 mm channel, 140-degree field of view.
Configuration and included items
- AQ-90 HD video-endoscopy processor/system configuration.
- Compatible gastroscope and colonoscope model selected according to department requirement.
- Monitor, trolley, air/water accessories, biopsy valves, cleaning accessories and service plan should be confirmed before order.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

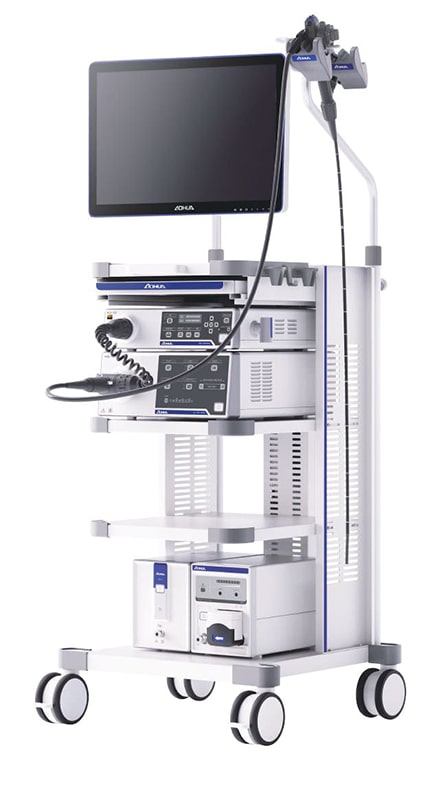

Aohua AQ-110 Full HD Video Endoscopy System
Versatile Full HD Video Endoscopy Platform for Diagnostic and Therapeutic Procedures
The Aohua AQ-110 is a versatile Full HD video endoscopy system available in a variety of configurations. It supports a wide selection of compatible endoscopes and provides enhanced Full HD imaging for gastrointestinal and other flexible endoscopic applications.
The AQ-110 can be configured with different endoscope types and light sources, allowing healthcare facilities to select a system configuration appropriate to their clinical requirements.
Compatible devices include gastroscopes, colonoscopes, bronchoscopes and laryngoscopes, providing a broad range of applications from routine diagnostic examinations to therapeutic procedures.
Full HD Image Quality
The AQ-110 uses a Full HD CMOS sensor to provide high-quality endoscopic images.
The imaging system is designed to deliver clear and sharp contrast at tissue boundaries, supporting detailed visualisation during endoscopic examinations.
Multiple Light Source Options
The AQ-110 platform supports both LED and xenon light-source configurations, allowing the system to be adapted to different clinical and operational requirements.
These light-source options are designed to provide the brightness and colour rendering required for true-colour clinical images during both routine and more complex procedures.
LED Light Source
LED illumination option for compatible AQ-110 system configurations.
Xenon Light Source
Xenon illumination option for applications requiring a compatible xenon-based light-source configuration.
Optical Chromoendoscopy
The AQ-110 incorporates CBI – Compound Band Imaging optical chromoendoscopy.
CBI provides increased contrast between mucosal tissue and blood vessels, supporting visual assessment of suspected lesions and mucosal abnormalities.
Universal Application
Suitable for Therapeutic Procedures
Large working and irrigation channels support the use of compatible endoscopic instruments during therapeutic procedures.
Selected colonoscope models feature a 3.7 mm working channel, allowing the use of a wide variety of compatible endoscopic accessories.
Wide Range of Compatibility
In addition to diagnostic and therapeutic gastrointestinal endoscopes, the AQ-110 is compatible with bronchoscopes and laryngoscopes.
This allows the platform to support several flexible endoscopy applications within one system family.
System Features
| Feature | Function |
|---|---|
| White Balance | Ensures correct colour-temperature balance |
| Enhanced Hemoglobin (HbE) | Highlights mucosal capillary morphology |
| Image Enhancement | Structure / Edge / Colour |
| IRIS | Peak / Average |
| Storage | USB |
| Freeze & Playback | Captures the live image and allows playback |
| Digital Zoom | 1× / 1.2× / 1.5× / 2× |
| Optical Chromoendoscopy | CBI – Compound Band Imaging mode |
| Image Enhancement Adjustment | Manual |
Compatible Video Gastroscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VGT-Q30 | 1050 mm | 1350 mm | 9.6 mm | 9.6 mm | 2.8 mm | 3–100 mm | 140° |
| VGT-Q30J | 1050 mm | 1350 mm | 9.0 mm | 9.0 mm | 2.8 mm | 3–100 mm | 140° |
Gastroscope bending range: Up 210°, Down 90°, Left 100°, Right 100°.
Compatible Video Colonoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VCC-Q30I | 1330 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30L | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30JI* | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
| VCC-Q30JL* | 1650 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 140° |
Colonoscope bending range: Up 180°, Down 180°, Left 160°, Right 160°.
*VCC-Q30JI and VCC-Q30JL: these endoscopes are equipped with an additional channel for washing.
Note: the supplied specification lists the VCC-Q30JL working length as 1650 mm and total length as 1600 mm. This has been reproduced exactly from the supplied material and should be verified with the manufacturer before final publication.
Compatible Video Bronchoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VBC-Q30* | 600 mm | 900 mm | 4.9 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
| VBC-1T30* | 600 mm | 900 mm | 5.8 mm | 5.7 mm | 2.0 mm | 2–50 mm | 120° |
Bronchoscope bending range: 160° / 130° / – / –.
* These models are equipped with an additional channel for washing.
Compatible Video Laryngoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| VRL-Q30 | 450 mm | – | 4.9 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
| VRL-1T30 | 450 mm | – | 5.8 mm | 4.9 mm | 2.0 mm | 2–50 mm | 120° |
Laryngoscope bending range: 160° / 130° / – / –.
Product Information
| Manufacturer | Aohua Endoscopy Co. |
| Product | AQ-110 Video Endoscopic System |
| Product Category | Endoscopic Video System |
| Species Code | 271790 |
Flexible Configuration for Multiple Endoscopy Applications
The Aohua AQ-110 combines Full HD CMOS imaging, CBI optical chromoendoscopy, image enhancement and a broad range of compatible flexible endoscopes in a configurable video endoscopy platform.
Contact Nass Ventures for system configuration, compatible scope selection, accessories, pricing, installation requirements and technical support.

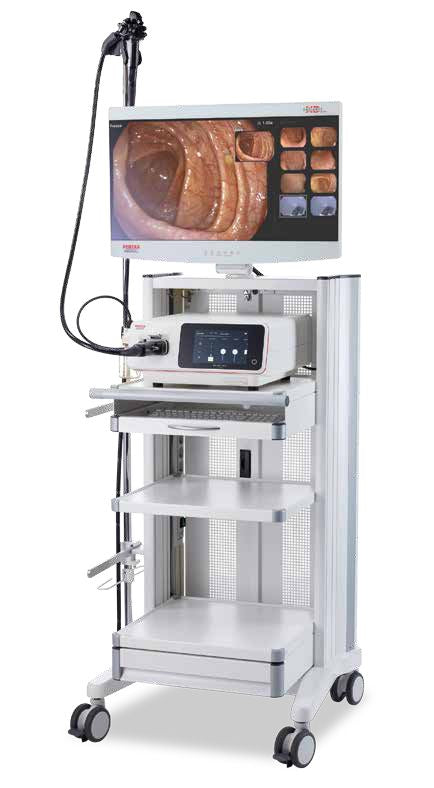

Pentax (HOYA) IMAGINA HD Video Endoscopy System
The Pentax IMAGINA platform is a complete HD video-endoscopy system designed for diagnosis and treatment. The HTML product page describes it as a configurable platform that can be equipped with new video gastroscope and video colonoscope options, high-resolution medical monitors, CO2 pump, coagulator, equipment cart and a wide range of accessories.
Clinical use and workflow
Suitable for endoscopy departments that require a scalable HD platform for upper and lower GI diagnostics, therapeutic work and procedure documentation.
Key features
- HD imaging with Pentax i-Scan technology to improve visualization of mucosal structures and vascular patterns.
- i-Scan support for detection, demarcation and description workflows during clinical protocols.
- Advanced LED illumination and a system intended to reduce unwanted heating at the distal end of the flexible endoscope.
- Modern user interface that can be configured to physician needs and supports procedure optimization and documentation.
- Integration and compatibility with hospital databases are described in the product page.
- Clear visualization and simplified correction of settings during procedures.
- Built-in image-capture system for managing captured patient images and video files.
- One-hand connection and easy operation through a smaller lightweight connector.
- Waterproof capless connector helps reduce risk of water ingress.
- Can be expanded into a full video tower with additional equipment.
- Supports established classification-aid workflows including SIMPLE for colorectal polyps, ZEEBO for Barrett oesophagus and PICASSO for ulcerative colitis as described on the product page.
Technical details from the product page
- Video output: 1080P (16:9), SXGA (5:4) and XGA (4:3).
- User interface: personalised 7-inch touch display.
- Virtual chromoendoscopy: i-Scan with digital image enhancement modes SE, CE and TE.
- Video and audio recording: built-in function with external USB storage.
- Processor dimensions and weight: 380 x 155 x 420 mm, 13 kg.
- Freeze-frame function: available.
- Digital zoom: up to 2.0x.
- Display languages: 15, including English and Russian.

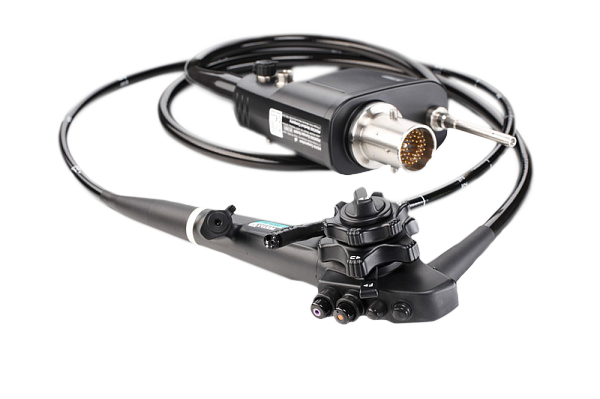

- Endoscope line includes EG29-i10c, EC34-i10c and EC38-i10c variants.
- Endoscope field of view: 140 degrees; depth of field: 3 to 100 mm.
- Distal-end diameters listed: 9.8 mm for EG29-i10c, 11.6 mm for EC34-i10c and 13.2 mm for EC38-i10c.
- Minimum instrument-channel diameter: 3.2 mm for EG29-i10c and 3.8 mm for EC34-i10c/EC38-i10c.
Configuration and included items
- IMAGINA video processor platform.
- Configurable video gastroscope and video colonoscope options.
- High-resolution medical monitor, CO2 pump, coagulator, cart and accessories available as part of a complete endoscopy-room configuration.
- Final configuration and accessory list should be confirmed according to clinical specialty and procedure mix.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

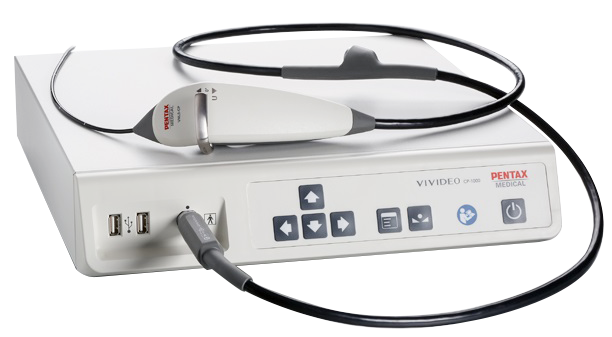

Pentax (HOYA) VIVIDEO CP-1000 ENT Video Endoscopy System
The Pentax VIVIDEO CP-1000 is an ENT video-endoscopy system designed to help clinics move from fibre-endoscopy to HD video imaging. The product page describes the system as suitable for diagnostic examinations across ENT areas, with HD video recording to external USB media and a compact video nasopharyngolaryngoscope configuration.
Clinical use and workflow
Suitable for ENT clinics and otolaryngology departments requiring HD video visualization, efficient documentation and patient-comfort-focused flexible scope handling.
Key features
- HD image quality for ENT examinations.
- Video documentation to external USB storage, reducing the need for printed capture records.
- Integrated LED illumination in the endoscope for high brightness.
- Flexible insertion tube supports smooth endoscope advancement.
- Designed to improve diagnostic confidence, patient treatment workflow and clinic productivity.
- Small insertion diameter of 3 mm is listed in the product summary.
- CP-1000 processor and VNL9-CP video nasopharyngolaryngoscope configuration is listed on the product page.
- The VIVIDEO system is noted on the product page as a 2015 Red Dot Award winner in the medical category.
Technical details from the product page
- Processor: CP-1000.
- Scope: VNL9-CP video nasopharyngolaryngoscope.
- Insertion-tube diameter: 3 mm as listed in the page summary.
- Recording: HD video recording to USB media.
- Integrated light source: LED in the endoscope.
Configuration and included items
- VIVIDEO CP-1000 video processor.
- VNL9-CP video nasopharyngolaryngoscope.
- Monitor/display, storage media, cleaning accessories and reprocessing equipment should be confirmed according to department requirements.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

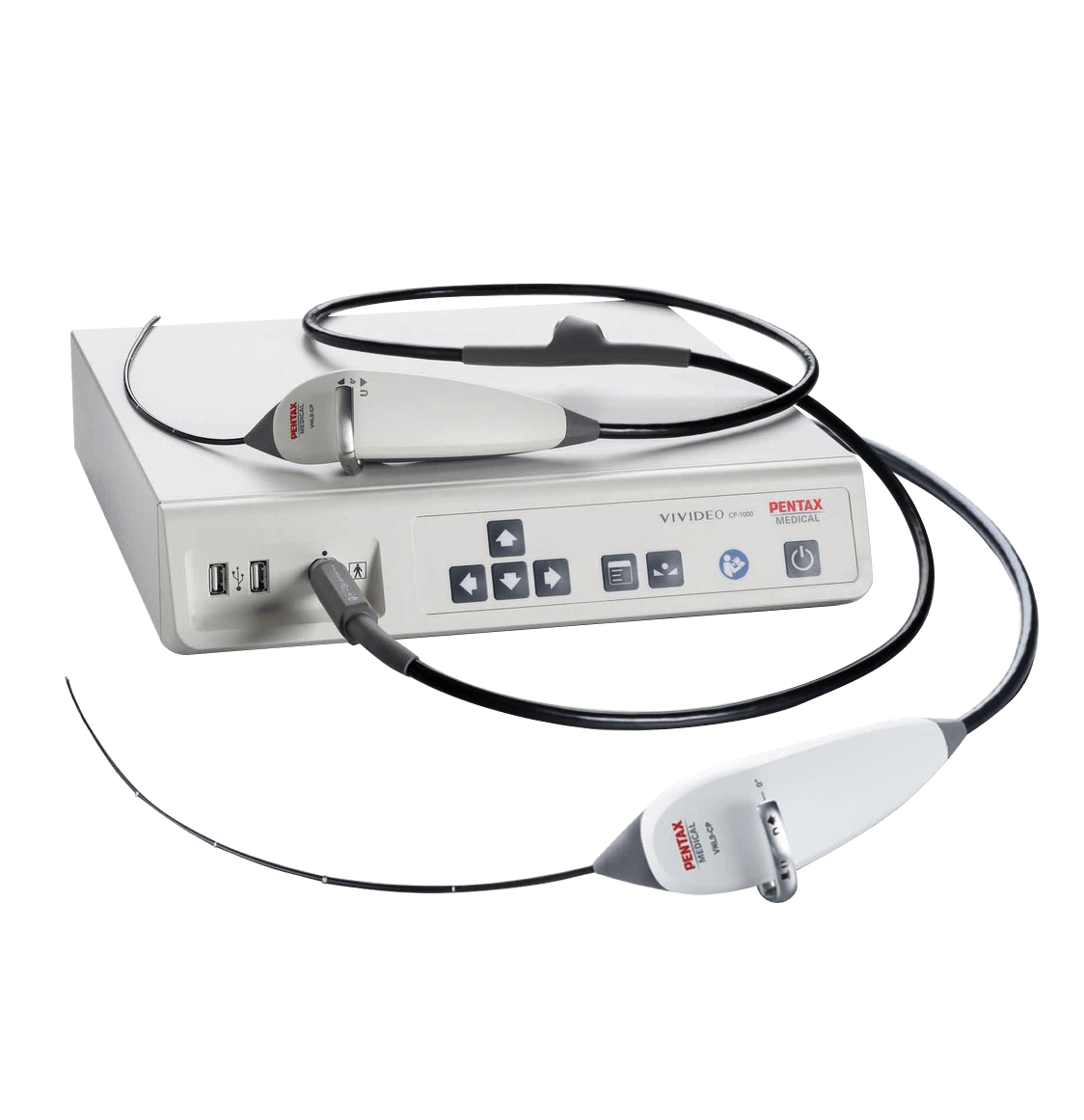

Pentax (HOYA) VIVIDEO CP-1000 ENT Video Endoscopy Kit with 2 VNL9-CP Endoscopes
This package combines the Pentax VIVIDEO CP-1000 processor with two VNL9-CP video nasopharyngolaryngoscopes. The uploaded product page describes it as a special ENT video-endoscopy set for an otolaryngology office, giving clinics an accessible move from fibre endoscopy to HD video imaging.
Clinical use and workflow
Suitable for ENT diagnostic rooms where the department wants video documentation, HD visualisation and a compact workflow for nasopharyngeal and laryngological examinations.
Key features
- HD video quality for ENT examination workflows.
- LED light source integrated in the endoscope for a compact and practical configuration.
- Built-in video recording to support procedure documentation.
- Very small 3 mm insertion diameter is noted on the product page to support patient comfort.
- Autofocus is noted in the HTML meta description for the VNL9-CP package.
- USB-based recording can support documentation without printing.
- Flexible insertion tube supports smoother advancement during ENT examinations.
- Designed to improve diagnostic efficiency, patient comfort and overall clinic productivity.
Technical details from the product page
- Processor: VIVIDEO CP-1000.
- Endoscopes: VNL9-CP video nasopharyngolaryngoscopes, quantity two in the promotional package.
- Insertion diameter referenced on the source page: 3 mm.
- HD image quality and video recording are listed in the product description.
Configuration and included items
- VIVIDEO CP-1000 video processor, one unit.
- VNL9-CP video nasopharyngolaryngoscope, two units.
- Monitor, trolley, capture storage, cleaning accessories and reprocessing equipment should be confirmed for the final package.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

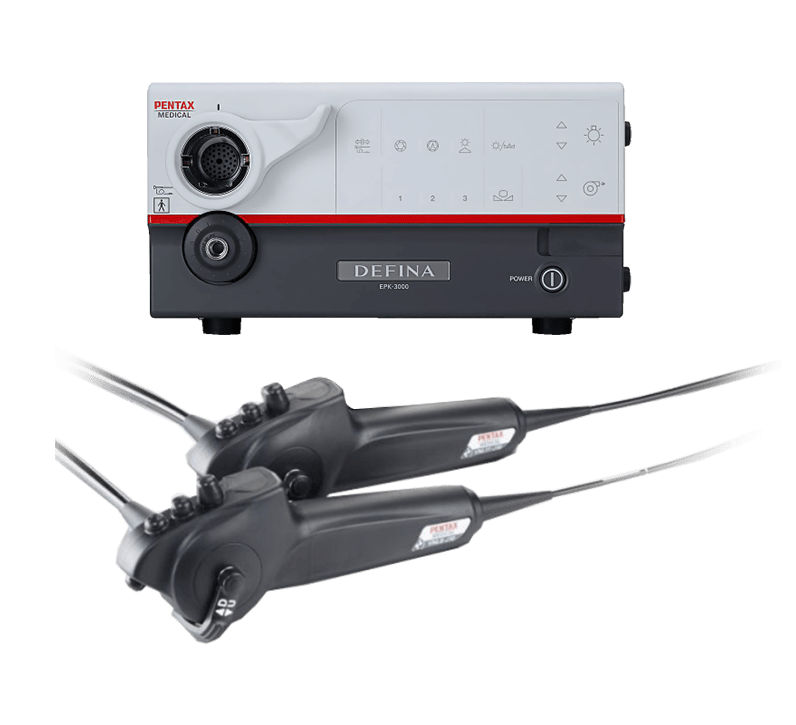

Pentax (HOYA) EPK 3000 DEFINA ENT Video Endoscopy Kit with 2 VNL-J10 Endoscopes
This ENT video-endoscopy package combines the Pentax EPK-3000 DEFINA video processor with two VNL-J10-series video nasopharyngoscopes. The HTML page presents it as a special configuration for an otolaryngology office, with HD-quality imaging and a choice of VNL-J10 endoscopes such as VNL15-J10, VNL11-J10 or VNL8-J10 depending on the final package.
Clinical use and workflow
Designed for ENT video-endoscopy departments that need HD visualisation, i-Scan support, patient comfort through small-diameter scopes, improved distal-light distribution and instrument-channel functionality for compatible procedures.
Key features
- EPK-3000 DEFINA processor is described as a high-performance video processor capable of producing HD-level images even with mid-class endoscopes.
- Integrated Pentax i-Scan image-enhancement algorithms support assessment and description of subtle findings that can be difficult to see in standard endoscopic views.
- HD DVI-D output up to 1920 x 1080 for compatible displays and scopes.
- Dynamic lighting range helps improve visibility of both near and distant areas.
- 150 W xenon lamp provides strong illumination for HD image formation.
- Compact processor dimensions and modern appearance support installation in ENT or endoscopy rooms.
- User interface uses a control panel and keyboard for setting adjustment.
- Auto-freeze image-selection function helps capture the sharpest frame when the freeze button is pressed.
- VNL-J10 series supports enhanced ENT diagnostics, flexible videostroboscopy and FEES swallowing-assessment workflows when configured with appropriate equipment.
Technical details from the product page
- HD video output: DVI-D, 1920 x 1080 when used with compatible 90K and J10 endoscopes.
- SD video outputs: RGB, Y/C and composite.
- Virtual chromoendoscopy: i-Scan with simple control through i-Scan 1, 2 and 3a buttons.
- Light source: 150 W xenon lamp.
- Processor dimensions: 350 x 180 x 485 mm.
- Processor weight: 13 kg.
- Compatible scope list on the product page includes EG-2490K, EG-2790K, EG-2990K, EG-3490K, EG-3890TK, EG16-K10, EB-1170K, EB-1970TK, EB15-J10, VNL-1190STK, VNL-1070STK, VNL8-J10, VNL11-J10, VNL15-J10 and ECY-1575K.
Configuration and included items
- Pentax EPK-3000 DEFINA video processor.
- Two VNL-J10-series ENT video endoscopes, with final model selection to be confirmed.
- Suitable monitor, trolley, cables, stroboscopy components and reprocessing accessories should be specified separately unless included in the quote.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

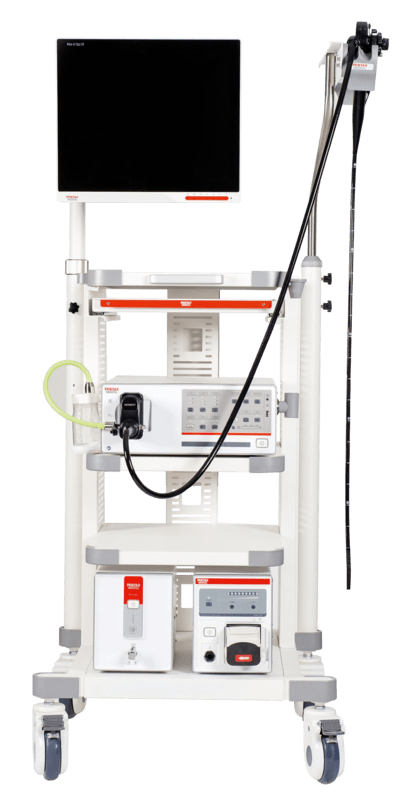

Pentax (HOYA) VERSA EPK-V1500c HD Video Endoscopy System
The Pentax VERSA system is an HD video-endoscopy visualization platform for upper and lower gastrointestinal diagnostics and interventions. The product page describes it as a PENTAX Medical system based on CMOS and LED technologies, delivering HD image quality at an accessible cost level with USB documentation support.
Clinical use and workflow
Appropriate for departments wanting a cost-conscious PENTAX HD video-endoscopy setup for routine upper and lower GI work with documentation capability.
Key features
- HD video-endoscopy system for upper and/or lower GI examination workflows.
- Suitable for diagnostic examinations and surgical/interventional endoscopic procedures depending on selected scopes and accessories.
- CMOS and LED technologies are used to deliver HD-quality images.
- Image capture and recording to external USB devices supports clinical documentation without printing.
- HbE image-enhancement function is listed in the product summary.
- Long-service-life LED light source is noted in the product summary.
- Configured as a complete endoscopy stack with processor, scope options, cart and monitor.
Technical details from the product page
- System family: VERSA EPK-V1500c.
- Processor includes built-in light source according to product-page configuration.
- The product page references an HD video endoscope, LED light source, endoscopy cart, monitor and USB support.
Configuration and included items
- Video processor with built-in light source.
- Video gastroscope.
- Video colonoscope.
- Endoscopy equipment cart.
- Medical monitor.
- Exact scope models, channel sizes, water bottle, valves, cleaning accessories and recording media should be confirmed before order.
Ordering information
This item is supplied as a medical-equipment configuration and should be confirmed before order, including the required processor or light-source compatibility, scope model, monitor or cart requirements, cables, cleaning and reprocessing accessories, regional power requirements, user documentation, warranty, installation support and service options. Final configuration may vary depending on clinical use, department requirements and available manufacturer options.
Supply and delivery
- Suitable for hospital endoscopy departments, outpatient diagnostic rooms, ENT clinics or gastroenterology units depending on selected configuration.
- Installation, commissioning, user familiarisation and after-sales service can be arranged where required.
- Consumables, biopsy valves, cleaning brushes, water bottles, tubing sets and reprocessing accessories should be specified separately unless included in the confirmed package.

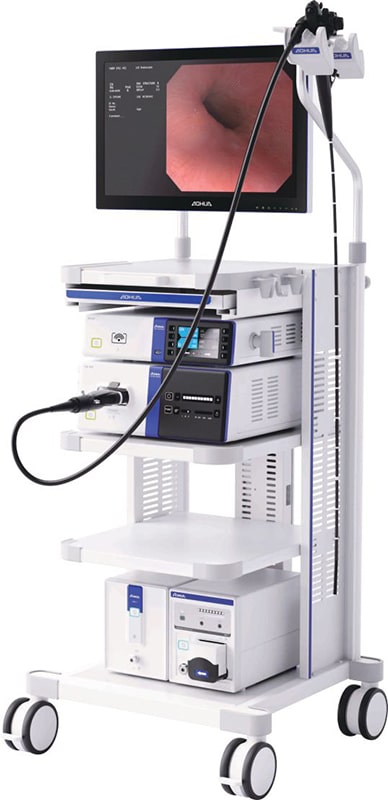

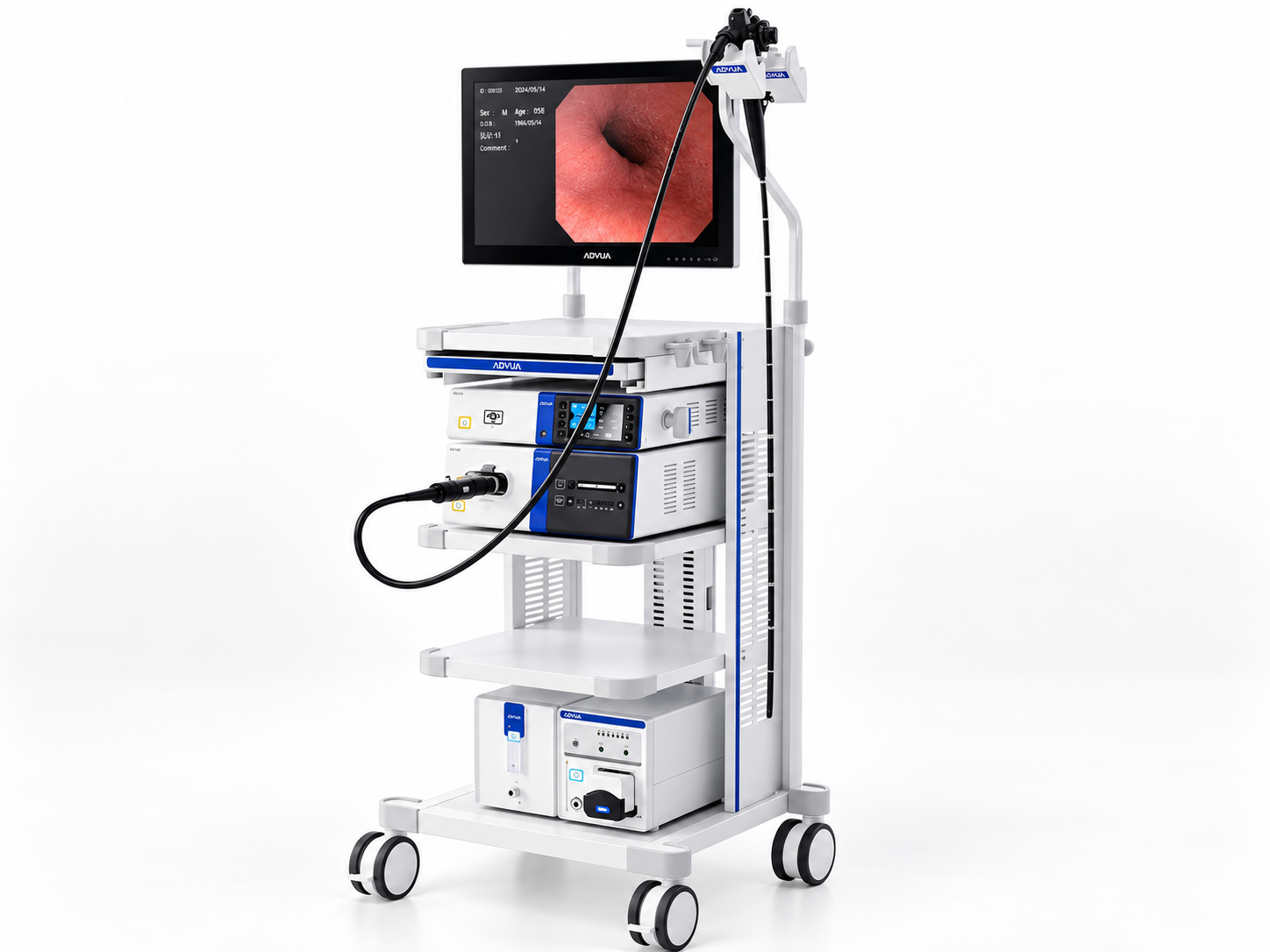

Aohua AQ-200 Full HD Video Endoscopy System
Full HD Flexible Endoscopy with Advanced Optical Chromoendoscopy
The AQ-200 Full HD Video Endoscopy System is designed to provide detailed and high-quality visualisation for gastrointestinal endoscopy.
Compatible endoscopes are equipped with a 2-megapixel CMOS image sensor and provide Full HD resolution, producing detailed and crystal-clear images during diagnostic and therapeutic procedures.
The system combines Full HD imaging with optical chromoendoscopy, high-speed laser data transmission, wireless power technology, dual-display capability, image enhancement and ergonomic endoscope design.
Expert-Level Full HD Visualisation
The compatible video endoscopes incorporate a 2-megapixel CMOS matrix and provide Full HD resolution for detailed gastrointestinal imaging.
Full HD image quality supports clear observation of mucosal structures, vascular patterns and other clinically relevant anatomical detail.
Three Modes of Optical Chromoendoscopy
Color-Enhanced Imaging (CBI) technology is designed to optimise the balance between illumination, vascular colour contrast and mucosal structural detail.
The system provides three CBI optical chromoendoscopy modes to support enhanced observation of vascular and mucosal patterns and assist with identification of suspicious lesions.
CBI Normal
Optical chromoendoscopy mode for enhanced visualisation of mucosal and vascular detail.
CBI Indigo
Additional colour-enhanced viewing mode for detailed endoscopic assessment.
CBI Aqua
Alternative optical enhancement mode for additional visual differentiation.
Exclusive Innovations
Laser Data Transmission
High-speed laser signal transmission of up to 8 Gbps supports real-time image synchronisation and improved interference protection during complex procedures.
Wireless Power Supply
The wireless power system eliminates conventional metal electrical contacts, helping provide a stable connection and supporting a hermetically sealed endoscope design.
Dual Display Mode
Dual display mode allows both white-light imaging and optical chromoendoscopy imaging to be shown on a single screen.
This allows clinicians to directly compare conventional white-light images with CBI-enhanced images without repeatedly switching between illumination modes.
Ease of Use
Excellent Manoeuvrability
A redesigned ergonomic handle and four programmable buttons are intended to reduce operator fatigue and provide convenient access to frequently used functions.
Adjustable Colonoscope Stiffness
Colonoscope rigidity can be adjusted using the adjustment ring, allowing stiffness to be adapted according to different segments of the colon.
Waterproof Construction
The endoscope system incorporates waterproof construction designed to reduce the risk of water-related damage.
One-Touch Connection
The one-touch connection system is designed to simplify endoscope connection and reduce the time required when changing endoscopes between procedures.
System Features
| Feature | Specification |
|---|---|
| Light Source | 300 W Xenon / 3 LEDs |
| Image Enhancement | Structure / Edge / Colour |
| Brightness Adjustment | Automatic / Manual |
| IRIS | Peak / Average / Auto |
| Data Storage | USB |
| Digital Zoom | 1× / 1.2× / 1.5× / 2× |
| Optical Chromoendoscopy | CBI Normal / CBI Indigo / CBI Aqua |
| Dual Display Mode | 2 Images |
Compatible Full HD Video Gastroscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| FHD-GT200 | 1050 mm | 1350 mm | 9.8 mm | 9.8 mm | 2.8 mm | 3–100 mm | 145° |
| FHD-GT200J | 1050 mm | 1350 mm | 9.0 mm | 10.5 mm | 10.5 mm* | 3–100 mm | 145° |
*The supplied specification material lists the FHD-GT200J instrument channel diameter as 10.5 mm. Confirm this specification with the manufacturer before final publication.
Gastroscope bending range: Up 210°, Down 90°, Left 100°, Right 100°.
Compatible Full HD Video Colonoscopes
| Model | Working Length | Total Length | Distal End Ø | Insertion Tube Ø | Instrument Channel Ø | Depth of Field | Field of View |
|---|---|---|---|---|---|---|---|
| FHD-CL200I | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200L | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200JI | 1300 mm | 1600 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
| FHD-CL200JL | 1650 mm | 1950 mm | 12.8 mm | 12.8 mm | 3.7 mm | 3–100 mm | 145° |
Colonoscope bending range: Up 180°, Down 180°, Left 160°, Right 160°.
FHD-CL200JI and FHD-CL200JL: these models are equipped with an additional channel for washing.
Advanced Full HD Flexible Endoscopy
Combining Full HD CMOS imaging, three-mode CBI optical chromoendoscopy, laser data transmission, wireless power, dual display, image enhancement and a comprehensive range of compatible gastroscopes and colonoscopes, the AQ-200 provides a flexible platform for modern gastrointestinal endoscopy.
Contact Nass Ventures for system configuration, compatible endoscope selection, accessories, installation requirements, pricing and technical support.

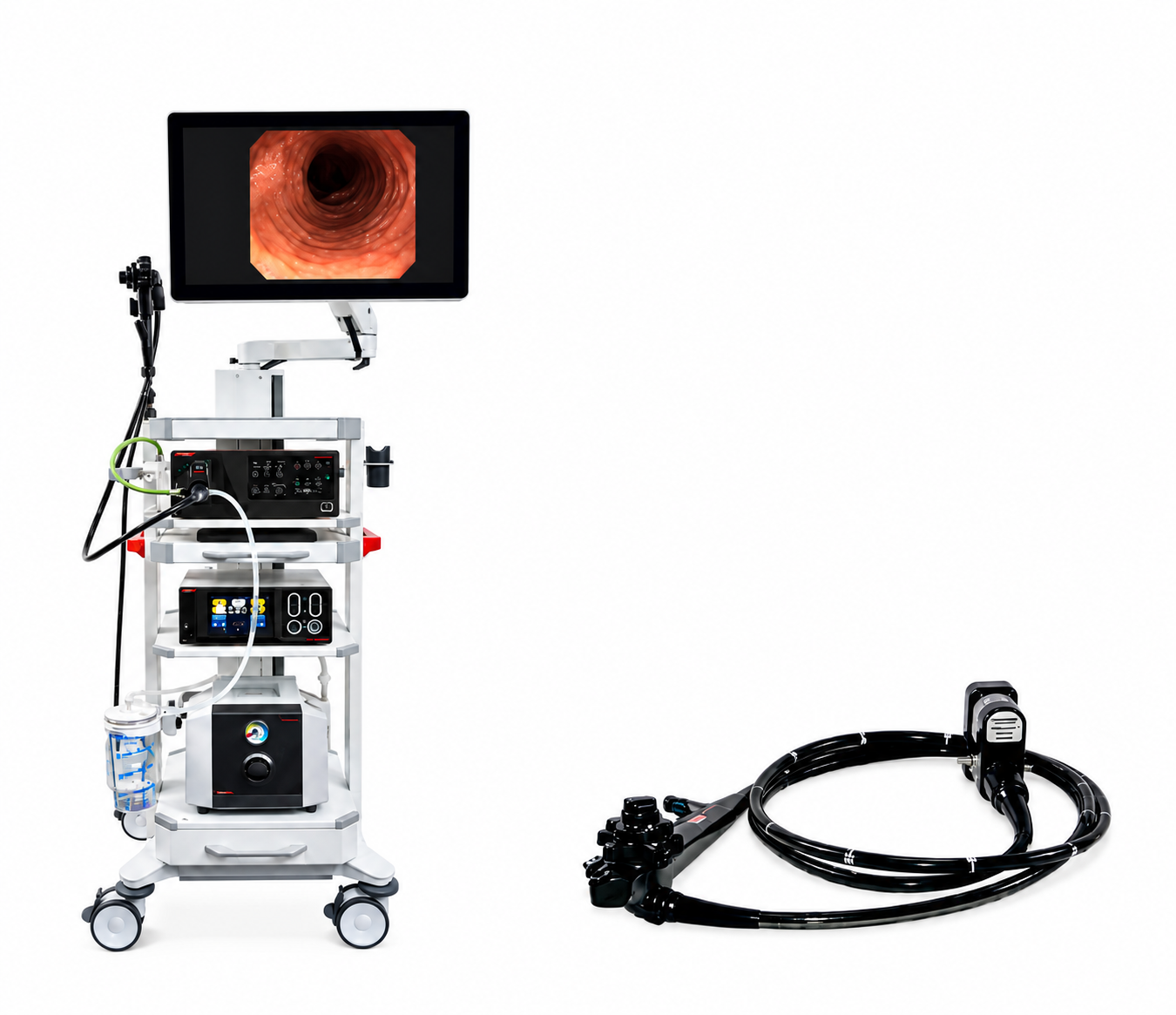

EndoMed Systems COMBO-3 C34S & C34L Video Colonoscopes
HD Flexible Video Colonoscopes for the COMBO-3 Endoscopy System
The EndoMed Systems COMBO C34S and COMBO C34L are flexible video colonoscopes designed for colonoscopic examinations. The two models differ primarily in insertion tube length, allowing healthcare facilities to select the configuration best suited to their clinical requirements.
Their integrated video chain provides HD images for detailed visualisation during lower gastrointestinal examinations. Both colonoscopes are designed specifically for use with the COMBO-3 video processor.
Developed as economical and cost-effective video colonoscopes, the C34S and C34L combine HD imaging, practical handling and a design intended to support low-cost maintenance.
Key Features
HD Imaging
The integrated video chain provides high-definition images for clear and detailed visualisation during colonoscopic examinations.
Two Insertion Lengths
Choose between the 1350 mm C34S and the 1650 mm C34L to suit different colonoscopy requirements.
3.7 mm Instrument Channel
Both models incorporate a 3.7 mm instrument channel for compatible endoscopic instruments and accessories.
140° Field of View
A wide 140-degree field of view supports comprehensive visualisation during lower gastrointestinal examinations.
Wide Bending Range
The distal section provides 180° upward, 180° downward, 160° right and 160° left angulation for controlled manoeuvrability.
Economic & Cost-Effective
Designed as economical video colonoscopes with an emphasis on cost-effective operation and low-cost maintenance.
COMBO C34S vs COMBO C34L
Both colonoscopes share the principal imaging and operating specifications. The main difference between the models is the insertion tube length.
| Specification | COMBO C34S | COMBO C34L |
|---|---|---|
| Insertion Tube Length | 1350 mm | 1650 mm |
| Insertion Tube Diameter | 12.8 mm | 12.8 mm |
| Instrument Channel Diameter | 3.7 mm | 3.7 mm |
| Field of View | 140° | 140° |
| Direction of View | 0° | 0° |
| Depth of Field | 3–100 mm | 3–100 mm |
Bending Section & Manoeuvrability
The distal bending section provides a wide range of controlled movement to support navigation during colonoscopic examinations.
- Up: 180°
- Down: 180°
- Right: 160°
- Left: 160°
Technical Specifications
| Specification | COMBO C34S / C34L |
| Insertion Tube Length | C34S: 1350 mm | C34L: 1650 mm |
| Insertion Tube Diameter | 12.8 mm |
| Instrument Channel Diameter | 3.7 mm |
| Bending Section | Up 180°, Down 180°, Right 160°, Left 160° |
| Field of View | 140° |
| Direction of View | 0° |
| Depth of Field | 3–100 mm |
| Control Body Dimensions (W × H × D) | 130 × 280 × 100 mm |
| Universal Tube Length | 1550 mm |
| Weight | 1750 g |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electrical Safety Class | I |
| EMC Classification | 1B according to DIN EN 60601-1-2 |
Imaging & Features
| Remote Switch | One remote switch equipped on the control body |
| Control Body | Lightweight medical-grade plastic |
| CCD Chip | 1/6" colour chip |
| Resolution | HD |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
| Air Pressure – Operation | 700–1060 mbar |
| Air Pressure – Storage | 600–1300 mbar |
Standard Accessories
The manufacturer's standard accessory package includes:
- 1 × Transportation Case
- 1 × Air/Water Valve
- 1 × Suction Valve
- 5 × Biopsy Valves
- 1 × Biopsy Forceps – Oval Cup
- 1 × Water Bottle
- 2 × Mouth Pieces
- 1 × Silicone Oil, 5 ml
- 1 × Cleaning Adapter
- 1 × All-Channel Irrigator Set
- 1 × 50 ml Syringe for Manual Irrigation
- 1 × Long Cleaning Brush
- 1 × Short Cleaning Brush
- 1 × Operation Manual
Product Information
| Model | Description | Item No. |
|---|---|---|
| COMBO C34S | Video Colonoscope for COMBO-3 Endoscopy System, 1350 mm | 600170 |
| COMBO C34L | Video Colonoscope for COMBO-3 Endoscopy System, 1650 mm | 600171 |
COMBO-3 System Compatibility
The COMBO C34S and C34L video colonoscopes are designed for use with the EndoMed Systems COMBO-3 Video Processor, forming part of the complete flexible gastrointestinal endoscopy platform.
Configure Your COMBO-3 Colonoscopy System
Contact Nass Ventures for pricing, model selection, processor configuration, compatible accessories, monitors, endoscopy trolleys, suction equipment, installation requirements and technical support.

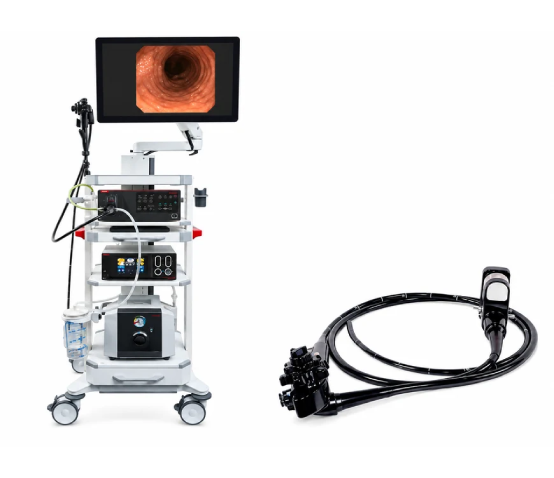

EndoMed Systems COMBO-3 G34Q & G34 Video Gastroscopes
HD Flexible Video Gastroscopes for the COMBO-3 Endoscopy System
The EndoMed Systems COMBO G34Q and COMBO G34 are flexible video gastroscopes designed for gastroscopic examinations. Their integrated video chain provides HD images for clear visualisation during upper gastrointestinal examinations.
Both gastroscopes are designed specifically for use with the COMBO P34 Video Processor and form part of the EndoMed Systems COMBO-3 flexible endoscopy platform.
Designed as economical and cost-effective video gastroscopes, the G34Q and G34 provide HD imaging while supporting practical operation and low-cost maintenance.
Key Features
HD Imaging
The integrated video chain provides high-definition images for detailed visualisation during gastroscopic examinations.
COMBO-3 Compatibility
Designed specifically for use with the EndoMed Systems COMBO P34 Video Processor.
2.8 mm Instrument Channel
Both models incorporate a 2.8 mm instrument channel for compatible endoscopic instruments and accessories.
140° Field of View
A wide 140-degree field of view supports comprehensive visualisation during gastroscopic examinations.
Wide Bending Range
The distal section provides up to 210° upward, 90° downward, 100° right and 100° left angulation.
Economic & Cost-Effective
The G34Q and G34 are designed as economical video gastroscopes with an emphasis on cost-effective operation and low-cost maintenance.
COMBO G34Q vs COMBO G34
Both models share the principal imaging and operating specifications. The primary dimensional difference is the insertion tube diameter.
| Specification | COMBO G34Q | COMBO G34 |
|---|---|---|
| Insertion Tube Length | 1050 mm | 1050 mm |
| Insertion Tube Diameter | 9.6 mm | 9.0 mm |
| Instrument Channel Diameter | 2.8 mm | 2.8 mm |
| Field of View | 140° | 140° |
| Direction of View | 0° | 0° |
| Depth of Field | 3–100 mm | 3–100 mm |
Bending Section & Manoeuvrability
The distal bending section is designed to provide controlled manoeuvrability during gastroscopic examination.
- Up: 210°
- Down: 90°
- Right: 100°
- Left: 100°
Technical Specifications
| Specification | COMBO G34Q / G34 |
| Insertion Tube Length | 1050 mm |
| Insertion Tube Diameter | G34Q: 9.6 mm | G34: 9.0 mm |
| Instrument Channel Diameter | 2.8 mm |
| Bending Section | Up 210°, Down 90°, Right 100°, Left 100° |
| Field of View | 140° |
| Direction of View | 0° |
| Depth of Field | 3–100 mm |
| Control Body Dimensions (W × H × D) | 130 × 280 × 100 mm |
| Universal Tube Length | 1550 mm |
| Weight | 1750 g |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electrical Safety Class | I |
| EMC Classification | 1B according to DIN EN 60601-1-2 |
Imaging & Features
| Remote Switch | One remote switch equipped on the control body |
| Control Body | Lightweight medical-grade plastic |
| CCD Chip | 1/6" colour chip |
| Resolution | HD |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
| Air Pressure – Operation | 700–1060 mbar |
| Air Pressure – Storage | 600–1300 mbar |
Standard Accessories
The manufacturer's standard accessory package includes:
- 1 × Transportation Case
- 1 × Air/Water Valve
- 1 × Suction Valve
- 5 × Biopsy Valves
- 1 × Biopsy Forceps – Oval Cup
- 1 × Water Bottle
- 2 × Mouth Pieces
- 1 × Silicone Oil, 5 ml
- 1 × Cleaning Adapter
- 1 × All-Channel Irrigator Set
- 1 × 50 ml Syringe for Manual Irrigation
- 1 × Long Cleaning Brush
- 1 × Short Cleaning Brush
- 1 × Operation Manual
Product Information
| Model | Description | Item No. |
|---|---|---|
| COMBO G34Q | Video Gastroscope for COMBO-3 Endoscopy System, 9.6 mm | 600160 |
| COMBO G34 | Video Gastroscope for COMBO-3 Endoscopy System, 9.0 mm | 600161 |
COMBO-3 System Compatibility
The COMBO G34Q and G34 video gastroscopes are designed for use with the EndoMed Systems COMBO P34 Video Processor, forming part of the COMBO-3 flexible gastrointestinal endoscopy system.
Configure Your COMBO-3 Gastroscopy System
Contact Nass Ventures for pricing, model selection, COMBO P34 processor configuration, compatible accessories, monitors, endoscopy trolleys, suction equipment, installation requirements and technical support.

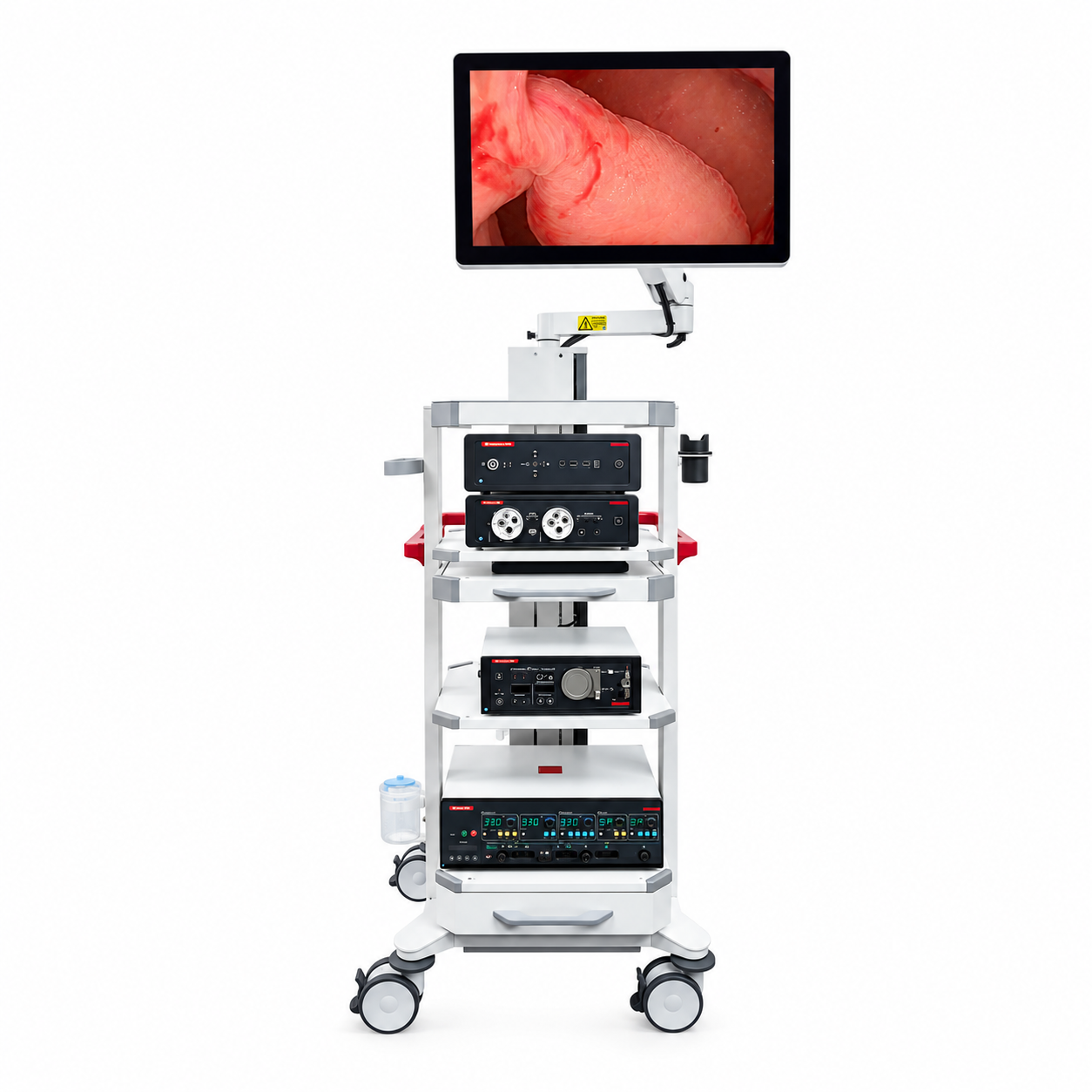

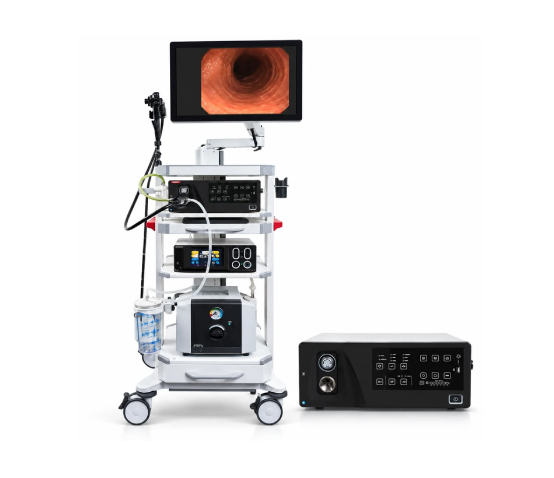

EndoMed Systems COMBO P34 Video Processor
All-in-One Video Processor for the COMBO-3 Flexible Endoscopy System
The EndoMed Systems COMBO P34 is a video processor designed for use in gastrointestinal endoscopic examinations. It combines video processing, an integrated LED light source and an insufflation pump within one compact platform, providing the core functions required for the COMBO-3 flexible endoscopy system.
The processor performs camera control, image detection, image processing and image optimisation while also controlling the video display, user interface and integrated LED light source.
Its integrated pump provides air pressure for both insufflation and rinsing, while the dedicated Vessel Enhancement function is designed to enhance vessel observation during gastrointestinal examinations.
Key Features
All-in-One Compact Unit
Combines video processing, LED illumination and insufflation functionality within a single endoscopy processor.
Video Processing
Provides camera control, image detection, image processing, image optimisation and video display control.
Integrated LED Light Source
Built-in LED illumination with a specified lamp lifetime of 10,000 hours and automatic light intensity control.
USB Recording & Storage
Supports external USB image storage in HD resolution together with internal image memory.
Integrated Insufflation Pump
Provides air pressure for insufflation and rinsing, with specified air insufflation pressure of 40–50 kPa.
Vessel Enhancement
Dedicated Vessel function provides enhanced vessel observation during gastrointestinal examinations.
Advanced Image Control
The COMBO P34 provides a range of image-processing and adjustment functions to support endoscopic visualisation.
- Structure Enhancement: Adjustable in 4 steps
- Colour Adjustment: Red and blue intensity independently adjustable
- Automatic Brightness Control: Peak and average adjustment
- Internal Image Storage: 16-image memory
- External Image Storage: USB HD-resolution storage
- Digital Video Interface: DVI-I
- Analogue Video Interfaces: S-Video (Y/C), FBAS Composite and RGB
- Communication Interfaces: RS232 and USB
Integrated LED Light Source
The COMBO P34 incorporates an LED light source directly into the processor, reducing the need for a separate external light-source unit.
- Light Source: LED
- Colour Rendering Index (CRI): ≥ 90, High CRI
- Colour Temperature: 5000K – 7000K
- Main Lamp Lifetime: 10,000 hours
- Intensity Adjustment: Automatic light intensity control
Technical Specifications
| Model | COMBO P34 |
| Dimensions (W × H × D) | 400 × 170 × 450 mm |
| Weight | 10.2 kg |
| Power Supply | 220 VAC, 50 Hz |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electric Safety Class | I |
| EMC Classification 5501 | 1B according to DIN EN 60601-1-2 |
| Manufactured and Tested | EN 60601-1, RL 93/42/EWG |
Image Features
| Video System | PAL |
| Digital Video Interface | DVI-I |
| Analogue Video Interface | S-Video (Y/C), FBAS (Composite), RGB |
| Interface | RS232, USB |
| Structure Enhancement | Adjustable, 4 steps |
| Colour Adjustment | Red/blue intensity individually adjustable |
| Internal Image Storage | 16-image memory |
| External Image Storage | USB HD-resolution |
| Automatic Brightness Control | Peak and average adjustment |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
Endoscope Compatibility
The COMBO P34 endoscope connection/socket is designed for COMBO-3 gastroscopes and colonoscopes.
Standard Delivery
The catalogue specifies the following delivery contents:
- COMBO-3 Video Processor
- Power cable
- Y/C cable
- BNC cable
- HDMI-DVI cable
- User manual
Product Information
Manufacturer: EndoMed Systems
Product: COMBO P34 Video Processor
System: COMBO-3 Flexible Endoscopy System
Item No.: 600151
Complete Your COMBO-3 Endoscopy Configuration
Contact Nass Ventures for system configuration, compatible gastroscopes and colonoscopes, monitors, endoscopy trolleys, suction equipment, accessories, installation requirements and quotation support.
The EndoMed Systems COMBO P34 combines video processing, LED illumination and an integrated air pump for compatible COMBO-3 flexible endoscopes. It supports camera control, image optimisation and display output for gastrointestinal examinations.
Key features
- Built-in LED light source and air pump for insufflation and rinsing.
- Vessel enhancement mode and four-step structure enhancement.
- Adjustable red and blue intensity with automatic brightness control.
- Photo capture and video recording to a USB memory stick; confirm the supplied USB configuration.
Technical specifications
- Video system: PAL
- Digital video output: DVI-I
- Analogue video outputs: S-Video (Y/C), composite video (FBAS) and RGB
- Interfaces: RS232; USB listed as optional
- LED colour rendering index: at least 90
- LED colour temperature: 5,000–7,000 K
- Specified lamp life: 10,000 hours
- Air insufflation pressure: 40–50 kPa
Technical Specifications
| Image Features | |
|---|---|
| Video Systems |
PAL |
| Digital video interface | DVI-I |
| Analogue video interface | S-video (Y/C); FBAS (Composite), RGB |
| Interface | RS232, USB (optional) |
| Structure Enhancement | Adjustable (4-steps) |
| Color Adjustment | Red/blue intensity can be adjusted individually |
| Automatic brightness control | Peak and average adjustment |
| Light Source Features | |
| Lamp | LED |
| CRI (color rendering index) | ≥ 90, High CRI |
| Quality and Color temperature | 5000 K ~ 7000 K |
| Main lamp Life time | 10,000 hours |
| Intensity adjustment | Automatic light intensity control |
| Air insufflation | 40 - 50 kPa |
Processor only. Compatible endoscopes and other system components are quoted separately; confirm the final configuration and supplied accessories before ordering.
Featured Components
The product lineup includes the COMBO P34 video processor, alongside the COMBO G34Q and G34 video gastroscopes, as well as the COMBO C34S and C34L video colonoscopes. Together, these components provide an integrated German-engineered solution for gastrointestinal endoscopy.
COMBO P34
The COMBO P34 integrates advanced video processing, a powerful LED light source and an insufflation pump into a single platform. Its intuitive interface provides precise camera control while the dedicated Vessel Enhancement function supports detailed observation of mucosal and vascular structures.
LEARN MORE
COMBO-3 G34Q & G34
Engineered to deliver high-definition clarity during gastroscopic examinations, the COMBO G34Q and G34 integrate seamlessly with the COMBO P34 processor for reliable and efficient upper gastrointestinal endoscopy.
LEARN MORE
COMBO-3 C34S & C34L
Designed to accommodate different colonoscopy requirements, the C34S and C34L provide clear visualisation for diagnostic and therapeutic procedures while integrating directly with the COMBO P34 processor.
LEARN MOREVACO SP120
Dedicated medical suction solution designed to support fluid and secretion management during endoscopic procedures.
LEARN MOREElectrosurgical Unit
Electrosurgical technology can be integrated into the endoscopy configuration to support compatible therapeutic gastrointestinal procedures.
LEARN MOREEndoscopy Trolley
A dedicated equipment trolley provides organised mounting and positioning of the processor, monitor and supporting endoscopy equipment within the clinical environment.
LEARN MOREBenefits for Patients and Facilities
Precision and Effectiveness
In the realm of modern gastroenterology, the integration of flexible endoscopy has ushered in a new era of precision and effectiveness. A flexible endoscope serves as both a diagnostic tool and a therapeutic instrument, allowing healthcare professionals to visualise the gastrointestinal tract with exceptional accuracy.
Advancing Endoscopic Treatments
Flexible endoscopy enables the identification of a wide range of abnormalities, from ulcers and polyps to tumours and inflammation, while also supporting therapeutic procedures that can enhance patient comfort and reduce invasiveness.
As technology continues to advance, innovations such as high-definition imaging provide increasingly detailed visualisation, supporting more targeted and effective diagnostic and therapeutic procedures.
Patient Benefits
- Minimally invasive procedures are designed to minimise discomfort and enhance patient well-being.
- Shorter hospital stays and faster recovery times can contribute to improved patient outcomes.
- The COMBO-3 System helps healthcare facilities control overall endoscopy costs, supporting broader access to advanced endoscopic technology.
- High-definition visualisation supports detailed examination of the gastrointestinal tract and accurate clinical assessment.
- Examinations can often be conducted under local anaesthesia, conscious sedation or another appropriate anaesthesia protocol, depending on the procedure and clinical requirements.
- Flexible endoscopy enables both diagnostic and therapeutic procedures through a minimally invasive approach.
Facility Benefits
- Long-life LED technology: LED illumination is designed for durability, minimising the need for frequent lamp replacement, helping reduce replacement costs and associated environmental impact.
- Enhanced diagnostic capability: Vessel enhancement combined with high-definition imaging enables high-contrast observation of mucosal patterns and vascularisation, supporting detailed gastrointestinal examination.
- Integrated system architecture: The COMBO P34 combines video processing, LED illumination and insufflation functionality within an integrated platform, simplifying the configuration of the endoscopy suite.
- Reduced maintenance costs: The economic design of the COMBO P34 video endoscopes incorporates durable materials and efficient design principles that can help reduce servicing and repair expenditure.
- Economical equipment replacement: The COMBO-3 video endoscope platform provides a cost-conscious approach to equipment replacement and future upgrades.
- Lower lifecycle costs: The combination of durable components, LED illumination and economical endoscope design can contribute to reduced running costs throughout the system's operational lifespan.
