All-in-one flexible endoscopy video processor with integrated LED light source, insufflation/rinsing pump, USB image storage and Vessel Enhancement. Designed for EndoMed COMBO-3 gastroscopes and colonoscopes.
4 Available to Order Sold Out 4
Share

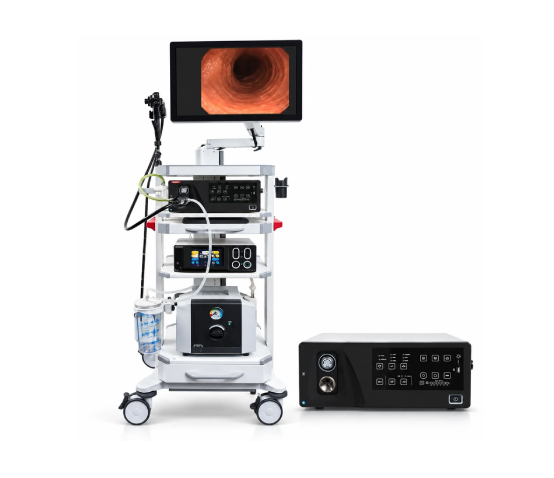

EndoMed Systems COMBO P34 Video Processor
All-in-One Video Processor for the COMBO-3 Flexible Endoscopy System
The EndoMed Systems COMBO P34 is a video processor designed for use in gastrointestinal endoscopic examinations. It combines video processing, an integrated LED light source and an insufflation pump within one compact platform, providing the core functions required for the COMBO-3 flexible endoscopy system.
The processor performs camera control, image detection, image processing and image optimisation while also controlling the video display, user interface and integrated LED light source.
Its integrated pump provides air pressure for both insufflation and rinsing, while the dedicated Vessel Enhancement function is designed to enhance vessel observation during gastrointestinal examinations.
Key Features
All-in-One Compact Unit
Combines video processing, LED illumination and insufflation functionality within a single endoscopy processor.
Video Processing
Provides camera control, image detection, image processing, image optimisation and video display control.
Integrated LED Light Source
Built-in LED illumination with a specified lamp lifetime of 10,000 hours and automatic light intensity control.
USB Recording & Storage
Supports external USB image storage in HD resolution together with internal image memory.
Integrated Insufflation Pump
Provides air pressure for insufflation and rinsing, with specified air insufflation pressure of 40–50 kPa.
Vessel Enhancement
Dedicated Vessel function provides enhanced vessel observation during gastrointestinal examinations.
Advanced Image Control
The COMBO P34 provides a range of image-processing and adjustment functions to support endoscopic visualisation.
- Structure Enhancement: Adjustable in 4 steps
- Colour Adjustment: Red and blue intensity independently adjustable
- Automatic Brightness Control: Peak and average adjustment
- Internal Image Storage: 16-image memory
- External Image Storage: USB HD-resolution storage
- Digital Video Interface: DVI-I
- Analogue Video Interfaces: S-Video (Y/C), FBAS Composite and RGB
- Communication Interfaces: RS232 and USB
Integrated LED Light Source
The COMBO P34 incorporates an LED light source directly into the processor, reducing the need for a separate external light-source unit.
- Light Source: LED
- Colour Rendering Index (CRI): ≥ 90, High CRI
- Colour Temperature: 5000K – 7000K
- Main Lamp Lifetime: 10,000 hours
- Intensity Adjustment: Automatic light intensity control
Technical Specifications
| Model | COMBO P34 |
| Dimensions (W × H × D) | 400 × 170 × 450 mm |
| Weight | 10.2 kg |
| Power Supply | 220 VAC, 50 Hz |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electric Safety Class | I |
| EMC Classification 5501 | 1B according to DIN EN 60601-1-2 |
| Manufactured and Tested | EN 60601-1, RL 93/42/EWG |
Image Features
| Video System | PAL |
| Digital Video Interface | DVI-I |
| Analogue Video Interface | S-Video (Y/C), FBAS (Composite), RGB |
| Interface | RS232, USB |
| Structure Enhancement | Adjustable, 4 steps |
| Colour Adjustment | Red/blue intensity individually adjustable |
| Internal Image Storage | 16-image memory |
| External Image Storage | USB HD-resolution |
| Automatic Brightness Control | Peak and average adjustment |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
Endoscope Compatibility
The COMBO P34 endoscope connection/socket is designed for COMBO-3 gastroscopes and colonoscopes.
Standard Delivery
The catalogue specifies the following delivery contents:
- COMBO-3 Video Processor
- Power cable
- Y/C cable
- BNC cable
- HDMI-DVI cable
- User manual
Product Information
Manufacturer: EndoMed Systems
Product: COMBO P34 Video Processor
System: COMBO-3 Flexible Endoscopy System
Item No.: 600151
Complete Your COMBO-3 Endoscopy Configuration
