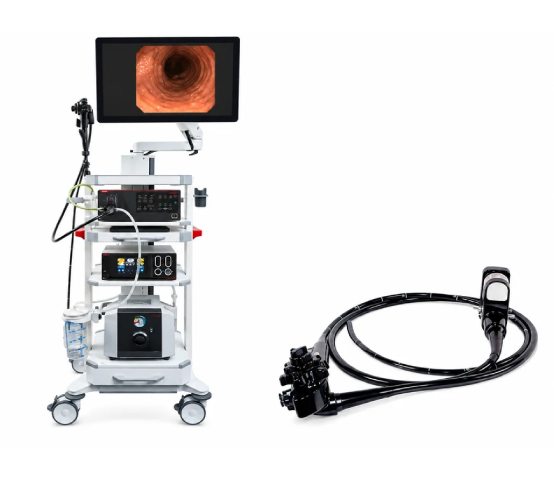

EndoMed Systems COMBO-3 G34Q & G34 Video Gastroscopes
HD Flexible Video Gastroscopes for the COMBO-3 Endoscopy System
The EndoMed Systems COMBO G34Q and COMBO G34 are flexible video gastroscopes designed for gastroscopic examinations. Their integrated video chain provides HD images for clear visualisation during upper gastrointestinal examinations.
Both gastroscopes are designed specifically for use with the COMBO P34 Video Processor and form part of the EndoMed Systems COMBO-3 flexible endoscopy platform.
Designed as economical and cost-effective video gastroscopes, the G34Q and G34 provide HD imaging while supporting practical operation and low-cost maintenance.
Key Features
HD Imaging
The integrated video chain provides high-definition images for detailed visualisation during gastroscopic examinations.
COMBO-3 Compatibility
Designed specifically for use with the EndoMed Systems COMBO P34 Video Processor.
2.8 mm Instrument Channel
Both models incorporate a 2.8 mm instrument channel for compatible endoscopic instruments and accessories.
140° Field of View
A wide 140-degree field of view supports comprehensive visualisation during gastroscopic examinations.
Wide Bending Range
The distal section provides up to 210° upward, 90° downward, 100° right and 100° left angulation.
Economic & Cost-Effective
The G34Q and G34 are designed as economical video gastroscopes with an emphasis on cost-effective operation and low-cost maintenance.
COMBO G34Q vs COMBO G34
Both models share the principal imaging and operating specifications. The primary dimensional difference is the insertion tube diameter.
| Specification | COMBO G34Q | COMBO G34 |
|---|---|---|
| Insertion Tube Length | 1050 mm | 1050 mm |
| Insertion Tube Diameter | 9.6 mm | 9.0 mm |
| Instrument Channel Diameter | 2.8 mm | 2.8 mm |
| Field of View | 140° | 140° |
| Direction of View | 0° | 0° |
| Depth of Field | 3–100 mm | 3–100 mm |
Bending Section & Manoeuvrability
The distal bending section is designed to provide controlled manoeuvrability during gastroscopic examination.
- Up: 210°
- Down: 90°
- Right: 100°
- Left: 100°
Technical Specifications
| Specification | COMBO G34Q / G34 |
| Insertion Tube Length | 1050 mm |
| Insertion Tube Diameter | G34Q: 9.6 mm | G34: 9.0 mm |
| Instrument Channel Diameter | 2.8 mm |
| Bending Section | Up 210°, Down 90°, Right 100°, Left 100° |
| Field of View | 140° |
| Direction of View | 0° |
| Depth of Field | 3–100 mm |
| Control Body Dimensions (W × H × D) | 130 × 280 × 100 mm |
| Universal Tube Length | 1550 mm |
| Weight | 1750 g |
| Medical Product Class | IIa |
| Applied Part Classification | Type BF Applied Part |
| Electrical Safety Class | I |
| EMC Classification | 1B according to DIN EN 60601-1-2 |
Imaging & Features
| Remote Switch | One remote switch equipped on the control body |
| Control Body | Lightweight medical-grade plastic |
| CCD Chip | 1/6" colour chip |
| Resolution | HD |
Environmental Conditions
| Operating Temperature | +10°C to +40°C |
| Transport & Storage Temperature | −20°C to +45°C |
| Maximum Relative Humidity – Operation | 70% |
| Maximum Relative Humidity – Storage & Transport | 70% |
| Air Pressure – Operation | 700–1060 mbar |
| Air Pressure – Storage | 600–1300 mbar |
Standard Accessories
The manufacturer's standard accessory package includes:
- 1 × Transportation Case
- 1 × Air/Water Valve
- 1 × Suction Valve
- 5 × Biopsy Valves
- 1 × Biopsy Forceps – Oval Cup
- 1 × Water Bottle
- 2 × Mouth Pieces
- 1 × Silicone Oil, 5 ml
- 1 × Cleaning Adapter
- 1 × All-Channel Irrigator Set
- 1 × 50 ml Syringe for Manual Irrigation
- 1 × Long Cleaning Brush
- 1 × Short Cleaning Brush
- 1 × Operation Manual
Product Information
| Model | Description | Item No. |
|---|---|---|
| COMBO G34Q | Video Gastroscope for COMBO-3 Endoscopy System, 9.6 mm | 600160 |
| COMBO G34 | Video Gastroscope for COMBO-3 Endoscopy System, 9.0 mm | 600161 |
COMBO-3 System Compatibility
The COMBO G34Q and G34 video gastroscopes are designed for use with the EndoMed Systems COMBO P34 Video Processor, forming part of the COMBO-3 flexible gastrointestinal endoscopy system.
Configure Your COMBO-3 Gastroscopy System
Contact Nass Ventures for pricing, model selection, COMBO P34 processor configuration, compatible accessories, monitors, endoscopy trolleys, suction equipment, installation requirements and technical support.
