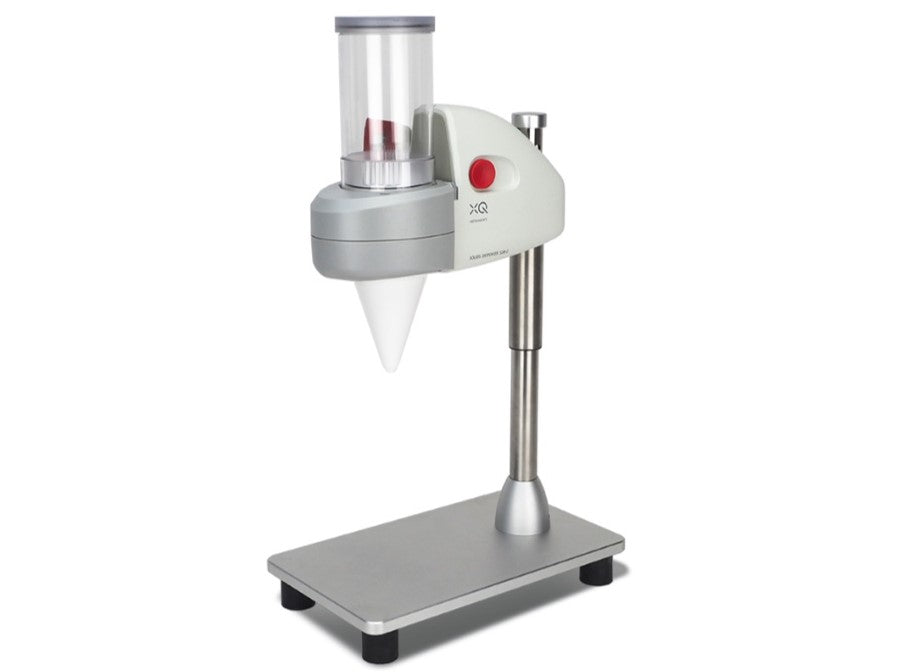

XQ Automated SDB-1 Benchtop Powder Dispenser-Dosing Machine
New and Improved Model!!!
The bench-top automatic Solids Dispenser SDB-1 can dispense calibrated volumetric doses (and multiples) of powders in a highly precise and repeatable fashion.
The SDB-1 comes with 11 volumetric dispensing disks (the dosing element) covering the dose volume range of 2.5mm³-300mm³ OR you may select to have 1 volumetric dispensing disk calibrated to your specified volume A calibration certificate will be provided. Please let PSTG know upon ordering.
- Continuous Mode available: Dispenser releases a dose every 3 seconds (Time interval can be to any period longer than 3 seconds)
- More powerful dispensing motor, ready to tackle even tough powders with tendency to clog or jam.
- Faster cycle time of 2.0 - 3.0 seconds, independent of dose size.
- Chassis and circuitry improved in robustness.
- PC software enabling automated weighting and gravimetric dispensing when integrated over USB with a scale
Sample size requirement for Machine Calibration:
At least 20x of dosage requirements (e.g. 40 grams for a dosage of 2 grams);
Please fill out the Sample Request form HERE and include with your calibration sample sent to XQ Instruments.
See the table below for specific dose volumes for each disk.

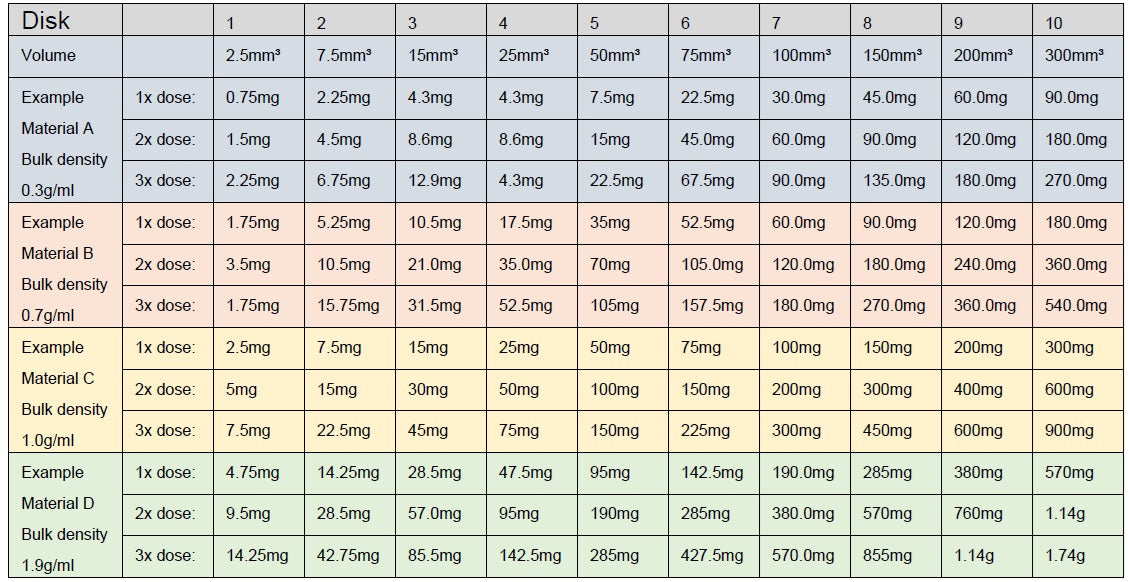

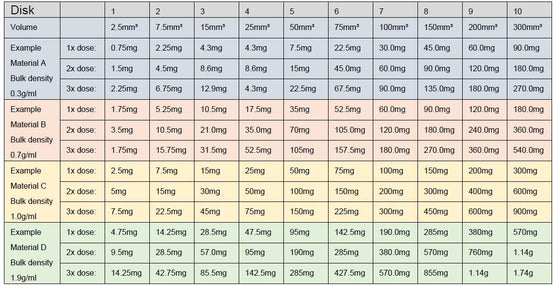

Small Head Disk Set (10 Total)
Large Head Standard Disk Set (11 Total)
For calibration of additional heads and disks, Click Here to View!
For additional Powder Dispenser Accessories, Click Here to View!
-
Increased lab productivity and ease of use.
The SDB-1 Solids Dispenser increases the speed of dosing solid-powder samples while retaining the flexibility of freehand processing.
-
Occupational health of operators
Work monotony and operator fatigue in repetitive processing of samples is relieved by automatic portioning and dosing with the SDB-1. -
Continuous precision
Solid-powder sample portions are dispensed accurately with the SDB-1 with each volume consistently within a tight tolerance eliminating errors of manual processing.
The laboratory dosing solution increases lab productivity and ensures at the same time process accuracy. Compared to other techniques the volumetric solids dispensing is particularly fast (2.5-3.5sec. per dose). Due to its compact benchtop configuration the SDB-1 is easy to integrate in the workflow and alleviates tedious repetitive tasks.
The dispensing heads are interchangeable to enable quick processing of several materials with different dose size and no cross-contamination without cleaning steps. A small dispensing head can be calibrated to doses from 2.5mg up to 300mg in a single shot, or higher for incremental dispensing. A large dispensing head can be calibrated to doses from 5 mg up to 7grams and multiples. There is also a continuous mode for processes like blending.
|
Compatible with Dispense |
Dispensing head size |
Volume calibration range Single dose |
Maximum dose mass for a bulk density of 1.0 g-ml |
Reservoir size |
|
SDM-1 |
SDM-1 |
2.3mm³ - 300mm³ |
300mg |
40ml, 60ml; glass vials Bottles 2oz, 4oz |
|
SDH-1, SDB-1 |
Small head |
2.3mm³ - 300mm³ |
300mg |
40ml, 60ml; glass vials Bottles 2oz |
|
SDH-1, SDB-1 |
Mid-size head |
2.3mm³ - 715mm³ |
715mg |
150ml; PC tube |
|
SDH-1, SDB-1 |
Large Head |
5.0mm³ - 8,100mm³ |
8,1g |
200ml, 400ml, 1l ; PC tube |
|
SDB-2 |
XL Head |
10.0mm³ - 78,000mm³ |
78g |
5l; PC tube |
An LED display indicates the number of doses dispensed. The SDB-1 is powered from the AC socket, 115V-230V switching.
We also offer customized solutions, e.g. for automation.
Specifications
| Description | |||
| Features | • Exchangeable dispensing heads. | ||
| Performance | • Solid Dispenser accuracy will remain over time | ||
| • One-time calibration for each powder type. | |||
| • Powered by AC power socket. | |||
| Dispensing advantages: | • Usable with different solids-powders. | ||
| • Typical dispensing range from 2.5mg to 300 mg (small dispensing head) or 5 mg up to 7g (large dispensing head). | |||
| • Easily interchangeable dispensing heads. | |||
| • Standard glass vials or customized container to contain powder sample. | |||
| • Separation between dispensing unit and dispensing head. | |||
| • LED display provides information on number of doses being dispensed. | |||
| • High repeatability | |||
| • High accuracy | |||
| • Smallest volumes feasible | |||
| • Easy to use and maintain | |||
| • Low voltage | |||
| Specifications | • Size: 120 (L) x 200 (W) x 450 mm (H) | ||
| • Power Supply: Auto Switching 110VAC to 240VAC | |||
| • Power rating: 15W max, typical 9W | |||
| • Weight: 3 kgs | |||
| Warranty | 1 year | ||
| Typical Dispensed Powders: | Aerosil | Disodium Hydrogen Phospahte Anhydrous | Potassium Metabisulfite |
| Agar (T.C. Grade) | Elderberry | Potassium Nitrate (OxP154) | |
| Agar Noble | Elderberry Extract | Potassium Phosphate (K3PO4 ) | |
| Agarose | Epsom Salt | Potassium Sulfate | |
| Algae (Spirulina) | Ethylene Glycol Reagent | Pronase | |
| Aluminium Silicon | Flour | Protainese K | |
| Amino Acid | Gabapentin | Protein Diet | |
| Ammonium chloride (NH4Cl) | Glass Beads | PVDF | |
| Anasorb Solvent | Granular fish feed | ReliOx Resin | |
| AP100 | Graphitize Carbon Black Powder | Resin | |
| Asar | Ground Glass | Siliasphere Phenyl, 70A (Microbeads) | |
| Bacto Agar | Ground Glass & UHMC-PE | Silica Based Powder | |
| Baking Soda (NaHCO3) | Gypsum | Silica Gel (SiliaFlash® F60) 40-63µm (0.040-0.063 mm) | |
| Bentonite | Iron (Fe) | Sodium Ascorbate (Ascorbic Acid) | |
| Bismuth oxide | Lactose | Sodium Bicarbonate | |
| Bleaching Powder (Ca(OCI)²) | Lidocaine Hydrochloride | Sodium Carbonate | |
| Bone Powder | Lignocellulosic biomass | Sodium Chloride (NaCl) | |
| Cab-O-Sil | Lithium Bromide | Sodium Dithionite | |
| Calcium Chloride | Lithium Tetraborate | Sodium Hydrogen Phosphate | |
| Carbon Powder - Coal powder | LTP | Sodium Hydroxide | |
| Carboxylmethyl Cellulose Sodium | Magnesium Sulfate (MgSO4 ) | Sodium Molybdate | |
| Celite | Maleic Acid | Sodium Peroxide | |
| CELL-IN | Maltitol | Sodium Sulfate (Na2SO4) | |
| Cereox | Methacrylic Polymer Resin | Sodium Sulphite, Anhydrous (Na2SO3) | |
| Chlorotrityl Chloride (Dry) | Methanol Reagent | Sodium Thiosulphate | |
| Chocolate Powder | Na-acetate (C2H3NaO2) | Somatropin (human growth hormone) | |
| Chondrotin Sulfate | N-Acetyl-L Cystéine | Sorbitol | |
| Citric Acid sample | NEFA Enzyme Color Reagent | Spirdust (X000S8KK8T) | |
| CL-F | Oxalic Acid | Talcum sample from Customer | |
| Colossis Powder | Paraformaldehyde | Vitamins | |
| Copper Sulphate (CuSO4) | Phytagel | Zinc (Zn) | |
| CPG sample from Customer | Potassium Bicarbonate | Zirconia beads | |
| Dental Amalgam powder | Potassium Carbonate (K2CO3) | 2-Mercaptopyrinde-1-oxide Sodium (C3H4NNaOS) | |
