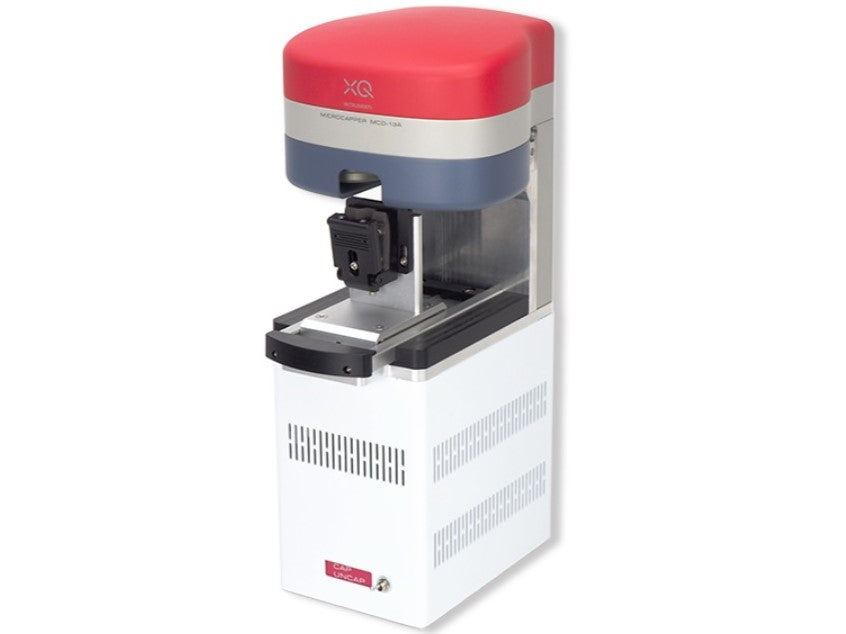

XQ Instruments MCD-13 Capping and De-capping Machine for Microtubes
The XQ Instruments MCD-13 Microcapper helps attaching screw caps on microtubes. It improves occupational health & safety and process integrity. Has a capping-de-capping rate of 10-15 caps-minute.
The microcapper can be adjusted to a wide range of screw cap sizes with diameters of 12 mm - 24mm. In adjusting the capping wheels are moved laterally to come closer together or further apart by rotating one lead screw which actuates both sides.
The microcapper MCD-13 can be cutsomised for different container sizes and applications.
The height of the machine can be changed by replacing the vertical structure below the capping mechanism with parts of different size. The tube holder slider can be replaced with bottle holders of verious configurations and sizes.
Please contact us for special configurations. We can explore the most suitable configuration with you based on your processes and particular requirements.
Consistency Manual screw capping introduces variation in the torque applied to tighten the caps. Consistent torque provided by our Microcappers prevents leakage of tubes, especially during transportation.
Health & Safety XQ screw capping machines alleviate operator fatigue and reduce possibility of occupational health issues such as carpal tunnel syndrome which frequently occur in manual lab capping.
Consistent tightening of the caps is ensured to prevent leakage during transportation. The MCD-13 reduces operator’s hand fatigue. It is known that hazards such as carpal tunnel syndrome can result from the repetitive strain of manually tightening screw caps, making mechanical capping important.
Designed for capping of screw caps on 13mm tubes typically used in laboratories for the preparation and processing of samples and reagents, the MCD-13 works for various cap, vial and tube sizes. The bench top device is compact, a footprint of less than half an A4 paper, and portable.
The product is user friendly and can be operated with minimum training. Caps are manually placed on each tube, before loading onto holder and pushing in for capping. A de-capping function is also provided.
Specifications
Descriptions
Specifications
• Microtube cap size of 12 mm – 24mm diameter (adjustable)
• Capping throughput 10-15 caps-minute
• Capping torque 6 to 25 Ncm, adjustable
• Size: 227mm (L) x 154mm (W) x 405mm (H).
• Power supply: Switching 115V - 230V.
• Power rating: 250W max.
• Weight: 5 kgs
Performance
• Easy operation – User places cap on tube and load into tube holder for capping.
• The noise level is less than 70 db at 1 meter.
• Device requires little to no maintenance.
PSTG Supplies is an authorized distributor of XQ Instruments products.
Shipment
Benefit from reliable delivery options
Every day, we ship our laboratory equipment throughout Nigeria and internationally. We work with trusted and experienced logistics and courier partners to ensure safe and timely delivery. Shipping costs and delivery times depend on the items ordered and the recipient’s location. Alternatively, you may arrange to collect your order in person by appointment. Below is an overview of our shipping options and policies.
Shipping within Nigeria
All goods are insured as standard up to a value of ₦ equivalent of €25,000. Shipping costs are calculated based on the weight, dimensions, value of the shipment, and delivery destination within Nigeria. For detailed shipping information, please contact us directly—we will be happy to assist.
International shipping
For accurate international shipping costs, we require details of the specific product(s) you wish to order.
Please contact us by telephone or email for a tailored quotation.
Freight forwarding, sea or air freight
For large, heavy, or specialized equipment, we provide personalised quotations for road freight, sea freight, or air freight. Taking current logistics conditions into account, we aim to offer the best possible price-to-performance ratio.
Incoterms 2020
All shipments are handled in accordance with Incoterms® 2020 (ICC). Please contact us to confirm and agree on your preferred delivery terms.
Self-collection
If required, you may collect your goods in person by prior appointment. Please note that pricing and availability may vary between Nigeria and other countries.
Standard deliveries
Standard shipments within Nigeria are handled by reputable courier and logistics providers. Upon request, we can also arrange alternative carriers to meet specific delivery requirements.
Insurance
All deliveries are insured up to a maximum value of ₦ equivalent of €25,000. If the value of your goods exceeds this amount, we will contact you to arrange additional insurance coverage.
Delivery time
Delivery times depend on product availability and order volume. High-demand items may be subject to delays beyond our control. If you require urgent delivery, please inform us in advance, and we will do our best to accommodate your request.
Q: Saves time
A: This reason might be the most obvious, but it’s a clear benefit of an FAQ page. Not only does the FAQ page save customers time, but it also saves employees time as well. Having an FAQ page ensures customers don’t have to sit on the phone for hours waiting for simple answers, and employees don’t have to individually answer all questions.
Q: Earns trust
A: Information is available at the click of a button, but as we all know, information is not always true. Because of this, customers are more skeptical than ever before. They hunt for products by sifting through reviews, looking at the product on multiple websites, and doing price checking across the internet.
Q: Provides new insights
A: It’s difficult to get into the head of a shopper. Some buy on impulse, and others buy after thorough research. By tracking the clicks on your FAQ page, you can gather insights about your product or service that you didn’t know before. You can then inform your product team of these insights. From there, the product team can make changes to improve the product or experience.
Q: Drives internal page views
A: If you want your FAQ to be extremely thorough, which it should be, you can link to resources within your FAQ for your customers to find out more information. Whether you link to a blog that goes into more detail or a product page, this content helps the shoppers get the full story before making a purchase.
A: Prevents negative reviews
A: When looking through negative reviews, there’s almost always one thing in common: the problem could’ve been avoided.
Accuris AutoMATE 96-Channel Pipetting Station Pipette Heads and Accessories
Available for the AutoMATE 96-Channel Pipetting Station are three different pipette heads for various volumes, along with consumables for daily operation.
The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting.
The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading-ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate-reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment.
The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting.
The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading-ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate-reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment.
Three interchangeable heads allow for a pipetting range from 1.0µL to 1000µL. The AutoMATE 96 is compact enough to fit onto a standard lab bench or into a biosafety cabinet.
Diamond - Fully Automatic ELISA and CLIA Immuno-Analyzer
PSTG Supplies offer a Diamond - Fully Automatic ELISA and CLIA Immuno-Analyzer from MicroDigital. The analyzer is able to process everything in ELISA and-or CLIA testing from sample distribution to well washing and result analysis with just a few clicks.
Fully automatic walkaway station for ELISA and CLIA assays
Select for which application you need: ELISA, ClIA, or both!
Open platform provides freedom within the interface- conventional 96-well microplates- Quick and precise controls- Minimized cross contamination with the use of disposable tips - World-class Liquid Handling for precise pipetting and well washing- Convenient protocol setup through 2 different interface modes: Developer UI- User Mode UI
Model: Diamond
Manufacturer: MicroDigital Co.Ltd.
Technical Data:
ELISA Reader
Dynamic Range
0 -3.0 OD
Photometer
450, 630nm (Optional: 405, 490, 550nm)
Filter Slots
6 Slots
Precision
< 1% CV at 2.0 OD
Accuracy
± 0.005 OD or 2.5%
CLIA Reader
Dynamic Range
Up to 7-log of Dynamic Range
Limit of Detection
1 x 10 -18 moles of ATP
Crosstalk
≤ 3.0 x 10 -5
General Specification
Sample Capacity
96 Sample Positions
Reagent Capacity
9 Custom Reagent Positions
Test Tube
Standard 13, 16mm diameter (customizable)
Number of Microplates
2 Microplate Positions
Barcode Reader
Optional
System Architecture
Universal Open Platform (Qualitative and Quantitative)
Sample Tray
Easy Loading Sample Tray
Dimension
659 X 814 X 658 mm
Power
100 – 240V, 50 - 60Hz
Washer
Manifold Configuration
8 Channels
Dispense Volume Range
100 -350 μl
Washing Tank
2 Washing Tanks (2.5L) 1 Waste Tank (5L) with level sensing
Wash Cycle
1 - ∞ (customizable)
Residual Volume
< 1μl
Incubator
Temperature Range
Up to 42°C
Temperature Uniformity
± 1°C
Shaking
Amplitude: 1mm, Speed: Up to 800 RPM
Temperature Monitoring
Real Time
Pipetting
Volume
≥ 5μl
Tip
Disposable
Serial Dilution
Yes
Replicates
Yes
Precision
< 0.8% CV at 100μl
Process Security
Liquid Level Detection
Yes (Must use MicroDigital-supplied Tips)
Level Sensor System
Pressure Differential
Dispense Anomaly Detection
Yes
Tip Detection
Yes
Well Fill Detection
Yes
Alarms
Warning on PC
Software
Operating Software
Diamond Software for PC
Work Protocols (Assay)
Unlimited
Data Processing
Qualitative and Quantitative
Access Level Control
Master, Manager and Operator
Operating System
Windows
PSTG Supplies is an authorized distributor of MicroDigital Co. Ltd. MicroDigital is one of the leading bio-instrument and diagnostic kit manufacturing companies in South Korea. They provide various types of systems and solutions for different types of biomedical industry.
Accuris IsoPure Mini Automated Purification System Accessories
Accuris offers magnetic tip combs, deep well plates, and 6-well sample strips designed to fit the IsoPure™ Mini. Produced using virgin polypropylene and packaged in a sterile environment, these consumables are guaranteed to be contaminant-free. The 8-place magnetic tip combs lock into position inside the instruments processing chamber. There are 2 options for sample vessels: 96 deep-well plates or 6-well sample strips. For processing up to 16 samples, deep well plates are used. When only 8 or fewer samples need to be processed, the 6-well sample strips are ideal, and these are loaded onto the included aluminum rack. These sample strips reduce waste and lower consumable costs when only a few samples need to be processed.
The PSTG PRO™ 3 Blocks Semi Automated Plate Sealer is a laboratory equipment designed to efficiently and reliably seal a variety of microplates, including ELISA, cell culture, PCR, and deep-well plates. This device is essential for sample storage, preventing evaporation, and minimizing contamination. It offers a wide range of applications, including PCR, colorimetric assays, fluorescence assays, and long-term storage.
Rapid Heating: The sealer reaches a temperature of 170°C in just 300 seconds, significantly reducing processing time and increasing efficiency.
Adjustable Temperature Control: With a temperature range of 80°C to 170°C, the sealer can be customized to meet the specific requirements of various applications and heat seal types.
OLED Display: The OLED display provides clear and easy-to-read information on temperature, time, and pressure settings, ensuring accurate and consistent sealing.
Versatile Compatibility: The sealer is compatible with a wide range of microplates and heat seals, making it a versatile tool for various laboratory applications.
Compact Design: The compact footprint of the sealer saves valuable bench space in the laboratory, making it ideal for laboratories with limited space.
Standard 3 Blocks: (B01&B02&B3）
Brand: PSTG PRO™
Manufacturer: PSTG Supplies LLC
PSTG Supplies offers a variety of Semi Automated Plate Sealer. Please contact us for more information.
Buy Bioneer products from PSTG Supplies at the best value.
ExiPrep™ 16 Plus extracts nucleic acids and purifies protein automatically up to 16 samples. Through optimized experimental protocols, it not only allows to get reproducible results, but also wide compatibility with various types of nucleic acids and protein samples. Furthermore, this instrument has excellent space utilization thanks to its small size.
Features and Benefits
Easy-to-use: Built-in protocols started at the touch of a button Walk-away automation: Maximizes your efficiency in the lab Contamination shield: Eliminates the possibility of intra-assay cross-contamination UV sterilization cycle after each run: Eliminates the possibility of inter-assay cross-contamination Combined heating-.magnetic block: Increases elution and results in higher yields
Easy-to-use Touchscreen interface
The responsive 3.5 inch touchscreen enables simple instrument operation. From selecting sample-optimized protocols to turning the UV sterilization lamp on and off, the touchscreen is designed for optimal workflow. During instrument operation, the touchscreen will give real-time feedback on the progress of the extraction, maximizing user convenience.
Preinstalled Optimized Protocols for Maximum Results
ExiPrep 16 Plus and ExiPrep 16 Pro contain over 900 optimized protocols for nucleic acid extraction and protein purification. Each protocol is fine-tuned to sample and target type to give anybody reproducible results every experiment. The instrument software can also be upgraded through the network connection port so you can stay up-to-date with the best performing protocols.
Automatic UV Sterilization Lamp
The ExiPrep 16 Plus and ExiPrep 16 Pro have a powerful UV sterilization lamp that enables the user to sterilize the instrument chamber before and-or after every nucleic acid extraction or protein purification run. This prevents possible inter-assay cross-contamination that may occur on a busy work day.
Contamination Shield
ExiPrep 16 Plus comes with a contamination shield designed to protect the assay from cross-contamination during instrument operation. Any time the pipette tips are moving, the contamination shield will slide under the tips, therefore eliminating the possibility of intra-assay cross-contamination which is critical when working with multiple samples.
Combined Magnetic-Heating Block
To increase nucleic acid extraction and protein purification efficiency, the ExiPrep 16 Plus has an integrated combined magnetic-heating block. The combination of bead magnetization and sample heating reduces experiment time and increases elution efficiency, resulting in increased sample yield. (Patent pending)Process: Read clockwise
Applications
Site
Application
University and Corporate Laboratories
Nucleic acid extraction and protein purification from various samples
Hospital-Clinic Laboratories
Nucleic acid extraction from blood, tissue, sputum etc. for various molecular diagnostic tests
Food companies
Preparation of food samples for GMO or contamination testing
Military, Police
Sample preparation for bio-defense detection of various bacteria and viruses
Public Health Offices
Sample preparation for public health threats such as STDs and tuberculosis
Accuris IsoPure 96 Automated Purification System Accessories and Consumables
Available for the Accuris IsoPure 96 are various accessories and consumables, which could be found in the list below.
SKU #
Description
AP1096-DWP
96 deep well plates for IsoPure™, cs 50
AP1096-TC
Tip Comb for IsoPure™ 96, cs 50
AP1096-ELP
96 well elution plates for IsoPure™, cs 100
The IsoPure™ 96 from Accuris Instruments is a high throughput, automated system that improves the efficiency and reproducibility of magnetic bead-based purification protocols. Capable of processing up to 96 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and complexity of the program.
Purchase Accuris IsoPure™ 96 Automated Purification System Accessories and Consumables Through PSTG Supplies Here!
Compatible with all popular magnetic bead kits
Touch screen panel for on-board programming and operation
