ENVAIR Safety cabinet eco safe Basic Plus Class II

ENVAIR eco safe Basic Plus Microbiological Safety Cabinets belong to the latest generation of laminar airflow systems, in which the choice of materials of construction of the highest quality guaranteesconformity to the strictest safety standards.

ENVAIR eco safe Basic Plus vertical laminar flow cabinets are Class II Microbiological Safety Cabinets - designed and built to performance requirements of the EN-12469: 2000 European Standard, with 70% of the air re-circulated via the main Class H14 HEPA filter within the cabinet, whilst the remaining 30% is discharged through an exhaust Class H14 HEPA filter.

Safety Cabinets with automatic regulation and microprocessor based monitoring systems. These cabinets are suitable for handling micro-organisms and pathogens as defined by the appropriate European and other International Standards, current health and safety guidelines and legislation aimed at safeguarding health and safety of operators at work. ENVAIR eco safe Basic Plus Microbiological Safety Cabinets series are supplied with centrifugal fan to provide complete operator, product and environmental protection.

Respect for the environment motivates ENVAIR to manufacture laminar-flow, cytotoxic drug safety cabinets and microbiological safety cabinets possessing ultra-low environmental impact, by utilizing:

• Certified ''low pressure-drop'' HEPA filters providing up to 30% saving on power consumption
• Electronically controlled motor-blower with automatic pressure-drop compensation
• 99% recyclable components
• Innovative technologies such as the new ECS® microprocessor

ECS® Microprocessor based monitoring system: full status report provided via 2-line digital display by the new generation microprocessors - which automatically control all functions and all safety alarm systems ensuring that performance characteristics are maintained to EN12469: 2000 requirements. High power lithium battery keeps safety data saved to microprocessor system. The user-friendly practical keyboard and the rear-lit LCD will continuously display all required data keeping the user constantly informed of the cabinet conditions in operation and in particular:

• display of laminar airflow velocity and frontal air barrier velocity
• display of inside and outside temperature
• display of residual lifetime of HEPA filters, UV Lamp (if fitted)
• display of total number of hours of operation
• display of saturation level of HEPA filters

Audio visual alarms provided for:

• out of range or incorrect laminar airflow velocity and frontal air barrier velocity
• uncorrect position of front sash-window
• saturation of HEPA filters
• end of life-cycle of UV lamp (if fitted)
• blockage in the exhaust duct
• fan-motor malfunction
• power failure

Certification: ISO 9001 certified

Configuration Overview:

• Electrical frontal screen
• 1 electrical socket at 0.9 m and 1.2 m
• 2 electrical sockets at 1.8 m
• 3 cabinet elements every side-window
• Operation mode for overnight-reduction
• Anti bacterial coating
• Low noise level
• Stainless steel AISI 316L
• Real Laminar Flow

ENVAIR Safety cabinet eco safe Basic Plus Class II with 1.5 m width on request.

Note: media connections when ordering with specify a retrofit is not possible.

Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

ENVAIR Safety cabinet eco safe Comfort B2

ENVAIR units have certificates. The microbiological safety cabinets are designed and constructed to fulfil the requirements of the European standard EN 12469:2000 and have TÜV certificates. The ENVAIR microbiological safety workbenches are worldwide adopted for product, personnel and environment protection.
The cabinets are especially suitable for handling dangerous materials which may be potentially harmful to humans and/or animals.


Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

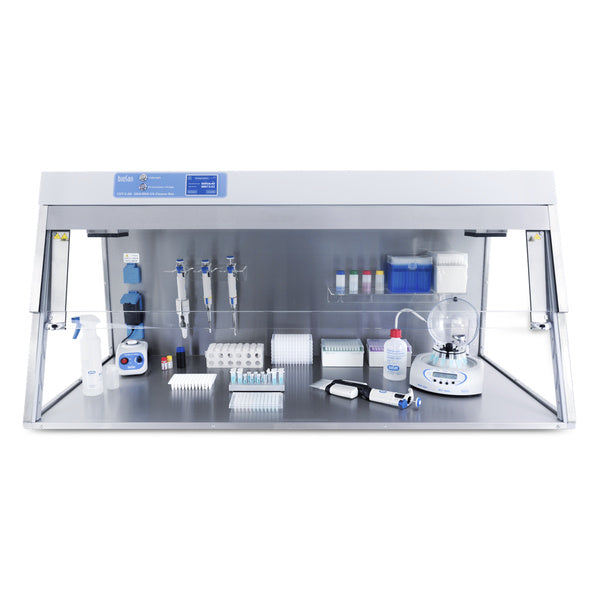

BioSan UVT-S-AR PCR cabinet

The BioSan UVT-S-AR PCR cabinet is a specially developed system for highly sensitive PCR setups and other molecular biology procedures. Especially in laboratories that frequently work with DNA or RNA analyses, this device ensures a contamination-free environment. Compared to conventional workstations, this model ensures efficient decontamination thanks to its integrated UV-C lamps and patented recirculation mode, which contributes to more reliable test results and greater safety.

Introduction

In many areas of biotechnological or medical research, consistent cleanliness during work processes is essential. The risk of cross-contamination is particularly high in PCR applications, which can lead to unreliable results. In order to enable stable and reproducible analyses, this device relies not only on powerful UV disinfection but also on convenient and ergonomic operation. This not only reduces the risk of contamination, but also the duration of individual work steps.

Innovative features and equipment

The dual UV concept is a key strength of this oven type. While an open UV-C lamp (UV-C, 253.7 nm, ozone-free) decontaminates surfaces in short cycles, an internal UV circulating air fan runs in parallel, enabling continuous interior sterilisation. Particularly noteworthy are:

- Dual UV concept for surface and air disinfection
- Patented air circulation fan that circulates the cabin volume around 100 times per hour
- Automatic UV switch-off function when the window is opened
- Powerful timer that can be programmed to the minute
- 3.5-inch touchscreen for quick adjustment of irradiation time and monitoring of lamp life
- Energy-efficient LED lighting for a bright and pleasant working environment

In addition, the thick glass panes (front surface up to 8 mm) reliably protect against UV radiation, while the transparent design optimises the view inside. Thanks to its low operating volume and limited energy consumption, the device is suitable for both routine laboratories and specialised research facilities.

Technical highlights

The robust materials - from the stainless steel rear panel to the glass sides - provide a resistant and easy-to-clean laboratory environment. Below is a structured overview of the most important technical points:

- Open UV lamps: 2 × 30 W bactericidal (type TUV 30W 1SL/25)
- UV recirculator: 1 × 30 W uv-c with a decontamination efficiency of over 99 % per hour
- Daylight lamp: LED 12 W for the work area
- Adjustable UV exposure time: 1 minute to 24 hours (in 1-minute increments)
- Built-in sockets: 3 pieces (max. 1000 W), plus inlet for power cable
- Work surface: 1210 × 500 mm for a comfortable spread of consumables and equipment
- Overall dimensions: 1250 × 600 × 590 mm with a net weight of 51 kg

In addition, the device has red safety indicators in the display that sound an alarm as soon as the UV lamp needs to be replaced or if there are unusual operating conditions. The materials used (stainless steel plates and high-quality glass elements) are highly UV-resistant and offer long-lasting stability, which is aimed at safe continuous operation.

Certifications and standards

Compliance with safety and quality standards is essential for laboratories. The device fulfils the current European regulations and is manufactured in accordance with CE directives. The automatic switch-off of the UV lamp when the front screen is raised effectively protects users from harmful radiation. The walls are designed to absorb over 96% of UV radiation, ensuring that the work area is exposed to targeted radiation without endangering users.

Examples of use

The combination of UV disinfection and a practically designed work surface makes the device suitable for use in many laboratory environments: - Routine PCR and qPCR applications in molecular biology and diagnostics
- Working with viral or bacterial nucleic acids to minimise contamination
- Nucleic acid purification steps (e.g. plasmid isolation)
- Identification of genetic markers in biotechnology or clinical research

In these cases, the stable UV illumination provides reliable protection against contamination from potential DNA or RNA traces.

FAQs

How long should the UV irradiation run to ensure reliable decontamination?

The UV configuration can be set to the minute. As a rule, 15-30 minutes is sufficient for most standard protocols. For particularly demanding applications, the time can be flexibly extended to up to 24 hours.

How often should the UV lamps be replaced?

Depending on the operating intensity, the lamps are recommended to be replaced after around 9,000 hours. The touchscreen display informs you in good time as soon as the lamp power decreases.

What is the integrated recirculation fan for?

The patented recirculation fan continuously sterilises the air inside. This prevents aerosols and other potential sources of contamination from spreading throughout the cabinet chamber.

Can additional accessories be used in the work area?

Yes, the appliance has several built-in power sockets (max. 1000 W) and a cable entry. This means that pipettes, vortexers and other small devices can be operated inside without any problems.

Conclusion

This laboratory instrument impresses with its comprehensive user protection, flexible application options and high decontamination efficiency. With its dual UV solution and low-noise recirculation mode, it ensures more stable PCR results and minimises the risk of cross-contamination. The robust construction made of stainless steel and shatterproof glass elements as well as the intuitive touchscreen control not only make everyday work in the laboratory safer, but also more convenient. At the same time, the spacious work surface offers room for a variety of applications, creating the best conditions for reliable, precise and interference-free analyses.

Spetec Clean room workbench

The clean room workbenches are always made to customer specifications. The measurements can be adjusted to the local requirements.

Following models are available:

Clean room workbench with curtain-scoop

• Easy access to the workspace

Clean room workbench with sliding door

• Continuous sliding mechanism, the opening height can be adjusted individually
• Workbench can be locked during breaks or for storage of materials. The clean room class remain intact as part of this.
• Transparent front-side

Cleanroom workbench with roller blind

• Simple locking of the workbench
• Opaque

Clean room workbench with canopy

• No airflow from outside which disturbs the clean room environment
• User is in the clean room
• Very high degree of process security

Spetec Clean room workbench ''Mini environment''

The Spetec clean room workbench or mini environment is primarily used in the optics, electronics, and mechanical industries, e. g. for display manufacturing or finishing of touch panels and for cleaning optical components. The key difference in comparison to the laminar flow box (FBS series, tabletop unit) is the integrated work surface which can be fabricated from perforated stainless steel, ''solid'' stainless steel, or hard laminate.

The clean room workbench (Mini Environment) can also be equipped with a ''canopy'' to reduce the influence of dust or drafts from the environment. This housing provides additional protection of the work area and the employee from the ambient atmosphere.

The clean room workbench can be fabricated according to the individual customer requirements and the required clean room category. This means that the size, equipment, and design are adapted to the respective requirements.

The clean room workbench is generally made with clean room compatible aluminium profiles. The side walls are made from glass, acrylic glass, or a PVC strip curtain. A laminar flow module is installed on top, so that an ISO 5 or category 100 (according to US FED. 209E) clean room is created inside of the mini environment. That equates to only approx. 100 particles with a size of 0.5µm. Compared to a particle count of approx. 1 million per cubic foot in a typical office or laboratory, this corresponds to improving the air quality by a factor of 10 000.

Following options are available (on request):
Clean room workbench with sliding door
Clean room work bench with PVC strip curtain incl. ''canopy''
Clean room workbench with extraction system and ionizer to neutralize static charges

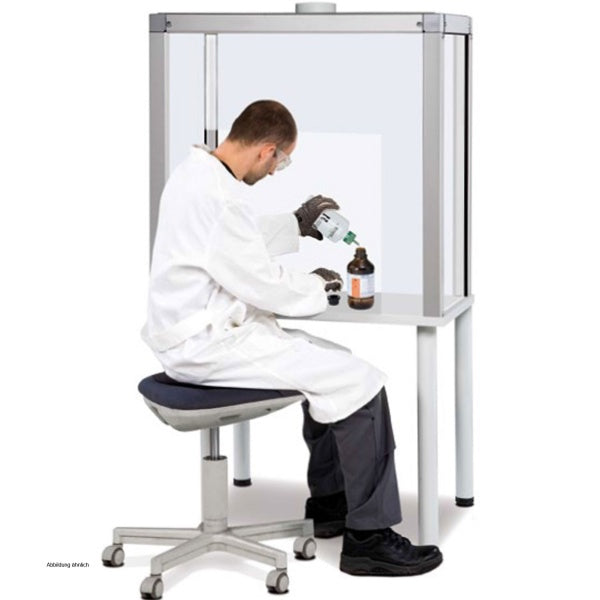

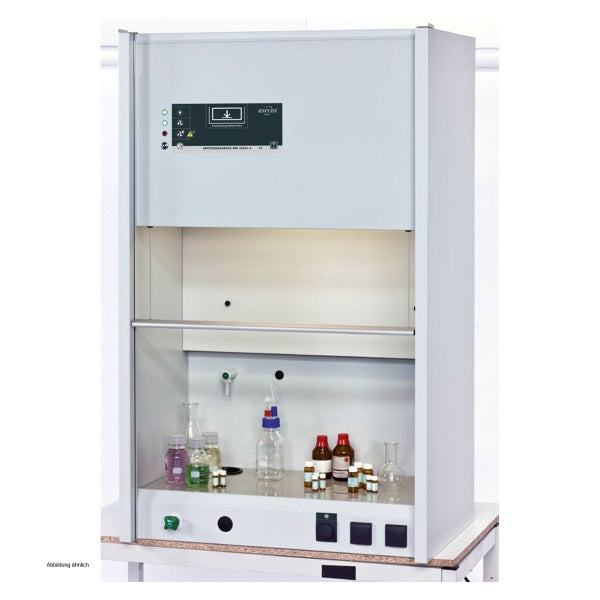

asecos Suction hoods - safe working with open containers or other sources of harmful substances/vapours

• ventilation testing of the air equipment in accordance with EN 14175-3 (5.4.4)
• the prescribed specified workplace limit values are maintained
• ideal for assembly on an existing workplace
• robust construction made of chemically resistant, anodised aluminium profiles
• fracture-resistant acrylic glass, 5 mm
• mounting on an on-site air exhaust system
• connecting pieces (DN 160) in the ceiling for connection to the on-site exhaust air system
• the air speed should be > 0,3 m/s

ENVAIR Product protection workbench eco air V

ENVAIR eco air V cabinets are ''ISO Class 3'' vertical laminar flow cabinets which represent far more economical and valid alternatives to clean-rooms, as they are capable of providing uncontaminated, particle-free and sterile conditions for materials in the work-space.They guarantee and maintain excellent product protection factors by offering a decontaminated working area by virtue of the G3 prefilter - and a HEPA filter with an efficiency exceeding 99,995 % MPPS (H14 - EN: 1822).

The ENVAIR eco air V vertical laminar airflow cabinets have epoxy powder coated steel structures and an AISI 304L stainless steel
working surface as standard.

ENVAIR eco air V LAF Cabinets have been adopted in use for product protection from airborne contamination or while handling non-pathogenic biological specimen in applications such as: Sterility Test, Microbiology, In Vitro Fertilization, Preparation of ophthalmic solutions, Preparation of culture media, Assembly of electronic devices, Nutritional Parenteral Therapy, Assembly of medical devices.

Operational Principles
The ambient air is drawn in from the top through the upper part of the cabinet via a pre-filter and it then passes after filtration through a HEPA filter into the working area in a vertical laminar air flow pattern and exhausted outside.

Anti bacterial coating
Each ENVAIR cabinet is coated with exclusive Dupont^TMALESTA® anti-bacterial ''Ag+ cationsbased solution'', capable to prevent microbial contamination of surfaces thereby inhibiting long term surfacegrowth.

Wall Side
Transparent side walls in safety glass and flexible frontal closure shutter (available as an option).

UV sterilizing Lamp
UV sterilizing lamp available as added option - complete with a flexible front shutter in order to close the working area from dust and for the safety of operators.

Features
Structure of the ENVAIR eco air V vertical LAF cabinets is in epoxy powder coated cold-rolled steel for excellent corrosion resistance to the attack by aggressive common chemicals. Alternatively special models made in AISI 304L stainless steel for superior cleanability are also available on demand.

Membrane keyboard front panel with touchsensitive buttons for:

• main On/Off switch
• light
• power socket
• night mode and UV lamp

It is fitted with digital display for indicating air velocity, and the relevant alarms in case the cabinet is equipped with anemometer and automatic airflow control.

Configuration overview:

• opening frontal screen for easy cleaning
• 1 electrical socket at 1.2 m
• 2 electrical sockets at 1.5 m und 1.8 m

Note: Media connections when ordering with specify a retrofit is not possible.
ENVAIR Safety cabinet eco air V devices are normally supplied without digital display and automatic airflow regulation.

ENVAIR Safety cabinet eco air V Class III with 0.6 m, 0.8 m and 0.9 m width on request.

Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

asecos Suction hoods - safe working with open containers or other sources of harmful substances/vapours

• ventilation testing of the air equipment in accordance with EN 14175-3 (5.4.4)
• the prescribed specified workplace limit values are maintained
• ideal for assembly on an existing workplace
• robust construction made of chemically resistant, anodised aluminium profiles
• fracture-resistant acrylic glass, 5 mm
• mounting on an on-site air exhaust system
• connecting pieces (DN 160) in the ceiling for connection to the on-site exhaust air system
• the air speed should be > 0,3 m/s

FASTER SafeFAST Premium Touch microbiological safety cabinet

The FASTER SafeFAST Premium Touch microbiological safety cabinet provides laboratories, research and development facilities with a state-of-the-art solution for maximum safety when handling biological agents, cell cultures and potentially hazardous substances. Its first-class features and powerful technology make it a reliable partner for anyone looking for an effective combination of personal protection, product protection and GMP-compliant process management.

Innovative features and functionality

This safety cabinet offers a unique combination of energy efficiency, low noise level and sophisticated design. Thanks to the redundant DC twin fan, a constant airflow is guaranteed at all times, preventing contamination and effectively protecting employees from potentially hazardous substances. At the same time, aerodynamic airflows with 70 % recirculation and 30 % exhaust air ensure a sterile working environment within the workbench. The high level of performance goes hand in hand with intuitive operation: the multifunctional display and continuously dimmable LED lighting give specialist staff full control at all times.

The motorised and hinged front panel enables quick and easy cleaning, among other things. The stainless steel segment (1.4301 or 1.4404) is corrosion-resistant and easy to disinfect. The safety glass side panes also impress with their clear view and durability. Last but not least, integrated sockets and media connections as standard offer additional flexibility when working with a wide range of external devices and gases.

Central technical highlights

- Energy consumption <84.4 W
- Noise level <42.5 dB(A)
- Air velocities: Inflow 0.45 m/s, downflow 0.25 m/s
- 70 % recirculating and 30 % exhaust air flow
- Redundant DC double centrifugal fan
- Certified in accordance with EN12469, EN61010-1
- Motorised, hinged front window

Furthermore, the air routing is designed to maintain a constant inflow when the front screen is open, ensuring that no internal airflow escapes uncontrolled to the outside. The workspace can be flexibly adapted to the requirements of the workplace thanks to the optional base frames in two standard heights (800 mm or 950 mm). The version with swivel castors simplifies mobility in the facility, while the base frame with adjustable feet ensures maximum stability.

Additional accessories such as UV lamps, IV hanging rails, ergonomic footrests or work-friendly laboratory chairs can be customised to further increase the level of safety, hygiene and comfort for staff. A germicidal UV lamp with a wavelength of 253.7 nanometres ensures efficient decontamination. It is controlled by a timer and reduces the risk of cross-contamination. However, it is by no means a substitute for manual cleaning and has a limited service life of around 12 months.

Certifications and standards

The workbench fulfils all relevant European standards for Class II microbiological safety cabinets. These include EN12469 and EN61010-1 in particular, which stipulate strict requirements for construction, safety and electrical design. This guarantees maximum protection and reliability for both personnel and the product environment.

Application examples

Whether microbiology, virology, haematology, cell and tissue cultures or genetics: this safety cabinet is designed for a wide range of areas in the laboratory environment where contamination-free work is fundamentally important. Examples include:
- Research into new vaccines in virology
- Analysis and diagnostics in the field of haematological samples
- Work with cell lines for cancer research or personalised medicine
- Manufacturing processes in pharmaceuticals, where sterile conditions are essential

In addition, the workbench can be used for working with materials containing viruses or bacteria and also supports GMP-compliant processes such as weighing or mixing hazardous substances.

FAQs

How often should the UV lamp be changed?

As a rule, every 12 months, depending on the operating hours, to ensure reliable decontamination.

Which accessories are particularly recommended?

Additional sockets, gas and vacuum connections as well as ergonomic additions such as footrests and laboratory chairs specially designed for cleanrooms increase efficiency and safety.

Is cleaning complicated?

No, thanks to the motorised, hinged front panel, you can reach all surfaces quickly. The segmented stainless steel design also simplifies disinfection.

How loud is the workbench in operation?

With less than 42.5 dB(A), the workbench is remarkably quiet and does not disturb even in quiet laboratory environments.

Conclusion

This high-performance safety cabinet impresses with its modern ventilation technology, first-class personal protection and highly effective filtering. Studies in the field of virus research, cell culture and diagnostics benefit from efficient, certified and application-orientated equipment. At the same time, energy consumption and noise emissions are minimised without compromising on safety. This provides specialised users with a solid, durable solution for demanding laboratory applications.

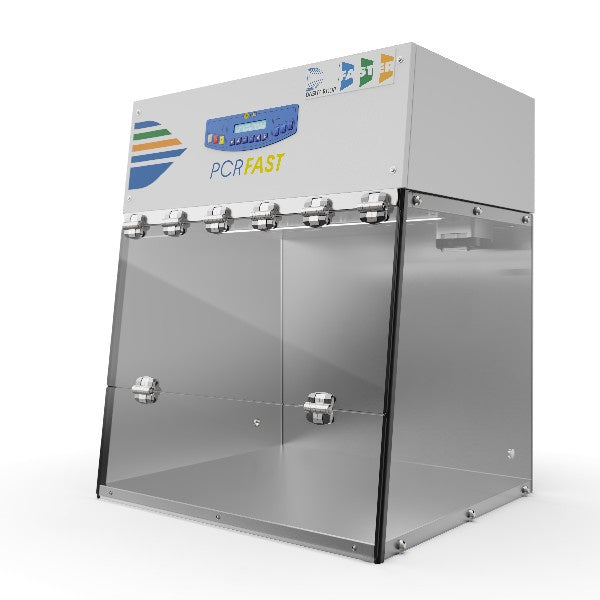

FASTER product protection workbench PCR FAST

This workbench is specially designed for high-purity applications in the field of DNA and RNA manipulation and offers optimum working conditions for polymerase chain reactions (PCR). Especially in demanding working environments where sensitive samples need to be handled free from contamination, it impresses with reliable decontamination and a robust and durable design. Compared to similar products, it scores points with its particularly efficient LED UV technology, sophisticated air routing and versatile expansion options such as an optional motorised fan including HEPA filter.

Highest purity and functionality

This PCR workbench uses state-of-the-art technologies to minimise any particle contamination. Thanks to integrated LED-based UV lamps, the work area is efficiently irradiated so that DNA or RNA residues are reliably deactivated. The working depth and height provide sufficient space to place samples even in larger vessels. At the same time, Plexiglas side walls with UV protection provide a clearly visible environment. An electronically controlled timer monitors the duration of irradiation to ensure reproducible decontamination results at all times.

The control unit switches the UV lamp off automatically as soon as the front screen is opened, which contributes to the safety of laboratory staff. With a noise level below 54 dB(A) (with optional HEPA filter), it also ensures that the workbench integrates discreetly into everyday laboratory life and does not disturb employees or ongoing test series. The bright daylight lamp provides additional convenience, making it easier to work on sample preparation.

Technical highlights

- Dimensions (W×H×D): 727 × 960 × 620 mm
- Usable work surface: 700 × 550 × 600 mm
- Automatic UV lamp switch when the front panel is opened
- Average service life of the UV lamp: 8,000 hours
- Maximum air flow rate of the LED UV radiation: 170 mW
- Programmable timer (up to 4 hours with ±1 minute accuracy)
- Low energy consumption of approx. 0.11 kW
- Optional HEPA filter plus motorised fan for room air purification

In addition, the model has a powder-coated work surface made of corrosion-resistant stainless steel, which leads to a significantly longer service life. The side walls are made of UV-protective safety glass. This optimally protects internal samples from external contamination from the environment, while users can keep a clear view of the entire working area.

In accordance with EN 61010-1, the workbench covers basic safety requirements for electrical laboratory equipment, while ISO 14644-1 confirms the cleanliness classification. These certifications make it the ideal partner in microbiological, haematological and genetic engineering facilities where a clean and safe working environment is a top priority.

Practical application scenarios

- Fast and accurate PCR amplification in research laboratories
- Preparation of clinical samples in molecular biology facilities
- DNA and RNA manipulation for diagnostic centres
- Use in genetics and haematology laboratories to avoid cross-contamination

This workbench is ideal for laboratories that frequently work with highly sensitive substances such as DNA fragments or RNA extracts. The combination with enzymes such as Taq polymerase or reverse transcriptase for the amplification and analysis of genetic fragments can also be ideally prepared here. The UV-based decontamination cycle sustainably reduces potential sources of contamination, ensuring consistent and accurate results.

FAQs

How long should the UV irradiation last?

An integrated timer enables customised settings. Most applications require 15-30 minutes, although up to 4 hours can be programmed via the control unit.

Does the workbench need to be connected to an exhaust air system?

In the basic version, no external air connection is required. However, for sensitive areas, the optional HEPA filter with motorised fan can be installed to further protect the working environment.

How often does the UV lamp need to be replaced?

The average service life is around 8,000 hours. If the radiation output decreases, the lamp should be replaced to ensure consistent decontamination.

Is maintenance necessary?

Yes, regular maintenance intervals ensure lasting cleanliness and extend the service life. UV lamps, filters and seals in particular should be checked and replaced if necessary.

How can the workbench be integrated into different laboratory environments?

It can be placed flexibly on a workbench or equipped with a suitable base frame. Accessories such as additional sockets are also available.

Conclusion

The solution presented here fulfils comprehensive requirements for DNA and RNA work with a high purity level. The integrated UV LED technology, robust stainless steel components and effective protection mechanisms make it the ideal choice for laboratories specialising in PCR applications or other sensitive diagnostic procedures. Galvanised surfaces, smooth edges and an integrable HEPA filter ensure exceptional process and sample safety, coupled with many years of reliability in tough everyday laboratory work. Low power consumption, a user-friendly interface and official certifications underpin the performance of this model. This allows specialist users to work in a low-germ environment at all times while maximising the chances of success for sensitive procedures without compromising on convenience or safety.

ENVAIR Safety cabinet eco safe Comfort Double blower

ENVAIR eco safe Comfort Microbiological Safety Cabinets belong to the latest generation of laminar airflow systems, in which the choice of materials of construction of the highest quality guarantees conformity to the strictest safety standards.

ENVAIR eco safe Comfort vertical laminar flow cabinets are Class II Microbiological Safety Cabinets - designed and built to performance requirements of the EN-12469: 2000 European Standard, with 70% of the air re-circulated via the main Class H14 HEPA filter within the cabinet, whilst the remaining 30% is discharged through an exhaust Class H14 HEPA filter.

Safety Cabinets with automatic regulation and microprocessor based monitoring systems. These cabinets are suitable for handling micro-organisms and pathogens as defined by the appropriate European and other International Standards, current health and safety guidelines and legislation aimed at safeguarding health and safety of operators at work. ENVAIR eco safe Comfort Microbiological Safety Cabinets series are supplied with double centrifugal fan to provide complete operator, product and environmental protection. Moreover the series fitted with double motor-fan are designed and are also suitable to discharge the filtered air outside the laboratory through a ducting system, if required.

Respect for the environment motivates ENVAIR to manufacture laminar-flow, cytotoxic drug safety cabinets and microbiological safety cabinets possessing ultra-low environmental impact, by utilizing:

• Certified ''low pressure-drop'' HEPA filters providing up to 30% saving on power consumption
• Electronically controlled motor-blower with automatic pressure-drop compensation
• 99% recyclable components
• Innovative technologies such as the new ECS® microprocessor

ECS® Microprocessor based monitoring system:
full status report provided via 2-line digital display by the new generation microprocessors - which automatically control all functions and all safety alarm systems ensuring that performance characteristics are maintained to EN12469: 2000 requirements. High power lithium battery keeps safety data saved to microprocessor system. The user-friendly practical keyboard and the rear-lit LCD will continuously display all required data keeping the user constantly informed of the cabinet conditions in operation and in particular:

• display of laminar airflow velocity and frontal air barrier velocity
• display of inside and outside temperature
• display of residual lifetime of HEPA filters, UV Lamp (if fitted)
• display of total number of hours of operation
• display of saturation level of HEPA filters

Audio visual alarms provided for:

• out of range or incorrect laminar airflow velocity and frontal
• air barrier velocity
• incorrect position of front sash-window saturation of HEPA filters
• end of life-cycle of UV lamp (if fitted)
• blockage in the exhaust duct
• fan-motor malfunction
• power failure

Certification: ISO 9001 certified

Configuration Overview:

• Electrical upwards opening frontal screen for easy cleaning
• Vacuum connection
• Safety service connection for gas
• 1 electrical socket at 0.9 m and 1.2 m
• 2 electrical sockets at 1.5 m and 1.8 m
• Operation mode for overnight-reduction
• Anti bacterial coating
• Low noise level
• Stainless steel AISI 316L
• Real Laminar Flow

Note: media connections when ordering with specify a retrofit is not possible.

Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

LAMSYSTEMS safety cabinet BMB-II-Laminar-S-1,2

The cabinet provides personnel and environment protection from pathogenic agents and microorganisms of III-IV risk group transmitting as an aerosol and protection of the product from exterior contamination and /or cross-contamination.

The new generation of safety cabinets
Protection as a unconditional reflex

Unconditioned reflexes are automatic responses to stimuli, regardless of their origin. They carry out a basic protective function by ensuring the survival of organisms. Just as the unconditioned reflex mechanism of the animals responds to a stimulus, just automatically responds the optical-acoustic signal system on any change in protective properties of safety cabinets of new generation.

The extendable UV light module is located in the lower part of the housing outside the contamination zone and is only used when a germicidal treatment of the working chamber is necessary.

The safety cabinet is equipped with a microprocessor control system that alerted users about the sinking protective barrier by in addition to the optical-audible signals fades the alarms on the screen.

The position of movable parts of the removable safety cabinets that affect the protective properties is controlled by highly sensitive optical sensors.

The elevation angle of the windscreen of the safety cabinet is 130 from the vertical, thus allowing convenient editing and easy loading.

For bumpless close the safety cabinet is equipped with a hydraulic stop damper of the windscreen. This prevents the windshield breaks and allows convenient operation.

With a contactless electromagnetic key, the system is protected against unauthorized access.

The Chamber has the greatest extent, while the external dimensions of the safety workbench itself are minimal.

The safety cabinet is equipped with a HEPA filter, which ensures air cleaning efficiency of 99.9995% for 0.3 micron sized particles.

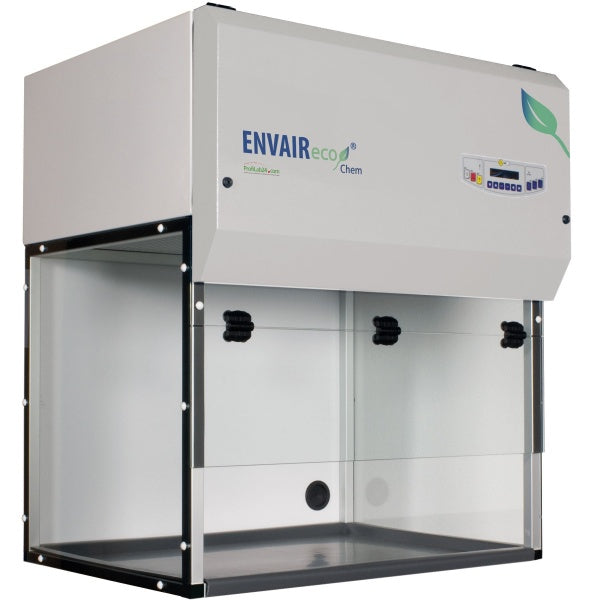

ENVAIR Fume cupboard recirculating eco Chem

ENVAIR is innovation. The ENVAIR eco Chem is a new development utilizing the most modern molecular filter technology. ENVAIR eco Chem fume cupboards offer perfect personnel protection to toxic fumes and aerosols.

• Low energy consumption <88 W
• Hinged front window for optimal cleaning
• Side windows of safety glass
• Chemical-resistant work surface
• Chemicals filter selectable as per required application
• Multi-function display with PLC control

Major applications

• Laboratories
• Analytical chemistry
• Quality control
• Biotechnology
• Pharmaceutical industry
• Food industry
• Fine chemicals
• Petrochemistry
• Cosmetic industry
• Photo-processing laboratories
• Eelectronic industry

Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

ENVAIR Fume cupboard recirculating eco Chem Elite

ENVAIR is innovation. The ENVAIR eco Chem is a new development utilizing the most modern molecular filter technology. ENVAIR eco Chem fume cupboards offer perfect personnel protection to toxic fumes and aerosols.

• Low energy consumption <88 W
• Hinged front window for optimal cleaning
• Side windows of safety glass
• Chemical-resistant work surface
• Chemicals filter selectable as per required application
• Multi-function display with PLC control
• Microprocessor control

Major applications

• Laboratories
• Analytical chemistry
• Quality control
• Biotechnology
• Pharmaceutical industry
• Food industry
• Fine chemicals
• Petrochemistry
• Cosmetic industry
• Photo-processing laboratories
• Eelectronic industry

Customizing services (Selection)

• 24h at site service and 24h free of charge phone hotline, 7 days a week
• 10 years Spare parts guaranty. Availability within 24h
• Qualification: IQ/OQ, GMP, GAMP and 21 CFR Part 11
• We offer a 2-year warranty to all units (with maintenance contract)

FASTER SafeFAST Elite Class III microbiological safety cabinet

The FASTER SafeFAST Elite Class III microbiological safety cabinet has been specially developed to meet the high safety requirements of laboratories working with hazardous or potentially infectious samples. Thanks to its certified Class III design, it fulfils the strictest safety standards for people, products and the environment. Compared to other safety systems, this model impresses with its energy-efficient operation, quiet operation and well thought-out ergonomics.

Performance features and design

The safety cabinet is a fully enclosed design that operates in negative pressure mode. This prevents potentially dangerous pathogens or substances from escaping. While 70 % of the air is recirculated and returns to the working chamber through a main HEPA filter (H14), the remaining 30 % is discharged to the outside and also cleaned via an H14 exhaust air filter. This creates a laminar flow working environment in accordance with ISO class 3, which minimises cross-contamination. For thorough cleaning, the front panel can be opened using a motorised mechanism, which ensures maximum convenience even in time-critical laboratory processes.

The robust housing, safety glass side panels and spacious stainless steel interior ensure a durable and easy-to-clean design. In addition, segmented stainless steel work surfaces are integrated, which can be easily removed if required. A multifunctional display with PLC control facilitates operation and provides a quick overview of operating states, filter status and other parameters.

Key technical data (selection)

- Energy consumption below 281 W for efficient continuous operation
- Noise level below 53 dB(A) - ideal for noise-sensitive laboratory environments
- Low CO? emissions compared to conventional systems
- Ergonomic design for comfortable working during long periods of use
- Side panes with safety glass and integrated media connections (19 mm)
- Three available model sizes (1.2 m / 1.5 m / 1.8 m) with different net working areas
- Optionally 2 or 3 sockets (230 V) depending on model size

The different versions offer usable dimensions of up to 1802 x 740 x 580 mm. The downflow of 0.4 m/s ensures that the air in the chamber flows evenly and particles are reliably captured. In addition, the system works with a 1Ph+E - 230 V 50 Hz connection and can be easily integrated into existing laboratory infrastructures.

Certifications and standards

This safety cabinet meets the requirements of the European standard DIN EN 12469:2000 and therefore fulfils the criteria to effectively protect both people and products. The H14 filters used have been tested in accordance with the applicable standards and have a very high separation efficiency. In addition, the entire system is CE-compliant, which confirms further safety and quality requirements.

Application examples

- Routine microbiological tests: Particularly when handling bacterial cultures, which can be harmful to health, the closed design provides comprehensive protection for employees and the environment.
- Virology and genetics: Highly infectious viruses or genetically modified organisms can be safely cultivated and analysed in this environment.
- Haematology: When examining blood samples with possible pathogens, precise protection is essential to avoid cross-contamination.
- Cell culture research: Especially for sensitive cell lines, laminar airflow offers a virtually particle-free environment and protection against contamination.

FAQs

How often should the H14 filters be changed?

The replacement interval depends on the frequency of use and the samples to be processed. An annual inspection by trained specialist personnel is recommended to ensure optimum protection.

Can the safety cabinet be connected to existing exhaust air systems?

Yes, it is designed to integrate into different laboratory environments. However, professional planning is required before connection in order to take into account air flows, safety requirements and possible structural conditions.

Which substances may be processed in the workbench?

The safety cabinet is designed for pathogenic microorganisms in risk groups that can be dangerous. If substances are unclear, a safety check should always be carried out to determine the necessary protective measures.

Is regular calibration necessary?

Yes. Regular maintenance and calibration is recommended to maintain the flow parameters and ensure compliance with all protective properties. This ensures reliable working conditions in the long term.

Conclusion

The safety cabinet described here offers a comprehensive protection concept comprising personal, product and environmental safety. Thanks to its certification in accordance with DIN EN 12469:2000, the use of double H14 filter systems and the stable negative pressure design, it is designed for sensitive work in highly specialised laboratories. At the same time, the low energy consumption, the quiet operating noise and the convenient front window opening ensure ergonomic handling in everyday work. Anyone looking for a reliable and convenient solution for microbiological and virological tests will find a high-quality and efficient overall package in this system.

FASTER SafeFAST Classic microbiological safety cabinet with double blower

The FASTER microbiological safety cabinet stands for a high level of safety when handling potentially hazardous substances in laboratories that require demanding sterility and the best possible product and personal protection. Designed according to Class II in accordance with DIN 12469, it meets all important requirements for GMP-compliant production, minimises the risk of contamination and effectively protects employees from aerosols. Thanks to its robust design and consistent focus on performance, this workbench sets standards in terms of safety concept and ergonomics. Compared to many competitor models, its reliability, low energy consumption and optional features such as an integrated UV lamp or electrically height-adjustable base frame are particularly impressive.

Performance features and design

This safety cabinet offers efficient personal protection and at the same time optimum protection of the product thanks to the use of two H14 HEPA filters. An integrated double fan ensures that 70 % of the air in the chamber is recirculated and 30 % is safely channelled into the exhaust air area via a second filter. This minimises the risk of cross-contamination in the laboratory. The special features include:

- Energy consumption below 257 W
- Noise level below 53 dB(A)
- DIN and CE-compliant design (including EN12469, EN61010-1)
- Powder-coated rear panel for use with acids
- Segmented stainless steel work surface for quick and easy cleaning
- Motorised front panel with safety glass inserts on the sides
- Multifunctional display with PLC control
- Ergonomic design including variable footrest option

The work surface is made of 1.4404 stainless steel, which ensures excellent resistance to chemicals and corrosion. Its smooth surface makes it easy to decontaminate contaminated areas, minimising the risk of infection. In addition, the powder-coated rear panel ensures high compatibility with common laboratory chemicals such as various acids or disinfectants.

Key technical data

In addition to the safety features listed, the following characteristics are of particular interest:

- Class II safety cabinet in accordance with EN12469
- General dimensions (width x height x depth) between 1045 x 1500 x 810 mm and 1960 x 1500 x 810 mm in different model variants
- Usable workspace with a height of 740 mm and a depth of 580 mm
- Inflow of 0.45 m/s and downflow of 0.4 m/s
- Power supply: 1Ph+E - 230 V 50 Hz

Additional variants allow flexible customisation to the respective laboratory requirements, for example in terms of size (0.9 m to 1.8 m wide) or equipment options such as gas connections, particle monitoring or touchscreen monitors. A stable, rollable base frame in various heights (800 mm or 950 mm) supports mobile use and can be securely fixed with blocking systems.

Application examples

The SafeFAST Classic is ideal for a wide range of work areas in research and development as well as in the pharmaceutical industry. Typical applications include:

- Microbiological investigations, for example in the cultivation of bacteria and fungi
- Virological research such as the isolation of various virus strains
- Haematological work steps where a contamination-free environment is mandatory
- Cell culture experiments where an error-free growth environment must be ensured
- Genetic analyses and manipulations under sterile conditions

Especially when hazardous substances are used - including DNA dyes, cytostatics or infectious material - the workbench offers maximum safety for employees and the environment.

FAQs

How often do the HEPA filters need to be replaced?

Replacement of the HEPA filters is usually recommended annually or at the latest when a defined number of operating hours has been reached. Shorter replacement intervals may be advisable depending on the level of contamination.

Is a UV lamp suitable as a replacement for manual cleaning?

No, the UV lamp only serves as an additional germicidal measure and does not replace thorough cleaning. It should be replaced regularly (approx. every 12 months) to maintain its optimum effectiveness.

Which aspects are important for GMP-compliant production

It is crucial that no contamination occurs. Regular validation of the safety cabinet, the implementation of standard operating procedures (SOPs) and complete documentation are essential to fulfil GMP guidelines.

Can the workbench be customised to meet specific laboratory requirements?

Yes, suitable options such as an electrically height-adjustable base frame, gas or vacuum connections, hinged front screen, touchscreen monitor or armrest offer versatile customisation options for different applications.

How loud is the operation during longer working hours?

With a noise level below 53 dB(A), the workbench offers very pleasant continuous use and hardly disturbs concentration or communication in the laboratory.

Conclusion

The FASTER SafeFAST Classic microbiological safety cabinet with double fan presented here offers clear advantages in terms of safety, ergonomics and durability. With state-of-the-art filter technology, variable equipment and extensive ergonomic options, it creates an ideal environment for all microbiological, virological and pharmacological applications. Thanks to its certified protection mechanisms and robust design, it represents a sustainable investment for professional laboratories of all sizes. If you need a powerful, reliable and adaptable Class II workbench, this model is an excellent choice.

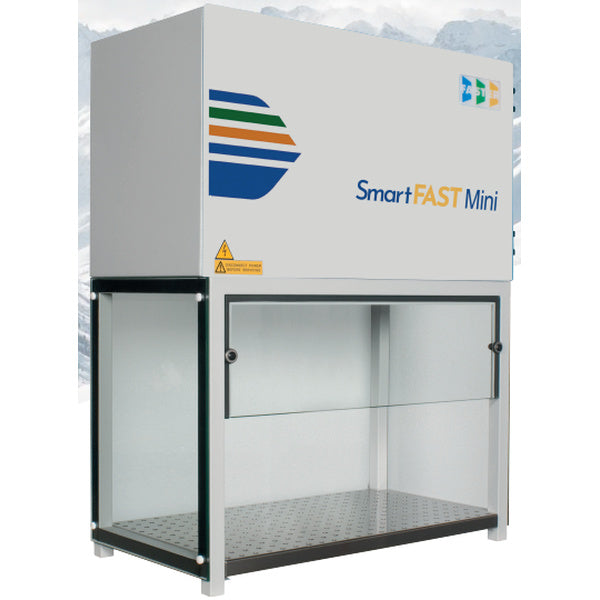

FASTER laminar flow workbench SmartFAST MINI

The FASTER SmartFAST MINI laminar flow workbench is a compact, vertical cleanroom unit that operates in ISO class 3 in accordance with DIN EN ISO 14644-1. With its space-saving width of just 0.6 metres, it enables particularly flexible product protection under clean working conditions. Compared to similar products, this workbench impresses with its robust workmanship, high-quality stainless steel work surface and integrated PLC control. This makes it ideal for laboratory environments and industrial applications where a low-contamination environment is required.

Versatile application options and important features

This cleanroom workbench was specially developed for sensitive work processes in laboratories and production facilities. Its vertical air flow ensures that particles are channelled from top to bottom and reliably removed from the work area. The device is primarily used where sterility and maximum purity are crucial, for example in microbiological tests or in the production of sterile samples.

- Compact dimensions (overall dimensions: 642 x 830 x 330 mm) optimised for use in confined spaces
- Usable inner surface: 580 x 375 x 317 mm for convenient working with small equipment
- Robust stainless steel work surface for high hygiene and resistance to disinfectants
- Hinged front panel for quick cleaning and convenient accessibility
- Air flow at 0.4 m/s to reduce turbulence and guarantee clean process air
- Low noise level below 60 dB(A) thanks to efficient airflow
- Integrated socket in the interior and PLC control for practical operability

In addition, the FASTER workbench is designed for 1Ph+E - 230 V 50 Hz, with a power consumption of just 130 W. With a weight of 50 kg, it is also easy to transport and set up without complex installation measures. The internal fuse protection is 0.11 kW, while it is classified as protection class 1 / IP 20.

Certifications and standards

The SmartFAST MINI fulfils all the criteria of ISO class 3 in accordance with DIN EN ISO 14644-1 and thus ensures a particularly high standard for cleanliness classes. This means that particles in the air are drastically reduced and sensitive applications such as microbiological tests or work with cell cultures can be carried out without the risk of contamination. Thanks to this standard fulfilment, the workbench can be used in industries where cleanliness and product protection are top priorities, such as pharmaceutical laboratories, electronics manufacturing and medical and biotechnology sectors.

Application examples

1. Cultivating cells: The sterile vertical airflow enables contamination-free work when preparing and handling sensitive cell cultures.
2. Microbiological tests: The workbench offers constant cleanroom conditions for tests on bacterial cultures or fungi.
3. Pharmaceutical laboratory processes: When weighing and filling potentially sensitive substances such as antibiotics, a low-particle environment is reliably created.
4. Electronic component production: The SmartFAST MINI can also be used in the production or testing of sensitive components that require minimal particle exposure for protection.

FAQs

How often should the air filter be changed?

Depending on the intensity of use and the particle load, a change is recommended every 6 to 12 months. Regularly checking the filter performance is part of the maintenance schedule to ensure optimum cleanroom conditions at all times.

What is the best way to clean the workbench?

Clean the stainless steel surfaces with a suitable disinfectant that is approved for laboratory environments. The hinged front panel also makes it easier to clean areas that are difficult to access.

Can the SmartFAST MINI be used in different laboratories?

Yes, its compact design and simple connection to regular 230-volt power supplies make the device very flexible. It can be used in small research and development laboratories as well as in industrial control laboratories.

What safety precautions need to be taken into account

Regular leak testing of the filter system, adherence to specified maintenance intervals and wearing suitable protective equipment ensure that the low-contamination environment is maintained and users are protected.

Conclusion

The SmartFAST MINI combines compact dimensions, robust workmanship and reliable cleanroom features in a single, high-performance laminar flow workbench. Thanks to its ISO class 3 classification in accordance with DIN EN ISO 14644-1 and integrated technologies such as the PLC control, it offers optimum conditions for sensitive laboratory and production processes. Whether in a pharmaceutical or microbiological environment - this space-saving workbench provides a safe, low-particle environment for effectively carrying out contamination-sensitive applications. At the same time, its ease of use, low energy consumption and effortless transportability make it the ideal choice for demanding users in a wide range of industries.
