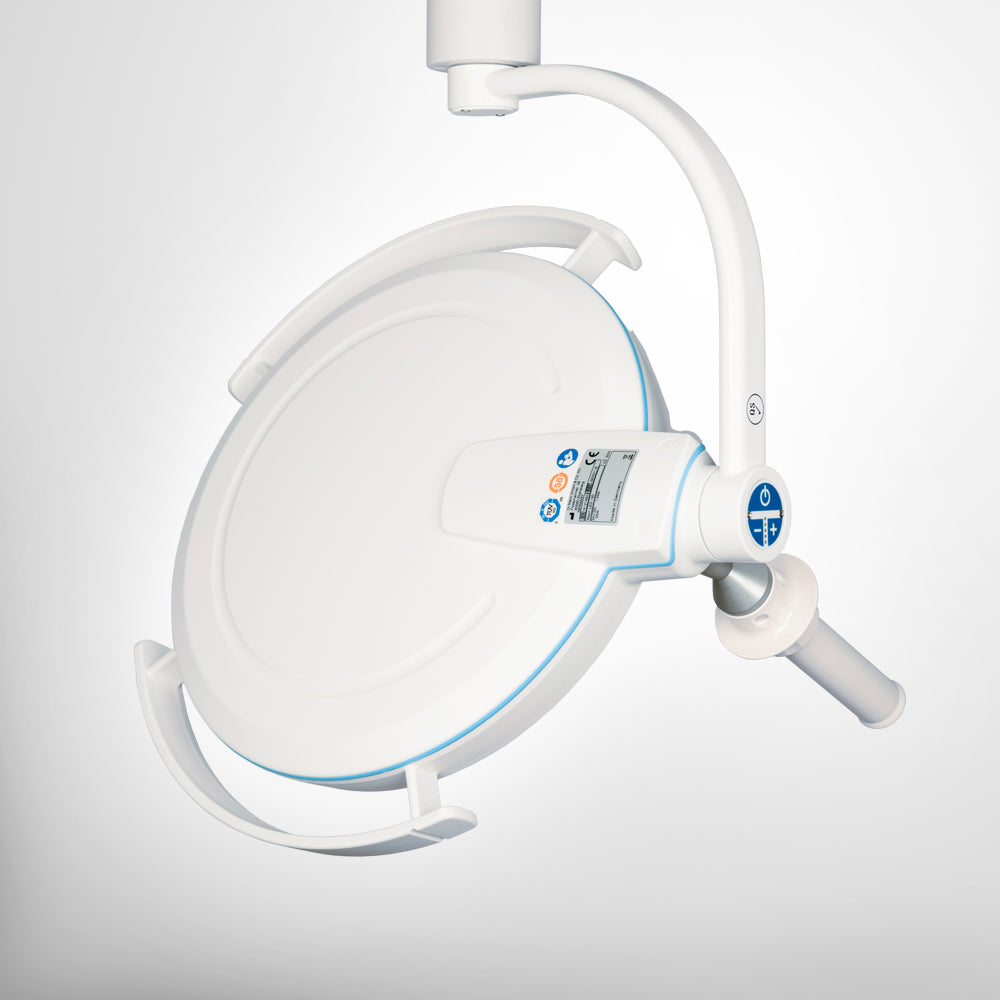

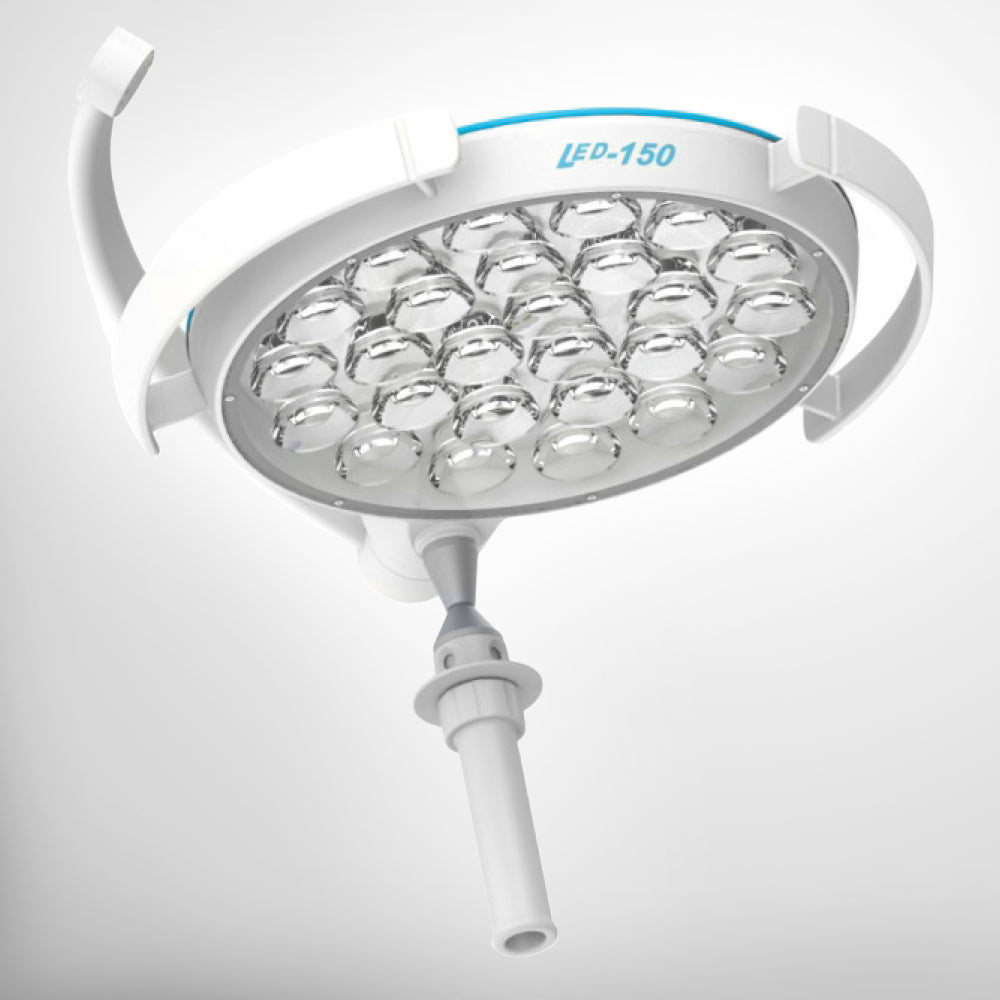

The LED150F is intuitively controlled by means of the side-mounted control panel and the sterilisable handle.

The compact LED150F contains 26 powerful LED modules. All modules provide a combined light intensity of 110,000 Lux.

Technical Data Overview

• Central light intensity (at 1 m distance) / Colour temperature: 110,000 lx / 4500 ± 200 K
• Colour rendering index at 4300 Kelvin (CRI): R_a ≥ 97, R₉ ≥ 97
• Focusable light field size (at 1 m distance): 180 – 250 mm
• Electronic brightness control: 50 – 100 % (incl. endoscopy light function)
• Temperature increase in head area: ≤ 0,5 K
• Power consumption (total): ≤ 28 VA
• Working area: 70 – 140 cm / Height adjustment (on Portegra2 spring arm) 117 cm
• Diameter of lamp head: 40 cm
• Weight LED150F: 3.5 kg
• Hazardous substances (EU Directive 2011/65/EU) – RoHS compliant
• Housing – Protection class IP42 / Fire protection class V0
• Medical Products Directive 93/42/EEC / Use according to DIN VDE 0100-710 / Approvals: CE / NRTL

The tasks in examination and operating rooms are varied and require precision and efficiency from any surgeon. Even minor surgical lights from MAVIG provide up to 115,000 Lux for an optimum illumination of the surgical field – so the doctor and his team can work safely, relaxed and precise.

Thanks to innovative technologies, the light field size in the surgical field are adjustable – always without colour shadows because the light is mixed directly in the lamp itself.

The benefits of the advanced LED technology are default and investment security due to an extremely long life span of the LEDs of at least 50,000 hours.

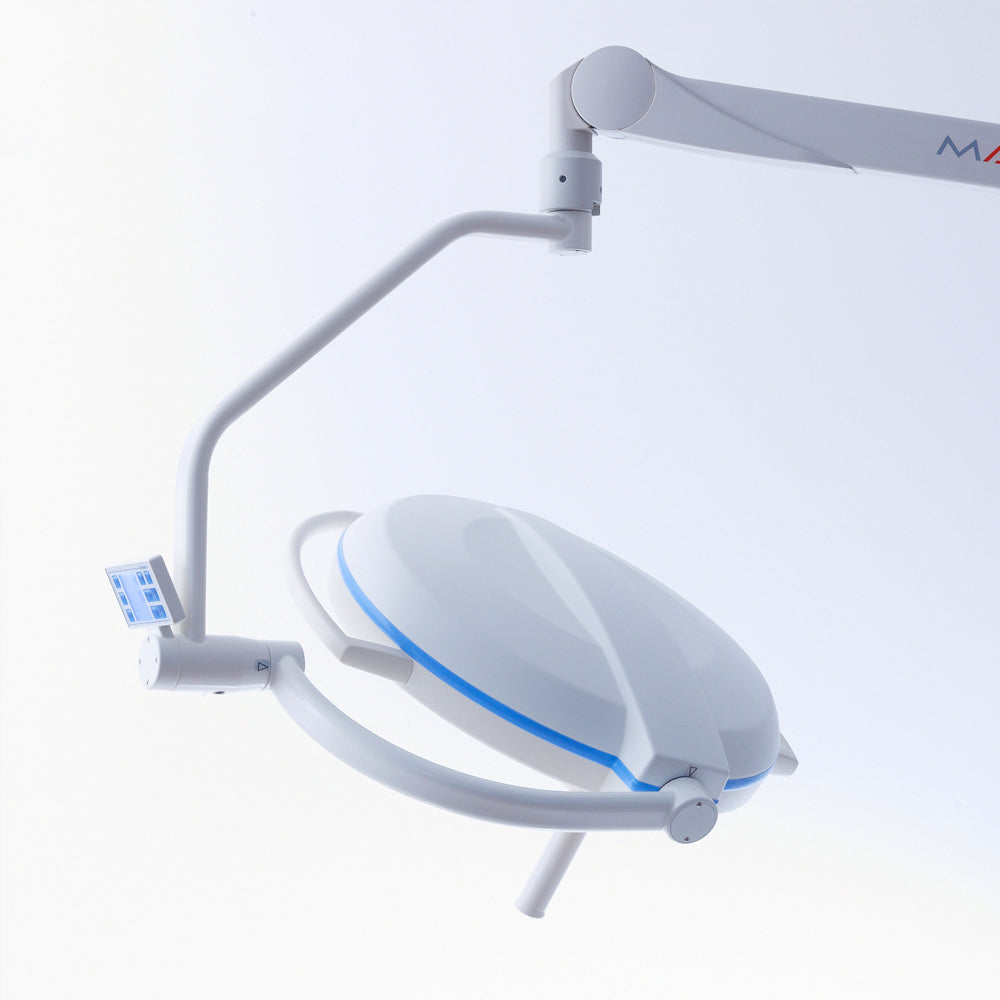

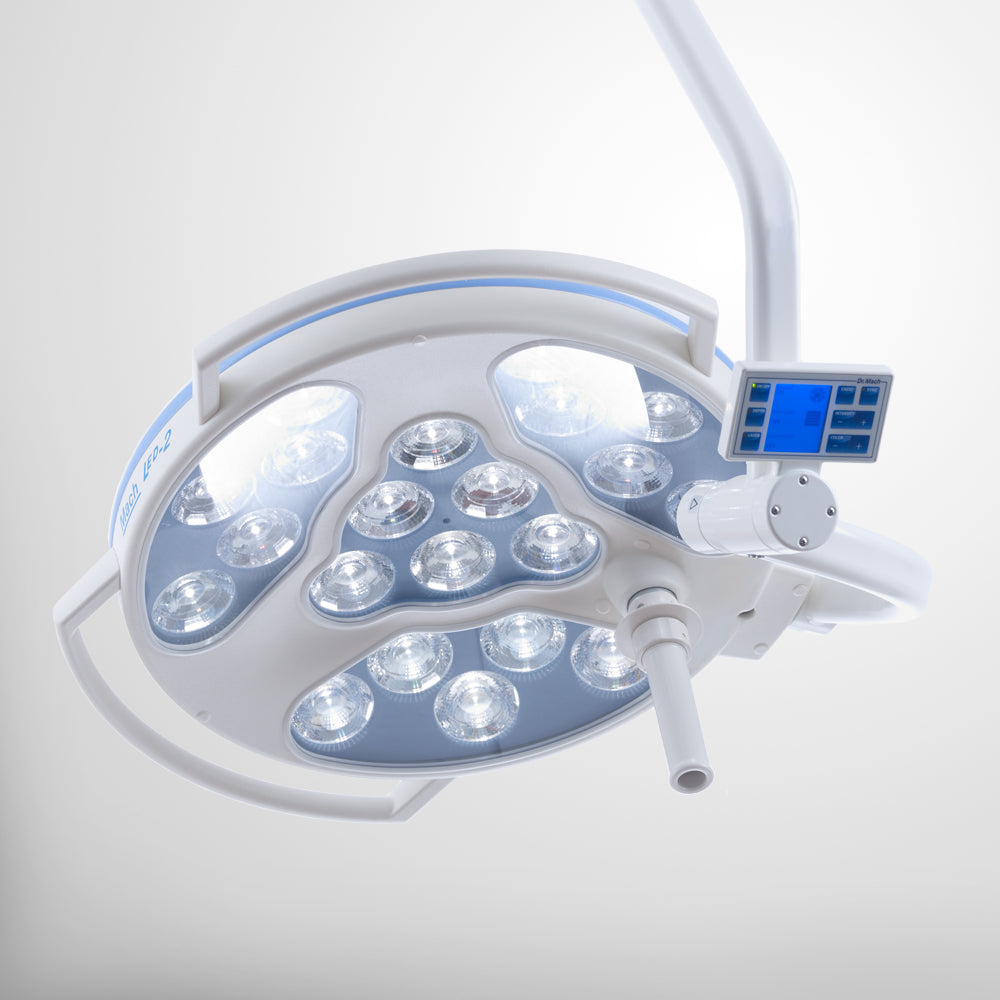

Kindly be informed about the following MAVIG product range update:  As we are modernizing our portfolio of medical lamps the «LED 2 MC» has been discontinued . The successor is the «LED6 MC».

A high contrast and a lifelike as well as precise illumination of the surgical field is of great importance in order to achieve the best possible outcome. In order to achieve optimal illumination from different directions a combination of multiple lights is recommended.

In order to achieve optimal illumination from different directions a combination of multiple lights is recommended. Placed on individual adjustable arms right below the ceiling – with the help of Portegra2 or our central axis, both modular systems of MAVIG – no longer a problem.

Another advantage in clinic or practice: The optimal design of the system is guaranteed as all lights from MAVIG are delivered with an apporpriate spring arm.

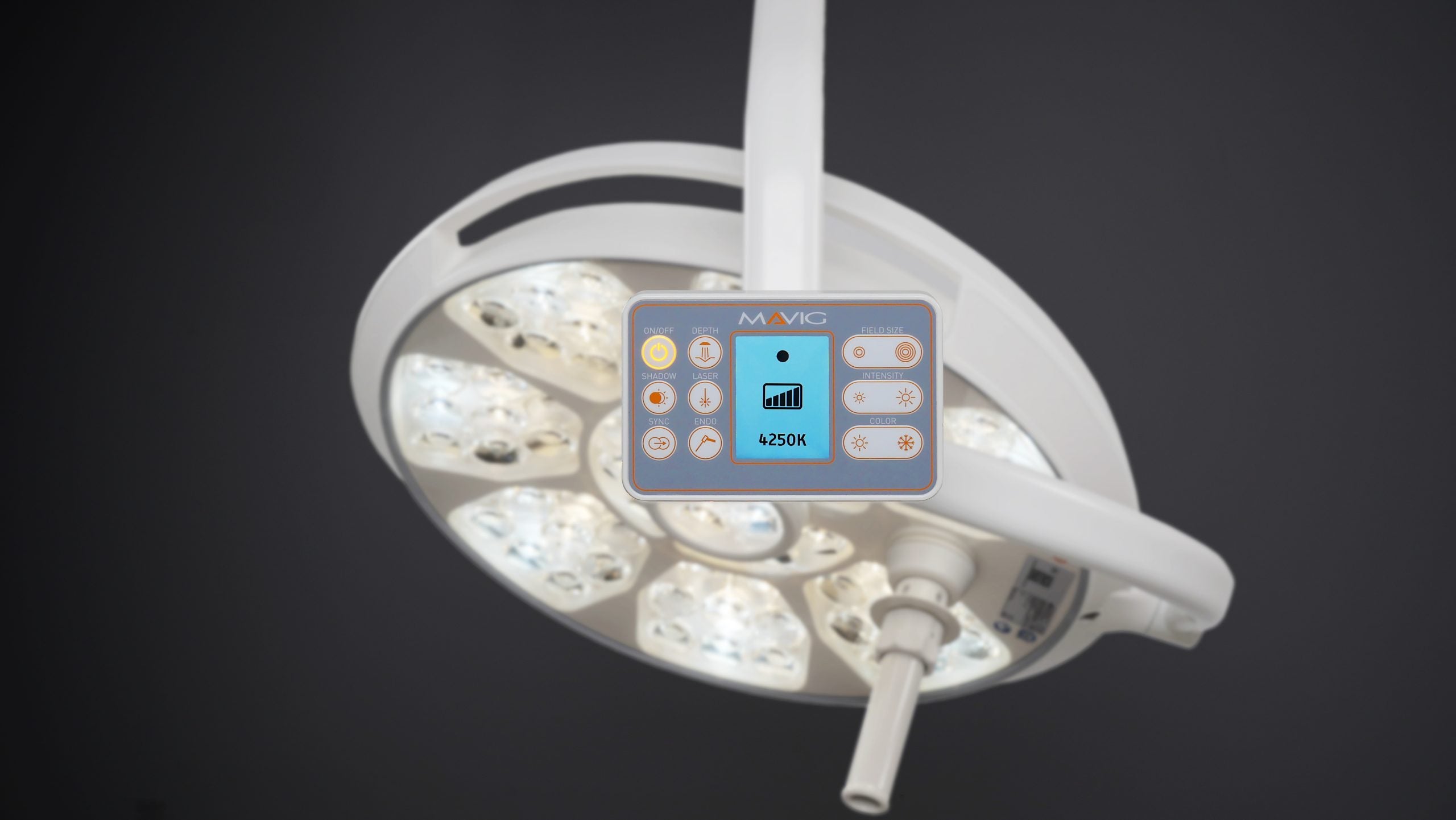

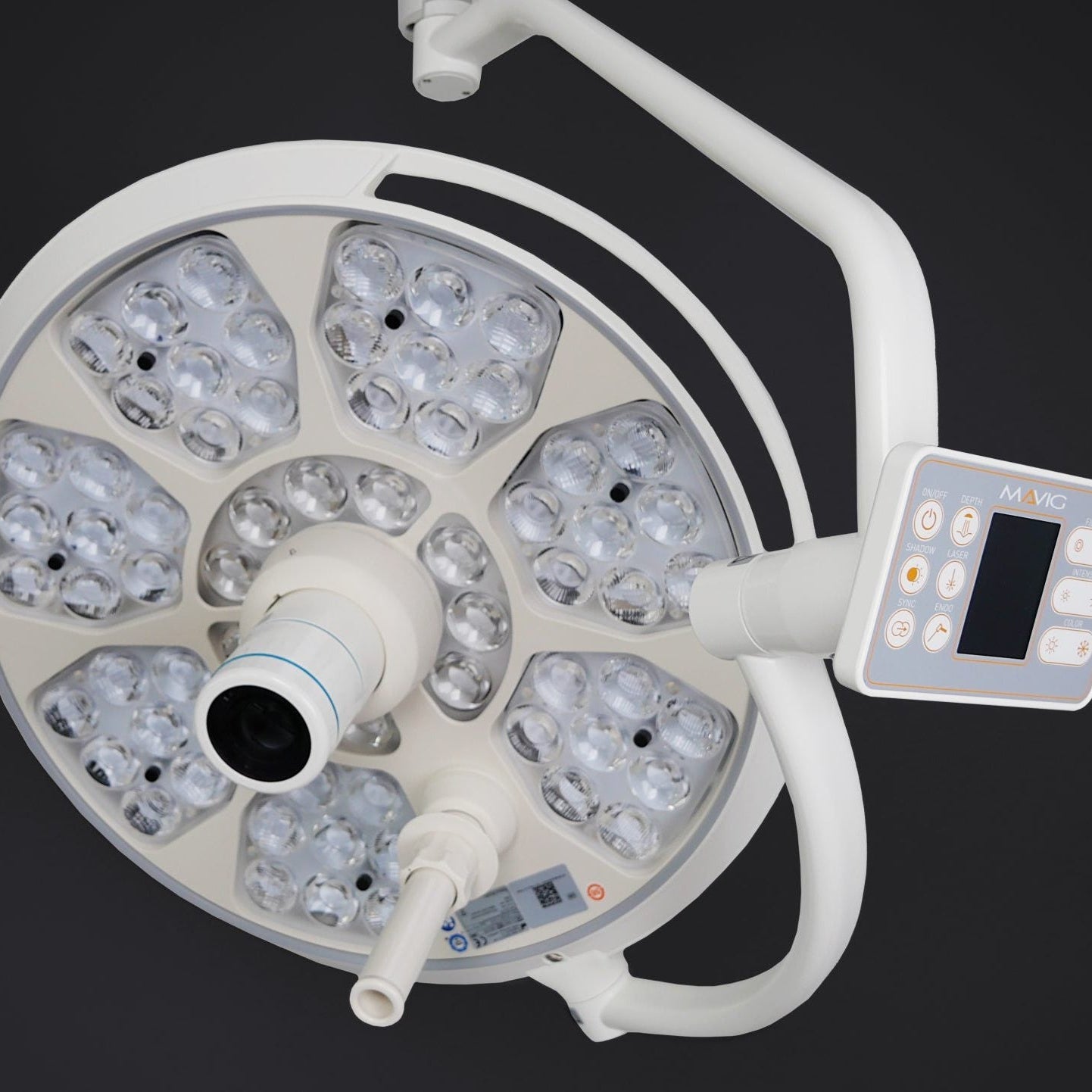

Using the optionally available wall panel, the light can also be operated remotely. The LED6 MC is available in 3 versions: 1. Basic version, 2. including laser pointer (L) or 3. including camera preparation and shadow management (KVS).

• Free 360° Rotation at the connection to the Portegra2 ceiling system
• Video Preparation for HD wireless camera (optional)
• Laser pointer for correct positioning (optional)
• Enhanced illumination depth
• Sterilisable Handle
• Large focus field
• Aluminum housing with antibacterial coating for high OR hygiene standards

Here it is rewritten cleanly as a Technical Features Table + a short description you can place on your product page.

Brilliant Light for Diagnostics and Surgery

The LED6 MC surgical light delivers high-precision illumination designed for both diagnostic and surgical applications. With optional wall-panel control and three available configurations—Basic, Laser Pointer (L), and Camera Preparation with Shadow Management (KVS)—it adapts perfectly to modern clinical needs.

Key Features

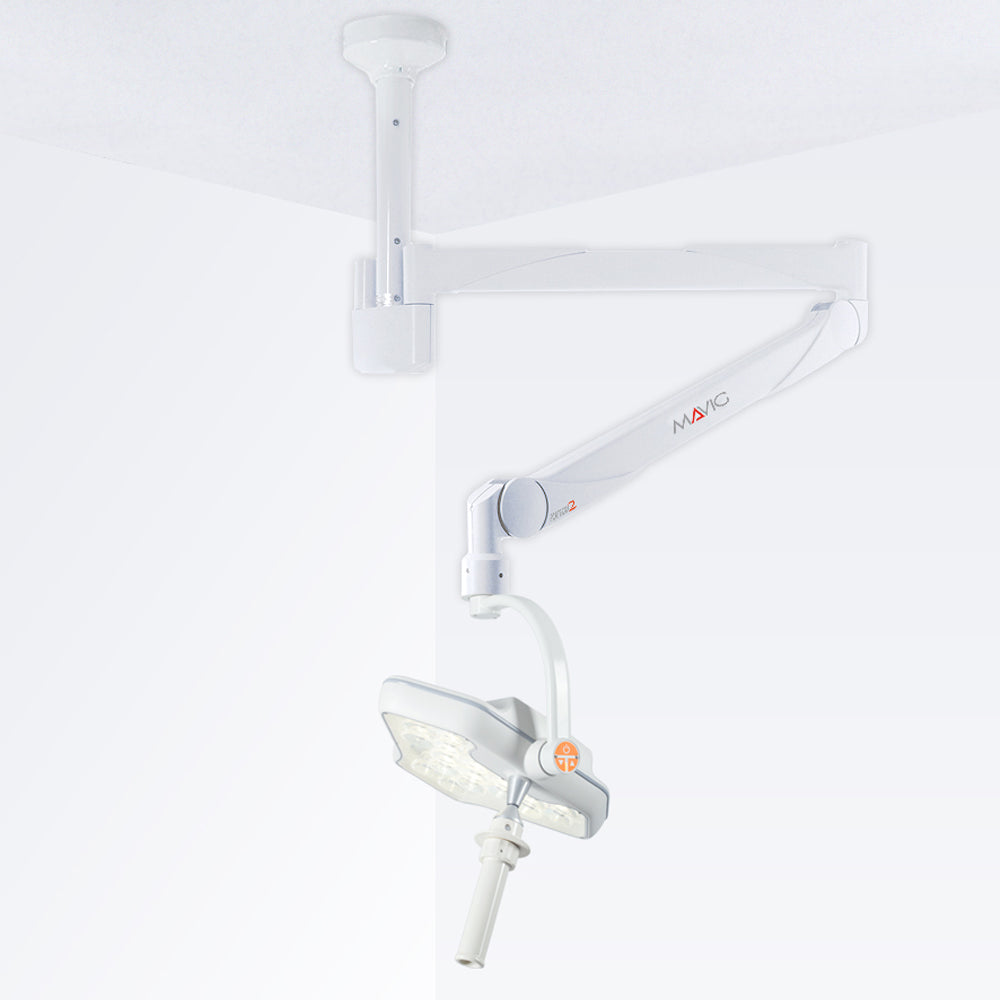

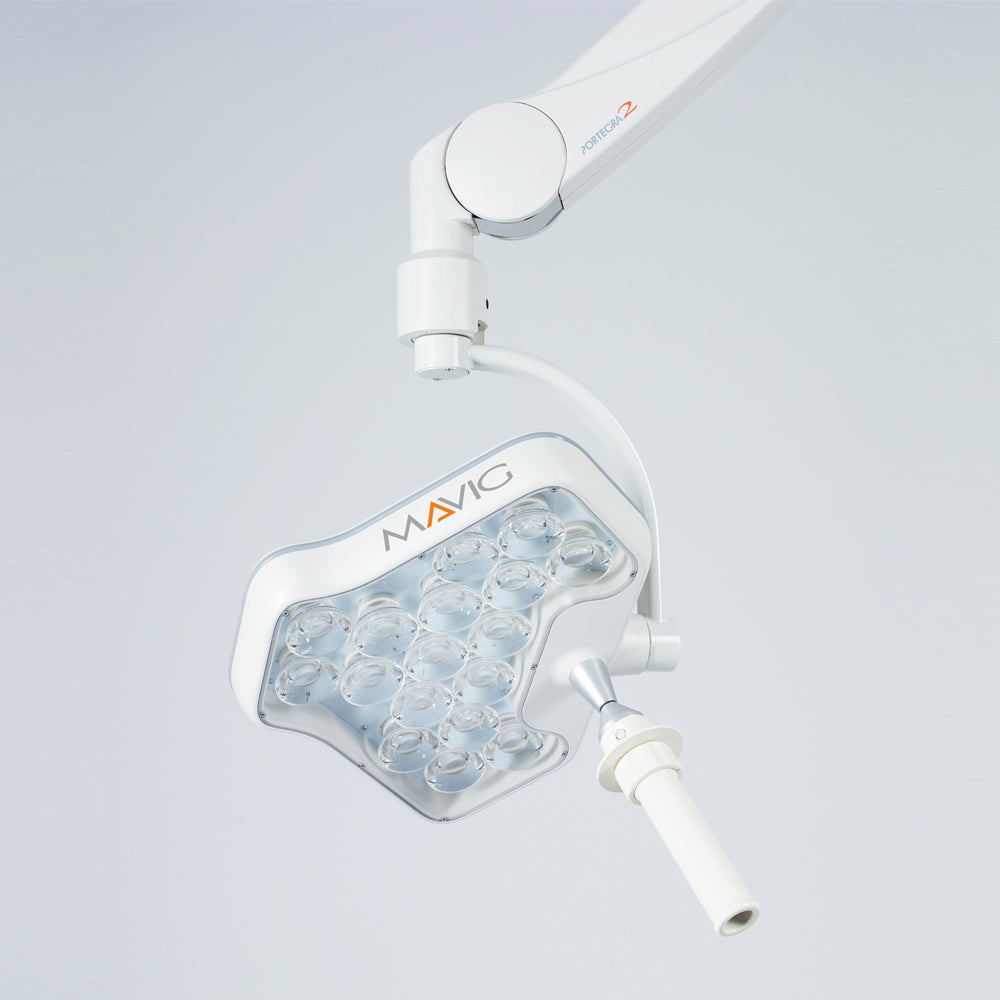

The compact YLED-1F contains 17 powerful LED modules. All modules provide a combined light intensity of 70,000 Lux.

In addition, a wide range power supply is integrated into the housing. This integrated power supply enables you to save space and time by means of simple installation.

Regardless of whether it is ceiling or wall-mounted, the tried-and-tested MAVIG Portegra2 system is ideal for suspending the YLED-1F (and other medical devices). Thanks to its great flexibility as a modular system with many safety features, it can be optimally adapted to a wide range of applications.

The YLED-1F therefore covers a wide range of applications, like examinations. It is intuitively controlled by means of the side-mounted control panel (On/Off, endoscopic light, brightness adjustment) and the sterilisable handle (focusing).

Designed for utmost performance and to meet stringent requirements, the YLED-1F can be used by physicians or specialists, in hospitals or in outpatient surgery centres. It always keeps a “cool head”, because the heat radiation from the YLED-1F is reduced to a minimum, even without complex filter technology.

With the use of considerably more efficient LEDs from the latest generation and a lamp life of at least 50,000 hours, the costs for electricity and lamp replacements are greatly reduced in comparison with the previously widespread halogen lights.

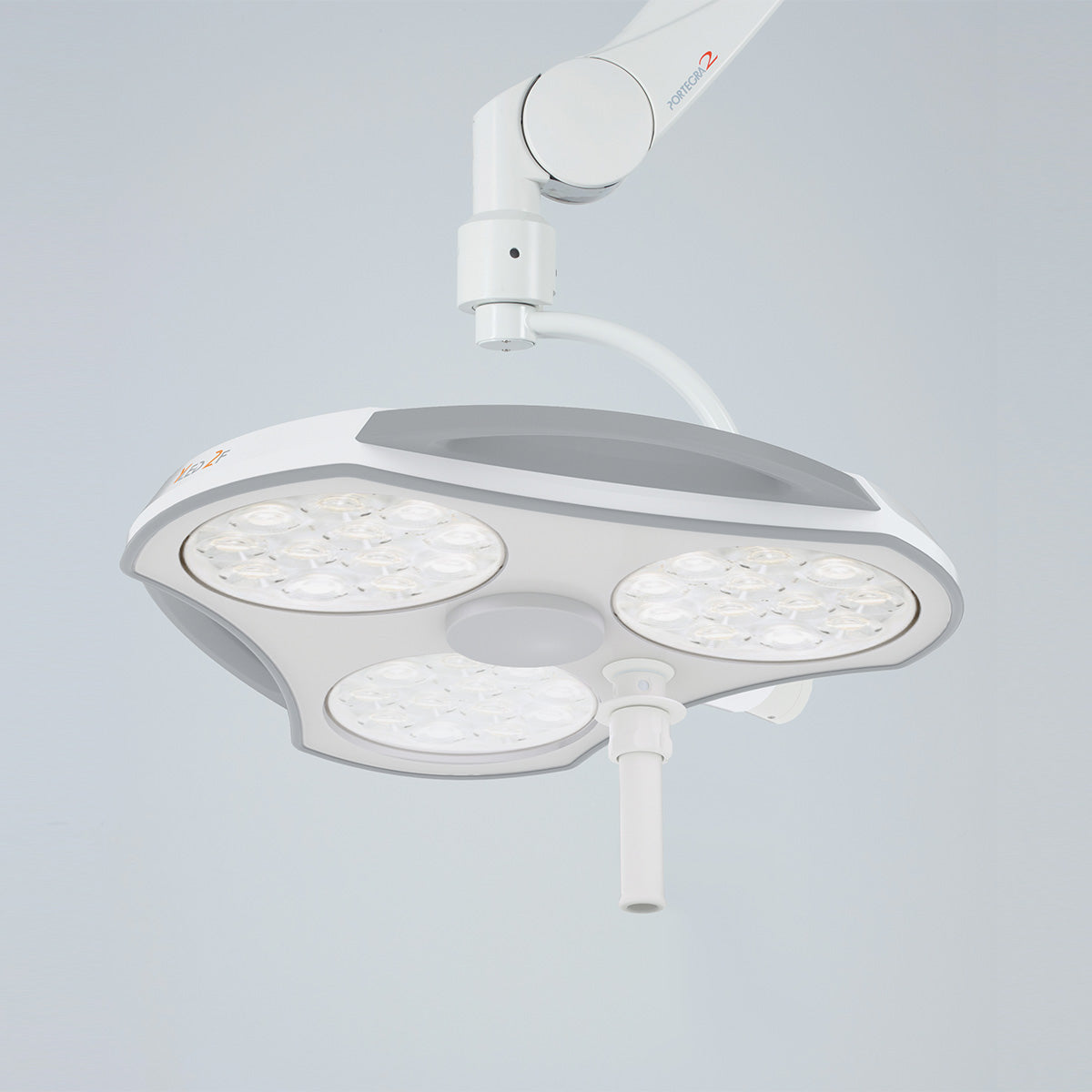

The YLED-2F impresses with its compact design and a well thought-out and intuitive control panel. The sterilizable handle on the operating light ensures hygienic and safe handling and meets the highest hygiene requirements in everyday clinical practice.

High Ra and R9 values ensure realistic color reproduction during surgical procedures and the faceted lens system guarantees homogeneity and minimal shadowing in the light field.

The delivery also includes an electrified pre-set Portegra®2 suspension arm (extension arm 750 mm / 950 mm, or for HCA systems with spring arm only) and an external power supply unit.

The fully cardanic suspension offers maximum flexibility in positioning. Excellent color reproduction values make the finest colour nuances in the tissue precisely visible. The ergonomically positioned handle allows the light field to be focused by turning the adjustment ring.

A faceted lens system ensures uniform light distribution and shadow reduction in the field of view.

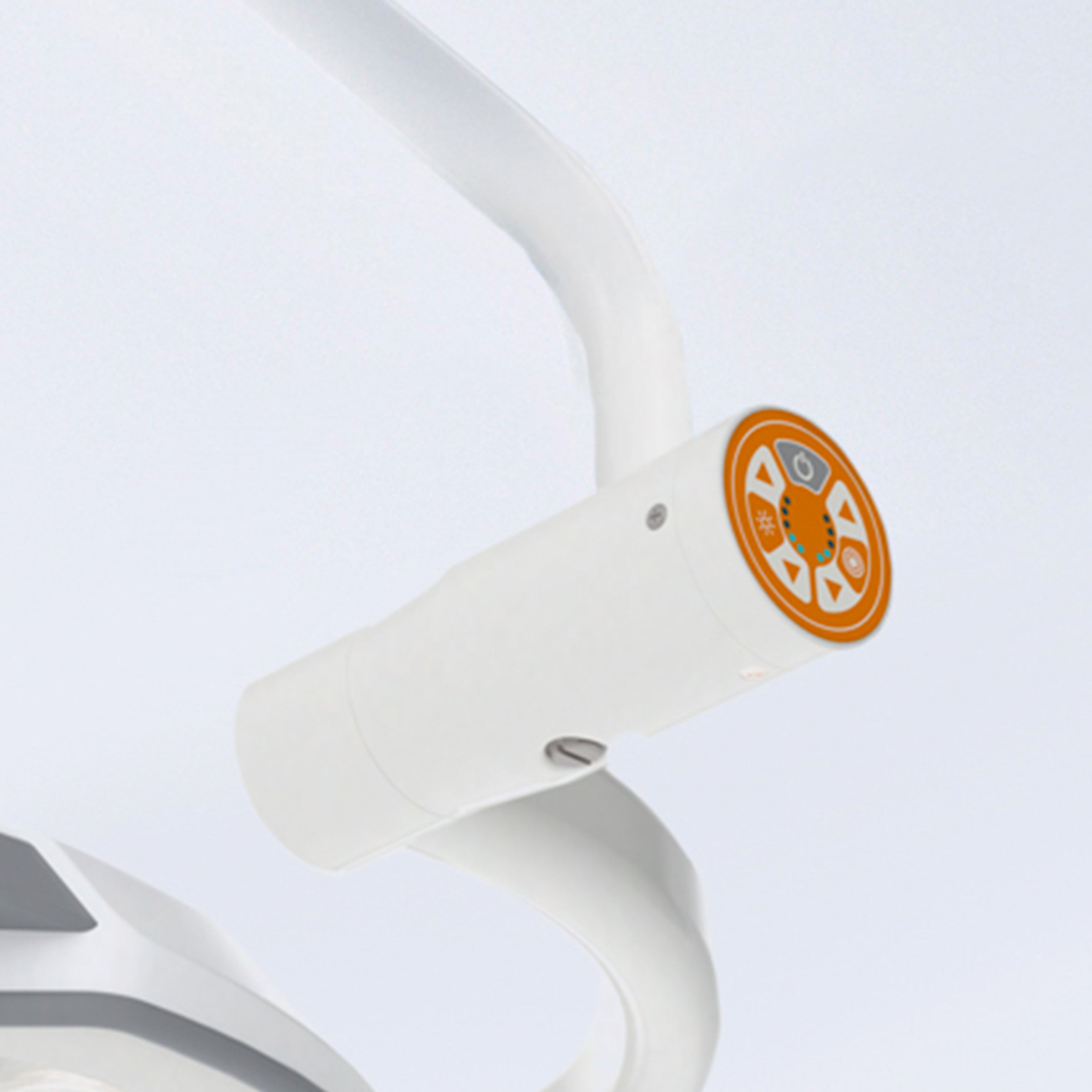

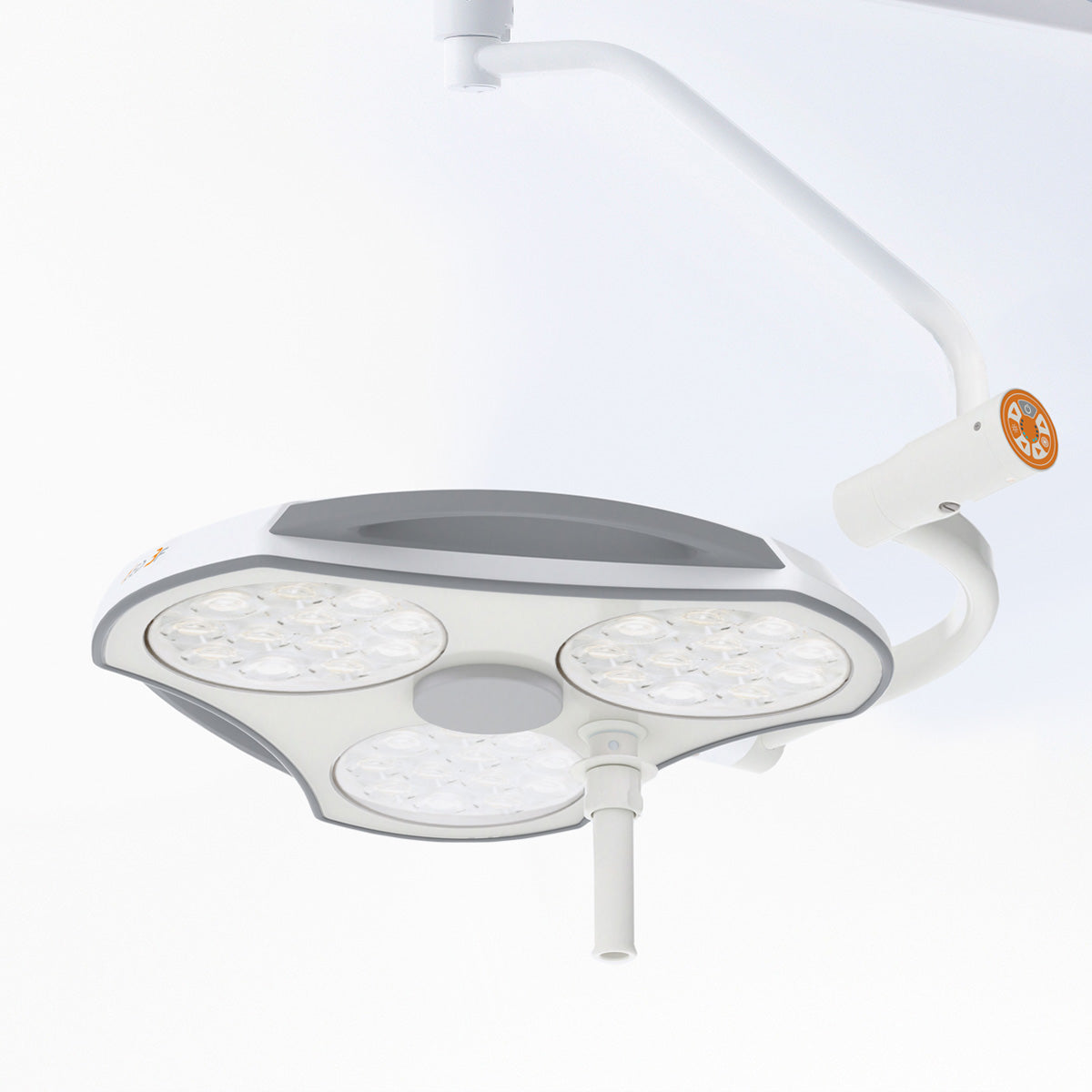

The sterilizable handle of the YLED-3F meets the highest hygienic requirements in everyday medical practice.

The delivery also includes an electrified pre-set Portegra®2 suspension arm (extension arm 750 mm / 950 mm, or for HCA systems with spring arm only) and an external power supply unit.
