Sony Medical Endoscopy Monitor Range, 24–32 inch
Vimex-supplied medical endoscopy monitor range, described in the uploaded page as 24–32 inch Full HD displays. Confirm the exact Sony model and connection configuration.
Vimex presents medical monitors for arthroscopy, gynaecology, laparoscopy and urology. The supplied photograph and general catalogue identify Sony monitors, while the uploaded monitor page gives range-level features rather than an orderable model specification.
Key features
Medical endoscopy display range
The uploaded page describes 24–32 inch monitors for endoscopic surgical imaging.
LED-backlit LCD
The supplier lists an a-Si TFT active-matrix LCD with LED backlighting.
Image adjustment
Gamma, contrast and chroma adjustments are listed, together with picture-in-picture operation.
Integration choices
Confirm the monitor model, supported signal formats and VESA mounting arrangement for the existing endoscopy tower.
Supplier-listed range specifications

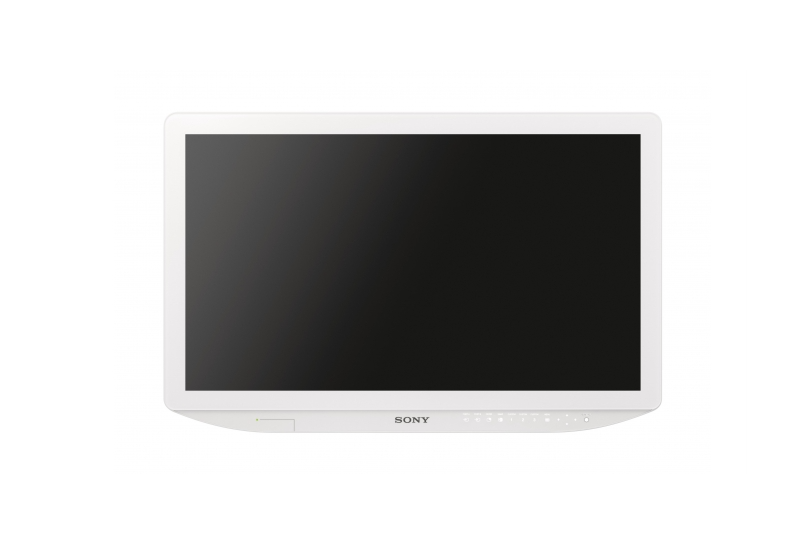

| Manufacturer represented | Sony, as shown in the supplied product photograph and Vimex catalogue |
|---|---|
| Screen size range | 24–32 inches, uploaded page; exact model required |
| Panel description | a-Si TFT active-matrix LCD with LED backlight |
| Resolution described on uploaded page | Full HD; confirm the native resolution of the selected model |
| Viewing angle quoted by supplier | 178° horizontal / 178° vertical; confirm for the selected monitor |
| Connections named on uploaded page | DVI, HD-SDI, RGB, S-Video and composite Video (BNC); exact ports and signal direction depend on model |
| Image adjustments | Gamma, contrast and chroma, supplier range description |
| Display mode | Picture-in-picture, supplier range description |
| Signal handling | Quick signal detection, supplier description |
| Mounting | VESA mounting solution; exact hole pattern and load requirements to be confirmed |
| 4K models | Mentioned separately in the general catalogue; not promised for every monitor on this page |
Configuration and supplied components
One monitor in an agreed model and screen size. Confirm the exact manufacturer part number, native resolution, inputs and outputs, mounting hardware, power supply, cables and any stand or arm in the quotation. The photograph is an illustration of the range.
Handling and compatibility
Specify the required video format, frame rate, resolution and connector type. Check camera and recorder compatibility, monitor mounting and the intended clinical use before ordering. Obtain the current model-specific specification and instructions; do not assume that every listed range feature is present on every model.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
