Vimex Urology Endoscopy System and Operative Instrument Set
Configurable Vimex urology endoscopy solution with rigid optics, continuous-flow sheaths, bridge options, 5 Ch instruments, light-guide cable and basket, with imaging and fluid-management equipment specified to suit.
Vimex offers urology solutions combining operative instruments with compatible camera, illumination, fluid-pump and equipment-cart options. The system is configured to the requirements of the clinical team. Photographs illustrate the range and do not establish a fixed package or piece count.
Key features
Operative urology configuration
Select rigid endoscopes, compatible continuous-flow sheaths, bridges and working instruments for the intended urology application.

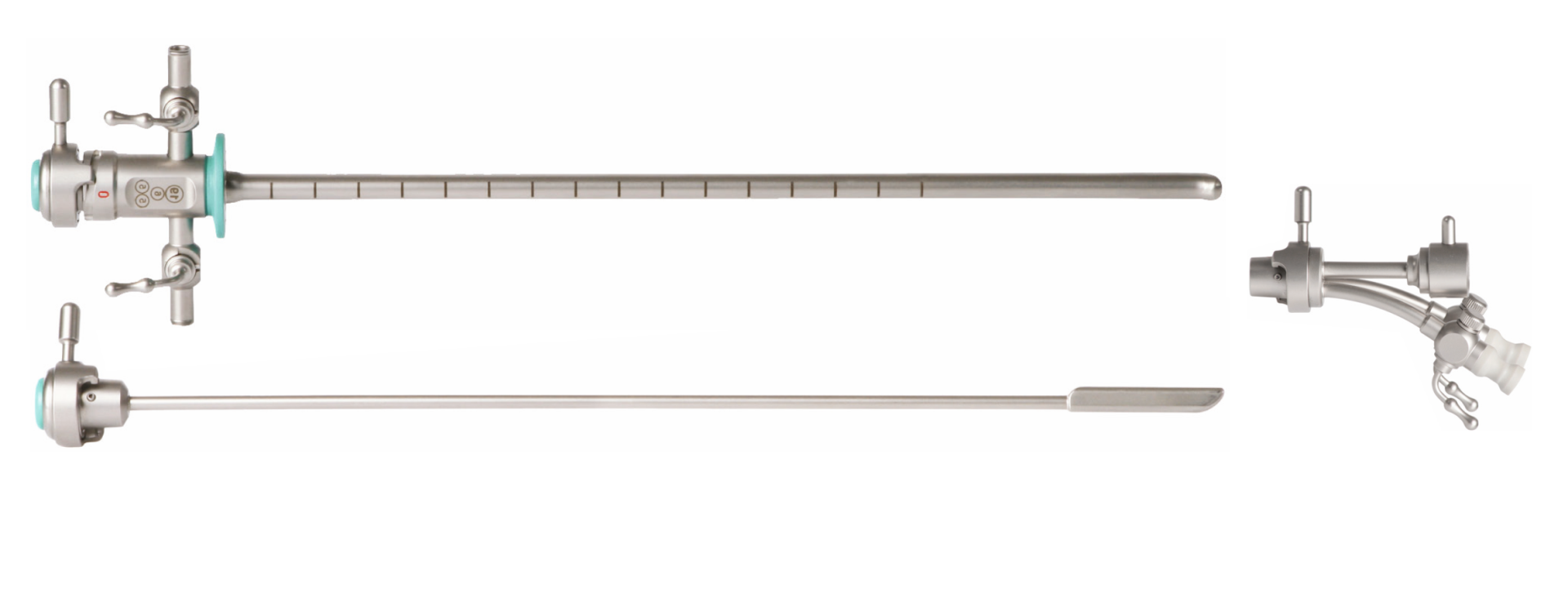

Sheath and bridge options
The range includes inner and outer sheaths and single or double bridges with a working channel.
Instrument and cable selection
Rigid, semi-rigid and flexible 5 Ch forceps are offered with different tips, alongside fibre-optic light-guide cables.
Equipment integration
Specify compatible imaging, LED illumination, fluid management and cart equipment for the required installation.

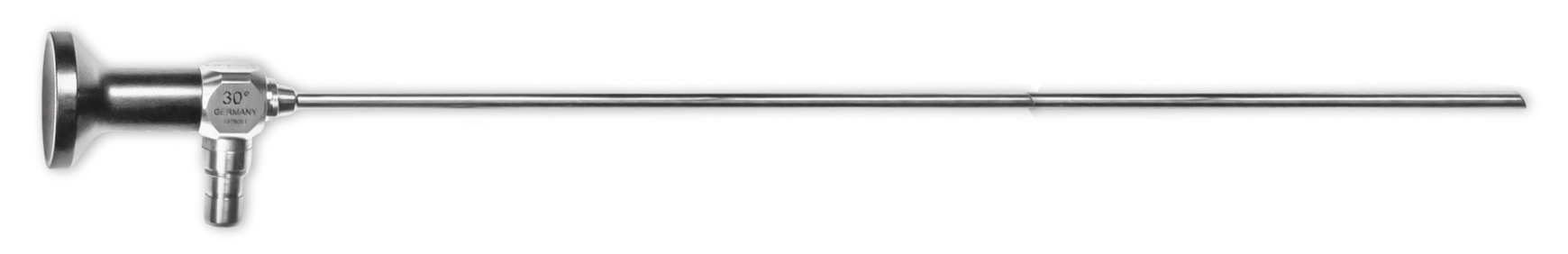

Urology endoscopes and continuous-flow sets
| Application | Urology endoscopy |
|---|---|
| Optic diameters listed by supplier | Ø2.7 mm, Ø2.9 mm and Ø4 mm; confirm the exact reference and availability |
| Continuous-flow arrangement | Compatible inner and outer sheaths |
| Bridge options | Single or double bridge with working channel |
| Working channel | Channel dimensions and instrument fit must be confirmed for the selected sheath and bridge |
| Working length and viewing direction | Confirm for each selected endoscope; no fixed value is stated for this configurable set |
| Component matching | Optic, sheath, bridge and instruments must be specified as a compatible configuration |

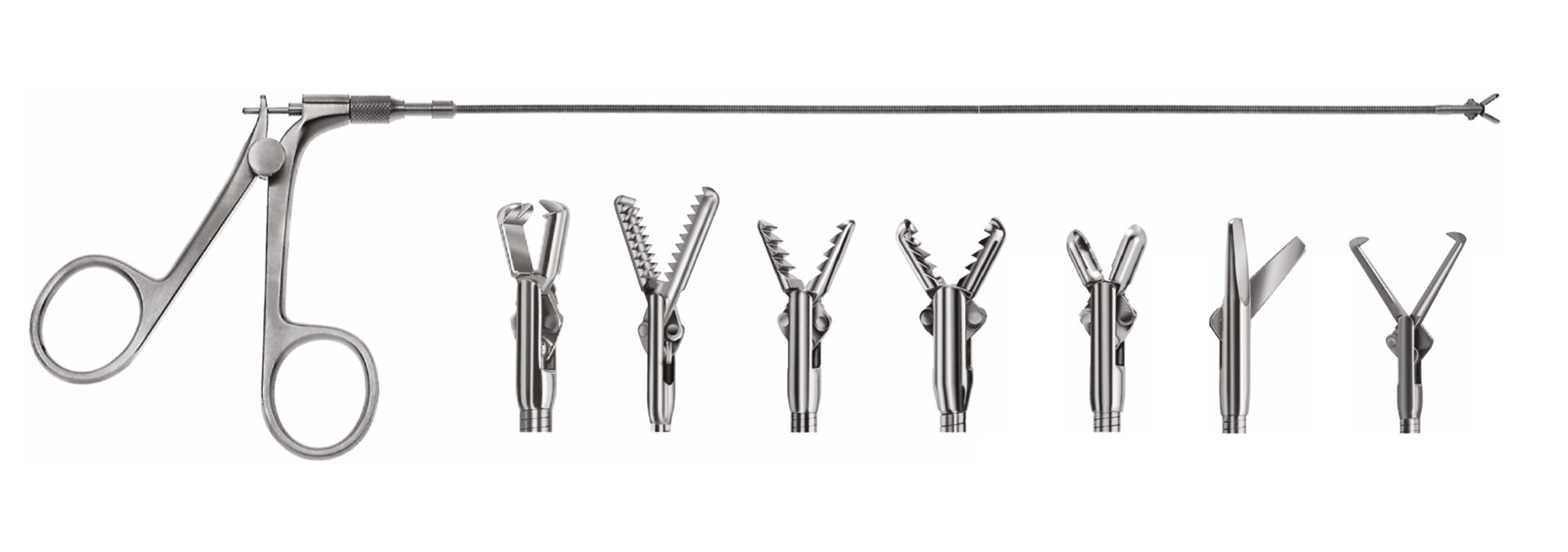

Forceps and working instruments
| Construction options | Rigid, semi-rigid and flexible |
|---|---|
| Instrument size listed | 5 Ch |
| Tip selection | Various tip types; specify the required function and exact reference |
| Other sizes | Available on request according to the supplier page |
| Supplied quantities | Defined by the itemised quotation; no fixed piece count is stated |
The stated 5 Ch size applies to the listed instruments. Confirm that the chosen working channel, bridge and sheath accept each selected instrument.

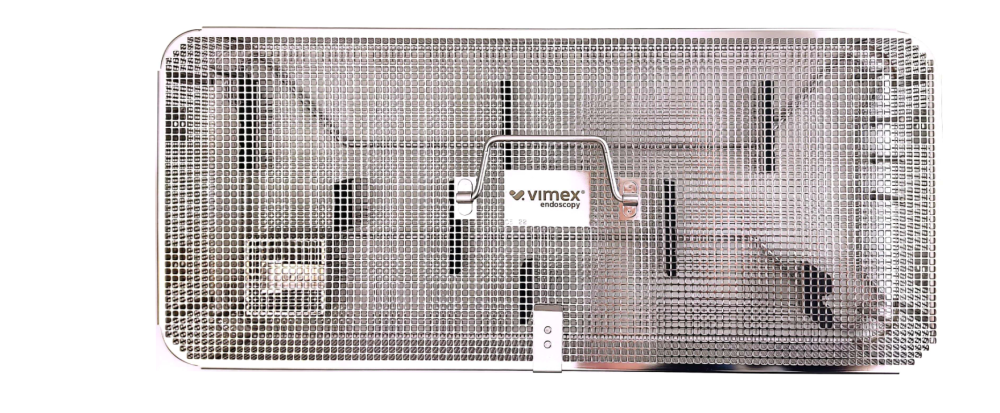

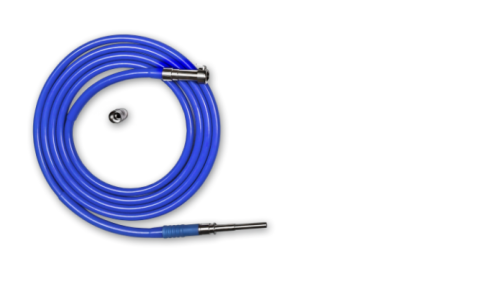

Light-guide cable and instrument basket
| Cable construction | Active fibre-optic bundle |
|---|---|
| Cable diameter listed | Ø3.5 mm |
| Cable length options | 2.3 m or 3 m |
| Cable connectors | Common light-guide connector types are offered; specify the light-source and endoscope connections |

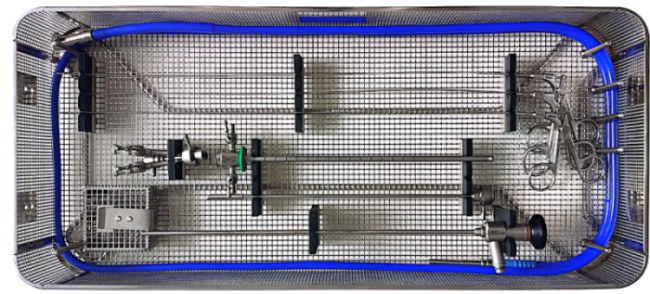

| Basket material | Stainless steel |
| Basket purpose described by supplier | Organisation for cleaning, sterilisation and transport |
| Instrument retention | Individual tool-clamping system |
| Basket specification | Confirm dimensions, loading arrangement and the compatible instrument list |
Imaging, illumination and fluid management
The manufacturer’s urology brochure, Uro version 1.0 ENG, describes a system with a medical monitor, Full HD camera, LED light source and fluid pump. These are configuration options and must be expressly itemised if required.
| Medical monitor | Select the screen size, resolution, video connections and mounting arrangement to match the chosen camera |
|---|---|
| Endoscopy camera | The brochure describes a Full HD CMOS camera with camera-head controls; confirm the actual control unit, camera head, coupler and supported outputs |
| Image and video capture | The brochure describes recording; confirm the supplied recording module, capture capability and storage connections for the actual camera reference |
| LED light source | Specify the console reference, light-guide cable and any connector adapters |
| Fluid pump | Select the model and application mode appropriate to the intended urology system |
| Pump tubing | The brochure describes two tubing arrangements; confirm the compatible complete single-use set or day-use pump part with single-use patient part |
| Installation checks | Confirm electrical connections, video signals, camera coupling, light-guide connectors and fluid-management compatibility |
Equipment-cart options
The brochure describes the following arrangements. Confirm current availability and suitability for the actual equipment dimensions, weights and monitor mount.
| Basic cart arrangement | 3 shelves and monitor mount |
|---|---|
| Compact cart arrangement | 5 shelves, 1 drawer, and a standard monitor mount or flexible arm |
| Configuration checks | Shelf dimensions and load ratings, monitor mounting, cable management, electrical distribution and accessory holders |
| Included equipment | Only the devices and accessories expressly itemised in the quotation |
Configuration and supplied components
This listing covers a configurable urology endoscopy solution rather than a fixed standard pack. The quotation must identify each endoscope, sheath, bridge, instrument, cable and basket by reference and quantity. Monitor, camera, recorder, LED light source, fluid pump, tubing and cart are included only when expressly itemised. Exact sizes, instrument tip designs, compatible components and current availability require confirmation.
Handling and compatibility
For qualified healthcare professionals. Confirm the intended procedure, optic diameter, working length, viewing direction, sheath arrangement, bridge and working-channel compatibility before ordering. Follow the individual device and instrument instructions for inspection, cleaning, sterilisation, setup and operation. The basket’s described use for sterilisation does not establish a validated cycle for every instrument placed inside it. Observe the use and replacement instructions for each tubing set and single-use patient part.
Ordering information
Provide quantity, delivery location and intended urology procedures. Specify the required optic diameter, working length and viewing direction; inner and outer sheaths; single or double bridge and working channel; instrument tip types and quantities; cable length and both connectors; and basket dimensions and arrangement. Identify the camera, monitor, recording, light-source, pump, tubing and cart requirements. Include existing equipment to be integrated and any installation, commissioning, training or maintenance requirements.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, and installation or after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
