TEAC UR-4MD Full HD Medical Video Recorder
UR-4MD Full HD medical video recorder with a 500 GB internal drive, 3.5 inch LCD, simultaneous internal/USB recording and an optional DICOM gateway upgrade.
The TEAC UR-4MD records surgical video and still images with automatic signal and resolution detection. Internal storage and USB recording support documentation workflows, with network file transfer available through FTP or CIFS. DICOM/PACS integration requires the appropriate optional upgrade and configuration.
Key features
Full HD recording
Records video and still images at up to 1920 × 1080. Manufacturer FAQ lists 30 / 29.97 Hz recording for Full HD.
Internal and USB storage
A 500 GB internal hard drive is included. Simultaneous recording to internal and compatible external USB media is supported.

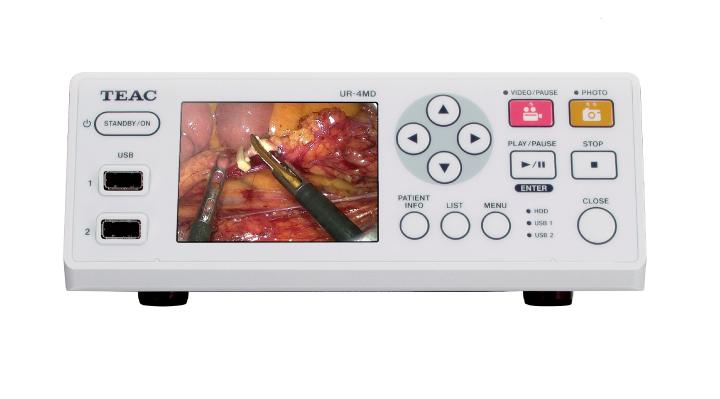

Built-in display
A 3.5 inch colour LCD supports live view, playback and navigation. The supplier states that this display is not for diagnosis.
Network file transfer
RJ-45 Ethernet supports FTP and CIFS background file transfer to a configured network destination.
Optional DICOM gateway
An optional upgrade provides DICOM still-image storage and Modality Worklist support. PACS connectivity is not included automatically.
Optional external controls
Remote control, footswitch, keyboard and barcode/card reader functions require the appropriate optional devices.
Recorder and interface illustrations

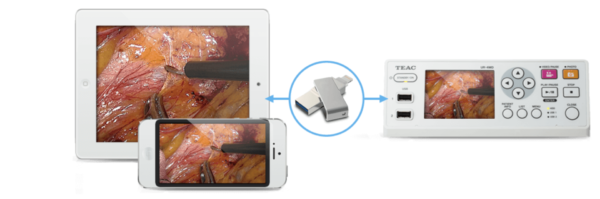

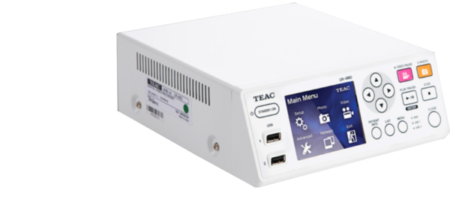

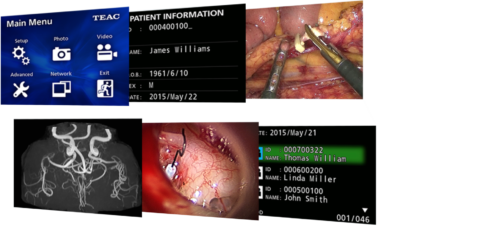

Manufacturer illustrations show the recorder, example interface screens and a sharing setup. Screens and external displays are illustrative. Check the options and network configuration included in the quoted unit.
Recording and storage specifications
| Model / manufacturer | UR-4MD / TEAC |
|---|---|
| Maximum Full HD recording | 1920 × 1080; manufacturer FAQ lists 30 / 29.97 Hz |
| Built-in LCD | 3.5 inch colour; live view, playback and navigation; not for diagnosis |
| Internal drive | 500 GB |
| External recording devices | Compatible USB flash drives and USB hard drives |
| Still-image format | JPEG; DICOM still-image support with the applicable DICOM configuration |
| Video format | MPEG-4 AVC/H.264, MOV file container |
| Recording media format | FAT32, manufacturer FAQ |
| Approximate Full HD recording times | 90 h at 12 Mbit/s; 60 h at 18 Mbit/s; 45 h at 24 Mbit/s, on the 500 GB drive |
| Network | RJ-45 10/100/1000 Ethernet; FTP/CIFS file transfer |
| DICOM/PACS | Optional gateway upgrade; Modality Worklist and DICOM still-image storage; confirm licence and integration |
Connections
| Video inputs | 1 × SDI (BNC); 1 × single-link DVI; 1 × S-Video; 1 × composite video (BNC) |
|---|---|
| SDI formats | 3G/HD-SDI 1080p / 1080i / 720p; SD-SDI 480i / 576i, manufacturer specification |
| DVI input/output formats | 640 × 480 to 1920 × 1200; input support does not mean recording at 1920 × 1200 |
| Video outputs | 1 × SDI; 1 × DVI; 1 × S-Video; 1 × composite; additional SDI Thru |
| Audio inputs | Embedded SDI audio; 2 stereo mini-jack inputs for line and microphone |
| Audio outputs | Embedded SDI audio; 1 stereo mini-jack line output |
| USB Type A | 3 × USB 2.0: two front recording-device connectors and one rear optional-accessory connector |
| USB Type B | 1 × USB 2.0 rear connector for access to the internal drive |
| External triggers | 3 stereo mini-jack connectors |
| HDMI | No native HDMI connector; confirm a compatible HDMI-to-DVI adapter if required. TEAC notes that HDMI audio is not supported |
Physical and electrical specifications
| Mains input | 100–240 V AC, 50/60 Hz |
|---|---|
| Dimensions, W × D × H | Approximately 210.5 × 235 × 88.5 mm, current TEAC specification |
| Net equipment weight | Approximately 2.6 kg; not a shipping weight |
| Operating temperature | 5–40 °C |
| Storage temperature | −20 to +60 °C |
| Operating humidity | 5–80%, non-condensing |
| Optional accessories | Remote control, footswitch, keyboard, barcode/card reader; confirm exact compatibility |
| Power-loss handling | Manufacturer describes fail-safe saving and shutdown; follow the operating instructions |
Configuration and supplied components
One UR-4MD recorder with power cord and owner’s manual as listed by TEAC. Confirm all signal cables, optional controls, storage media and the DICOM upgrade in the quotation. External monitors, tablets, network storage and PACS/HIS/RIS systems pictured in illustrations are separate.
Handling and compatibility
Confirm camera output, connector, resolution and frame rate before ordering. Check the required DICOM licence, PACS/worklist compatibility and network setup with the responsible IT team. The built-in LCD is for operation and review, not diagnosis. Follow the manufacturer instructions for closing recordings, removing media and maintaining reliable storage.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
