This adapter is for fitting different plate in the measurement using Kronos HT.
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | 351014X |
| ATTO Model | 3510 |

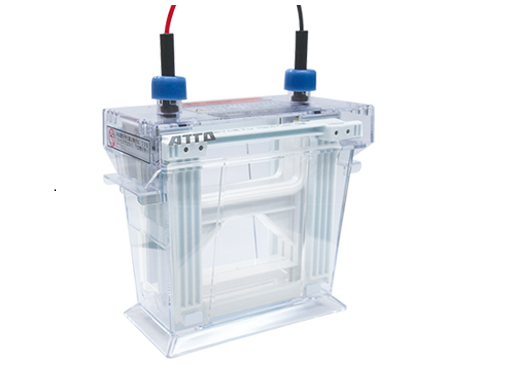

ATTO AE-6530MW mPAGE Chamber is an electrophoresis tank for standard mini-slab size polyacrylamide gels.
With many years of experience, this is ATTO's representative electrophoresis tank, with reliable quality and reasonable price.
It can be used for protein electrophoresis (SDS-PAGE, native-PAGE, etc.) and DNA electrophoresis.
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | AE-6530MW |
| ATTO Model | AE-6530 |
| Power requirement | AC 100-240V 50/60Hz |
| Gel Size, mm | 90 (W) x 80 (L) x 1.0 (D) |
| Number of Gels | 1 or 2 |
| Weight (w/o accessaries), kg | 0.65 |
| Dimensions, mm | 164 (W) x 94 (D) x 154 (H) |

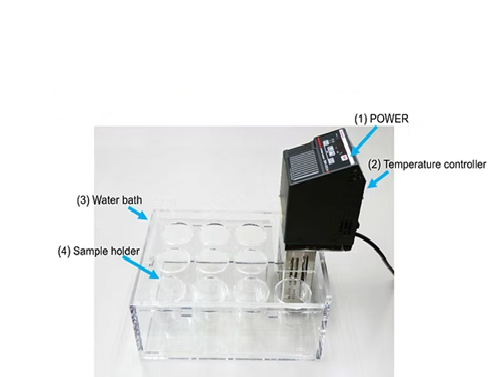

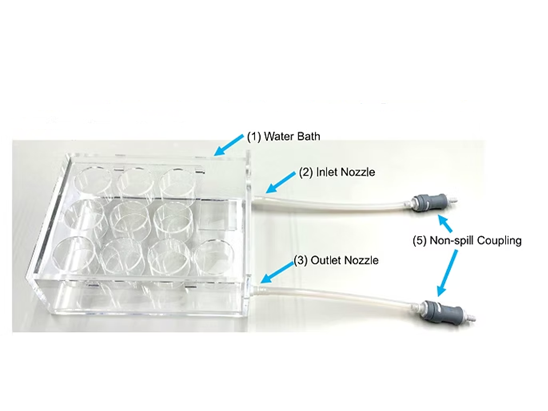

This setup can automatically control the temperature of samples for ATTO Pharmograph device.
PSTG Supplies is an authorized distributor of ATTO products.
| Temperature setting range |
Room temperature +5~50°C (maximum operating temperature of water tank: 50°C)*5 |
|
| Temperature Accuracy |
±0.1～0.5℃ |
|
| power |
AC100V ±10V 50/60Hz 550VA |
|
| size (mm) |
270 (W) × 360 (D) × 160 (H) (excluding temperature control unit) |
|
| mass (Kg) |
6.0 |
|
WSC-2700 uses 4types of tubes and no need to change tube adapter.
Cover open on/off, 6000rpm spin power. Setting timer 1sec ~ 9999min
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | WSC-2700 |
| ATTO Model | WSC-2700 |
| Applicable tubes | 0.2 mL tube 16pcs + 0.5 mL tube 8pcs + 1.5/2.0 mL tube 8pcs With adapter: Max. 0.2 mL tube 24pcs, Max. 0.5 mL tube 16pcs |
| Maximum rpm | 6,000 rpm (2,300×g) |
| Timer | 1 sec ~ 9999 min |
| Power | 220V 50/60Hz |
| Dimension | 156 (W) x 176 (D) x 140 (H) mm |
| Weight | 1.6 kg (Main body) |

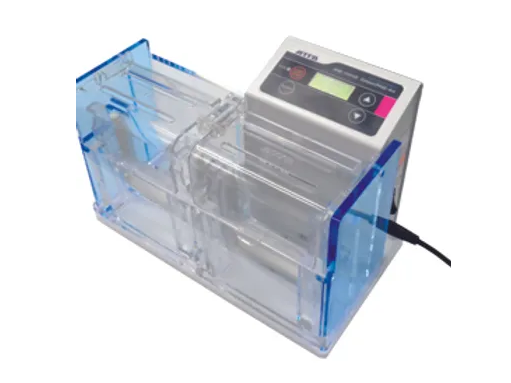

ATTO WSE-1025 cPAGE Ace Twin is a compact-slab size PAGE system with a built-in power supply.
The gel size(60mm x 60mm) and the apparatus body are very compact and easy-to-handle.
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | WSE-1025W |
| ATTO Model | WSE-1025 |
| Power requirement | AC 100-240V 50/60Hz |
| Mode, mA | 21.0(High) or 10.5(Low) |
| Gel Size, mm | 60 (W) x 60 (L) x 0.75 (D) |
| Number of Gels | 1 or 2 |
| Weight, kg | 0.9 |
| Dimensions, mm | 199 (W) x 108 (D) x 137 (H) |

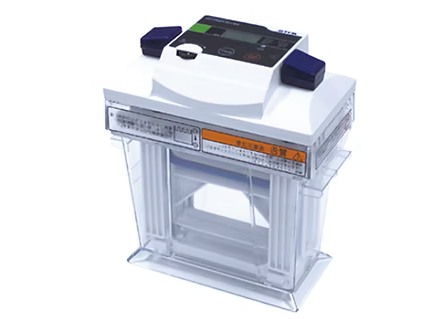

ATTO WSE-1150 MW PAGE Run Ace is an electrophoresis chamber including a core assembly.
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | WSE-1150MW |
| ATTO Model | WSE-1150 |
| Power requirement | AC 100-240V 50/60Hz |
| Gel Size, mm | 90 (W) x 80 (L) x 1.0 (D) |
| Number of Gels | 1 or 2 |
| Weight (w/o AC adapter and plates), kg | 0.74 |
| Dimensions, mm | 164 (W) x 94 (D) x 193 (H) |

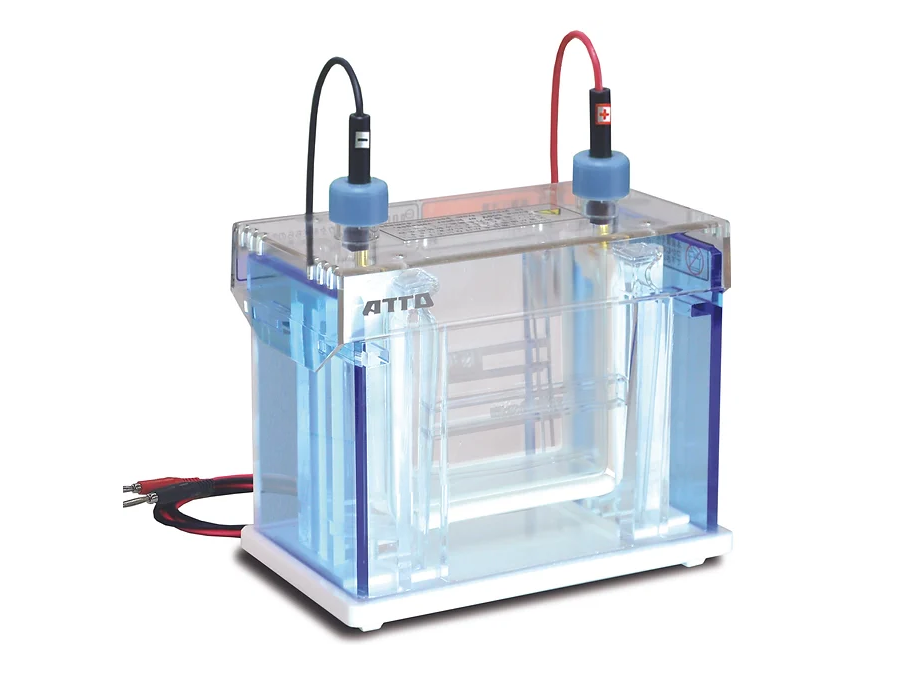

ATTO WSE-1165W Mini-Slab is an electrophoresis tank for standard mini-slab-sized polyacrylamide gels.
PSTG Supplies is an authorized distributor of ATTO products.
| SKU# | WSE-1165W |
| ATTO Model | WSE-1165 |
| Power requirement | AC 100-240V 50/60Hz |
| Plate Size, mm | 120 (W) x 102 (L) x 07 (D) |
| Number of Gels | 1 or 2 |
| Weight, kg | 0.9 |
| Dimensions, mm | 165 (W) x 99 (D) x 134 (H) |

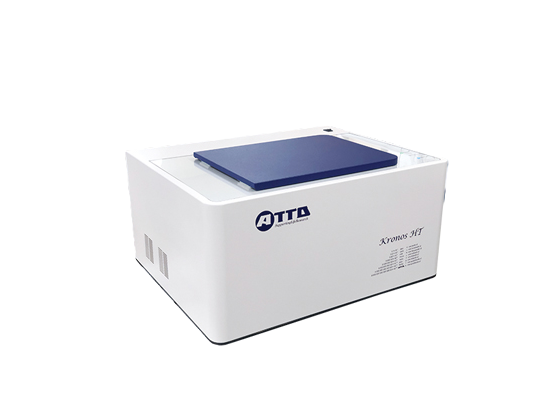

The Kronos HT is performing to detect high sensitivity for dim and weak luminescence consecutively in culture samples such as cells and tissues in 24 well plates for a long time. 96 well plates and 35 mm dishes also applicable.
Sample stage is in the incubation chamber in which temperature and CO2 gas concentration is controlled and humidity is kept >90%RH.
24・96 wells micro plate applicable.
Long-time detection available *1hour～30days
2 plates are measured by 2 PMTs (one PMT to one plate)
Plates are not moved, PMTs are moved to each well. > No shaking cells, so less damage to delicate cells and applicable to floating cells such as hematocytes.
PMTs are cooled to 10℃ > The dark noise is lower.
Built in filters for Multi-color luciferase assay
PSTG Supplies is an authorized distributor of ATTO products.
| Model | WSL-1565 |
| Detector | PhotoMultiplier Tube (PMT) (10℃ cooling) x 2 units |
| Measurement | Photon counting method |
| Measurement time | 1 - 60s/well, for 1 h - 30 days |
| Format |
24 well clear bottom plate x 2 (standard) 96 well clear bottom plate x 2 (optional) 35 mm dish x 12 (optional) |
| Detection plate | 2 PMTs (one PMT to one plate) |
| Number of specimens |
48 samples (24 well plate x 2) standard 192 samples (96 well plate x 2) optional 12 samples (35 mm dish x 12) optional |
| Incubation temperature control | Room temperature +5°C~45°C (0.1°C steps) in a room temperature environment of 20~28°C |
| CO₂ gas control | Adjust CO2 gas concentration with CO2 gas mixing unit and introduce it into the cabinet (setting range: 1.0 - 20%) |
| Humidification | Setting of water receiver in incubator and humidified 5% CO₂ gas flowing intermittently by humidifying out Maintaining > 90% RH |
| Multi-color assay | Measurement with automatically selected optical filter up to 2 colors |
| PC requirements | OS: Windows 11, 64/32 bit, Memory: 4GB HDD: more than 20 GB |
| PC interface | USB 2.0 x 1 port |
| Dimension(mm) | 650 (W) x 520 (D) x 340 (H) |
| Weight (Kg) | 40 |
| Power | AC 100~240V 50/60Hz 400W (Max) |
|
Name |
CO2 gas inlet unit for Kronos HT |
|
CO2 control |
Adjust the concentration in CO2 gas mixing unit and introduce it into the culture tank (setting range: 1.0 - 20%) |
|
Humidification |
Introducing CO2 gas into the Kronos HT culture tank via a humidification unit |
|
Dimensions (mm) |
CO2 gas mixing unit: 121 (W) × 174 × 157 (H) Humidification unit: 170 (W) × 140 (D) × 115 (H) |
|
Weight(Kg) |
CO2 gas mixing unit: 1.6 Humidification unit: 1.6 |
|
Power |
CO2 gas mixing unit: AC100~240V, 50/60Hz. 25W Humidification Unit: AC100~240V, 50/60Hz, 30W |
(Cytotoxicity) S. Wakuri, K. Yamakage, Y. Kazuki, K. Kazuki, M. Oshimura, S. Aburatani, M. Yasunaga and Y. Nakajima, Correlation between luminescence intensity and cytotoxicity in cell-based cytotoxicity assay using luciferase. Anal. Biochem., 522, 18-29 (2017)[PubMed]
(Oxidative stress) Y. Tabei, K. Murotomi, A. Umeno, M. Horie, Y. Tsujino, B. Masutani, Y. Yoshida, Y. Nakajima, Antioxidant properties of 5-hydroxy-4-phenyl-butenolide via activation of Nrf2/ARE signaling pathway. Food Chem. Toxicol., 107(A), 129-137 (2017)[PubMed]
(Micro RNA) Y. Mie, Y. Hirano, K. Kowata, A. Nakamura, M. Yasunaga, Y. Nakajima and Y. Komatsu, Function control of anti-microRNA oligonucleotides using interstrand cross-linked duplexes, Mol. Ther. Nucleic Acids, 10, 64-74 (2018)[PubMed]
(Anti-inflammation) P. Saiki, Y. Kawano, Y. Nakajima, LJLD. Van Griensven and K. Miyazaki, Novel and stable dual-color IL-6 and IL-10 reporters derived from RAW 264.7 for anti-inflammation screening of natural products. Int. J. Mol. Sci., 20(18), 4620 (2019)[PubMed]
(Cytotoxicity) S. Iwado, S. Abe, M. Oshimura, Y. Kazuki and Y. Nakajima, Bioluminescence measurement of time-dependent dynamic changes of CYP-mediated cytotoxicity in CYP-expressing luminescent HepG2 cells. Int. J. Mol. Sci., 22(6), 2843 (2021)[PubMed]
(Clock gene) JS. Huh, S. Lee, DS. Kim, MS. Choi, H. Choi and KH. Lee, Antioxidative and circadian rhythm regulation effect of Quercus gilva extract. J. Korean Wood Sci. Technol., 50(5), 338-352 (2022)[Link]
