evoqua

Evoqua Candle filter housing / filter-group 10" with wall mount

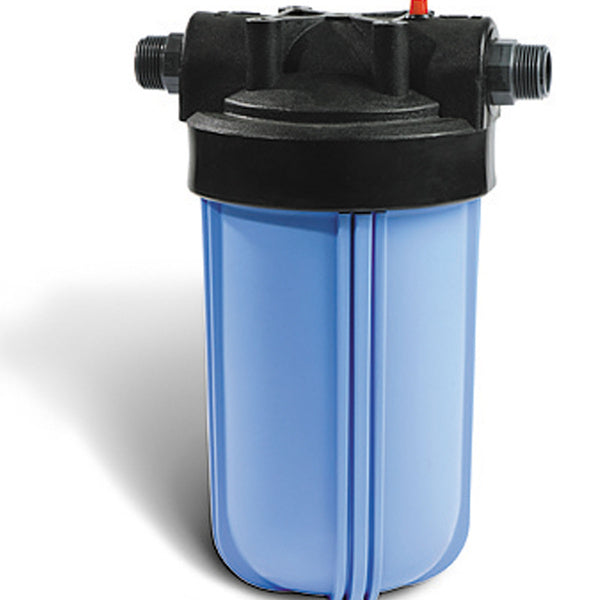

Evoqua candle filter housing FG 5", blue polypropylene

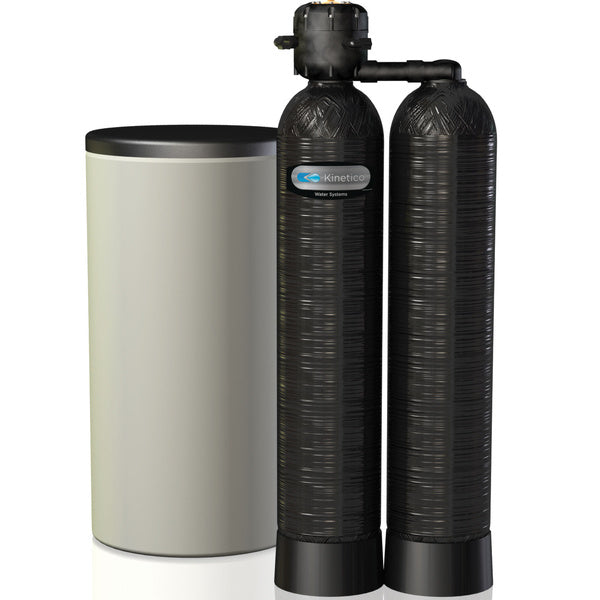

Evoqua double-water softening system

VM 60 - 4400 l
VM 100 - 9100 l
VM 200 - 16900 l
VM 300 - 21576 l

Capacity per regeneration at 10°dH per pillar in liters

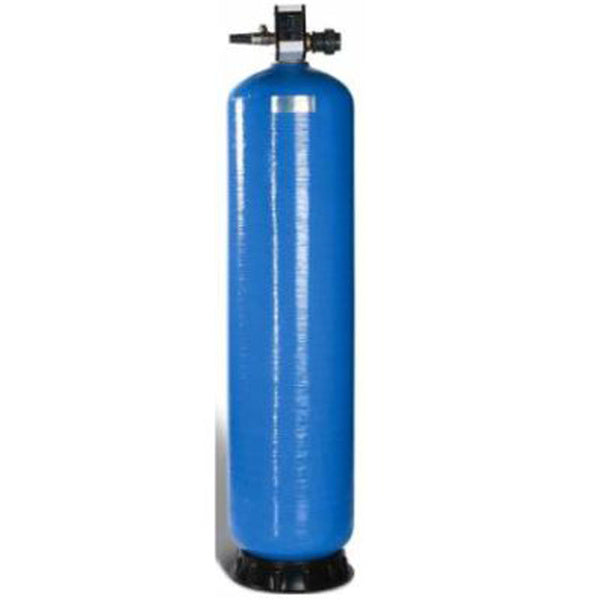

Evoqua filter systems

Evoqua LaboStar PRO and PRO TWF ultrapure water system

LaboStar PRO system
Cost-effective solution for the production of analysis-pure water. Small footprint

This extremely compact ultrapure water system can be used on laboratory benches.
The water produced by this system has a conductivity of 0.055 µS/cm (equivalent to 18.2 MΩ-cm) and an organic carbon (TOC) content below 10 ppb.
The water produced by the ultraviolet (UV) version has a TOC value of 1-5 ppb.

This water quality exceeds all relevant standards including ASTM Type I, CLSI (Clinical Laboratory Standards Institute) and ISO 3696 Type I.
Deionised water or permeate water from a reverse osmosis unit is used as feed water for the LaboStar system.
In LaboStar 2 and 4 units, the selection of treatment materials in conjunction with DI post-purification modules ensures that the highest quality standards of product water are maintained.
The purity of the product water is continuously monitored using a conductivity meter in the recirculation section.

Bacteria and endotoxins are removed by a positively charged 0.2 µm sterile filter on the dispenser.
In this way, pure water with an endotoxin value of less than 0.001 EU/ml can be produced without additional investment in an expensive ultrafilter.
A non-charged 0.2 µm sterile filter is also available.
The LaboStar 4 system is a mobile tabletop unit with an integrated tank for direct manual filling with feed water.
LaboStar systems are delivered ready to use, including the first module and filter set.

Product features

• Ultra-pure water circulation directly into the dispenser head
• Convenient water withdrawal with practical dispenser
• Whisper-quiet operation
• Quick and easy disinfection
• Whisper-quiet operation
• Quick and easy disinfection
• Quality monitoring after each cleaning stage
• Pressure reducer included
• Easy module replacement using quick couplings
• Protective jacket at the end of the sterile filter
• Integrated 7 L tank
• Mobile use independent of location
• Ultrapure water is available within a few minutes after filling the tank
• Simple plug & play installation (consumables are included)
• Made in Germany

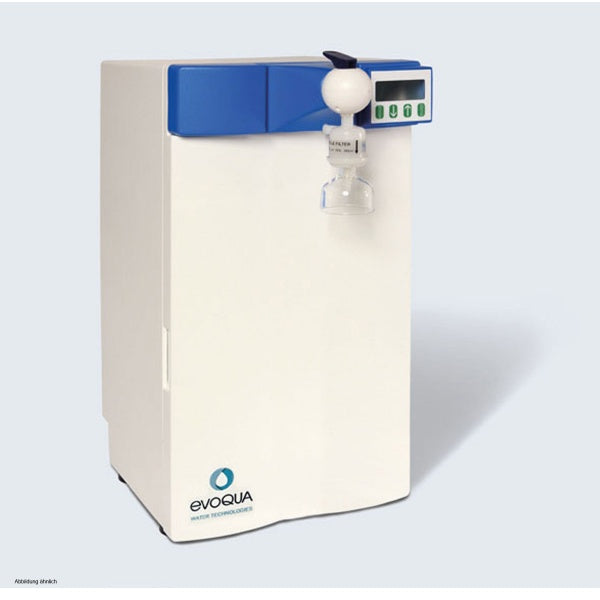

LaboStar Pro TWF systems
From tap water to ultrapure water in one innovative step

LaboStar PRO?TWF units produce ultrapure water directly from your drinking water supply.
This unit contains a pre-filter unit and a reverse osmosis membrane.
The pure water is collected in an integrated tank and finally passed through the post-purification module using a circulation pump.
The user can either draw type III water from the integrated 7 L storage tank or type I water from the dispenser with a conductivity of 0.055 µS/cm, corresponding to 18.2 MΩ-cm and with an organic carbon (TOC) content between 1 and 10 ppb, depending on the system type.
The quality of the RO water is also displayed.

The LaboStar PRO TWF unit can produce small quantities of analysis-pure water at low cost.
The water quality exceeds all relevant standards including ASTM Type I, CLSI and ISO 3696 Type I.
The system can be upgraded with a 30 L or 60 L tank.

• Can be upgraded with 30 L or 60 L tank, manual withdrawal via dispenser.
• Delivers 2 water qualities: Type III from the storage tank and type I from the dispenser
• Two different sterile filters available (with or without endotoxin retention)
• Easy module change using quick couplings
• Low purchase costs
• Consumables are part of the delivery
• Made in Germany

Product features
Product water purity is continuously monitored by a conductivity sensor in the recirculation loop.
A positively charged 0.2 µm sterile filter on the dispenser removes bacteria and endotoxins, eliminating the need for an expensive ultrafilter.
A non-charged 0.2 µm sterile filter is also available.
LaboStar PRO TWF units are supplied with an initial set of all necessary modules and filters.

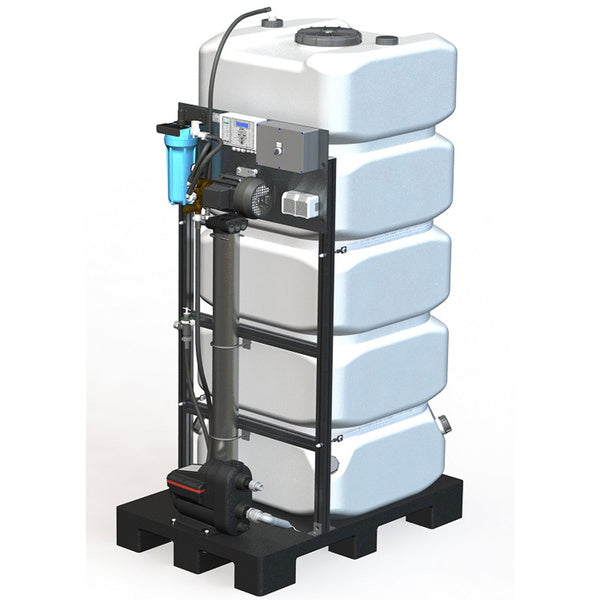

Evoqua Ultra Clear^TM RO

ALL NEEDS IN ONE SIZE
The Ultra Clear^TM RO Series System produces high quality water with very low energy consumption. The use of "low energy" membranes provide very efficient and economical operation. High quality material standards guarantee long service life.
The Ultra Clear^TM RO Series System uses the newest pump technology, which runs without the traditional e-motor, and operates nearly noiseless. Due to an integrated automatic membrane rinse cycle, in many cases, the systems can operate on untreated city water. Recovery rates up to 75% are possible with optional water softening.
Product water recovery is set up to an astounding 50 % from the factory, therefore, Ultra Clear^TM RO Series Systems also conserve water. Storage tanks help for the RO systems to provide additional water volume during times of high demand.

The storage tank can also be used to supply water for other lab equipment. The storage tank allows higher volumes of water to be used for short periods that would otherwise be limited to the RO system production rate. A storage tank basically guarantees that water is available when needed. The proper storage tank size and system configuration will be recommended based on application and water volume requirements to ensure optimum service from the equipment.
Standard tanks are available in 30, 60 and 80 liter sizes. Optional tanks of up to 3,000 liters are also available. All systems display inlet and product water quality. The salt reduction rate will be shown in percentage. Most systems on the market have less than 20 % recovery rate. Automatic, user-friendly maintenance alerts notify the operator when system service is required.

TYPICAL APPLICATIONS

• All types
• Feed for laboratory ultrapure water systems
• general chemistry
• laboratory washing machines
• water for autoclaves and environmental chambers
• buffer preparation

Evoqua Ultra Clear TP ED ultrapure water system
Ultrapure water system with electronic dispenser

The Ultra Clear TP ED series is equipped with an electronic dispenser for precise, volume-controlled dosing of up to 2 l/min of ultrapure water.
The intuitive software allows an easy-to-use dispensing process - directly and without delay.
A printer and Modbus interface integrates data transfer into your existing system.

Set to meet the highest requirements

• Installation is very simple. All systems are delivered from the factory ready for operation, including the first set of modules and filters, as well as all necessary connection hoses.
• A 7'' multi-colour touch display for simple and intuitive operation. You have everything at a glance and the display shows you all important parameters and change intervals.
• Easy access to the treatment modules so that you can change them without a service technician if necessary.
• These perfect components have a long service life and are individually monitored by our software. You can therefore produce ultrapure water at low cost.
• Only one highly efficient UV lamp is used for TOC oxidation and monitoring, which significantly reduces your costs.
• An integrated, user-guided disinfection mode increases the service life of your system.
• All systems are expandable with optional accessories.

Typical applications

• HPLC
• IC
• GC and GC/MS
• TOC analysis
• ICP and ICP/MS
• DNA sequencing
• RNase-, DNase-, DNA-free
• PCR
• IVF
• 2 D-electrophoresis
• critical cell and tissue cultures
• applications with extremely low pyrogen contents

The Polisher models
Designed for deionised water feed at conductivity < 20 µS/cm.
The unit has an ultrapure water output of up to 2 l/min and delivers a water quality of 18.2 M?-cm (0.055 µS/cm).
The water produced exceeds current quality standards.

The TWF models
The Ultra Clear TP ED TWF is an ultra pure water system, available with all options, which is connected directly to the drinking water network (Tap Water Feed).
The reverse osmosis stage works extremely water-saving with a yield of > 30 %.
The subsequent ion exchange module (DI) provides water with < 2 µS/cm from the tank.

The TWF EDI models
They represent the highest expansion stage of the TWF series through the use of an IONPURE EDI cell.
The residual desalination of the RO permeate is at the highest and constant level.
When fed into the tank, the quality is between 0.06 and 0.2 µS/ cm.
With this system, we offer a compact, economically favourable and sustainable solution for the production of two water qualities.
