IKA heating baths are compact, ergonomic baths for heating and tempering tasks in the laboratory and are universally suitable for use with oil or water. All models feature a cylindrical bath shape with heating elements integrated into the bath base for efficient heat transfer, and a double jacket or protective mantle to minimise the risk of burns. Safety elements including temperature limiters and over temperature monitoring are automatically checked at each start up.
The range includes models for standard and high temperature applications as well as a high performance version with integrated magnetic stirrer for improved temperature uniformity. Clear digital displays, interfaces for external control and optional external temperature sensors make these baths well suited for precise, reproducible workflows.
IKA heating baths - the best choice when it comes to heating and tempering in the lab. IKA heating baths shine due to their stellar safety characteristics. All baths are equipped with a double jacket for protection against burns and a safety temperature monitor to keep the bath from over heating. Also, the heating bath's safety elements are checked each time it is switched on. IKA baths are universally suitable for use with oil or water. Functionality, safety, and longevity are the main goals in the development of IKA heating baths.
Technical Specifications

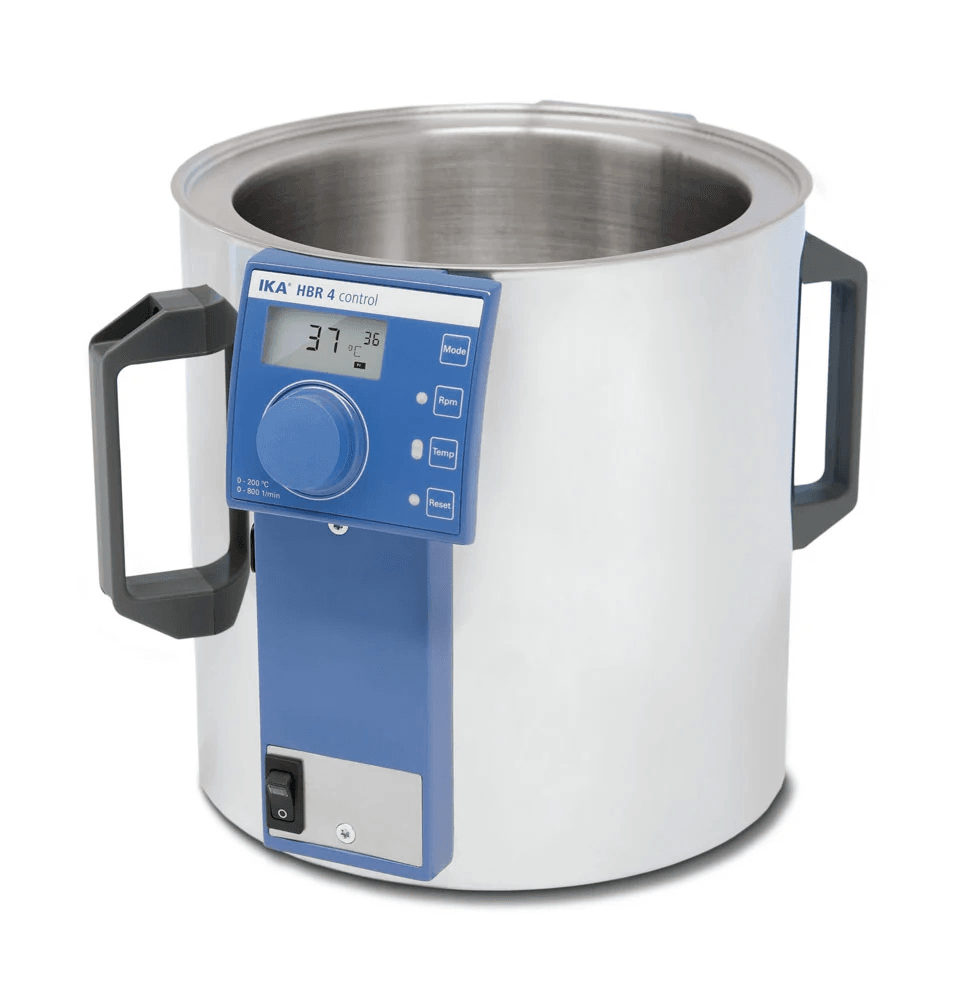

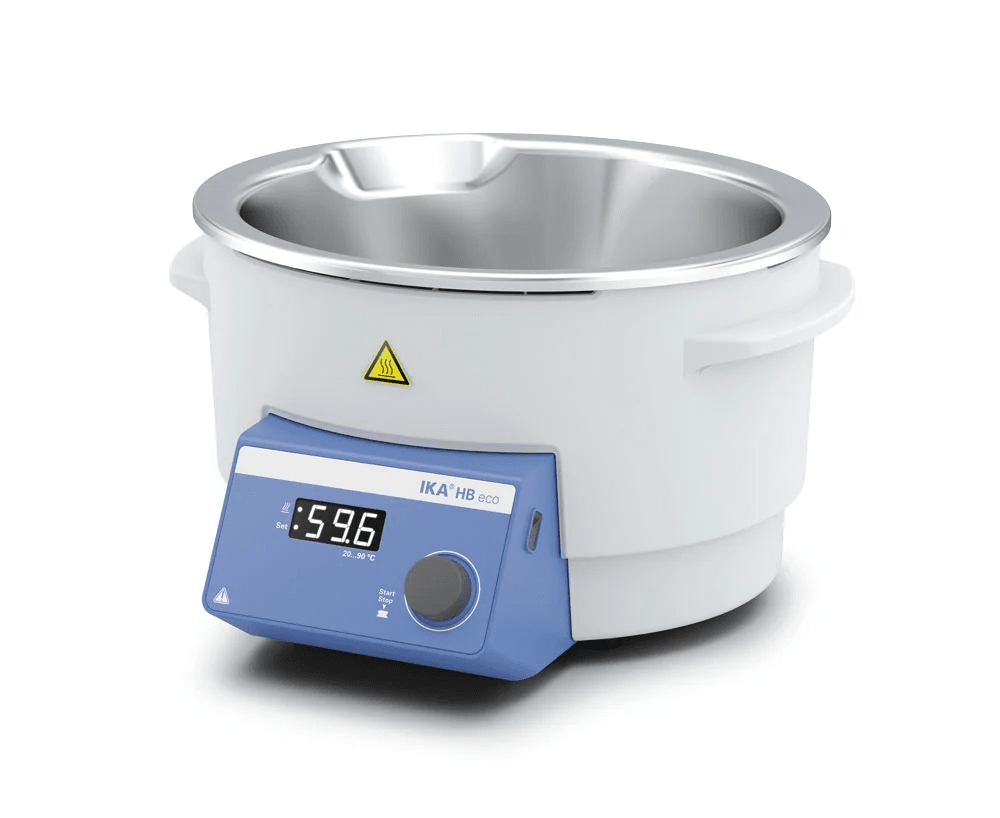

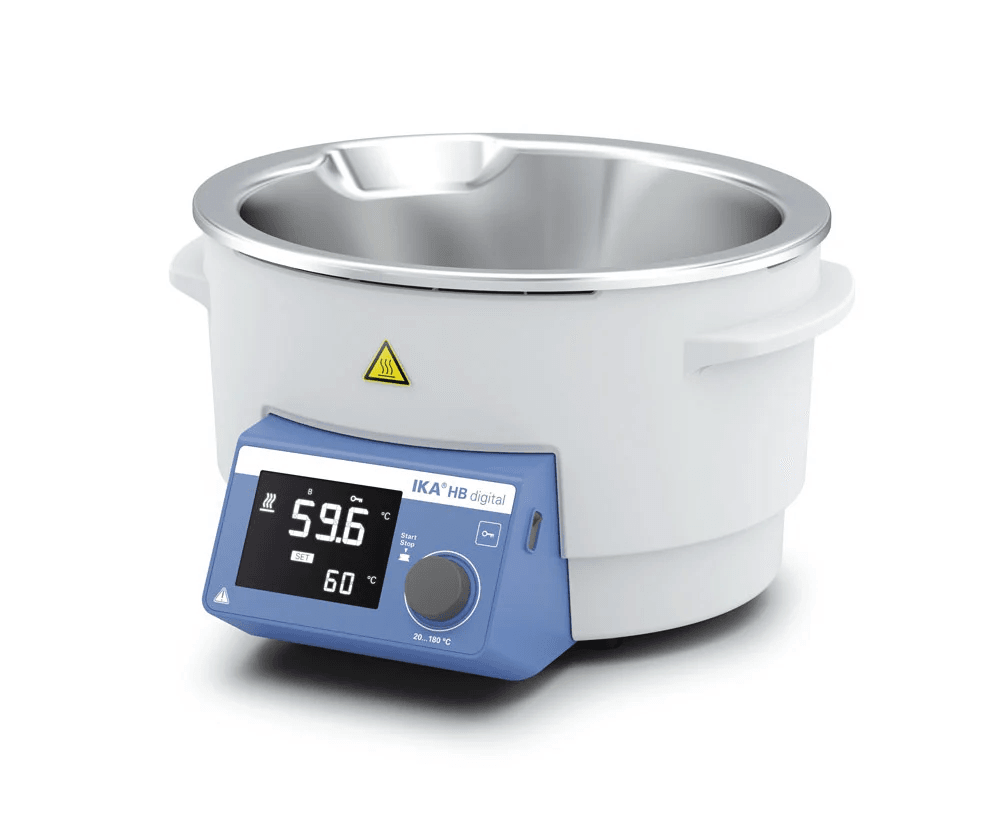

| Model | HBR 4 Control | HB eco | HB Digital |
| Identity Number | 0020009381 | 0020016338 | 0020016335 |
The heating bath is noted for:
Scope of delivery
|
Compact and ergonomic heating bath
Scope of delivery
|
Compact and ergonomic heating safety bath for all tempering media.
Scope of delivery
|
|
| Heat output | 1000 W | 1400 W | 1400 W |
| Heating temperature min. | room temp. °C | room temp. °C | room temp. °C |
| Heating temperature max. | 200 °C | 99 °C | 180 °C |
| Heat control | stepless | Turning knob | Turning knob |
| Set temperature resolution | ±1 K | ±1 K | ±1 K |
| Controller oscillation (3 l water / 90 °C) | ±1 K | ±1 K | ±1 K |
| Absolute deviation/mean (3l water / 90 °C) | ±2 K | ±2 K | |
| Controller oscillation (3l Silicone oil / 50mPas / 150°C) | ±2 K | ±2 K | |
| Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) | ±4 K | ||
| Speed display | LCD | LED | LCD |
| Speed adjustment | stepless | ||
| Speed min. | 150 rpm | ||
| Speed max. | 800 rpm | ||
| Motor rating input | 5 W | ||
| Motor rating output | 1 W | ||
| Filling volume max. | 4 l | 4 l | 4 l |
| Filling point min. | 20 mm | 60 mm | 60 mm |
| The material in contact with the medium | stainless steel 1.4301 | stainless steel 1.4404 | stainless steel 1.4404 |
| Connection for ext. temperature sensor | PT1000 | ||
| Fixed safety circuit | 109 °C | 190 °C | |
| Adjustable safety circuit min. | 50 °C | 50 °C | |
| Adjustable safety circuit max. | 210 °C | 190 °C | |
| Class designation acc. DIN 12876 | II | I | II |
| Outer diameter | 250 mm | 257 mm | 257 mm |
| Inner diameter | 200 mm | 225 mm | 225 mm |
| Outer height | 250 mm | 190 mm | 190 mm |
| Inner height | 160 mm | 130 mm | 130 mm |
| Width | 340 mm | 330 mm | 330 mm |
| Depth | 340 mm | 325 mm | 325 mm |
| Height | 250 mm | 190 mm | 190 mm |
| Weight | 5.6 kg | 3.9 kg | 3.9 kg |
| Permissible ambient temperature min. | 5 °C | 5 °C | |
| Permissible ambient temperature max. | 40 °C | 40 °C | 40 °C |
| Permissible relative humidity | 80 % | 80 % | 80 % |
| Protection class according to DIN EN 60529 | IP 20 | IP 21 | IP 21 |
| RS 232 interface | yes | ||
| USB interface | yes | yes | |
| Voltage | 230 / 115 / 100 V | 200 - 240 / 100 - 120 V | 200 - 240 / 100 - 120 V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power input | 1020 W | 1450 W | 1450 W |
| Power input standby | 3 W | 3 W |
