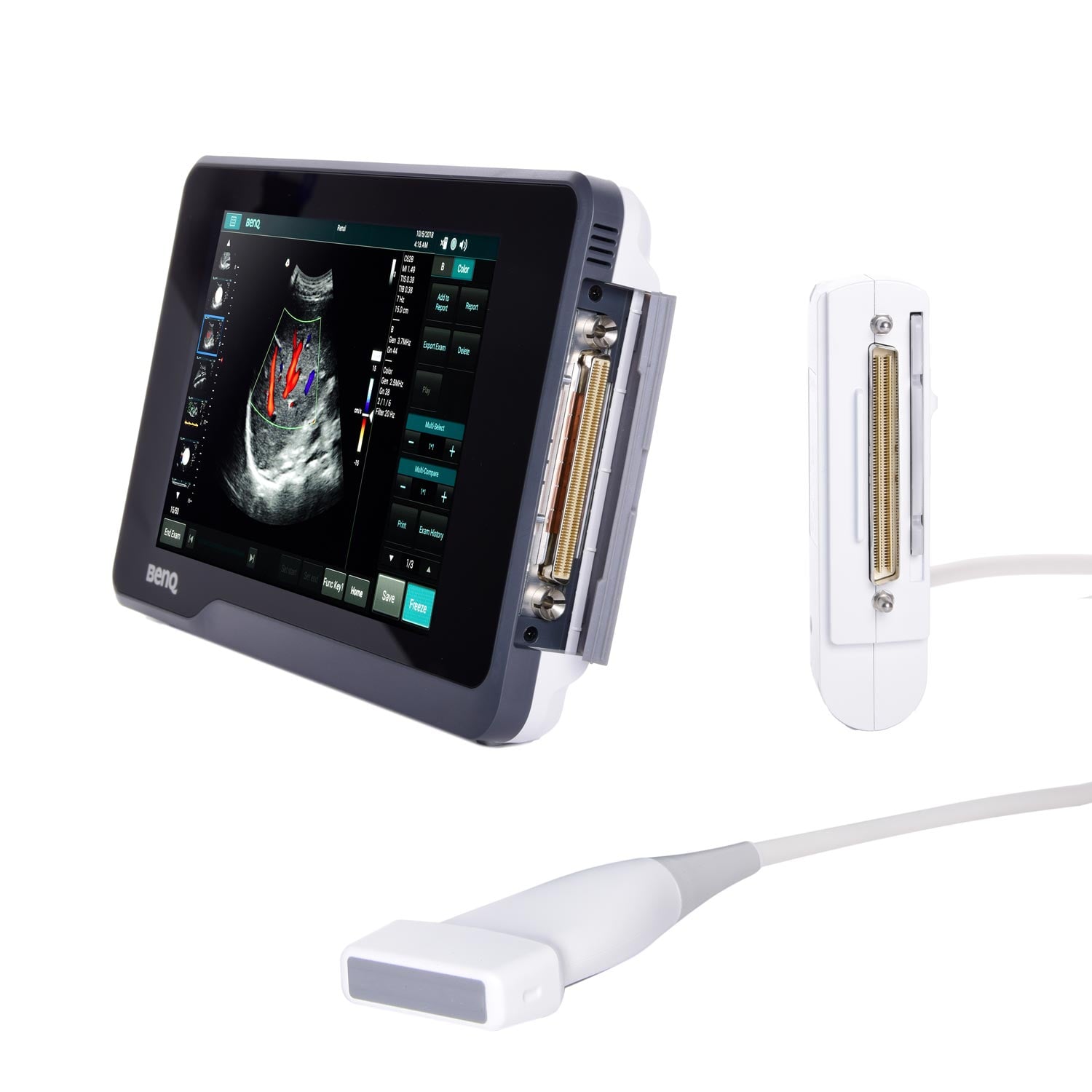

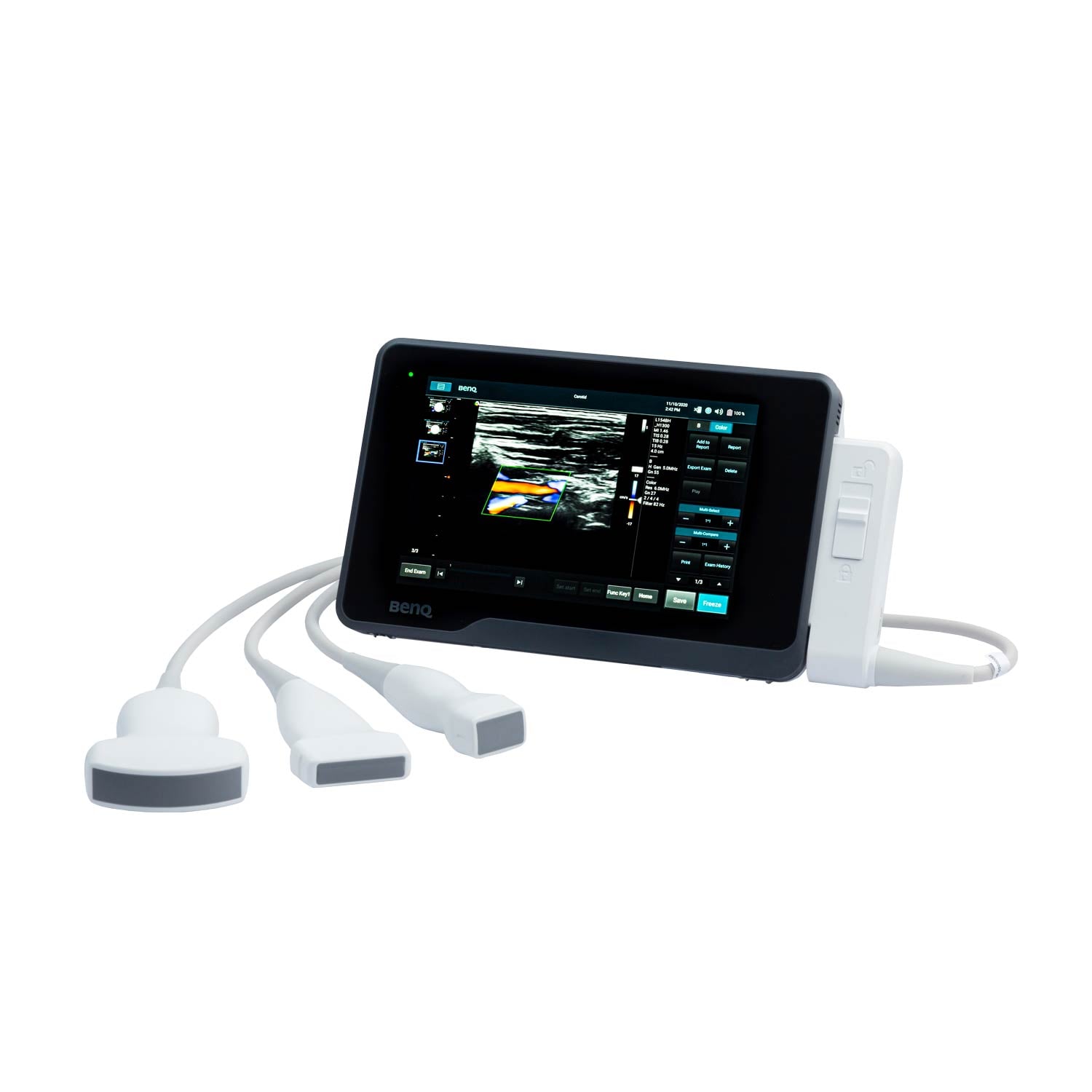

The BenQ H1300 Portable Ultrasound is a compact tablet-style ultrasound system designed for hospitals, clinics, emergency services, mobile medical teams and home visits. It combines high-resolution imaging with an intuitive multi-touch interface, making it suitable for fast diagnostic examinations in both fixed and mobile healthcare settings.
This package is supplied with a choice of probe, carry bag, charger, rechargeable battery, HDMI to mini-HDMI cable, software and user manual. The H1300 supports image management with thumbnail review and cineloop, plus data transfer via Bluetooth, Wi-Fi, HDMI and USB. DICOM compatibility supports integration into clinical imaging workflows.
Key Features
- Portable tablet-design ultrasound scanner from BenQ

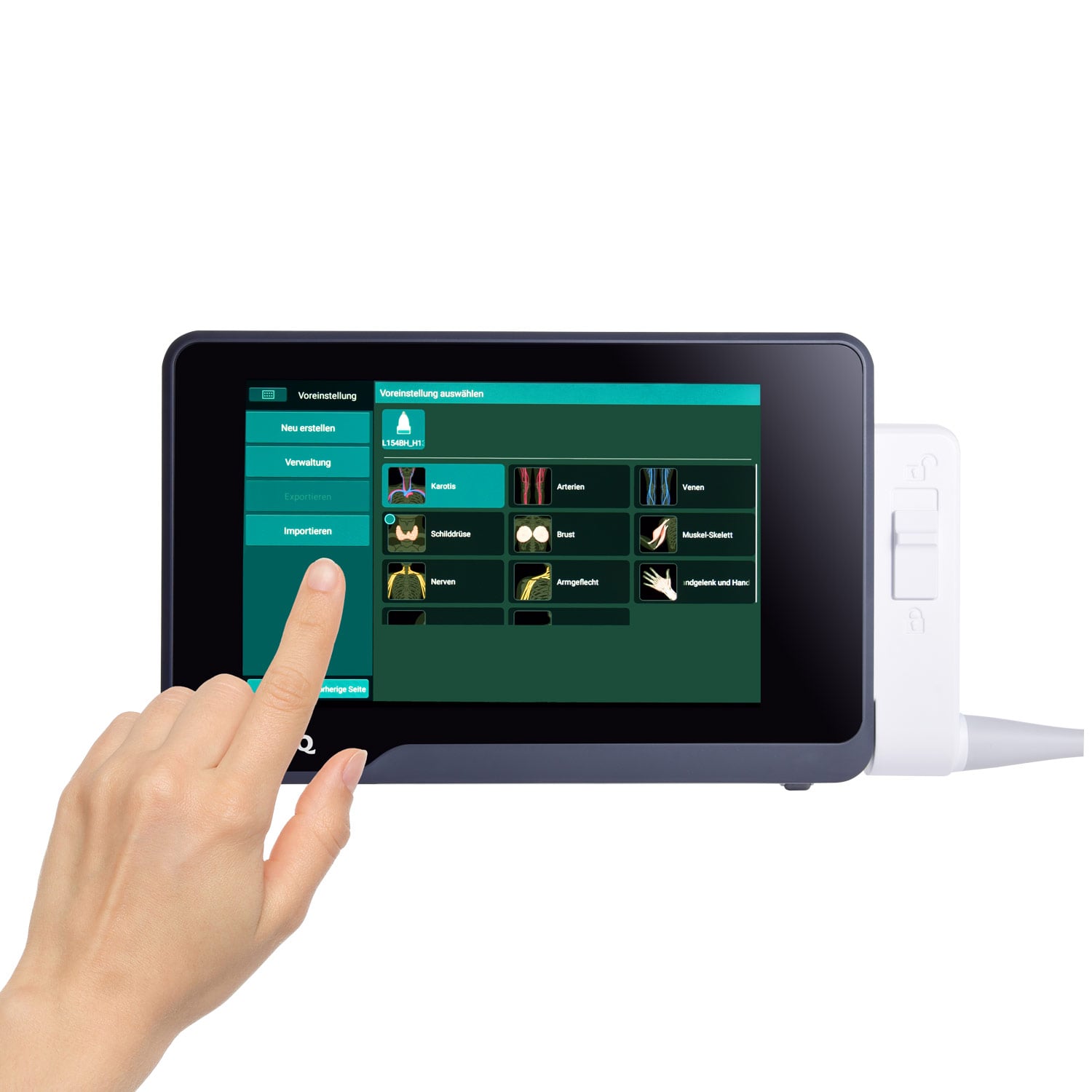

- 8-inch wide-angle LCD multi-touch display
- High-resolution image quality with 1920 x 1200 pixel display
- Rechargeable and replaceable lithium-ion battery
- Integrated image management with thumbnails and cineloop
- Connectivity via Bluetooth, Wi-Fi, HDMI and USB
- DICOM compatible

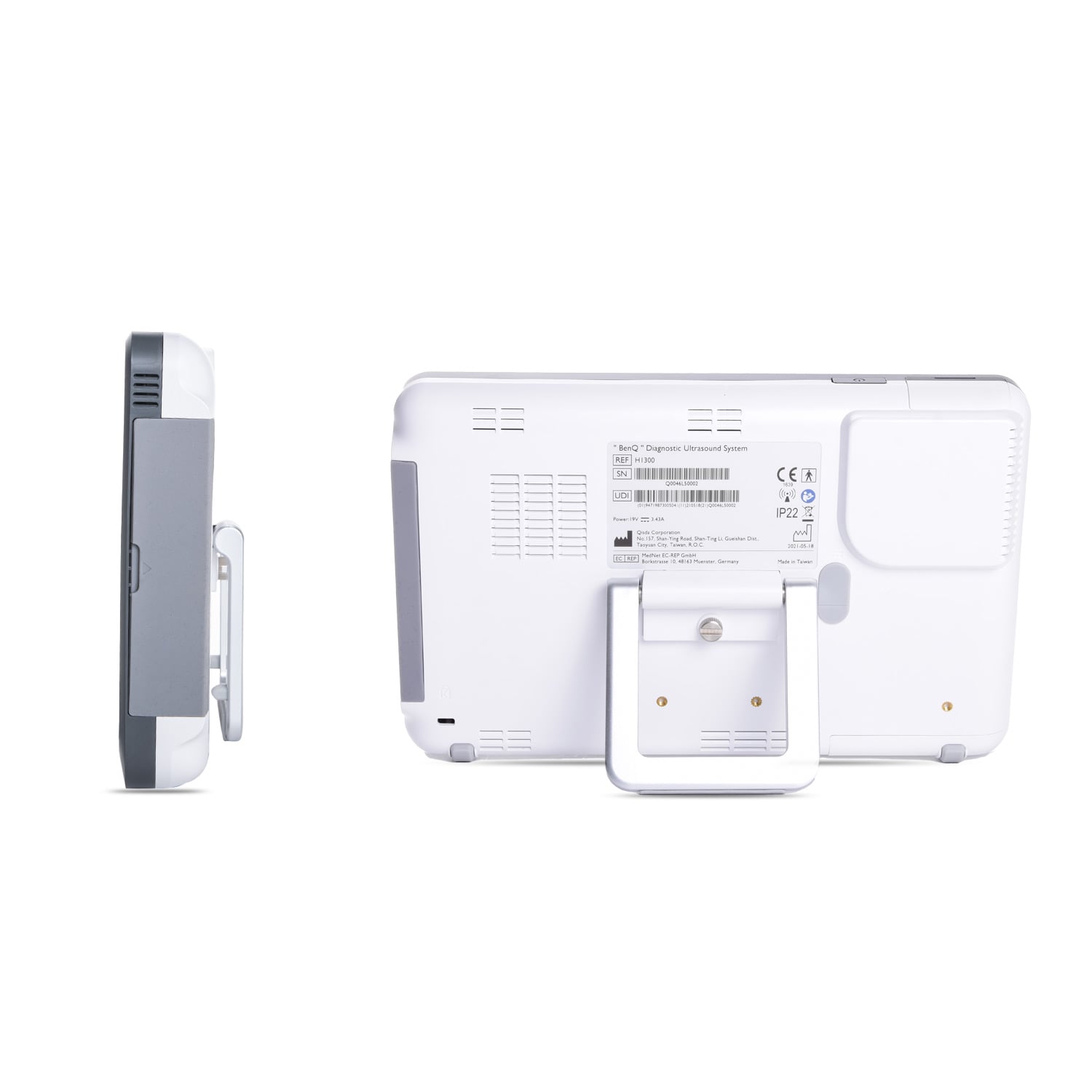

- Adjustable 135-degree stand, also useful as a carry handle
- Integrated speakers and customised function keys

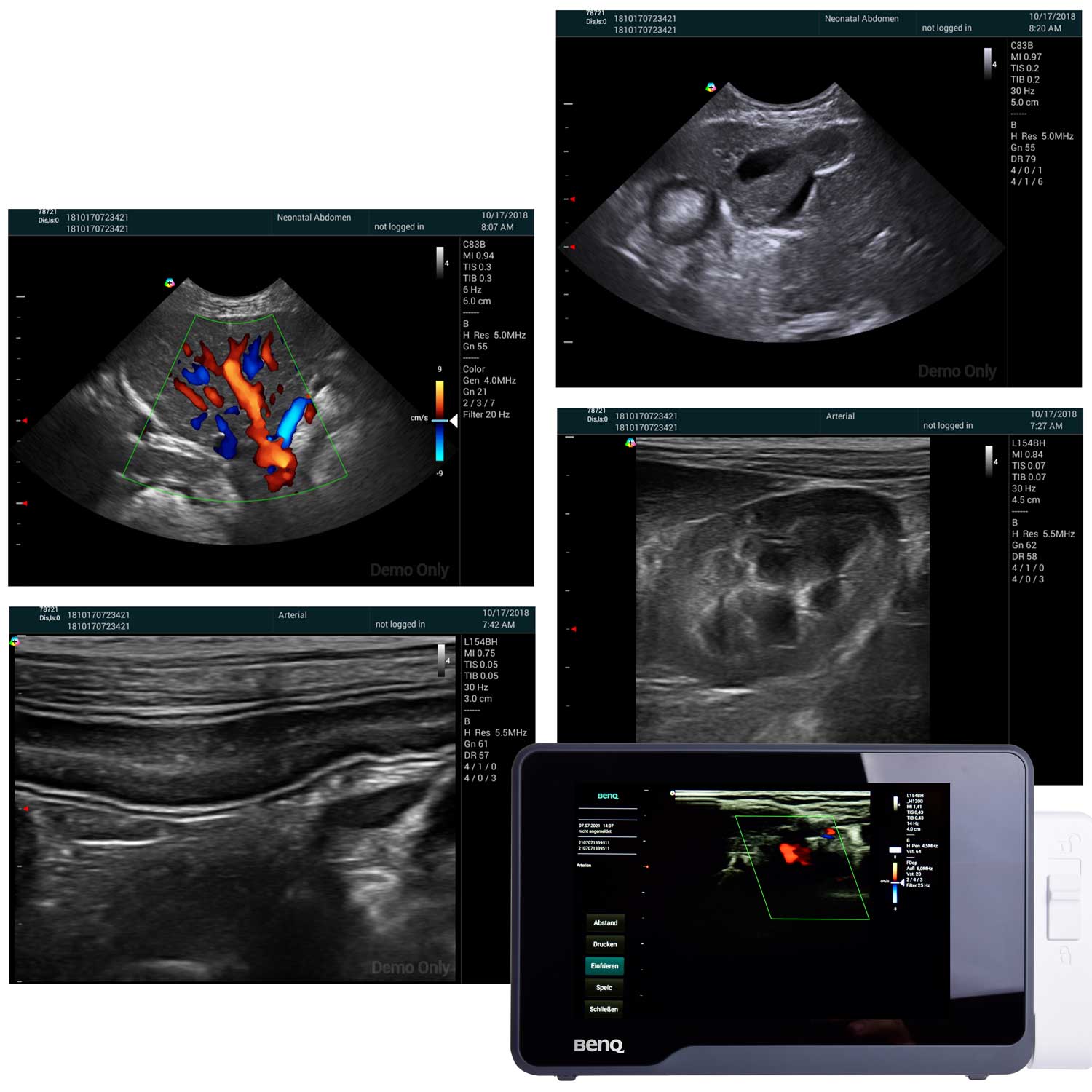

Imaging Modes
- B-mode
- M-mode
- Colour Doppler
- Power Doppler
- PW Doppler
- CW Doppler
Technical Data
- Display: 8-inch wide-angle LCD with multi-touch surface
- Resolution: 1920 x 1200 pixels
- Dimensions: 242 x 253 x 35 mm
- Weight: 1.2 kg including battery
- Probe slot: 1
- Greyscale display: 256 levels
- Frame rate: up to 300 frames per second
- Storage: 128 GB internal hard disk plus USB support
- Languages: English, Chinese, French, German, Spanish and Russian
Clinical Applications
- Linear probe: vessels, thyroid, nerves, breast tissue and musculoskeletal examinations
- Convex probe: abdomen, gynaecological, urological and musculoskeletal examinations
- Phased array probe: cardiac examinations, available separately
Delivery Contents

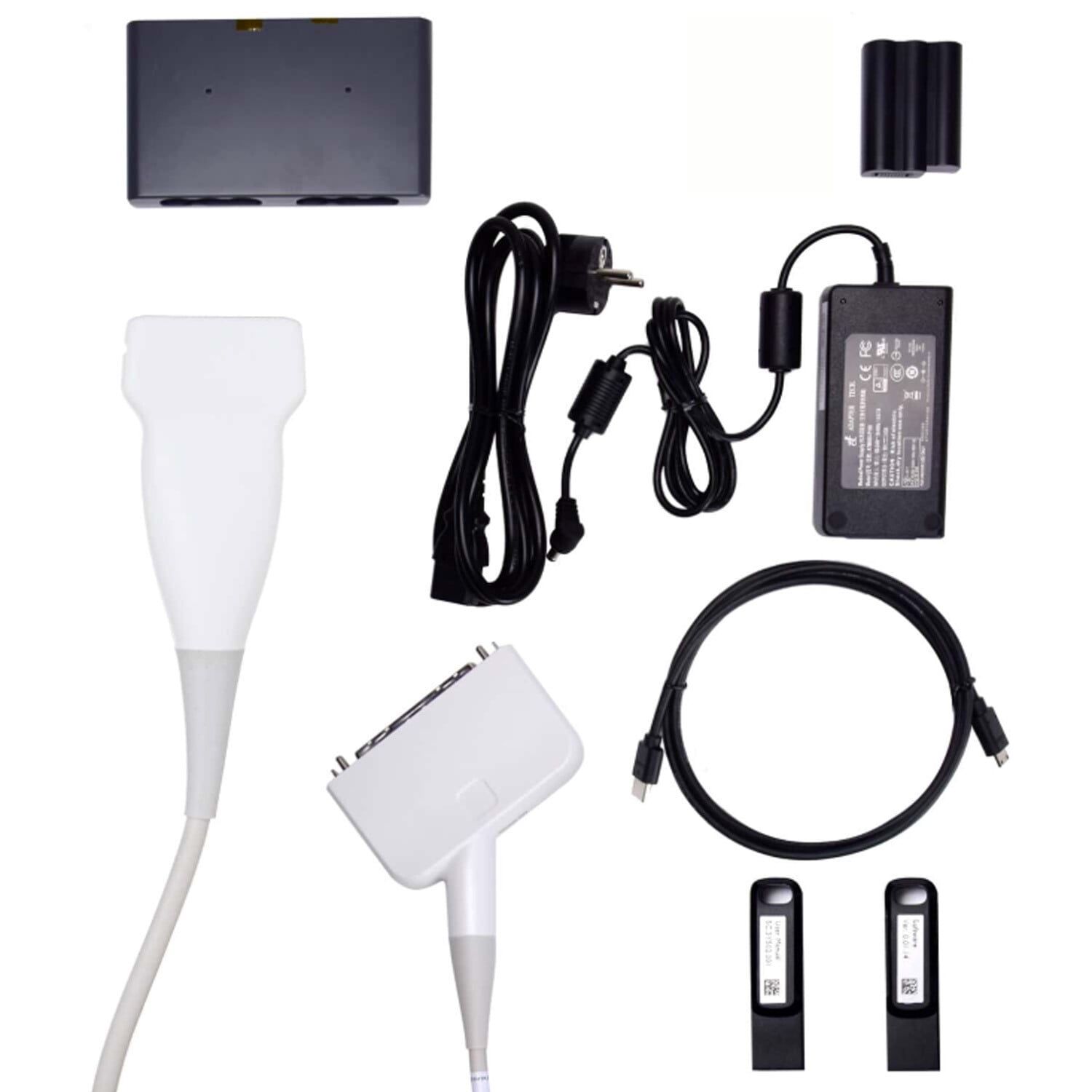

H1300 ultrasound scanner, selected probe, H1300 carry bag, charger, 1 rechargeable battery, HDMI to mini-HDMI connection cable, software on USB stick and user manual on USB stick.
Ordering Information
Please confirm required probe type, quantity, delivery location, preferred accessories and whether installation, training or after-sales support is required before ordering.
