COMEN AX-600 Anaesthesia Machine

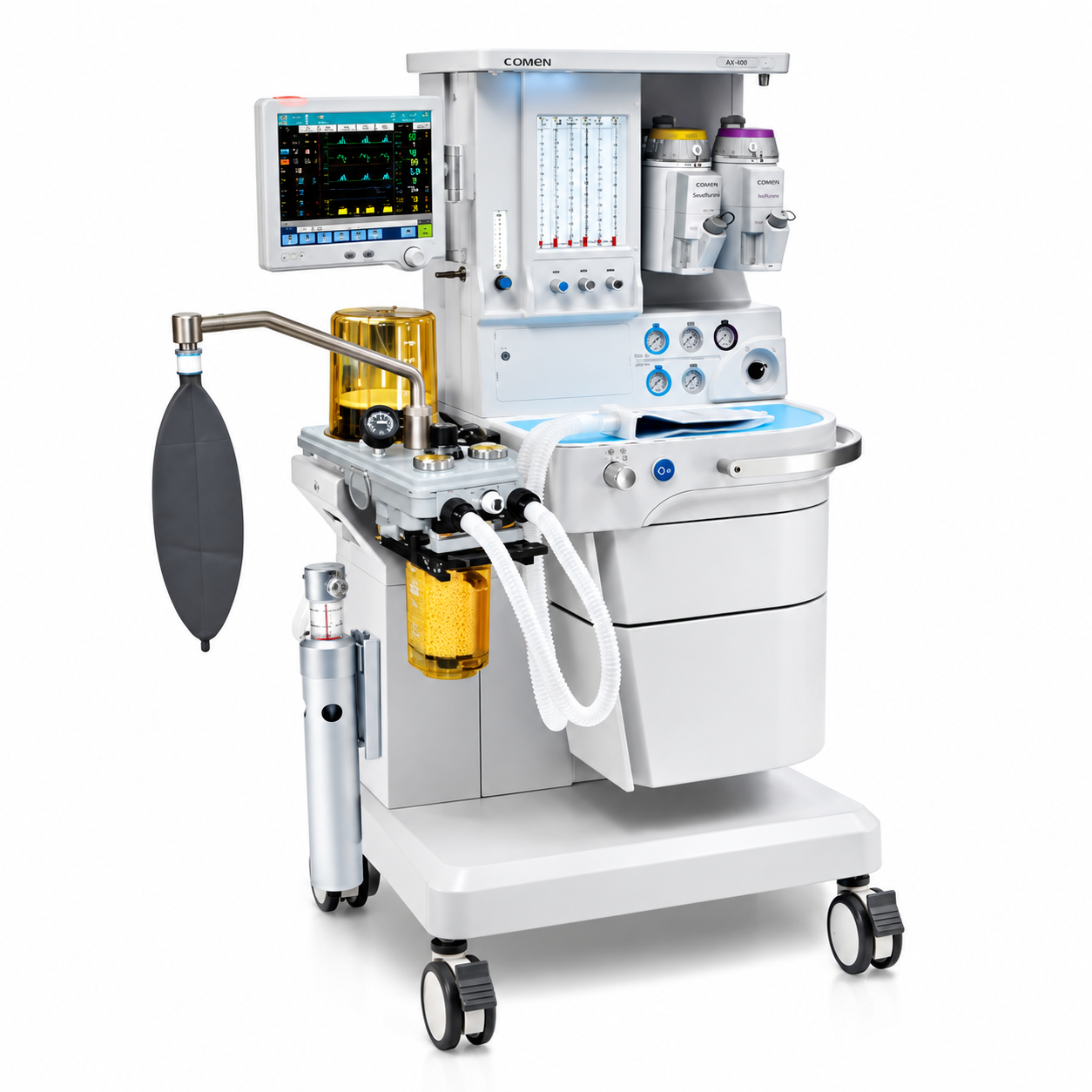

COMEN AX-600 anaesthesia machine with a 12.1-inch rotating touchscreen, nine ventilation modes, modular AG, EtCO2 and BIS monitoring, and an optional central brake.
Product introduction

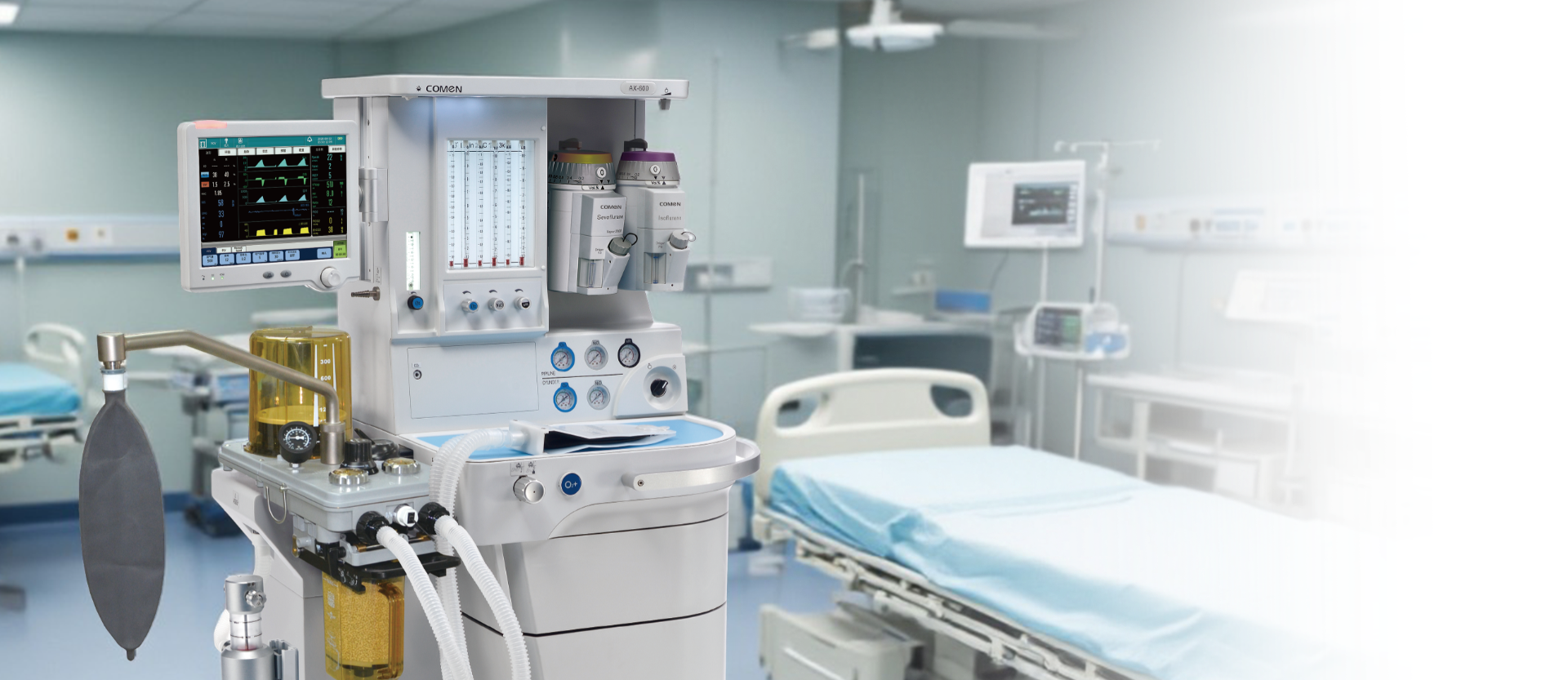

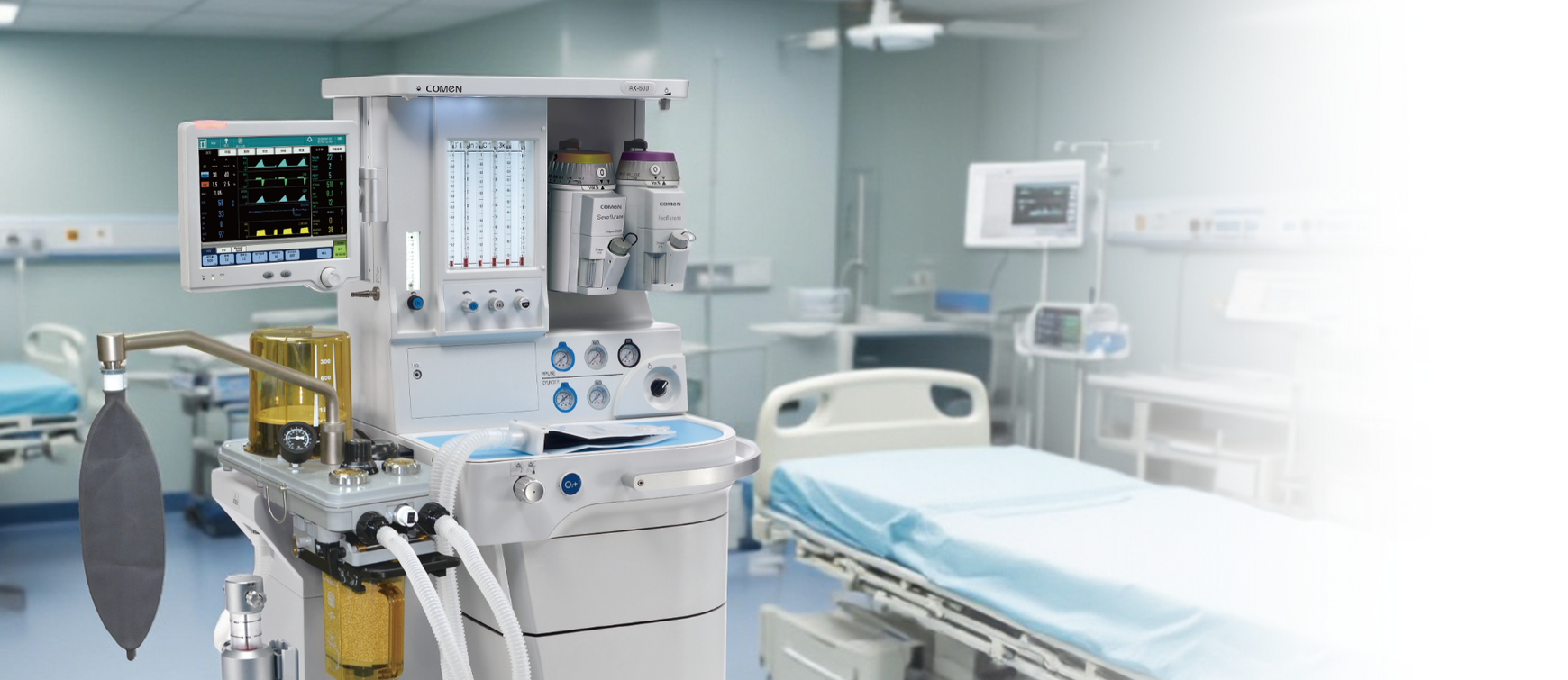

The COMEN AX-600 combines ascending bellows ventilation, pneumatic drive and electronic control with a rotating touchscreen and modular monitoring. Its drawer storage and optional central brake support operating-theatre organisation and use.
Key features
Four-way rotating touchscreen
The 12.1-inch touchscreen can be adjusted for clinicians working at different heights and positions.
Perioperative ventilation
Four control modes, three SIMV modes and two pressure support modes are listed.
Modular monitoring
AG, EtCO2 and BIS monitoring functions are described within a flexible, plug-and-play modular design.
Storage and braking
Roomy rotatable and lockable drawer storage is described. A central brake system is optional.

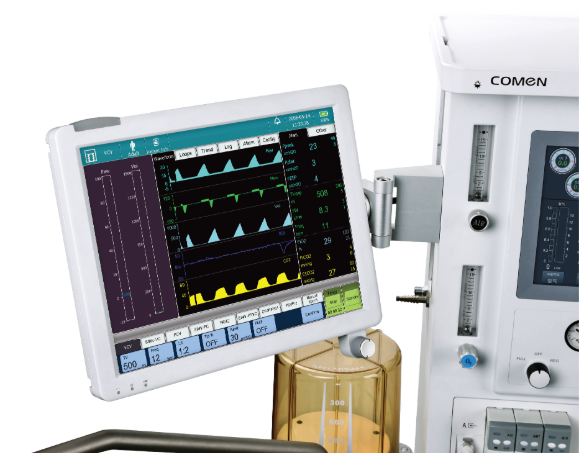

Display and control system
A 12.1-inch four-way rotating touchscreen supports observation and operation from different positions. The source presents this arrangement as accommodating different clinician heights and working preferences.
Perioperative ventilation modes
| Mode group | Number stated |
|---|---|
| Control ventilation | 4 |
| SIMV | 3 |
| Pressure support ventilation | 2 |
The source lists these three groups without identifying every individual mode. They are described for anaesthesia induction, maintenance, recovery and spontaneous breathing practice.
Modular monitoring and configuration
The modular design incorporates anaesthesia-related monitoring functions including AG, EtCO2 and BIS. The source describes plug-and-play operation, flexible configuration and resource sharing. Confirm which modules are included in the quoted configuration and which are optional.

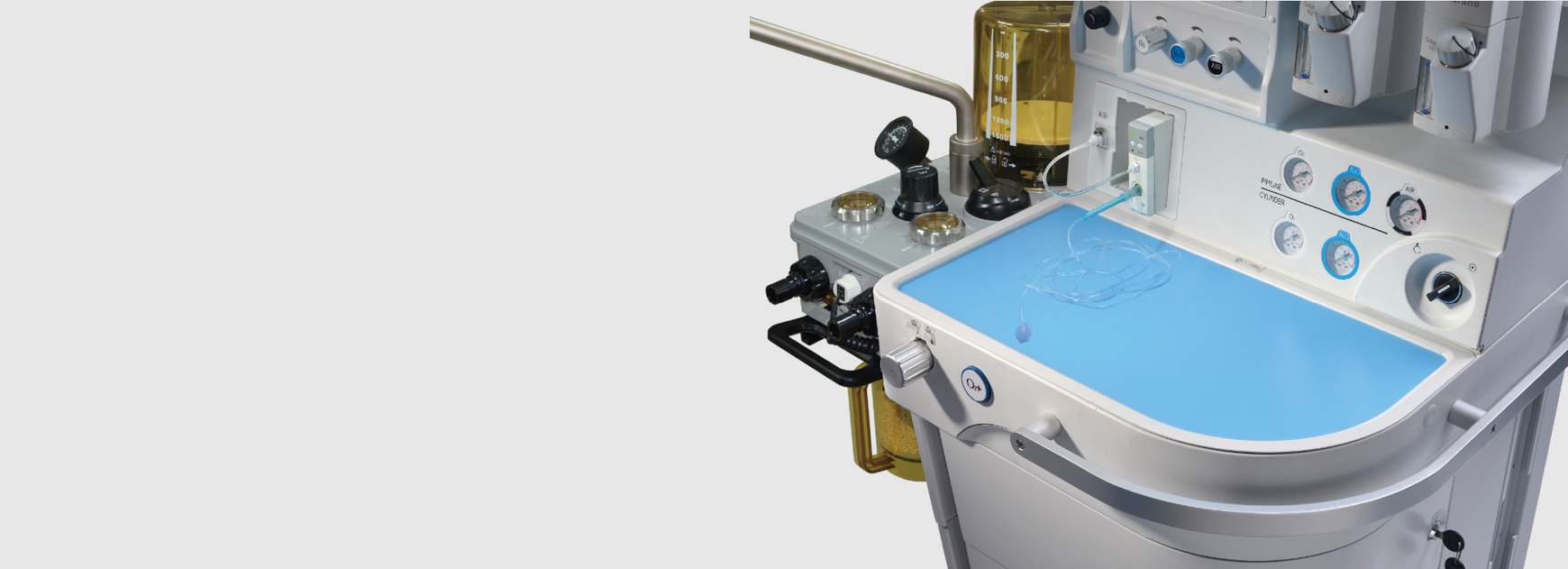

Ventilation technology and breathing circuit
Ascending bellows combine pneumatic drive with electronic control. The manufacturer describes a compact breathing circuit and a smaller loop cavity, with stable ventilation and responsive triggering during SIMV and PSV. It also states a higher compression capacity, without specifying a value or comparison basis.
PEEP supports clinician-directed lung protection and recruitment manoeuvres. The supplied figures are 7% ventilation accuracy and 65 ml/min leakage. These are reproduced as supplied, with no assumed ± tolerance or additional test conditions.

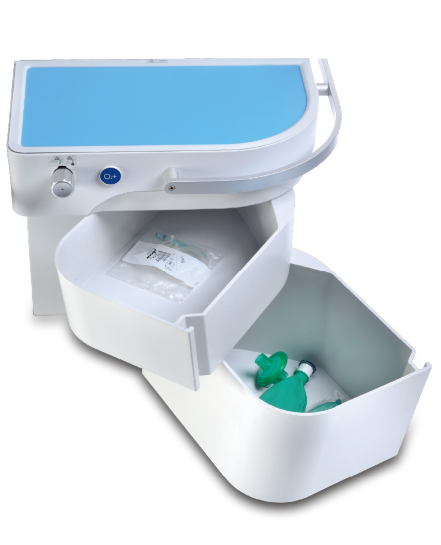

Storage and optional central brake
The manufacturer describes a rotatable and lockable roomy drawer arrangement with extra-large storage for syringes, monitoring accessories and other operating supplies.

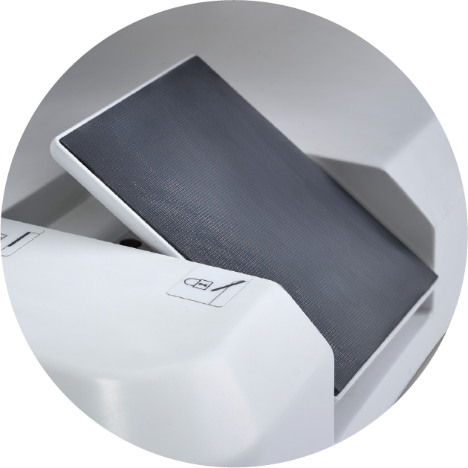

The central brake system is optional. It is described as supporting convenient operation and equipment positioning.
Product benefits and applications
- Adjustable touchscreen positioning supports observation and operation from different working positions.
- Modular monitoring allows the configuration to be matched to procurement requirements.
- Drawer storage keeps frequently used supplies within reach.
- Ventilation groups support anaesthesia induction, maintenance, recovery and spontaneous breathing practice.
Technical specifications
| Specification | Supplied information |
|---|---|
| Manufacturer | COMEN (Shenzhen Comen Medical Instruments Co., Ltd.) |
| Model | AX-600 |
| Product type | Anaesthesia machine |
| Display | 12.1-inch touchscreen |
| Display adjustment | Four-way rotation |
| Drive and control | Ascending bellows with pneumatic drive and electronic control |
| Ventilation mode groups | Four control ventilation modes, three SIMV modes and two pressure support ventilation modes |
| Ventilation accuracy | 7%, as stated in the supplied page; tolerance definition not provided |
| Leakage | 65 ml/min, as stated in the supplied page; test conditions not provided |
| PEEP | Supports clinician-directed lung protection and recruitment manoeuvres |
| Autoclavability | Listed as “Autoclavable”; applicable components and validated processing conditions require confirmation |
| Listed monitoring functions | AG, EtCO2 and BIS |
| Modular design | Plug-and-play, flexible configuration and resource sharing |
| Storage | Rotatable and lockable roomy drawer arrangement |
| Central brake system | Optional |
Manufacturer information requiring verification
- Confirm the definition and test conditions of the stated 7% ventilation accuracy. The source does not identify whether this is a ± tolerance.
- Confirm the pressure conditions and measurement method for the stated leakage of 65 ml/min.
- Confirm the full ventilation mode list, available settings and patient-specific operating ranges.
- Confirm which components are autoclavable, together with the validated temperature, cycle and reprocessing instructions.
- Confirm the numerical specification and comparison basis for the stated higher compression capacity.
- Confirm standard and optional monitoring modules, drawer configuration and central brake availability.
Dimensions, weight, power requirements, gas supply requirements and construction materials are not specified in the supplied page.
Product documentation
COMEN AX-600 Anaesthesia Machine from Nass Ventures
Contact Nass Ventures for pricing, configuration, compatible accessories, installation requirements and technical support.
Shipment
Benefit from reliable delivery options
Every day, we ship our laboratory equipment throughout Nigeria and internationally. We work with trusted and experienced logistics and courier partners to ensure safe and timely delivery. Shipping costs and delivery times depend on the items ordered and the recipient’s location. Alternatively, you may arrange to collect your order in person by appointment. Below is an overview of our shipping options and policies.
Shipping within Nigeria
All goods are insured as standard up to a value of ₦ equivalent of €25,000. Shipping costs are calculated based on the weight, dimensions, value of the shipment, and delivery destination within Nigeria. For detailed shipping information, please contact us directly—we will be happy to assist.
International shipping
For accurate international shipping costs, we require details of the specific product(s) you wish to order.
Please contact us by telephone or email for a tailored quotation.
Freight forwarding, sea or air freight
For large, heavy, or specialized equipment, we provide personalised quotations for road freight, sea freight, or air freight. Taking current logistics conditions into account, we aim to offer the best possible price-to-performance ratio.
Incoterms 2020
All shipments are handled in accordance with Incoterms® 2020 (ICC). Please contact us to confirm and agree on your preferred delivery terms.
Self-collection
If required, you may collect your goods in person by prior appointment. Please note that pricing and availability may vary between Nigeria and other countries.
Standard deliveries
Standard shipments within Nigeria are handled by reputable courier and logistics providers. Upon request, we can also arrange alternative carriers to meet specific delivery requirements.
Insurance
All deliveries are insured up to a maximum value of ₦ equivalent of €25,000. If the value of your goods exceeds this amount, we will contact you to arrange additional insurance coverage.
Delivery time
Delivery times depend on product availability and order volume. High-demand items may be subject to delays beyond our control. If you require urgent delivery, please inform us in advance, and we will do our best to accommodate your request.
Q: Saves time
A: This reason might be the most obvious, but it’s a clear benefit of an FAQ page. Not only does the FAQ page save customers time, but it also saves employees time as well. Having an FAQ page ensures customers don’t have to sit on the phone for hours waiting for simple answers, and employees don’t have to individually answer all questions.
Q: Earns trust
A: Information is available at the click of a button, but as we all know, information is not always true. Because of this, customers are more skeptical than ever before. They hunt for products by sifting through reviews, looking at the product on multiple websites, and doing price checking across the internet.
Q: Provides new insights
A: It’s difficult to get into the head of a shopper. Some buy on impulse, and others buy after thorough research. By tracking the clicks on your FAQ page, you can gather insights about your product or service that you didn’t know before. You can then inform your product team of these insights. From there, the product team can make changes to improve the product or experience.
Q: Drives internal page views
A: If you want your FAQ to be extremely thorough, which it should be, you can link to resources within your FAQ for your customers to find out more information. Whether you link to a blog that goes into more detail or a product page, this content helps the shoppers get the full story before making a purchase.
A: Prevents negative reviews
A: When looking through negative reviews, there’s almost always one thing in common: the problem could’ve been avoided.
Related Products

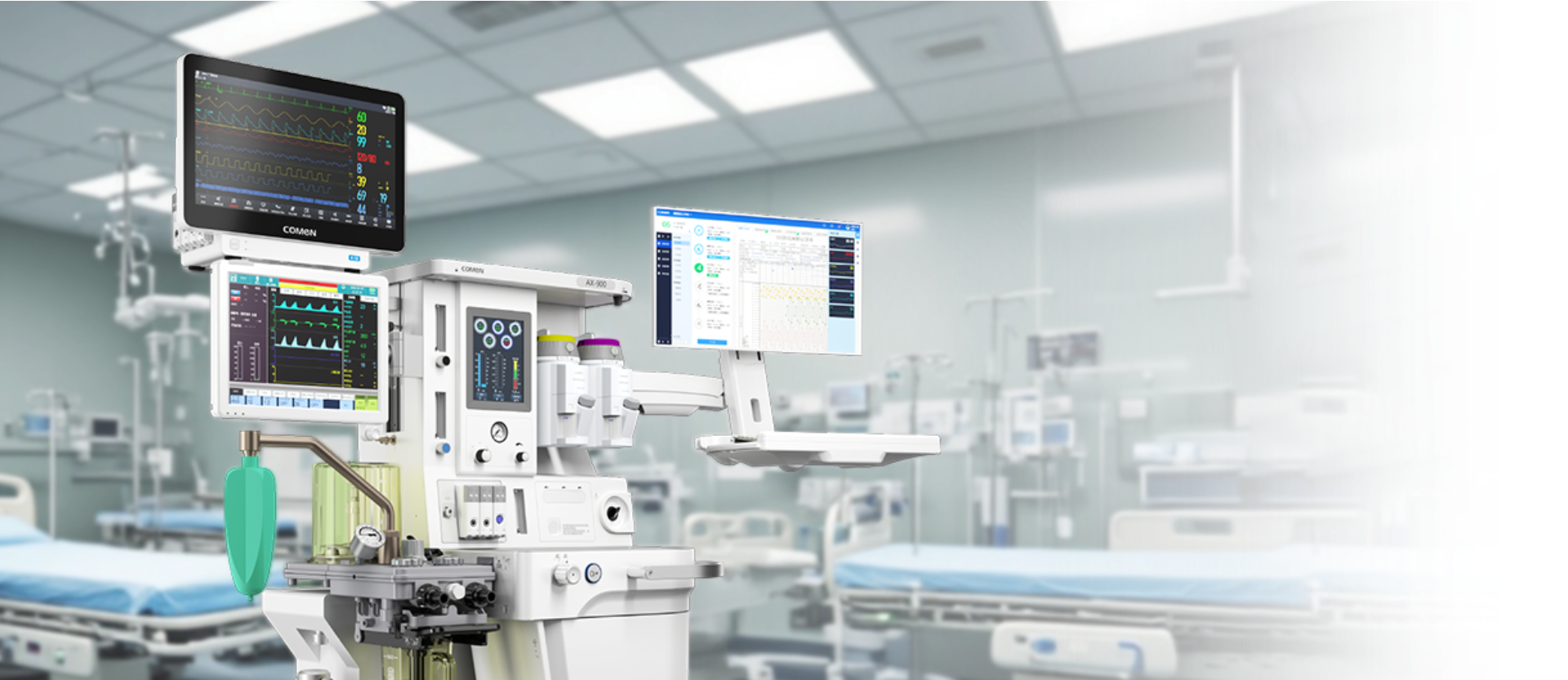

COMEN AX-900 Anaesthesia Workstation
