COMEN AX-900 Anaesthesia Workstation

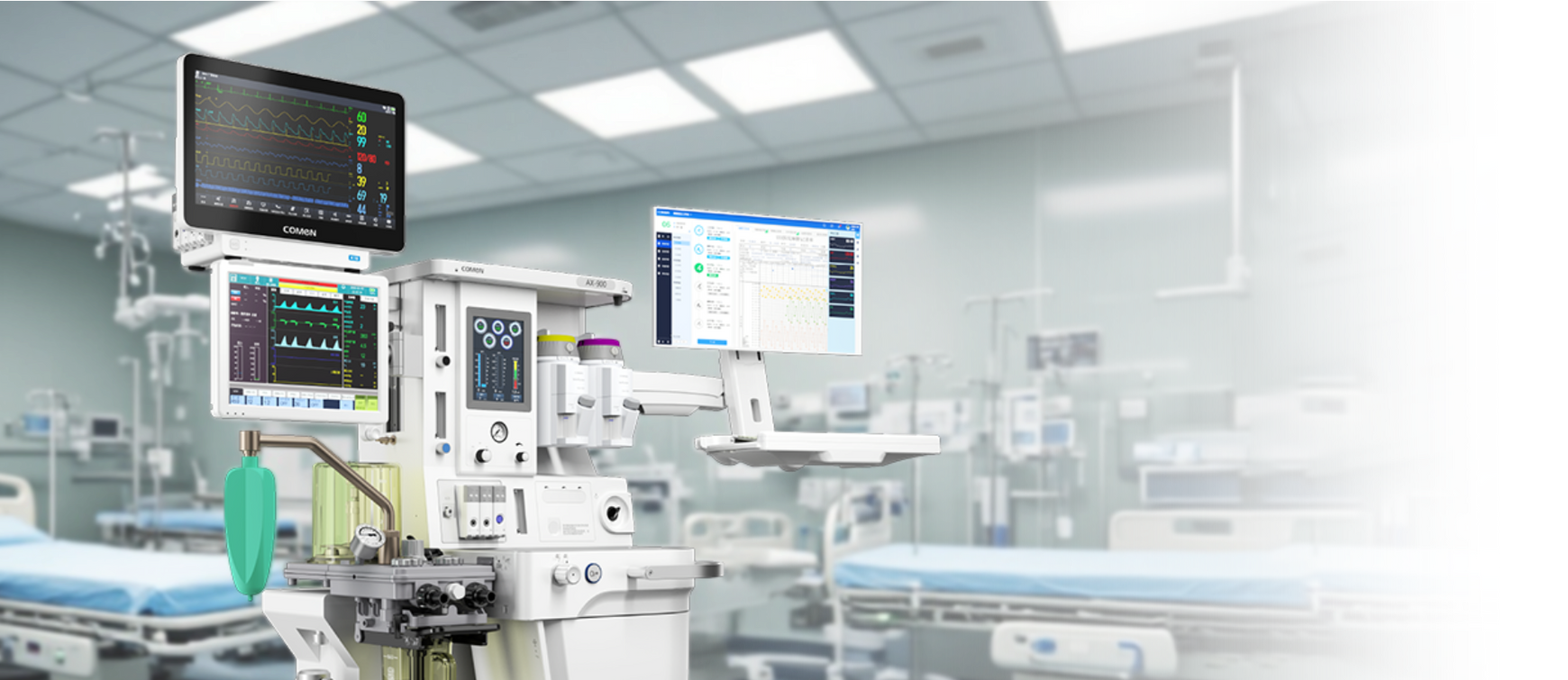

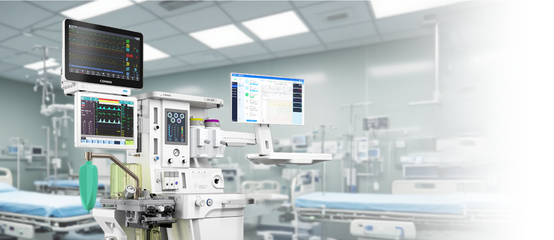

COMEN AX-900 anaesthesia workstation with ascending bellows, electronic fresh-gas control, nine ventilation modes and an independent 8-inch flow-control touchscreen.
Product introduction
The COMEN AX-900 integrates an anaesthesia ventilator, respiratory monitoring functions and electronic fresh-gas control in a surgical workstation. Pneumatic components work with electronic and fluid control to support ventilation, respiratory parameter adjustment and monitoring throughout perioperative use.
Key features
Pneumatic drive and electronic control
Ascending bellows and a compact circuit support ventilation delivery and triggering during SIMV and PSV.
Perioperative ventilation
Four control modes, three SIMV modes and two pressure support modes are listed for different perioperative stages.
Closed-loop fresh-gas control
Direct oxygen-concentration setting with automatic adjustment of the oxygen-to-balance-gas ratio.
Dedicated flow-control display
An independent 8-inch LED touchscreen provides a separate fresh-gas operating area and flow information.

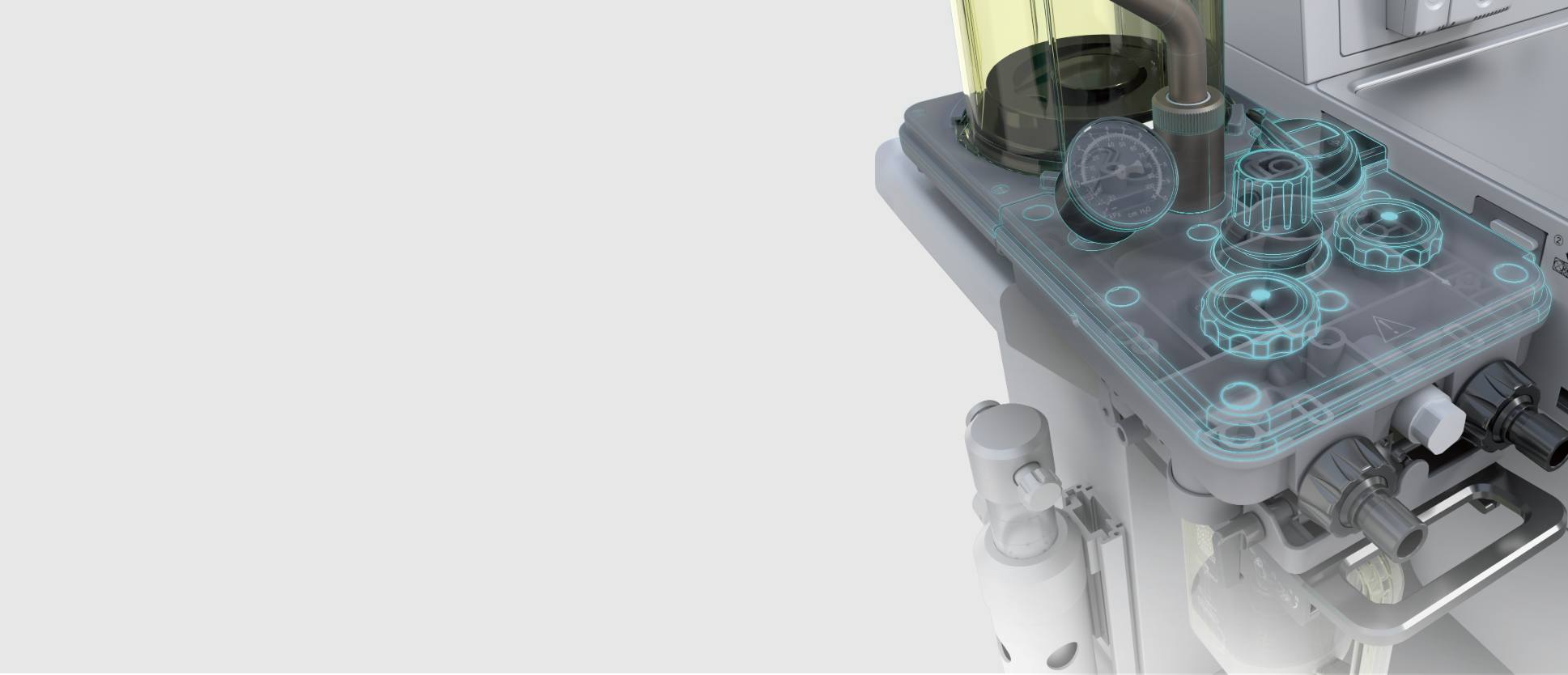

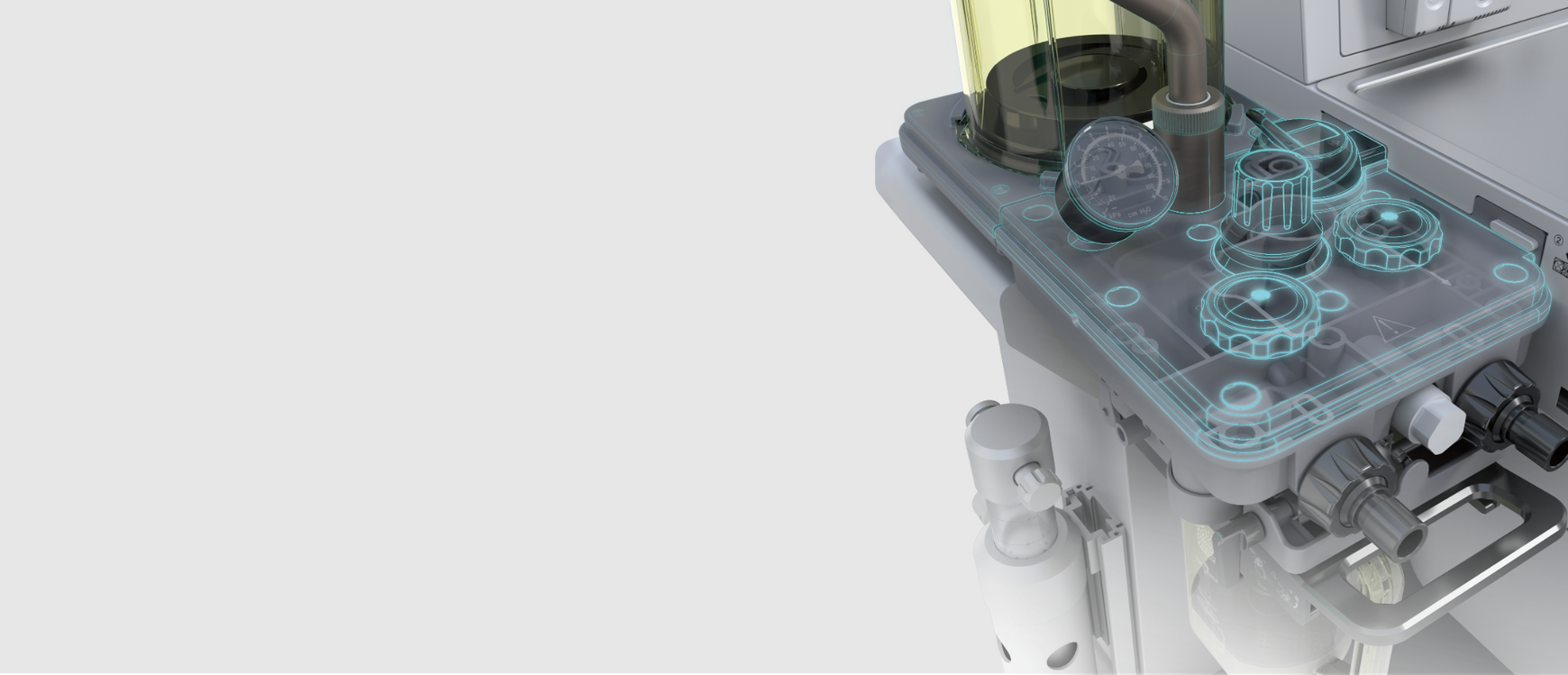

Ventilation technology and breathing circuit
Ascending bellows combine pneumatic drive with electronic control. The manufacturer describes a compact breathing circuit and a smaller loop cavity, with stable ventilation and responsive triggering during SIMV and PSV. It also states a higher compression capacity, without specifying a value or comparison basis.
PEEP supports clinician-directed lung protection and recruitment manoeuvres. The supplied figures are 7% ventilation accuracy and 65 ml/min leakage. These are reproduced as supplied, with no assumed ± tolerance or additional test conditions.

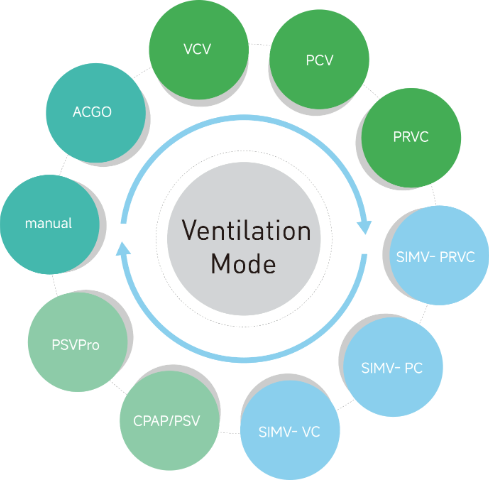

Perioperative ventilation modes
| Mode group | Number stated |
|---|---|
| Control ventilation | 4 |
| SIMV | 3 |
| Pressure support ventilation | 2 |
The source lists these three groups without identifying every individual mode. They are described for anaesthesia induction, maintenance, recovery and spontaneous breathing practice.
Advanced fresh-gas control system
Electronic closed-loop control allows the anaesthetist to set oxygen concentration directly. The system then adjusts the ratio of oxygen to balance gas. Real-time correction of oxygen concentration and total flow is designed to address flow errors associated with fluid inertia.

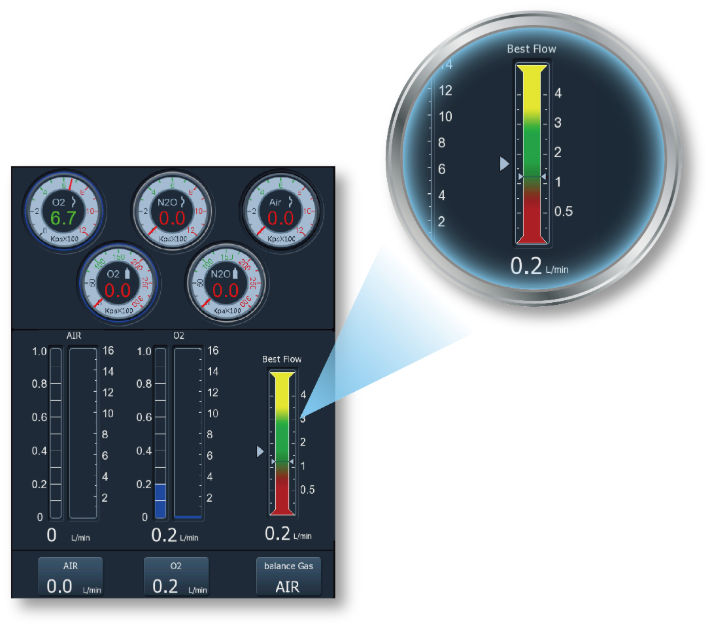

The Best Flow Indicator Tool displays the flow associated with current anaesthesia ventilation and supports consideration of low-flow anaesthesia. Its colour-spectrum diagram follows the manufacturer’s alarm-colour design to make the current flow value easier to interpret.
Control system and pressure indication

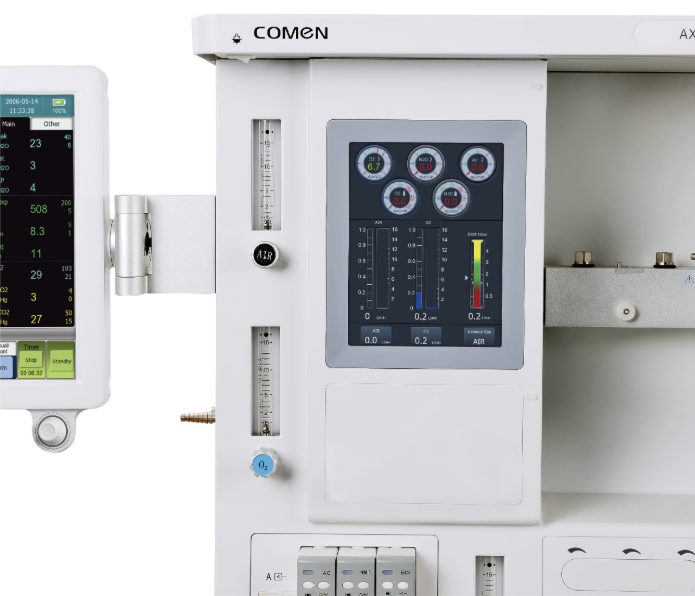

Fresh-gas control uses an independent 8-inch LED touchscreen, providing a separate operating area with detailed flow information. The source does not identify this screen as the main ventilation display.
An electronic gas-source pressure gauge provides pressure indication without a mechanical pointer. The manufacturer describes this as avoiding pointer inertia.
Product benefits and applications
- Separate fresh-gas controls provide a dedicated area for flow adjustment and observation.
- Respiratory monitoring and breathing-parameter adjustment support anaesthesia management during surgical procedures.
- Ventilation groups support induction, maintenance, recovery and spontaneous breathing practice.
- The Best Flow Indicator Tool supports fresh-gas usage assessment during low-flow anaesthesia.
Technical specifications
| Specification | Supplied information |
|---|---|
| Manufacturer | COMEN (Shenzhen Comen Medical Instruments Co., Ltd.) |
| Model | AX-900 |
| Product type | Anaesthesia workstation with integrated ventilator |
| Drive and control | Ascending bellows with pneumatic drive and electronic control |
| Ventilation mode groups | Four control ventilation modes, three SIMV modes and two pressure support ventilation modes |
| Ventilation accuracy | 7%, as stated in the supplied page; tolerance definition not provided |
| Leakage | 65 ml/min, as stated in the supplied page; test conditions not provided |
| PEEP | Supports clinician-directed lung protection and recruitment manoeuvres |
| Autoclavability | Listed as “Autoclavable”; applicable components and validated processing conditions require confirmation |
| Fresh-gas control | Electronic closed-loop control with direct oxygen-concentration setting |
| Automatic adjustment | Oxygen-to-balance-gas ratio, oxygen concentration and total-flow correction |
| Flow indicator | Best Flow Indicator Tool with colour-spectrum display |
| Dedicated flow-control screen | 8-inch LED touchscreen |
| Gas-source pressure indication | Electronic pressure gauge |
| Monitoring | Respiratory monitoring functions and breathing-parameter adjustment |
Manufacturer information requiring verification
- Confirm the definition and test conditions of the stated 7% ventilation accuracy. The source does not identify whether this is a ± tolerance.
- Confirm the pressure conditions and measurement method for the stated leakage of 65 ml/min.
- Confirm the full ventilation mode list, available settings and patient-specific operating ranges.
- Confirm which components are autoclavable, together with the validated temperature, cycle and reprocessing instructions.
- Confirm the numerical specification and comparison basis for the stated higher compression capacity.
- Confirm installed monitoring functions, standard accessories, available options and gas supply requirements.
Dimensions, weight, power requirements, main ventilation display size and construction materials are not specified in the supplied page.
Product documentation
COMEN AX-900 Anaesthesia Workstation from Nass Ventures
Contact Nass Ventures for pricing, configuration, compatible accessories, installation requirements and technical support.
