COMEN X8 Anaesthesia Machine
The X8 is an integrated anesthesia machine designed to support accurate control, stable delivery, ICU-level ventilation support, perioperative lung protection, and smart anesthesia management in one advanced workstation.
X8
3 Available to Order Sold Out 3
Share
COMEN X8 Anaesthesia Machine
COMEN X8 anaesthesia workstation with electronic fresh-gas control, nine ventilation modes, an 18.5-inch touchscreen, integrated modules and perioperative management tools.
The COMEN X8 brings fresh-gas delivery, ventilation support, monitoring modules and anaesthesia management functions together in an integrated workstation. Its electronic flowmeter and econometer support fresh-gas control and low-flow anaesthesia, while its ventilation modes and lung protection tools support management throughout the perioperative process.
Key features
Electronic fresh-gas control
Directly set FiO2 and total flow using the electronic flowmeter. The econometer provides real-time fresh-gas usage information to guide low-flow anaesthesia and help limit unnecessary anaesthetic agent waste.
Ventilation support
Nine listed modes cover mechanical, adaptive, synchronised and support ventilation: VCV, PCV, PSV/CPAP, SIMV-VC, SIMV-PC, SIMV-PRVC, PRVC, AMV and APRV.
Touchscreen interface
An 18.5-inch capacitive touchscreen displays multiple parameters on one screen. The manufacturer describes 360-degree rotation to accommodate different clinician positions and working preferences.
Perioperative management
High-flow oxygen therapy, lung recruitment tools, respiratory monitoring functions and data interconnection support a continuous perioperative workflow.
Gas delivery and operating principles
The electronic flowmeter allows anaesthetists to set the inspired oxygen fraction (FiO2) and total fresh-gas flow directly. The econometer displays fresh-gas usage information during operation to support low-flow anaesthesia management.
The supplied manufacturer page lists breathing-circuit leakage of 49.5 ml, ventilation deviation of 7% and a sampling-response figure of 1,000 Hz. These figures are reproduced without changing their stated meaning. Their definitions and test conditions require manufacturer confirmation, as detailed below.

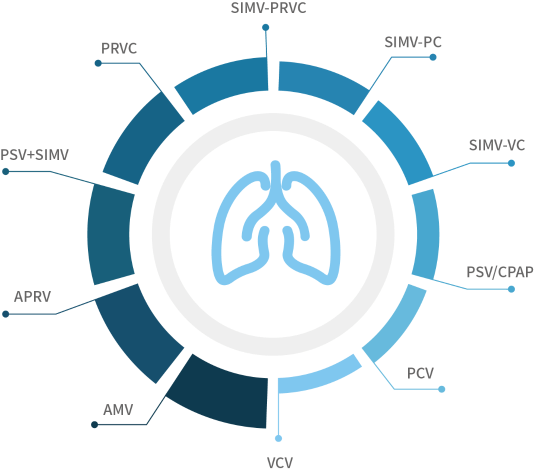

Ventilation modes
The manufacturer describes the X8 as providing ICU-level ventilation support for perioperative use, with mechanical, adaptive, synchronised and support ventilation options.
| Function | Manufacturer information |
|---|---|
| Listed ventilation modes | VCV, PCV, PSV/CPAP, SIMV-VC, SIMV-PC, SIMV-PRVC, PRVC, AMV, APRV |
| Adaptive Minute Ventilation (AMV) | Listed as a supported ventilation mode. The explanatory paragraph supplied under this heading requires verification. |
| Airway Pressure Release Ventilation (APRV) | Uses sustained airway pressure with short pressure-release periods. The manufacturer describes this mode in relation to the open-lung principle and preservation of spontaneous breathing. |
Integrated modules and breathing circuit
The manufacturer lists the following modules and systems. Confirm the supplied configuration and module availability when requesting a quotation.
Built-in AGSS
Active anaesthetic waste-gas absorption.

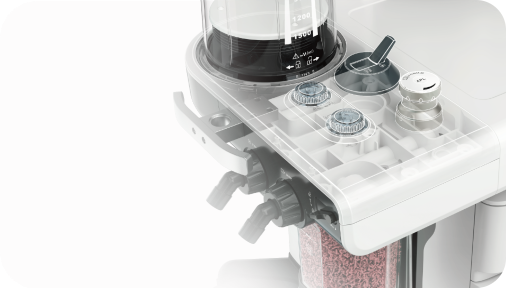

Modular breathing circuit
An integrated modular design supports maintenance and disinfection.

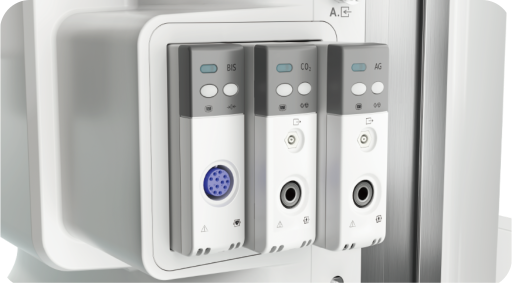

BIS module
Provides an anaesthesia depth indication for intraoperative management.

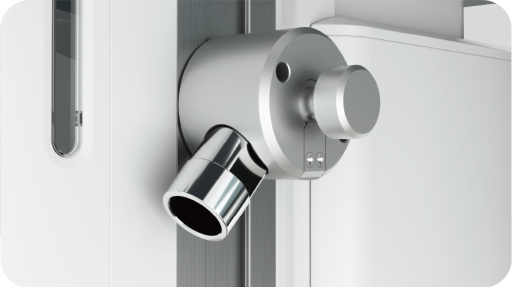

Negative pressure suction
A dedicated suction system provides airway assistance for anaesthetists.
High-flow oxygen therapy and lung protection tools
The X8 offers continuous high-flow, high-concentration oxygen delivery for perioperative oxygen support. Its lung protection functions provide tools for clinician-directed respiratory management.
- Lung recruitment tools based on the PEEP increment method.
- Oesophageal pressure monitoring.
- Sigh ventilation.
- Inspiratory hold and expiratory hold.
- A VT/IBW tool for ideal tidal volume calculation and guidance on low tidal volume settings.
- Spontaneous breathing modes for use across perioperative stages.
Control system and anaesthesia management
- Soda lime tank in-place reminders support operational checks and management of leakage risks.
- Anaesthesia data review and printing support record archiving and post-case traceability.
- Quick startup and rapid self-tests support preparation for emergency use.
- Visual self-checking procedures guide operators through system checks.
- Gas usage monitoring and anaesthesia consumption warnings support resource management.
Data interconnection and applications
Connection to a data platform through integration equipment supports continuous perioperative data interconnection. The manufacturer describes workflows covering emergency surgery, elective surgery, painless surgery and day surgery.
Confirm the required integration equipment, platform compatibility and local implementation requirements with Nass Ventures before specifying a connected installation.
Technical specifications and product information
| Specification | Supplied information |
|---|---|
| Manufacturer | COMEN (Shenzhen Comen Medical Instruments Co., Ltd.) |
| Model | X8 |
| Product type | Integrated anaesthesia machine |
| Display | 18.5-inch capacitive touchscreen with multi-parameter display |
| Rotation | 360 degrees, as stated by the manufacturer |
| Fresh-gas control | Electronic flowmeter with direct FiO2 and total-flow setting |
| Fresh-gas usage guidance | Real-time econometer |
| Breathing-circuit leakage | 49.5 ml, as supplied; measurement conditions not stated |
| Ventilation deviation | 7%, as supplied; tolerance definition not stated |
| Sampling response | 1,000 Hz, as supplied; measurement definition not stated |
| Ventilation modes | VCV, PCV, PSV/CPAP, SIMV-VC, SIMV-PC, SIMV-PRVC, PRVC, AMV, APRV |
| Listed modules and systems | Built-in AGSS, modular breathing circuit, BIS module and negative pressure suction system |
| Oxygen therapy | Continuous high-flow, high-concentration oxygen delivery |
| Lung recruitment method | PEEP increment method |
| Additional respiratory tools | Oesophageal pressure monitoring, sigh ventilation, inspiratory hold, expiratory hold and VT/IBW tool |
| Data functions | Data review, printing and platform interconnection through integration equipment |
| Operational checks | Soda lime tank reminders, rapid self-tests, visual self-checking and consumption warnings |
Manufacturer information requiring verification
- Confirm the leakage measurement basis for 49.5 ml, including any applicable time interval and pressure conditions.
- Confirm the definition and test conditions for 7% ventilation deviation and the meaning of the 1,000 Hz sampling-response figure.
- Confirm which assembly provides the stated 360-degree rotation.
- The supplied AMV section contains an apparently unrelated control-system paragraph. It reads: “The override control panel and hand remote are on standby. The override control panel enables all movements in case of hand remote failure. The wall panel and remote control are optional.” This wording requires manufacturer verification and is not presented here as a confirmed X8 control-system specification.
- Confirm standard and optional modules, accessories and integration equipment for the selected configuration.
Dimensions, weight, power requirements, gas supply requirements and construction materials are not specified in the supplied product page.
Product documentation
Manufacturer product safety and performance information for the X5/X6/X7/X8 family
COMEN X8 from Nass Ventures
The X8 combines fresh-gas control, ventilation modes, an integrated touchscreen interface and perioperative management functions in one anaesthesia workstation.
Contact Nass Ventures for pricing, configuration, compatible accessories, installation requirements and technical support.
