Gynecological Diagnostic System

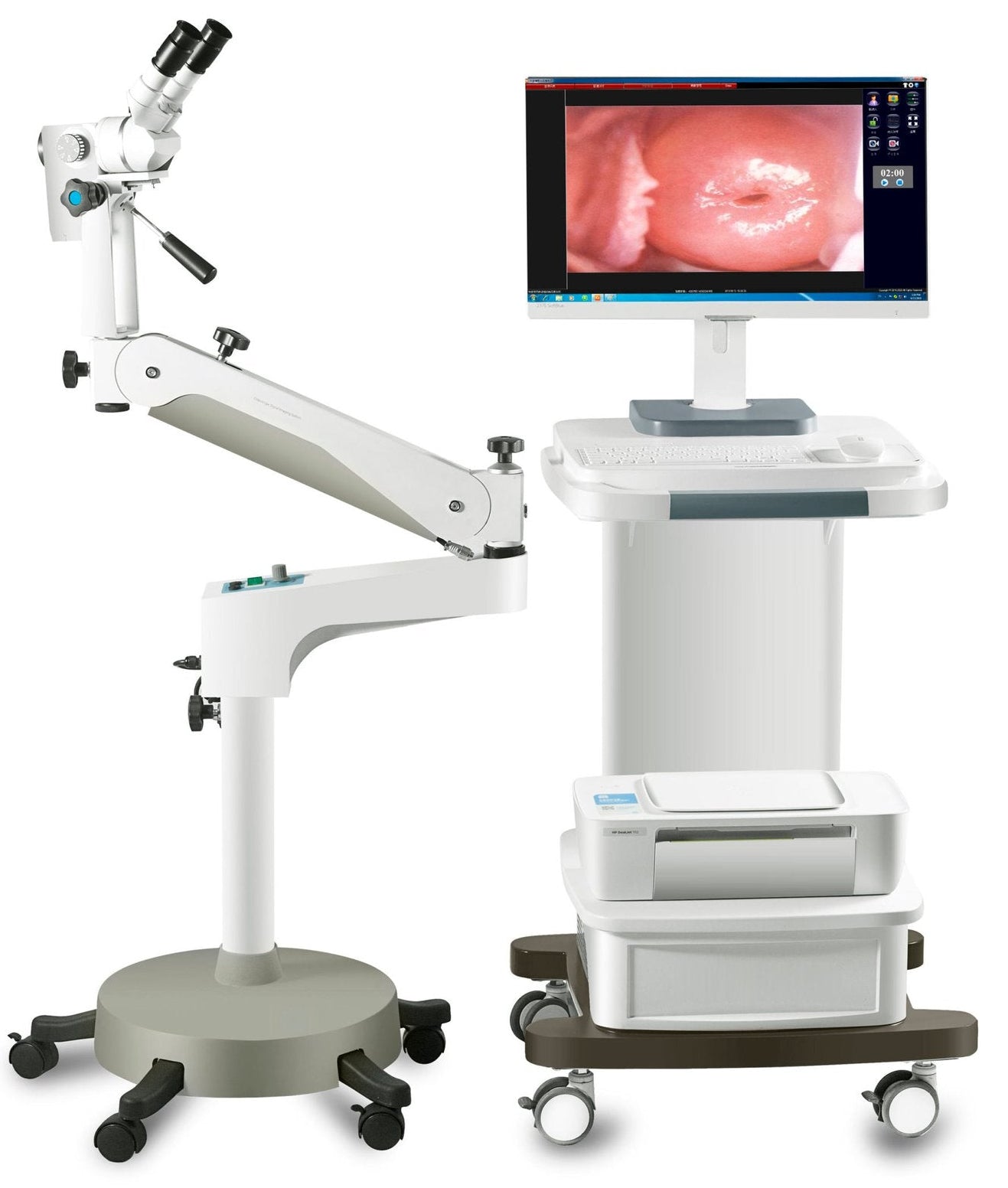

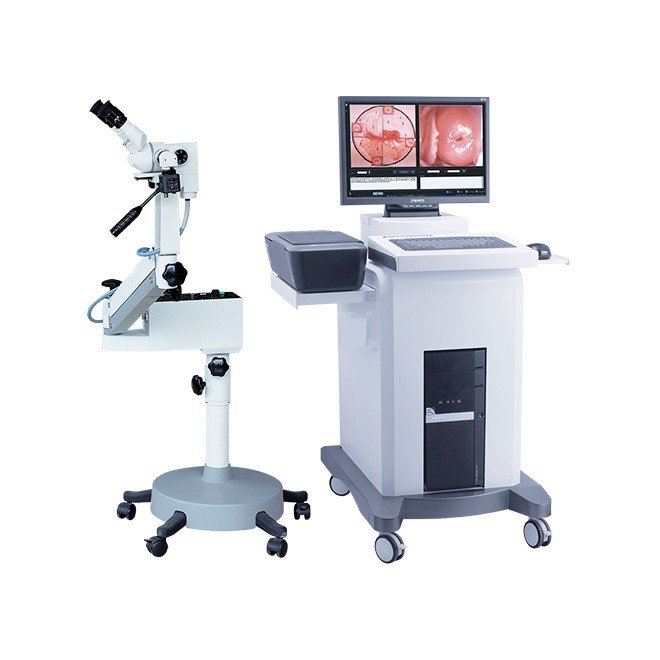

Digital Colposcope Video Machine KN-2200B

Advanced digital imaging system combining high-resolution optical and digital visualization for comprehensive cervical examination and early detection of precancerous lesions. Synchronous observation through optical scope and computer display with integrated measurement scales, multi-functional software, and complete data management capabilities.

Indication(s): Cervical cancer screening, colposcopic evaluation, biopsy guidance, lesion detection and measurement, acetic acid and iodine testing
Range / sizes: Magnification 2.8X to 17X; Field of view 80mm to 12.5mm; Adjustable height 1000mm to 1350mm
Sterilisation: Non-sterile system; optical components require standard cleaning and maintenance

Clinical overview

The Digital Colposcope Video Machine KN-2200B represents a comprehensive diagnostic solution for modern gynecological practice, combining precision optical engineering with advanced digital imaging technology. This state-of-the-art system features a high-resolution 1/3″ color CCD sensor delivering 540TVL horizontal resolution, enabling exceptional visualization of cervical tissue structures and subtle abnormalities. The unique synchronous observation capability allows simultaneous viewing through both the traditional optical eyepiece and computer display, providing flexibility for teaching scenarios, collaborative consultations, and enhanced diagnostic confidence. With five-speed optical amplification ranging from 2.8X to 17X magnification, integrated measurement scales for precise lesion assessment, and a powerful 150W halogen light source providing 60,000 Lux illumination, the KN-2200B delivers the clinical precision required for accurate cervical cancer screening and early detection of precancerous lesions.

The system’s comprehensive software platform transforms colposcopic examination into a fully documented diagnostic procedure, with capabilities including image capture and annotation, patient data management, standardized report generation, and automated backup functions. The flexible swing arm design with damping resistance allows effortless positioning with 270° rotation and 350mm vertical adjustment, while foot-switch operation enables hands-free image capture during examinations. Complete with integrated computer system, 19″ LCD display, HP color printer, and mobile trolley, the NEUCE09 arrives ready for immediate clinical deployment. Multi-language support in English, Chinese, Spanish, and Russian enables global deployment, making this advanced diagnostic platform accessible to diverse clinical environments worldwide.

Key features & surgeon benefits

Optical Excellence

High-Resolution Digital Imaging

  • 1/3″ color CCD sensor with 540TVL horizontal resolution
  • Exceptional image clarity with 50dB signal-to-noise ratio
  • Five-speed optical amplification (2.8X to 17X magnification)
  • Field of view from 80mm to 12.5mm for comprehensive visualization
Clinical Workflow

Dual Observation System

  • Simultaneous viewing through optical eyepiece and computer display
  • Supports teaching, consultation, and collaborative examination
  • Foot-switch operation for hands-free image capture
  • Flexible swing arm with 270° rotation and 350mm adjustment
Diagnostic Precision

Comprehensive Measurement & Analysis

  • Built-in measurement scale for precise lesion size assessment
  • Green filter for enhanced vascular pattern visualization
  • Automated timing for acetic acid and iodine testing
  • RCI biopsy indication function for accurate tissue sampling
Data Management

Complete Documentation Platform

  • Sophisticated software with patient record management
  • Standardized case report templates and image annotation
  • Automated backup and unlimited patient storage capacity
  • Multi-language support: English, Chinese, Spanish, Russian

Technical specifications

Model KN-2200B Digital & Optical Colposcope System
Imaging Sensor 1/3″ High Resolution Color CCD
Horizontal Resolution 540TVL (811 x 508 pixels)
Signal-to-Noise Ratio 50dB
Optical Amplification 5 Speeds: 0.4x, 0.66x, 1x, 1.5x, 2.5x
Total Magnification Range 2.8X, 4X, 7X, 11.5X, 17X
Field of View 80mm to 12.5mm
Working Distance 300mm
Light Source 15V 150W Halogen with Ring Fiber
Central Intensity 60,000 Lux
Irradiated Surface Temperature Lower than 41°C
Filters Green Filter for Capillary Observation
Swing Arm Configuration 330mm and 500mm lengths, 270° rotation
Height Adjustment Range 1000mm to 1350mm
Vertical Adjustment 350mm lifting height
System Weight 45kg (Optical System); 75kg (Net); 108kg (Gross)
Computer Configuration CPU ≥2.7GHz, RAM ≥1GB, Hard Disk ≥250GB
Display Screen 19″ LCD Screen, 1024×768 Resolution
Software Languages English, Chinese, Spanish, Russian
Operating System Windows XP / Windows 7 32-bit
Power Supply AC 220V±10%, 50Hz±2%
Rated Power Total ≤420VA
Operating Environment Temperature: 5-40°C, Humidity: ≤85%, Atmosphere: 700-1060hPa
Warranty 2 Year Manufacturer Warranty



Standard instrument composition

Item Description Qty

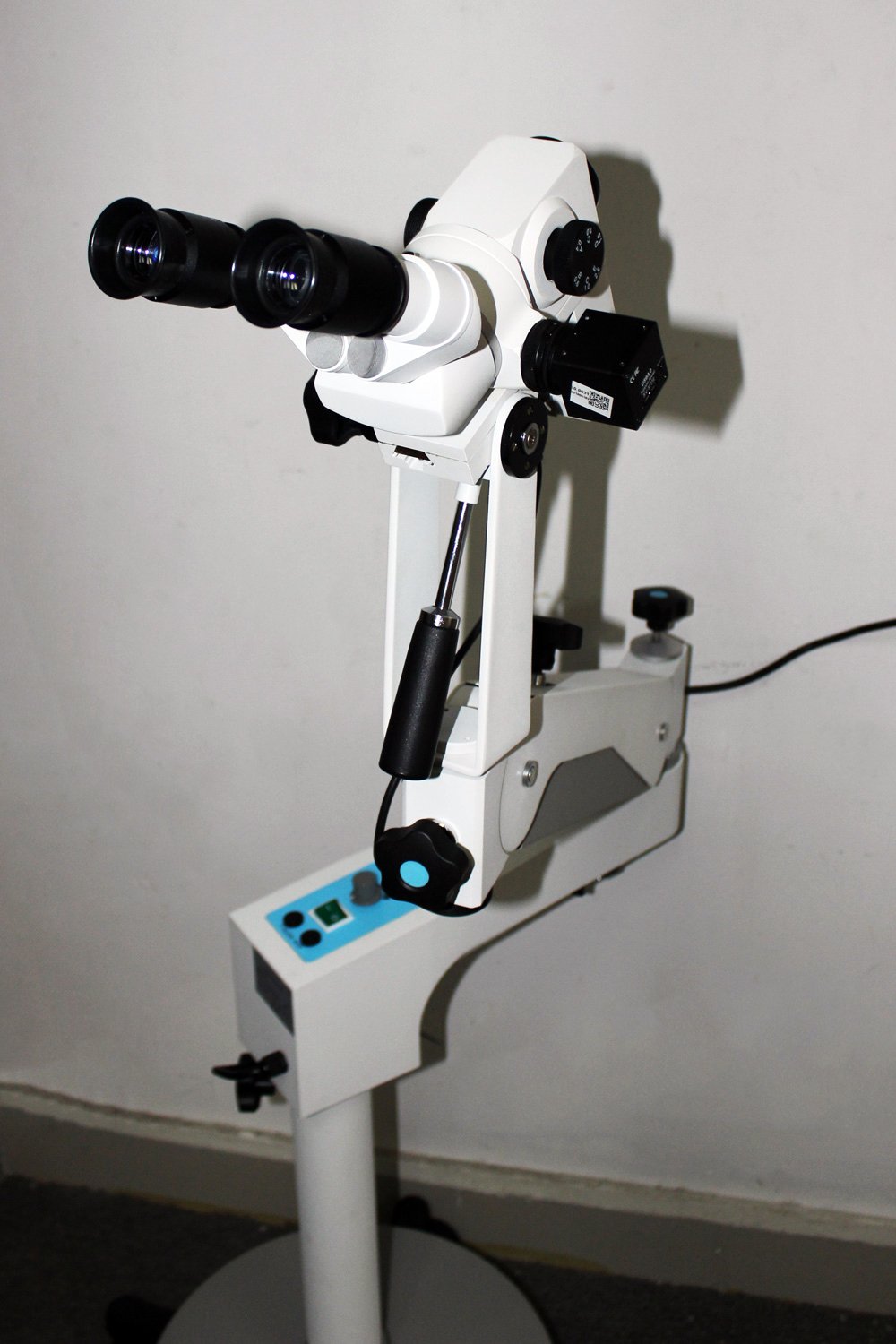

Optical Colposcope Head 1/3″ CCD camera with 5-speed optical amplification and eyepiece 1
Halogen Light Source 15V 150W with ring fiber delivery and brightness control 1
Swing Arm Assembly 330mm and 500mm arms with damping resistance and 270° rotation 1 set
Mobile Base Height-adjustable stand (1000-1350mm) with locking wheels 1
Computer System CPU ≥2.7GHz, RAM ≥1GB, Hard Disk ≥250GB 1
19″ LCD Display Monitor 1024×768 resolution with video input 1
HP Color Inkjet Printer True color printing for report generation 1
Imaging Software Multi-language platform with data management, reporting, and analysis 1
Foot Switch Hands-free image capture control 1
Green Filter Specialized filter for vascular pattern visualization 1
Measurement Scale Built-in scale for lesion size assessment Integrated
Mobile Trolley Complete system transport and organization 1
