Genoray Oscar 15 C-Arm
Brand NEW Comparable To The GE Elite Industry’s Best Warranty (5 Years ) Low-Cost Extended Service Contracts 2.5K x 2.6K Image Resolution Flat Detector 10.5″ Touch Screen Tech Monitor 43″ LED Flat Panel Monitor
3 In Stock Sold Out 3
Share

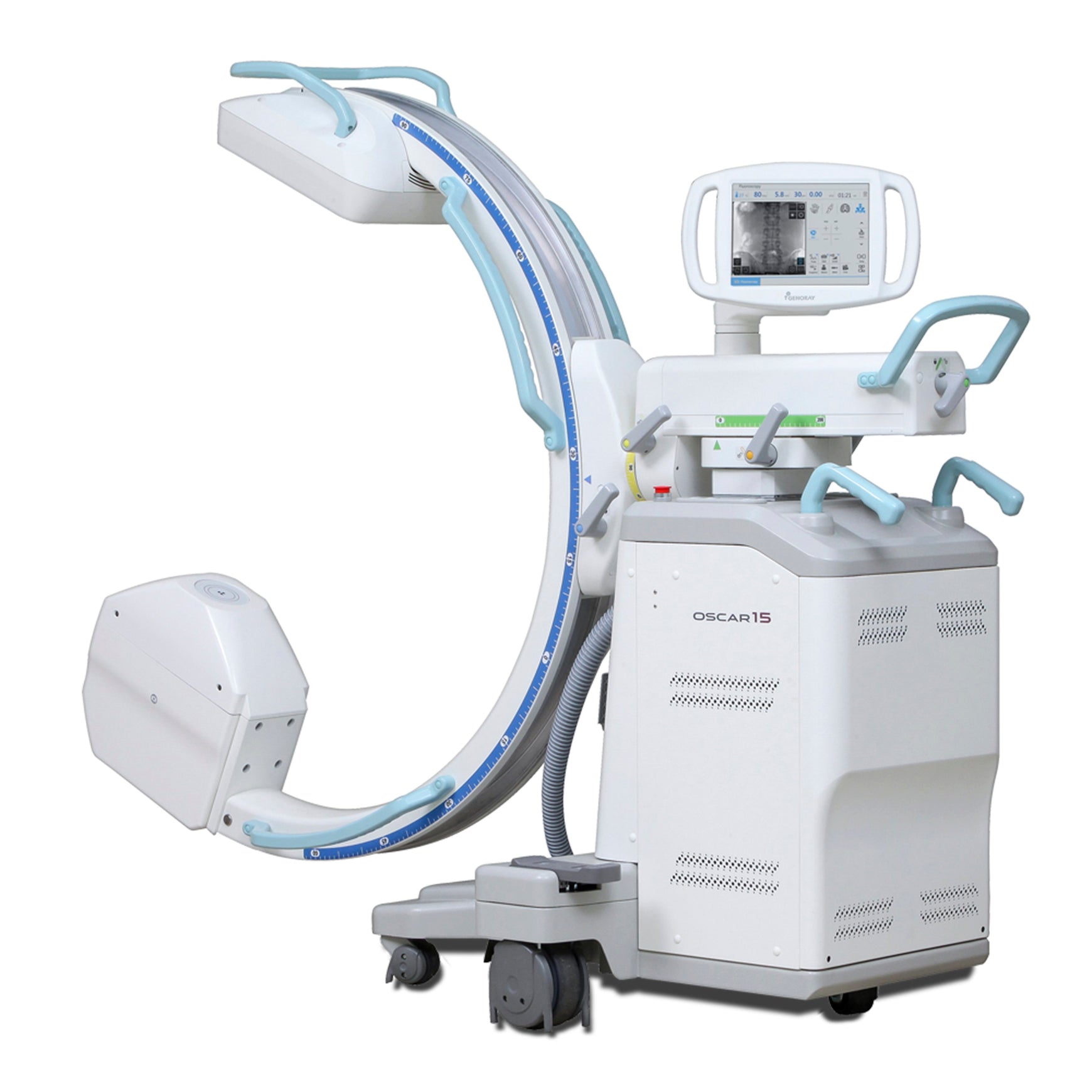

Genoray Oscar 15 C-Arm
Advanced Flat Panel Surgical Imaging for Demanding Clinical Environments
The Genoray Oscar 15 C-Arm is a high-performance mobile fluoroscopy system designed for facilities that need excellent image quality, strong generator power, and flexible positioning across a wide range of surgical and interventional procedures. Built around a 26 x 26 cm CMOS flat panel detector, 15 kW high-frequency generator, and 150° orbital rotation, the Oscar 15 delivers sharp real-time imaging with the manoeuvrability and workflow efficiency required in modern operating theatres.
Its large free space and compact hybrid design help improve access around the patient, while the integrated touchscreen interface and large display support efficient workflow for both operators and clinicians. Genoray positions the Oscar 15 as an all-round flat panel C-arm suited to demanding procedural environments where image clarity, ease of use, and positioning flexibility are essential.
Why Choose the Oscar 15?
The Oscar 15 is designed to combine image performance, clinical versatility, and operator convenience in a single platform. Its flat panel detector supports a large field of view with low noise imaging, while the rotating tube and 15 kW generator help support stronger imaging performance during longer procedures. The system also includes image enhancement tools such as motion correction, virtual collimation, and DICOM connectivity for streamlined image management and integration into hospital workflows.
For facilities looking for a premium flat panel C-arm without stepping into the highest-cost tier of the market, the Oscar 15 presents a strong balance of specification, usability, and procedural range. This makes it well suited for hospitals, surgical centres, orthopaedic units, pain clinics, vascular applications, and multidisciplinary imaging environments.
Key Features
- 26 x 26 cm CMOS flat panel detector
- 15 kW high-frequency generator
- 150° orbital rotation
- 770 mm free space
- 1000 mm SID
- 10.4 inch touchscreen operation panel

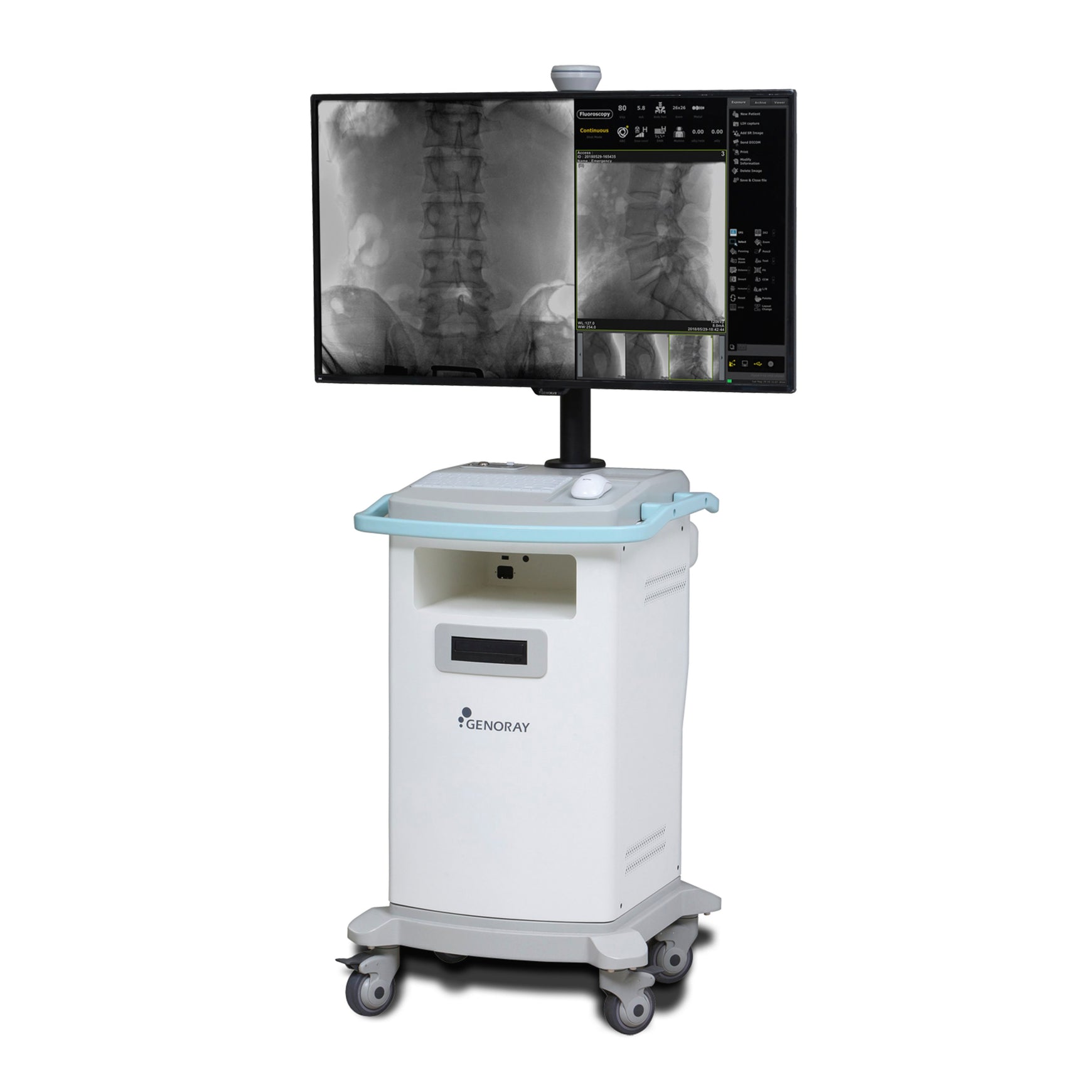

- Large high-resolution monitor
- Low-noise image acquisition
- Virtual collimation
- DICOM 3.0 connectivity
- DSA capability for advanced imaging applications
Clinical Applications
The Genoray Oscar 15 is suitable for a broad range of procedures, including:
- Orthopaedic surgery
- Trauma imaging
- Pain management
- Urology
- Spine procedures
- Vascular interventions
- General surgery
- Neurosurgical applications
Performance and Workflow Benefits
Excellent Image Quality
The Oscar 15 uses a CMOS flat panel detector to provide a wide field of view and high-resolution imaging. Genoray highlights this detector design as a key part of the system’s ability to produce clear images with low noise for a variety of procedures.
Powerful Generator Output
With a 15 kW high-frequency generator and rotating tube, the Oscar 15 is designed for demanding imaging performance and longer usage during procedures.
Flexible Positioning
The system offers 150° orbital rotation and 770 mm free space, helping clinicians position the unit more effectively during surgery and image-guided interventions.
User-Friendly Operation
A 10.4 inch touchscreen control panel supports easy operation and live communication workflows, while the wide display improves image viewing in the procedure room.
Advanced Imaging Functions
The Oscar 15 supports DSA, along with features such as roadmap and post-processing tools, making it suitable for more advanced interventional and vascular workflows.
Technical Specifications
| Specification | Details |
|---|---|
| Detector Type | CMOS Flat Panel Detector |
| Detector Size | 26 x 26 cm |
| Generator Power | 15 kW High-Frequency Generator |
| Orbital Rotation | 150° |
| Free Space | 770 mm |
| SID | 1000 mm |
| Control Monitor | 10.4 inch Touchscreen |
| Connectivity | DICOM 3.0 |
| Imaging Functions | Fluoroscopy, DSA, roadmap, post-processing |
Ideal For
The Oscar 15 is an excellent choice for:
- Hospitals
- Surgical theatres
- Orthopaedic centres
- Pain management clinics
- Urology departments
- Vascular and interventional suites
- Multispecialty imaging environments
Enquire Now
If you are looking for a premium flat panel C-arm that combines strong image quality, flexible movement, and advanced surgical imaging capability, the Genoray Oscar 15 is a compelling solution for modern clinical practice. Contact us today for pricing, availability, and full configuration options.
