Ziehm Vision RFD 3D
Exceptional clarity at minimum dose

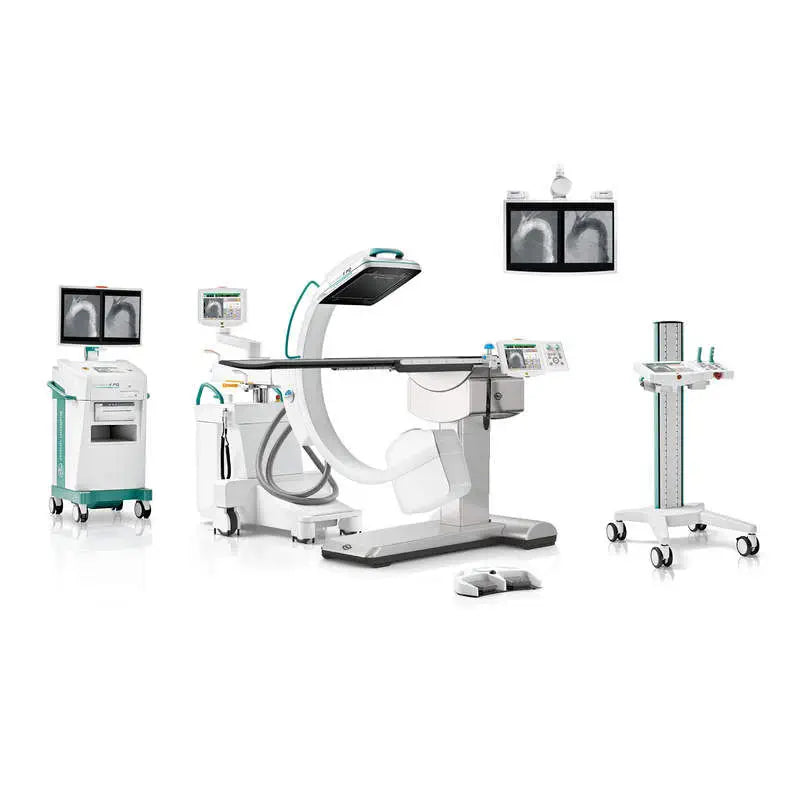

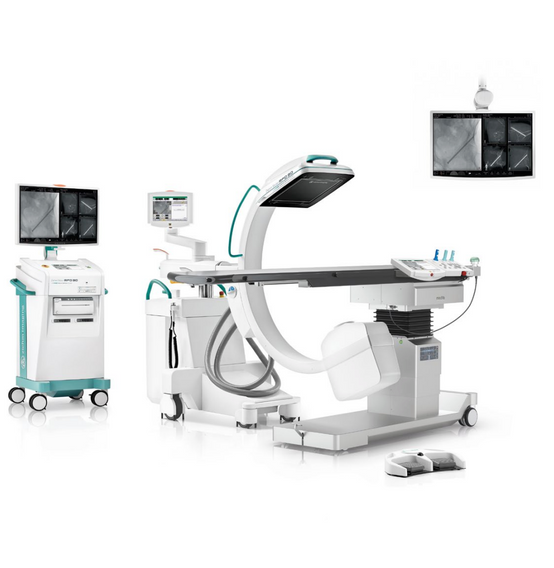

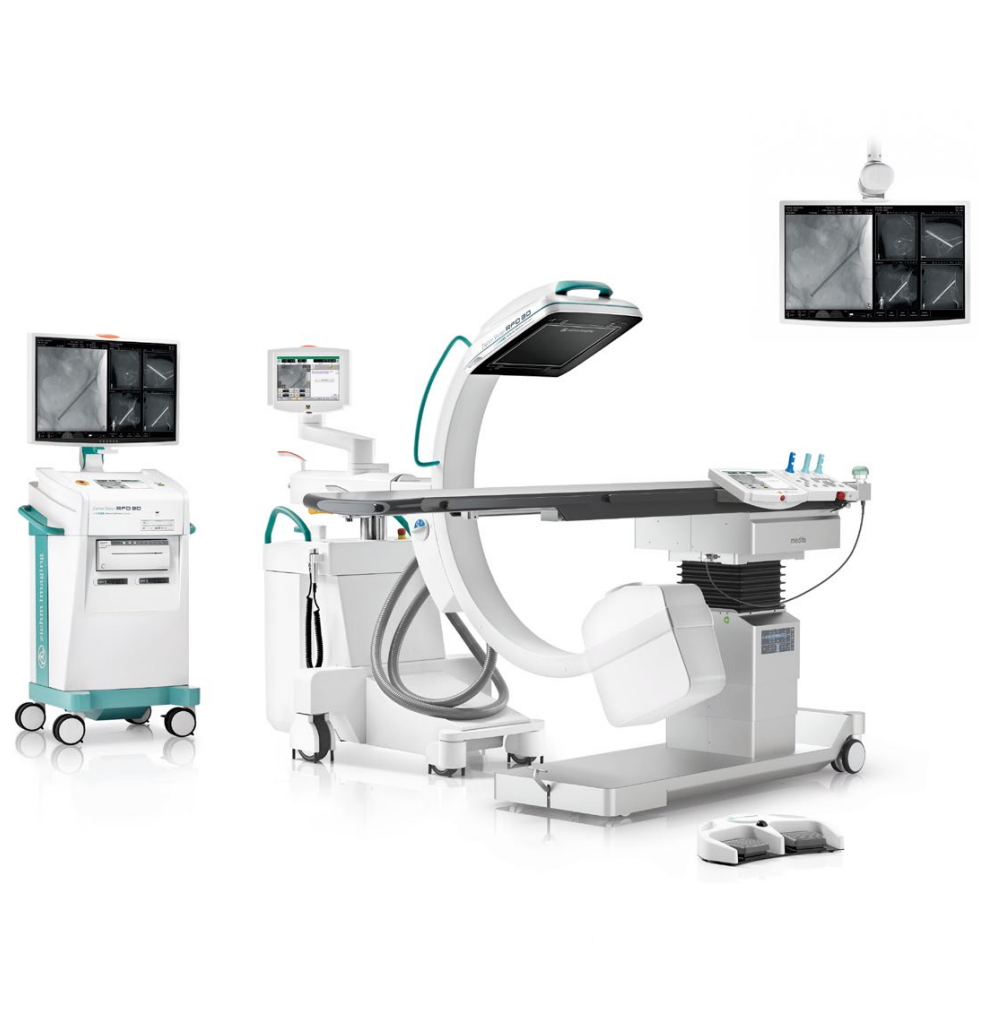

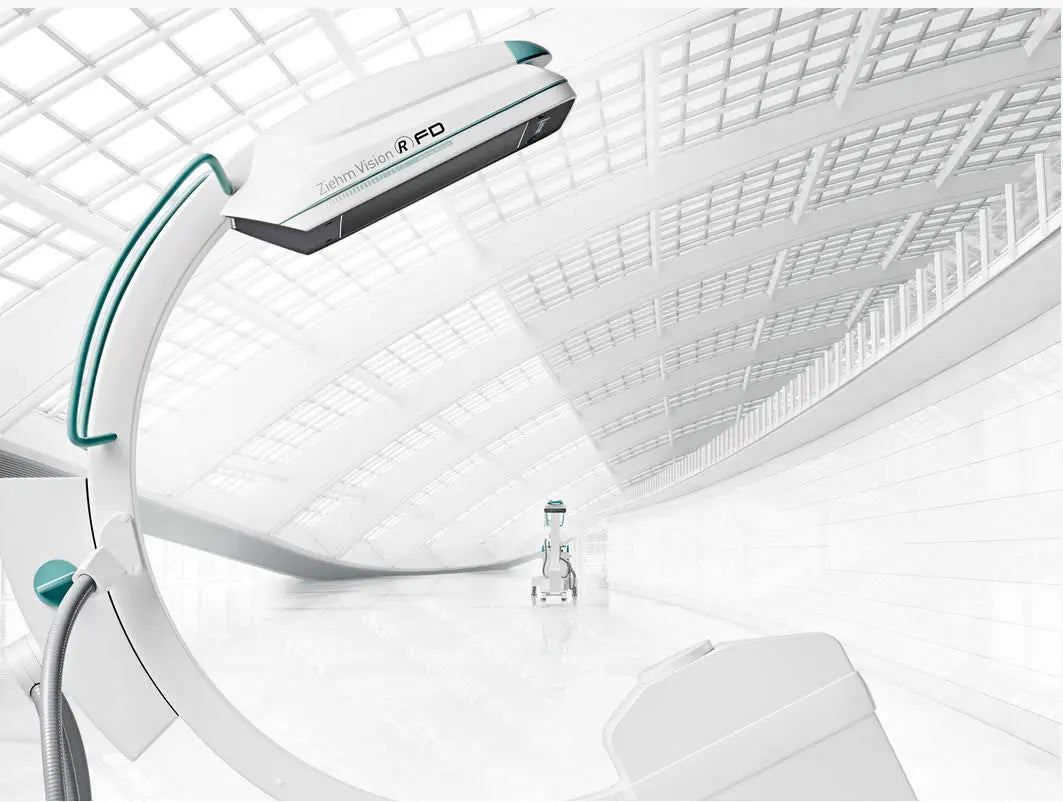

The Ziehm Vision RFD 3D is a premium mobile intraoperative 2D/3D C-arm designed for high-precision surgical imaging across multiple specialties. With more than 2,500 installed systems worldwide and nearly two decades of expertise in 3D imaging, it delivers excellent image quality in both 2D and 3D while helping clinicians visualize even the smallest anatomical details with a minimized radiation dose. The system supports reliable intraoperative control, helps reduce the need for postoperative CT scans and corrective interventions, and contributes to greater surgical precision and workflow efficiency in the OR. :contentReference[oaicite:1]{index=1}
Key Benefits
- High-quality 2D and 3D intraoperative imaging
- Advanced cone-beam CT-based 3D visualization
- Low-dose imaging with tailored dose modes for different patient groups
- 30 kW generator for strong penetration and challenging projections
- True 2k x 2k QuantumStream imaging chain on CMOS configuration
- Advanced artifact reduction with Ziehm Iterative Reconstruction (ZIR)
- Compact footprint with intuitive controls and streamlined workflow
- Suitable for orthopedics, trauma, spine, bronchoscopy, cochlear, craniomaxillofacial, cardiology and vascular surgery
Product Description
The Ziehm Vision RFD 3D sets a benchmark for mobile intraoperative imaging by combining advanced 3D imaging performance with powerful 2D fluoroscopy in one system. Using cone-beam CT technology, it generates high-definition volumetric datasets that support confident image-based decision-making directly in the operating room. Its integrated Ziehm Iterative Reconstruction (ZIR) algorithm helps minimize fan and metal artifacts in 3D reconstructions, improving the visibility of anatomy, bone structure, implants, and slice views in coronal, axial, and sagittal planes. :contentReference[oaicite:2]{index=2}
In 2D imaging, the system features Ziehm’s QuantumStream imaging chain, enabling true 2k x 2k resolution from acquisition to display on CMOS configuration. Combined with a 100 μm pixel CMOS detector, high-resolution image processing, and a 32-inch 4K UHD monitor, the system delivers exceptional clarity, sharper detail, and improved visibility of critical anatomical structures. :contentReference[oaicite:3]{index=3}
The Ziehm Vision RFD 3D is engineered for dose-efficient imaging. It includes dedicated dose modes for low-dose, adult, adult HQ, and obese patient applications, with features such as variable isocenter, removable grid, current adjustment, optimized voltage settings, beam filtration, and dedicated pediatric dose reduction tools. The brochure states that Low Dose mode can reduce radiation by up to 57% compared with Adult mode. :contentReference[oaicite:4]{index=4}
Its SmartScan technology enables complete 3D information acquisition within the compact geometry of a conventional 2D C-arm. With variable isocenter and patented scan paths, the system supports centered visualization of the region of interest and enables collision-free 3D scans even in demanding anatomies and larger patients. The system also offers multiple 3D volume sizes to suit different applications, from a 10 cm high-resolution cochlea package to larger 20 cm and 25 cm fields of view for spine, pelvis, and complex navigation cases. :contentReference[oaicite:5]{index=5} :contentReference[oaicite:6]{index=6}
For workflow efficiency, the Ziehm Vision RFD 3D offers intuitive controls, wizard-guided operation, motorized movement, and optional PositionPilot workflow support. The brochure states that a complete 3D scan can be performed in less than three minutes, with approximately 48 seconds for scan acquisition and around 8 seconds for reconstruction and display of the 3D dataset. :contentReference[oaicite:7]{index=7}
The system is also designed for multidisciplinary use. According to the brochure, it is suitable for orthopedics, trauma and spine surgery, bronchoscopy, cardiology, craniomaxillofacial surgery, cochlear implantations, and vascular surgery. :contentReference[oaicite:8]{index=8}
Clinical Applications
- Orthopedics, trauma and spinal surgery
- Bronchoscopy
- Cardiology
- Craniomaxillofacial surgery
- Cochlear implantations
- Vascular surgery
Advanced Imaging Features
- Ziehm Iterative Reconstruction (ZIR) for metal and fan artifact reduction
- QuantumStream true 2k x 2k imaging chain on CMOS configuration
- 100 μm CMOS detector for high spatial resolution and lower noise
- SmartScan with 180° scanned information in 3D
- Variable isocenter for better centering of the region of interest
- Enhanced Screw Visualization for intuitive 3D screw evaluation
- High penetration imaging for thoracic and abdominal regions, including obese patients
Dose Reduction Features
- SmartDose concept
- Low Dose mode
- Removable grid for pediatric and dose-sensitive procedures
- Beam filtration
- Object Detected Dose Control (ODDC)
- Virtual collimators for exposure-free positioning
- PreMag for exposure-free magnification
- Reduction of pulse frequency
- Automatic dose and image optimization by anatomical program
Workflow and Usability
- Full control of four motorized axes
- Up to 165° orbital movement
- Compact footprint of 0.8 m²
- Ziehm Vision Center touchscreen user interface
- Color-coded scales and handles
- Wireless Dual-Plus footswitch
- Wireless video transmission to external monitors
- Ziehm NetPort with WLAN for IT integration
- Anatomical Marking Tool
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Mobile intraoperative 2D/3D C-arm |
| Flat-Panel Technology | CMOS, 31 cm x 31 cm; also available in a-Si, 30 cm x 30 cm |
| Detector Resolution | CMOS: 3k x 3k; a-Si: 1.5k x 1.5k |
| Image Chain | CMOS: 2k x 2k (QuantumStream); a-Si: 1k x 1k |
| Monitor | 32" 4K UHD monitor |
| Pixel Size | 100 μm CMOS detector pixel size |
| Power Generator | CMOS: 30 kW pulsed monoblock generator; a-Si: 25 kW pulsed monoblock generator |
| Motorization | Full control of 4 motorized axes |
| Orbital Movement | Up to 165° |
| 3D Scanned Information | 2D: 165° / 3D: 180° with SmartScan |
| 3D Volume Size | Standard 16 x 16 x 16 cm; optional 10 x 10 x 10 cm, 19.8 x 19.6 x 18.0 cm, and 24.9 x 19.6 x 24.9 cm |
| Voxel Options | 320³ / 512³ voxels depending on configuration |
| Advanced Cooling | Advanced Active Cooling (AAC) |
| Dose Optimization | SmartDose, beam filtration, removable grid, ODDC, Low Dose mode |
| Navigation Interface | Open NaviPort 3D interface with partners including Brainlab, Globus Medical, Medacta, Medtronic, NuVasive, and Stryker |
| Vascular Image Fusion | Stand-alone EndoNaut or integrated Endovascular Navigation |
Why Choose Ziehm Vision RFD 3D?
The Ziehm Vision RFD 3D is ideal for hospitals and surgical centers seeking advanced mobile 3D imaging with high-resolution 2D fluoroscopy, low-dose performance, and broad multidisciplinary capability. It offers the imaging precision needed for demanding orthopedic, spinal, craniofacial, bronchoscopy, cochlear, vascular, and cardiac procedures, while its compact design and intuitive operation help improve efficiency in the operating room. :contentReference[oaicite:9]{index=9} :contentReference[oaicite:10]{index=10}
