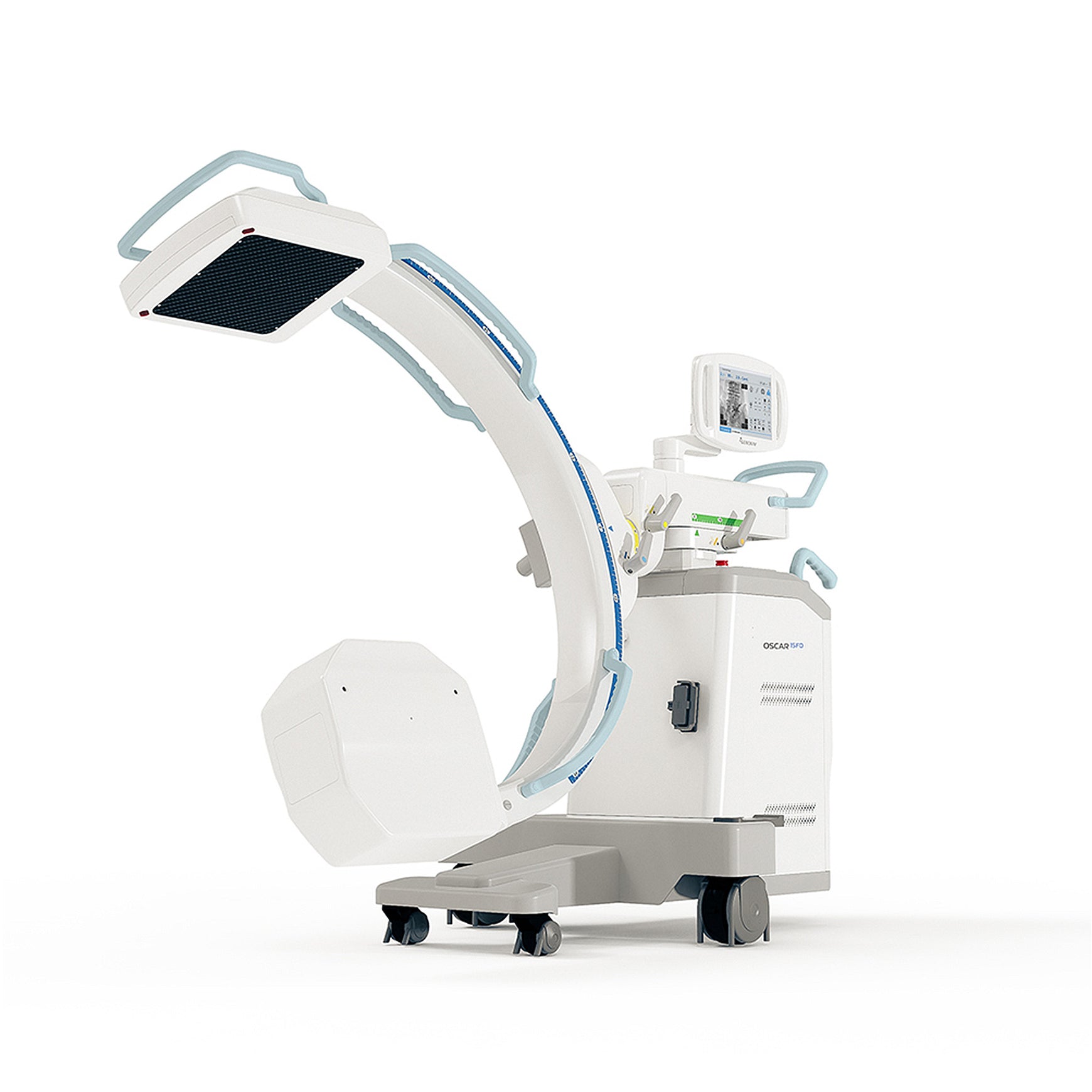

Genoray Oscar 15 C-Arm

Advanced Flat Panel Surgical Imaging for Demanding Clinical Environments

The Genoray Oscar 15 C-Arm is a high-performance mobile fluoroscopy system designed for facilities that need excellent image quality, strong generator power, and flexible positioning across a wide range of surgical and interventional procedures. Built around a 26 x 26 cm CMOS flat panel detector, 15 kW high-frequency generator, and 150° orbital rotation, the Oscar 15 delivers sharp real-time imaging with the manoeuvrability and workflow efficiency required in modern operating theatres.

Its large free space and compact hybrid design help improve access around the patient, while the integrated touchscreen interface and large display support efficient workflow for both operators and clinicians. Genoray positions the Oscar 15 as an all-round flat panel C-arm suited to demanding procedural environments where image clarity, ease of use, and positioning flexibility are essential.

Why Choose the Oscar 15?

The Oscar 15 is designed to combine image performance, clinical versatility, and operator convenience in a single platform. Its flat panel detector supports a large field of view with low noise imaging, while the rotating tube and 15 kW generator help support stronger imaging performance during longer procedures. The system also includes image enhancement tools such as motion correction, virtual collimation, and DICOM connectivity for streamlined image management and integration into hospital workflows.

For facilities looking for a premium flat panel C-arm without stepping into the highest-cost tier of the market, the Oscar 15 presents a strong balance of specification, usability, and procedural range. This makes it well suited for hospitals, surgical centres, orthopaedic units, pain clinics, vascular applications, and multidisciplinary imaging environments.

Key Features

• 26 x 26 cm CMOS flat panel detector
• 15 kW high-frequency generator
• 150° orbital rotation
• 770 mm free space
• 1000 mm SID
• 10.4 inch touchscreen operation panel
• Large high-resolution monitor
• Low-noise image acquisition
• Virtual collimation
• DICOM 3.0 connectivity
• DSA capability for advanced imaging applications

Clinical Applications

The Genoray Oscar 15 is suitable for a broad range of procedures, including:

• Orthopaedic surgery
• Trauma imaging
• Pain management
• Urology
• Spine procedures
• Vascular interventions
• General surgery
• Neurosurgical applications

Performance and Workflow Benefits

Excellent Image Quality

The Oscar 15 uses a CMOS flat panel detector to provide a wide field of view and high-resolution imaging. Genoray highlights this detector design as a key part of the system’s ability to produce clear images with low noise for a variety of procedures.

Powerful Generator Output

With a 15 kW high-frequency generator and rotating tube, the Oscar 15 is designed for demanding imaging performance and longer usage during procedures.

Flexible Positioning

The system offers 150° orbital rotation and 770 mm free space, helping clinicians position the unit more effectively during surgery and image-guided interventions.

User-Friendly Operation

A 10.4 inch touchscreen control panel supports easy operation and live communication workflows, while the wide display improves image viewing in the procedure room.

Advanced Imaging Functions

The Oscar 15 supports DSA, along with features such as roadmap and post-processing tools, making it suitable for more advanced interventional and vascular workflows.

Technical Specifications

Ideal For

The Oscar 15 is an excellent choice for:

• Hospitals
• Surgical theatres
• Orthopaedic centres
• Pain management clinics
• Urology departments
• Vascular and interventional suites
• Multispecialty imaging environments

Enquire Now

If you are looking for a premium flat panel C-arm that combines strong image quality, flexible movement, and advanced surgical imaging capability, the Genoray Oscar 15 is a compelling solution for modern clinical practice. Contact us today for pricing, availability, and full configuration options.

Ziehm Vision RFD 3D

Exceptional clarity at minimum dose

The Ziehm Vision RFD 3D is a premium mobile intraoperative 2D/3D C-arm designed for high-precision surgical imaging across multiple specialties. With more than 2,500 installed systems worldwide and nearly two decades of expertise in 3D imaging, it delivers excellent image quality in both 2D and 3D while helping clinicians visualize even the smallest anatomical details with a minimized radiation dose. The system supports reliable intraoperative control, helps reduce the need for postoperative CT scans and corrective interventions, and contributes to greater surgical precision and workflow efficiency in the OR. :contentReference[oaicite:1]{index=1}

Key Benefits

• High-quality 2D and 3D intraoperative imaging
• Advanced cone-beam CT-based 3D visualization
• Low-dose imaging with tailored dose modes for different patient groups
• 30 kW generator for strong penetration and challenging projections
• True 2k x 2k QuantumStream imaging chain on CMOS configuration
• Advanced artifact reduction with Ziehm Iterative Reconstruction (ZIR)
• Compact footprint with intuitive controls and streamlined workflow
• Suitable for orthopedics, trauma, spine, bronchoscopy, cochlear, craniomaxillofacial, cardiology and vascular surgery

Product Description

The Ziehm Vision RFD 3D sets a benchmark for mobile intraoperative imaging by combining advanced 3D imaging performance with powerful 2D fluoroscopy in one system. Using cone-beam CT technology, it generates high-definition volumetric datasets that support confident image-based decision-making directly in the operating room. Its integrated Ziehm Iterative Reconstruction (ZIR) algorithm helps minimize fan and metal artifacts in 3D reconstructions, improving the visibility of anatomy, bone structure, implants, and slice views in coronal, axial, and sagittal planes. :contentReference[oaicite:2]{index=2}

In 2D imaging, the system features Ziehm’s QuantumStream imaging chain, enabling true 2k x 2k resolution from acquisition to display on CMOS configuration. Combined with a 100 μm pixel CMOS detector, high-resolution image processing, and a 32-inch 4K UHD monitor, the system delivers exceptional clarity, sharper detail, and improved visibility of critical anatomical structures. :contentReference[oaicite:3]{index=3}

The Ziehm Vision RFD 3D is engineered for dose-efficient imaging. It includes dedicated dose modes for low-dose, adult, adult HQ, and obese patient applications, with features such as variable isocenter, removable grid, current adjustment, optimized voltage settings, beam filtration, and dedicated pediatric dose reduction tools. The brochure states that Low Dose mode can reduce radiation by up to 57% compared with Adult mode. :contentReference[oaicite:4]{index=4}

Its SmartScan technology enables complete 3D information acquisition within the compact geometry of a conventional 2D C-arm. With variable isocenter and patented scan paths, the system supports centered visualization of the region of interest and enables collision-free 3D scans even in demanding anatomies and larger patients. The system also offers multiple 3D volume sizes to suit different applications, from a 10 cm high-resolution cochlea package to larger 20 cm and 25 cm fields of view for spine, pelvis, and complex navigation cases. :contentReference[oaicite:5]{index=5} :contentReference[oaicite:6]{index=6}

For workflow efficiency, the Ziehm Vision RFD 3D offers intuitive controls, wizard-guided operation, motorized movement, and optional PositionPilot workflow support. The brochure states that a complete 3D scan can be performed in less than three minutes, with approximately 48 seconds for scan acquisition and around 8 seconds for reconstruction and display of the 3D dataset. :contentReference[oaicite:7]{index=7}

The system is also designed for multidisciplinary use. According to the brochure, it is suitable for orthopedics, trauma and spine surgery, bronchoscopy, cardiology, craniomaxillofacial surgery, cochlear implantations, and vascular surgery. :contentReference[oaicite:8]{index=8}

Clinical Applications

• Orthopedics, trauma and spinal surgery
• Bronchoscopy
• Cardiology
• Craniomaxillofacial surgery
• Cochlear implantations
• Vascular surgery

Advanced Imaging Features

• Ziehm Iterative Reconstruction (ZIR) for metal and fan artifact reduction
• QuantumStream true 2k x 2k imaging chain on CMOS configuration
• 100 μm CMOS detector for high spatial resolution and lower noise
• SmartScan with 180° scanned information in 3D
• Variable isocenter for better centering of the region of interest
• Enhanced Screw Visualization for intuitive 3D screw evaluation
• High penetration imaging for thoracic and abdominal regions, including obese patients

Dose Reduction Features

• SmartDose concept
• Low Dose mode
• Removable grid for pediatric and dose-sensitive procedures
• Beam filtration
• Object Detected Dose Control (ODDC)
• Virtual collimators for exposure-free positioning
• PreMag for exposure-free magnification
• Reduction of pulse frequency
• Automatic dose and image optimization by anatomical program

Workflow and Usability

• Full control of four motorized axes
• Up to 165° orbital movement
• Compact footprint of 0.8 m²
• Ziehm Vision Center touchscreen user interface
• Color-coded scales and handles
• Wireless Dual-Plus footswitch
• Wireless video transmission to external monitors
• Ziehm NetPort with WLAN for IT integration
• Anatomical Marking Tool

Technical Specifications

Why Choose Ziehm Vision RFD 3D?

The Ziehm Vision RFD 3D is ideal for hospitals and surgical centers seeking advanced mobile 3D imaging with high-resolution 2D fluoroscopy, low-dose performance, and broad multidisciplinary capability. It offers the imaging precision needed for demanding orthopedic, spinal, craniofacial, bronchoscopy, cochlear, vascular, and cardiac procedures, while its compact design and intuitive operation help improve efficiency in the operating room. :contentReference[oaicite:9]{index=9} :contentReference[oaicite:10]{index=10}
