Grant Instruments Controlled Rate Freeze Thaw CRFT with Peli Case

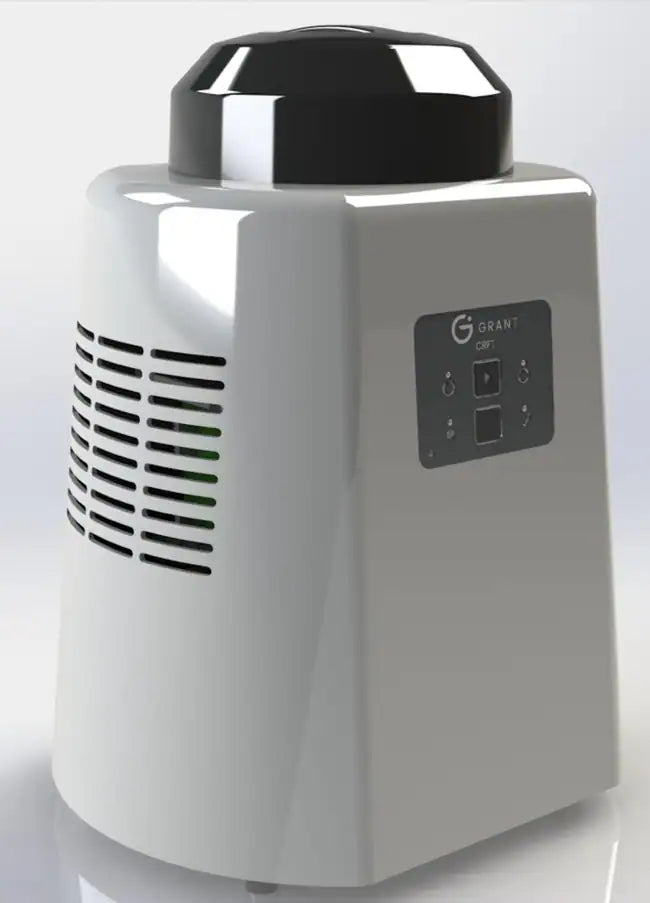

The Grant Instruments Controlled Rate Freeze Thaw (CRFT) is a benchtop cryopreservation freezer/thawer supplied with a rigid black Peli case. It is designed to provide controlled freezing and thawing without liquid nitrogen, alcohol or conventional cryogens.
Overview
The CRFT is intended for research and clinical laboratory sample workflows requiring reproducible cooling rates and sample temperature control. Interchangeable heads are ordered separately, allowing the system to be adapted to vials, straws, PCR plates and other supported formats depending on selected head configuration.
Key Features
- Controlled-rate freezer and thawer for cryopreservation workflows.
- Liquid nitrogen, alcohol and cryogen-free operation; no topping up required.
- Accurate and reproducible control of cooling rates and sample temperatures.
- Supports controlled and customisable freezing and thawing profiles.
- Supports linear and non-linear freezing profiles.
- Interchangeable heads provide flexibility; heads are ordered separately.
- Free software allows users to design, track, export and report temperature profiles.
- Samples can be nucleated or seeded in situ.
- Low running-cost design powered by a 24 V supply.
- Temperature range from -100°C to 30°C.
Technical Specification Highlights
| Brand | Grant Instruments |
| Model | CRFT |
| Product code | 17900411 |
| Supplier number | CRFT UK PACK |
| Type | Cryogenic freezer/thawer |
| Configuration | Benchtop |
| Temperature range | -100°C to 30°C |
| For use with | Vials, straws and PCR plates |
| Certifications / compliance | CE |
| Cabinet material | Plastic |
| Chamber material | Aluminum |
| Exterior dimensions | 571 x 569 x 540 mm |
| Interior dimensions | 507 x 510 x 498 mm |
| Connectivity | USB and supplied software |
| Access security | Password-protected software |
| Backup systems | UPS optional extra |
| Voltage | 100/240 V |
| Frequency | 50/60 Hz |
| Wattage | 170 W |
| Vial capacity | Up to 55 |
| Refrigerant | Helium |
| Weight | 8.9 kg |
| Warranty | 2 years |
Applications
- Transgenic embryology research.
- Stem cell research and cryopreservation.
- Clinical and research samples including lymphocytes and tissue cell lines in conventional cryovials.
- Mammalian cell workflows including cardiomyocytes, adipose, liver and muscle cells.
- Cord-blood-derived stem cells, adherent cells and stem cells in microplates.
- Veterinary IVF and system integration applications, depending on configuration.
Procurement and Configuration Notes
Please confirm interchangeable head compatibility, sample format, throughput, software requirements, validation documentation, plug type, UPS option, calibration/service requirements and local regulatory needs before ordering. Interchangeable heads must be ordered separately unless included in a supplier package.
