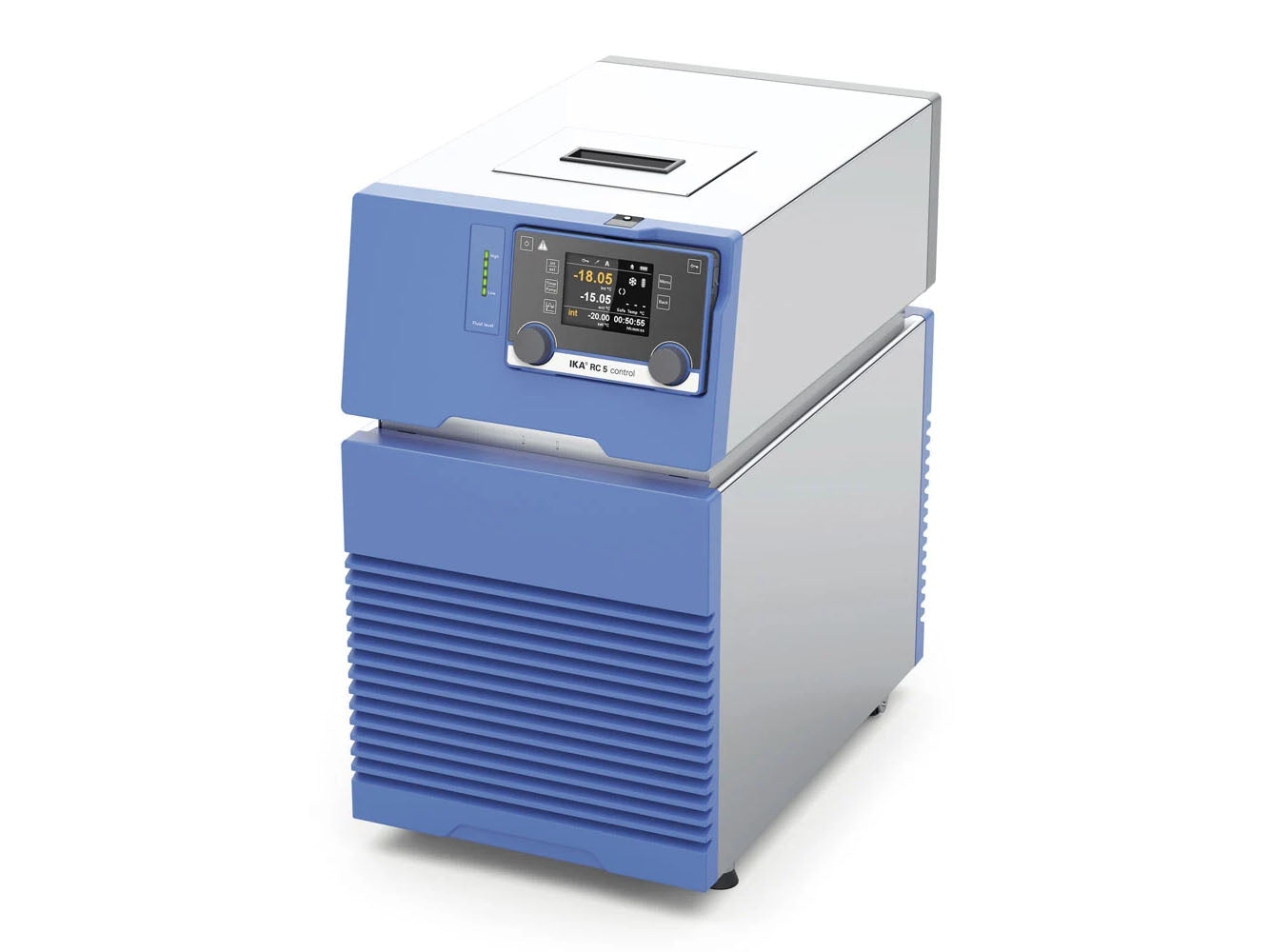

IKA RC 5 Chiller (-30°C to RT)
Buy IKA products from PSTG Supplies at the best value.
PSTG Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020008504
Powerful recirculating chiller, designed for external cooling applications up to -30°C.
The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. The speed-controlled PEEK pump allows an indirect, continuous adjustment of the maximum pressure and flow rate. Due to the PT100 temperature sensor, which is part of the delivery and its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications.
Laboratory staff operates the RC 5 control safely and conveniently from everywhere in the lab by using the Wireless Controller (WiCo). Processes can be automated and simplified through 10 freely programmable temperature ramps with 10 steps each.
Its isolated, high-quality 7l bath has an integrated hopper and drain valve, ensuring safe and clean handling of the thermofluid. A hose can be connected to empty the bath in order to avoid direct contact with the thermofluid.
The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.
Key Features
- Speed-controlled refrigeration system with 1400 W cooling capacity (@20°C)
- Natural thermofluid R290
- Designed for cooling applications up to -30°C - RT
- Extended operating temperature range up to 80°C
- Excellent temperature stability of about ± 0,1K (@-10°C)
- Speed-controlled pump made of PEEK: (0,6 bar; 31l/min)
- Digital level indicator
Additional benefits of the control device:
- Operating mode D (confirmation mode)
- Signal if set point is reached
- Timer/Counter
- Degassing function
Interfaces:
- Connection socket for external PT 100 temperature sensor (Accessory: PT100.30; Lemo connector)
- Connection of magnetic valves possible (Mulit IO)
- Alarm contact (Multi IO)
- Connector for standby contact input (Multi IO)
- RS 232 and USB
Scope of delivery
- RC 5 control
- PT 100.30 Temperature sensor
- Hose olive NW 8 (2 pcs.)
- Hose olive NW 12 (2 pcs.)
- WH10 WiCo Holder
- OS 1.0 power supply (for WiCo)
- USB Cable - USB A to Micro-B, 2 m
- USB 2.0 cable Micro A – Micro B
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA RC 5 Chiller
| Appliance type | Recirculating chiller |
| Cooling agent | R290 |
| Cooling agent quantity | 90 g |
| Cooling agent pressure max. | 21 bar |
| Cooling capacity (@20°C) | 1400 W |
| Cooling capacity (@10°C) | 1200 W |
| Cooling capacity (@0°C) | 950 W |
| Cooling capacity (@-10°C) | 650 W |
| Cooling capacity (@-20°C) | 450 W |
| Cooling capacity (@-30°C) | 200 W |
| Working temperature | -30 - room temp. °C |
| Operating temperature min. | -30 °C |
| Operating temperature max. (with external heating) | 80 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Working temperature display | TFT |
| Temperature stability DIN 12876 | ±0.1 K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.01 K |
| Display for operation with ext. sensor | yes |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Sub-level protection | yes |
| Filling volume | 5.0 - 7.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.61 bar |
| Pressure pump (suction side) (0 liter flow) | 0.45 bar |
| Flow rate max. (0 bar back pressure) | 31 l/min |
| Pump connection | M16x1 |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Multi-Interface | yes |
| Alarm output (potential-free contact) max. | 30 V AC/DC |
| Alarm output (potential-free contact) max. | 1 A |
| Solenoid valve output | 24 VDC |
| Solenoid valve output max. | 0.8 A |
| Standby input | 5 VDC |
| Dimensions (W x H x D) | 310 x 546 x 490 mm |
| Weight | 37.5 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 115 V |
| Frequency | 50/60 Hz |
| Power input | 1100 W |
