Pentax (HOYA) ED34-i10T2 HD+ Video Duodenoscope
Share

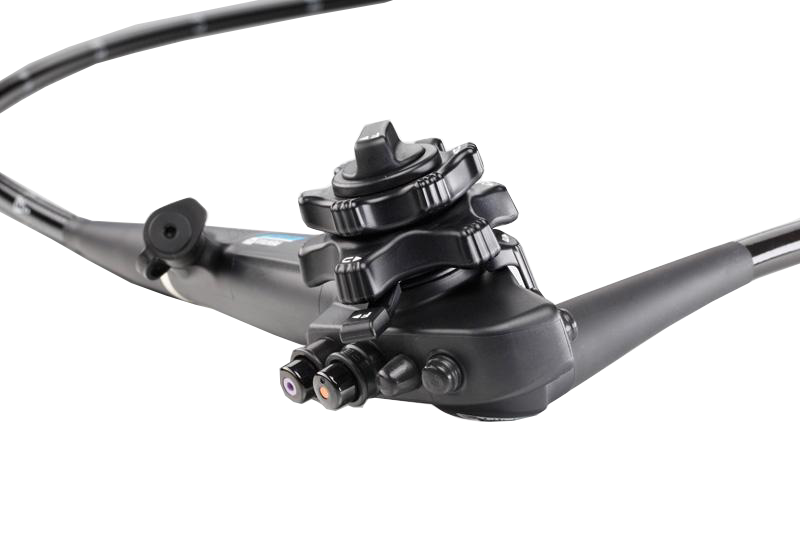

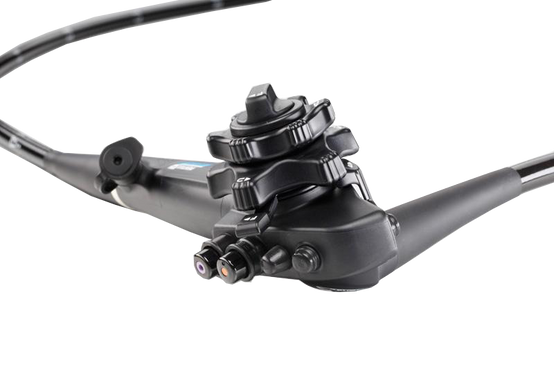

Pentax (HOYA) ED34-i10T2 HD+ Video Duodenoscope
The Pentax ED34-i10T2 is an HD+ video duodenoscope designed for routine and advanced endoscopic retrograde cholangiopancreatography procedures. It is positioned for pancreato-biliary work where a side-viewing duodenoscope, a large instrument channel and precise tip control are required.
Used with compatible Pentax video-processing platforms, the ED34-i10T2 combines HD+ imaging with i-scan image-enhancement technology to support detailed visualization of mucosal structures. The design is intended to help clinicians observe, access and treat areas of the biliary and pancreatic ducts during ERCP-type procedures.
Key Features
- HD+ duodenoscope platform for advanced gastroenterology and ERCP applications.
- i-scan image enhancement for improved visualization of mucosal detail when used with a compatible processor.
- Large 4.2 mm working channel to support therapeutic accessories used in pancreato-biliary procedures.
- Redesigned elevator mechanism for controlled device manipulation at the distal end.
- CleanCap-System removable distal end design to support more efficient cleaning and reprocessing.
- Ergonomic control section designed to reduce hand fatigue during long procedures.
- Side-viewing configuration for duodenoscopy and ERCP work.
Technical Specification
| Model | ED34-i10T2 |
| Field of view | 100° with 10° rear view |
| Depth of field | 4–60 mm |
| Tip angulation, up / down | 120° / 90° |
| Tip angulation, right / left | 105° / 90° |
| Distal end diameter | 13.6 mm |
| Insertion tube diameter | 11.6 mm |
| Working channel diameter | 4.2 mm |
| Working length | 1250 mm |
| Total length | 1566 mm |
Clinical Use
This duodenoscope is suitable for specialist gastroenterology departments carrying out ERCP, biliary access, pancreatic duct access and therapeutic procedures requiring compatible endoscopic accessories. Actual procedure suitability depends on the processor, accessory set, cleaning workflow and local clinical protocols.
Ordering Information
Supply is subject to configuration and availability. Please confirm the required video processor, monitor, trolley, light source, accessories, cleaning/reprocessing requirements and compatible consumables before ordering. Nass Ventures can support procurement, configuration review, supply, delivery, installation coordination and after-sales support for hospital and endoscopy-suite projects.
Shipment
Benefit from reliable delivery options
Every day, we ship our laboratory equipment throughout Nigeria and internationally. We work with trusted and experienced logistics and courier partners to ensure safe and timely delivery. Shipping costs and delivery times depend on the items ordered and the recipient’s location. Alternatively, you may arrange to collect your order in person by appointment. Below is an overview of our shipping options and policies.
Shipping within Nigeria
All goods are insured as standard up to a value of ₦ equivalent of €25,000. Shipping costs are calculated based on the weight, dimensions, value of the shipment, and delivery destination within Nigeria. For detailed shipping information, please contact us directly—we will be happy to assist.
International shipping
For accurate international shipping costs, we require details of the specific product(s) you wish to order.
Please contact us by telephone or email for a tailored quotation.
Freight forwarding, sea or air freight
For large, heavy, or specialized equipment, we provide personalised quotations for road freight, sea freight, or air freight. Taking current logistics conditions into account, we aim to offer the best possible price-to-performance ratio.
Incoterms 2020
All shipments are handled in accordance with Incoterms® 2020 (ICC). Please contact us to confirm and agree on your preferred delivery terms.
Self-collection
If required, you may collect your goods in person by prior appointment. Please note that pricing and availability may vary between Nigeria and other countries.
Standard deliveries
Standard shipments within Nigeria are handled by reputable courier and logistics providers. Upon request, we can also arrange alternative carriers to meet specific delivery requirements.
Insurance
All deliveries are insured up to a maximum value of ₦ equivalent of €25,000. If the value of your goods exceeds this amount, we will contact you to arrange additional insurance coverage.
Delivery time
Delivery times depend on product availability and order volume. High-demand items may be subject to delays beyond our control. If you require urgent delivery, please inform us in advance, and we will do our best to accommodate your request.
Q: Saves time
A: This reason might be the most obvious, but it’s a clear benefit of an FAQ page. Not only does the FAQ page save customers time, but it also saves employees time as well. Having an FAQ page ensures customers don’t have to sit on the phone for hours waiting for simple answers, and employees don’t have to individually answer all questions.
Q: Earns trust
A: Information is available at the click of a button, but as we all know, information is not always true. Because of this, customers are more skeptical than ever before. They hunt for products by sifting through reviews, looking at the product on multiple websites, and doing price checking across the internet.
Q: Provides new insights
A: It’s difficult to get into the head of a shopper. Some buy on impulse, and others buy after thorough research. By tracking the clicks on your FAQ page, you can gather insights about your product or service that you didn’t know before. You can then inform your product team of these insights. From there, the product team can make changes to improve the product or experience.
Q: Drives internal page views
A: If you want your FAQ to be extremely thorough, which it should be, you can link to resources within your FAQ for your customers to find out more information. Whether you link to a blog that goes into more detail or a product page, this content helps the shoppers get the full story before making a purchase.
A: Prevents negative reviews
A: When looking through negative reviews, there’s almost always one thing in common: the problem could’ve been avoided.
Related Products
The MITRA Industries OVD-2H High-definition video duodenoscope is a flexible video duodenoscope for gastroenterology and ERCP-related endoscopy workflows. This listing has been prepared from the uploaded product page and should be used as a procurement/catalogue entry for quotation, configuration review and compatibility confirmation before ordering.
Clinical and Workflow Context
Duodenoscopes are specialist side-viewing flexible endoscopes used where access, visualization and device control around the duodenum and biliary/pancreatic anatomy are required. Final suitability depends on the complete endoscopy tower, processor/light-source platform, accessories, reprocessing pathway, local regulatory requirements and the clinical procedure set used by the facility.
Source Description
Depth Of Field 5-60mm Optical Technology mBLU mBLU Mode 1 Insertion Tube Outer Diameter 12.5mm
Distal End Enlarged Air/Water Nozzle Illumination LEDs (W) Objective Lens Instrument Channel Outlet Forceps Elevator
Channel Inner Diameter 4.2mm
Minimum Visible Distance 10mm from the distal end
Technical Details from Source Page
- Working length: 1,260 mm, (49.6 in)
- Operating channel diameter (mm): 13.5 mm, (0.5 in)
- Angle of view (°): 100 °
- Direction of view (°): 5 °
- Angulation range (°): 90 °, 110 °, 120 °
Feature Classification
- Optical: high-definition
Ordering and Configuration Notes
- Confirm processor, light source, monitor, pump and endoscopy tower compatibility before purchase.
- Confirm included accessories, cleaning/reprocessing accessories and any model-specific disposable parts before ordering.
- Confirm local regulatory status, warranty, service support, user training and installation requirements.
- For quotation, specify the intended clinical use, existing processor platform, required accessories, region of use and preferred delivery terms.
The MITRA Industries OVD-S2+ Video duodenoscope is a flexible video duodenoscope for gastroenterology and ERCP-related endoscopy workflows. This listing has been prepared from the uploaded product page and should be used as a procurement/catalogue entry for quotation, configuration review and compatibility confirmation before ordering.
Clinical and Workflow Context
Duodenoscopes are specialist side-viewing flexible endoscopes used where access, visualization and device control around the duodenum and biliary/pancreatic anatomy are required. Final suitability depends on the complete endoscopy tower, processor/light-source platform, accessories, reprocessing pathway, local regulatory requirements and the clinical procedure set used by the facility.
Source Description
Direction Of View Backward side viewing 5° Depth Of Field 3-60mm Optical Technology mBLU mBLU Mode 1
Distal End Enlarged Air/Water Nozzle Illumination LEDs (W) Objective Lens Instrument Channel Outlet Forceps Elevator
Minimum Visible Distance 10mm from the distal end
Technical Details from Source Page
- Working length: 1,245 mm, (49 in)
- Operating channel diameter (mm): 13.5 mm, (0.5 in)
- Angle of view (°): 120 °
- Angulation range (°): 90 °, 110 °
Ordering and Configuration Notes
- Confirm processor, light source, monitor, pump and endoscopy tower compatibility before purchase.
- Confirm included accessories, cleaning/reprocessing accessories and any model-specific disposable parts before ordering.
- Confirm local regulatory status, warranty, service support, user training and installation requirements.
- For quotation, specify the intended clinical use, existing processor platform, required accessories, region of use and preferred delivery terms.
The Pentax DEC™ High-definition video duodenoscope is a flexible video duodenoscope for gastroenterology and ERCP-related endoscopy workflows. This listing has been prepared from the uploaded product page and should be used as a procurement/catalogue entry for quotation, configuration review and compatibility confirmation before ordering.
Clinical and Workflow Context
Duodenoscopes are specialist side-viewing flexible endoscopes used where access, visualization and device control around the duodenum and biliary/pancreatic anatomy are required. Final suitability depends on the complete endoscopy tower, processor/light-source platform, accessories, reprocessing pathway, local regulatory requirements and the clinical procedure set used by the facility.
Source Description
The I-DEC™ duodenoscope with its disposable elevator cap (DEC), reduces the risk of cross-contamination in ERCP. Elevator caps are components most likely to harbor bioburden after cleaning.
Simply detaching and discarding the disposable elevator cap after each use greatly reduces the effort required for thorough reprocessing without compromising maneuverability or image quality.
Disposable Elevator with Reusable Upper Case Designed for smooth, precise steering of therapeutic devices and built with durable materials, the disposable elevator cap delivers the maneuverability of a reusable device.
Disposable Elevator Cap Combining a reusable endoscope with the DEC guarantees the benefits of a new elevator and the handling ease of a reusable duodenoscope in each procedure.
Outstanding Visualization A brighter HD+ image and finely differentiated colors and contrasts allow for proper positioning and cannulation.
Reduced Risk of Cross-Contamination The DEC™ Disposable Elevator Cap ensures a reduced risk of cross-contamination by improving surface access for distal end cleaning without compromising therapeutic performance.
The single-use distal end cap with integrated elevator eliminates the need for elevator reprocessing.The disposable cleaning brushes, designed specifically for PENTAX Medical, meet high quality standards and have been tested to reduce residual debris compared to conventional brushes.
PENTAX Medical recommends reprocessing the DEC™ Duodenoscope with PROfILE Disposable Cleaning Brushes.
Technical Details from Source Page
- Working length: 1,250 mm, (49.2 in)
- Operating channel diameter (mm): 4.2 mm, (0.2 in)
- Angle of view (°): 100 °
- Direction of view (°): 100 °
- Angulation range (°): 90 °, 105 °, 120 °
Feature Classification
- Optical: high-definition
Ordering and Configuration Notes
- Confirm processor, light source, monitor, pump and endoscopy tower compatibility before purchase.
- Confirm included accessories, cleaning/reprocessing accessories and any model-specific disposable parts before ordering.
- Confirm local regulatory status, warranty, service support, user training and installation requirements.
- For quotation, specify the intended clinical use, existing processor platform, required accessories, region of use and preferred delivery terms.
Pentax (HOYA) ED34-i10cT / ED34-i10T2 Removable-Cap Video Duodenoscope Series
The Pentax ED34-i10cT / ED34-i10T2 series is a second-generation video duodenoscope range designed for complex endoscopic retrograde cholangiography and ERCP procedures. The series is built around removable distal-end cap designs, HD+ imaging and i-scan image enhancement to support specialist pancreato-biliary work.
The removable distal cap concept is designed to improve access for cleaning and reprocessing after use. The product page describes two distal-end approaches: a sterile disposable distal-end cap with elevator, and a reusable distal rubber tip. The ergonomic control handle and removable cap design are intended to improve procedural workflow and reprocessing efficiency.
Key Features
- Second-generation HD+ video duodenoscope platform for ERCP and pancreato-biliary procedures.
- Removable distal-end cap options to support cleaning and reprocessing workflow.
- i-scan image enhancement for clearer visualization of mucosal detail when used with compatible Pentax processors.
- Large 4.2 mm minimum instrument channel for therapeutic accessories.
- Side-viewing design with retro-view orientation for duodenoscopy and ERCP.
- Compatible with selected Pentax Medical video processors depending on final configuration.
- Designed for specialist endoscopy departments, gastroenterology units and ERCP suites.
Model Comparison
| Models | ED34-i10cT2 and ED34-i10cT |
| Viewing direction | 102° side-viewing configuration with 12° retro orientation |
| Field of view | 100° |
| Depth of field | 4–60 mm |
| Tip angulation, up / down | 120° / 90° |
| Tip angulation, right / left | 105° / 90° |
| Distal end width | 13.6 mm with distal cap or 13.0 mm with distal rubber tip, depending on model/configuration |
| Insertion tube width | 11.6 mm |
| Minimum instrument channel | 4.2 mm |
| Working length | 1250 mm |
| Electrosurgery use | Possible with compatible equipment and accessories |
| Removable tip options | iDEC sterile disposable distal-end cap with elevator, or iCAP reusable distal rubber tip |
| Processor compatibility | EPK-i5500c IMAGINA and EPK-i8020c INSPIRA, subject to final compatibility confirmation |
Clinical Use
This series is suitable for hospitals and specialist endoscopy centres carrying out ERCP, biliary and pancreatic procedures, endoscopic therapy and advanced gastroenterology work. Final device choice should be based on processor compatibility, cleaning workflow, cap preference, accessories and clinical protocol.
Ordering Information
Configuration should be confirmed before purchase, including the exact model, distal cap system, compatible video processor, monitor, trolley, accessories, cleaning adapters and service support. Nass Ventures can support supply, procurement, configuration review, delivery and after-sales coordination for endoscopy departments and turnkey clinical projects.
Pentax (HOYA) ED34-i10T HD+ Video Duodenoscope
The Pentax ED34-i10T is a high-definition HD+ video duodenoscope for complex endoscopic retrograde cholangiography and pancreato-biliary procedures. It is designed for specialist endoscopy environments where side-viewing access, detailed imaging and controlled accessory manipulation are required.
The system uses HD+ imaging and i-scan digital image processing to improve the visualization of mucosal and ductal detail during intraluminal endosurgical procedures. The source page describes use across pancreato-biliary work including ERCP, endoscopic papillotomy/sphincterotomy, removal of common bile duct stones, placement of biliary and pancreatic stents and treatment around the major duodenal papilla.
Key Features
- HD+ video duodenoscope for gastroenterology and pancreato-biliary endoscopy.
- i-scan digital processing to support enhanced mucosal detail when used with a compatible Pentax processor.
- Large 4.2 mm instrument channel for therapeutic accessories.
- CleanCap-System removable distal tip to support mechanical cleaning of air and water channels.
- Ergonomic handle layout designed to reduce operator fatigue during longer procedures.
- Side-viewing tip design for ERCP and duodenoscopy applications.
Technical Specification
| Model | ED34-i10T |
| Field of view | 100° with 10° rear view |
| Depth of field | 4–60 mm |
| Tip angulation, up / down | 120° / 90° |
| Tip angulation, right / left | 105° / 90° |
| Distal end diameter | 13.0 mm |
| Insertion tube diameter | 11.6 mm |
| Working channel diameter | 4.2 mm |
| Working length | 1250 mm |
| Total length | 1566 mm |
Clinical Use
The ED34-i10T is intended for specialist departments performing ERCP and therapeutic upper gastrointestinal endoscopy. It is particularly relevant where a wide working channel, side-viewing visualization and compatibility with advanced Pentax processors are required.
Ordering Information
Final compatibility and configuration should be confirmed before purchase, including the video processor, monitor, trolley, cleaning adapters, accessories and service requirements. Nass Ventures can assist with specification review, procurement, logistics, installation coordination and after-sales support.
