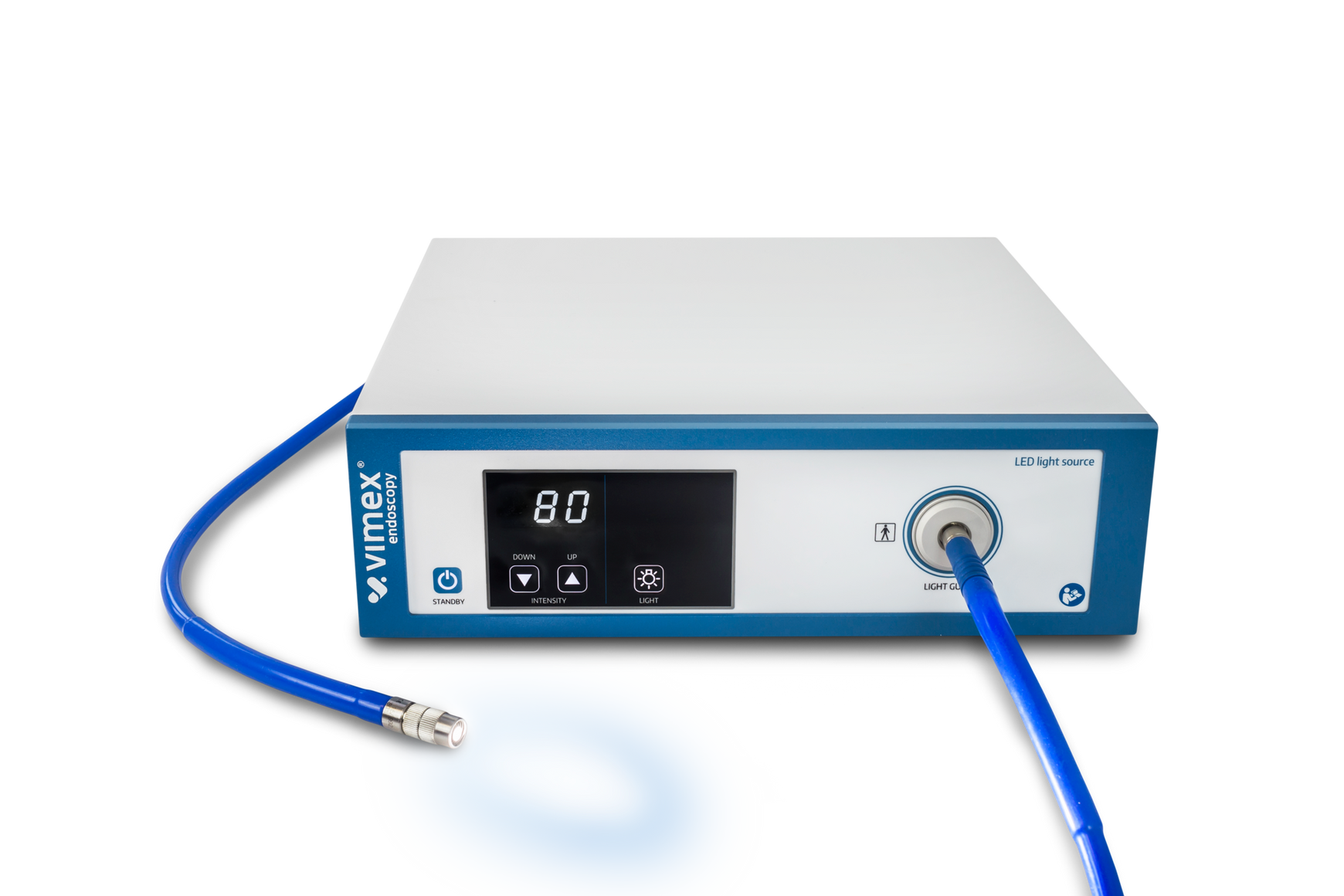

Vimex LV-400LED Endoscopy LED Light Source
LV-400LED endoscopy light source with 1–100% intensity control, a manufacturer-rated LED life of at least 50,000 hours and a standard K. Storz connection.
The LV-400LED provides adjustable illumination for compatible endoscopic systems. The current manufacturer brochure identifies console 400LED-20 with a daylight high-power LED emitter, 5700 K colour temperature and CRI 92.
Key features
Electronic intensity adjustment
Adjust output from 1% to 100% in 1% steps.
Daylight specification
The version 2.0 brochure specifies 5700 K ±5% and colour rendering index CRI 92.
Emitter life
Manufacturer-rated minimum 50,000 hours; this is an emitter-life specification, not a warranty period.
Connection options
Standard K. Storz light-guide connection. Other connector types, including Wolf or Olympus arrangements, require the appropriate optional adapter and confirmation.
Setting memory
The supplier lists memory of recent settings.

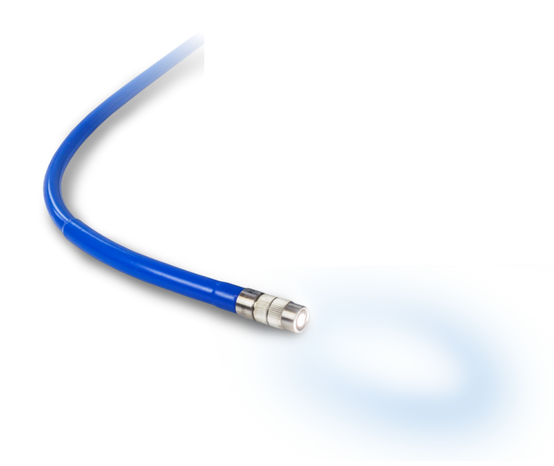

Compatible light-guide cables
Autoclavable fibre-optic cables are available in different diameters and lengths, with connector selection matched to the light source and endoscope.
Controls and illumination
| Product model | LV-400LED |
|---|---|
| Console reference | 400LED-20 |
| Emitter | Daylight high-power LED |
| Colour temperature | 5700 K ±5%, current version 2.0 brochure |
| Colour rendering index | CRI 92, current version 2.0 brochure |
| Light-output comparison | Manufacturer describes output as comparable to a 180 W xenon lamp; this is not the electrical consumption |
| Intensity adjustment | Manual electronic adjustment, 1–100%, 1% steps |
| Manufacturer-rated emitter life | At least 50,000 hours |
Connections and light-guide cables
| Standard light-guide socket | K. Storz |
|---|---|
| Other connections | Optional, on request; confirm the exact adapter and endoscope combination |
| Cable diameter options in brochure | 1.4 / 1.6; 2.2 / 2.5; 3.2 / 3.5; 4.5 / 4.8 mm; confirm the selected cable specification |
| Cable length range in brochure | 1.8–5 m; confirm the available length and diameter combination |
| Cable construction | Fibre-optic bundle with two fixed connectors |
| Cable reprocessing | Manufacturer describes dedicated cables as fully autoclavable; follow the selected cable instructions |
Console technical specifications
| Mains input | 100–240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 115 VA |
| Dimensions, D × W × H | 306 × 330 × 96 mm |
| Net console weight | 5.8 kg; not a shipping weight |
| Applied part classification | Type BF |
| Operating temperature | +10 to +40 °C |
| Storage and transport temperature | −20 to +45 °C |
| Maximum relative humidity | 70% during operation, storage and transport |
| Manufacturer-listed standards | EN 60601-1; EN 60601-1-2; IEC 60601-2-18, version 2.0 brochure |
Configuration and supplied components
One LV-400LED light-source console, reference 400LED-20. Confirm the supplied mains lead, light-guide cable, adapters and documentation in the quotation. Cables and non-standard adapters are accessory selections unless expressly included. The overview photograph illustrates a cable connection.
Handling and compatibility
Confirm the light-guide connector, cable diameter and length, and endoscope compatibility before ordering. Follow the instructions for connecting and handling illuminated cables. Reprocess only the components identified as reprocessable in their own instructions; cable autoclavability does not establish console autoclavability.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
