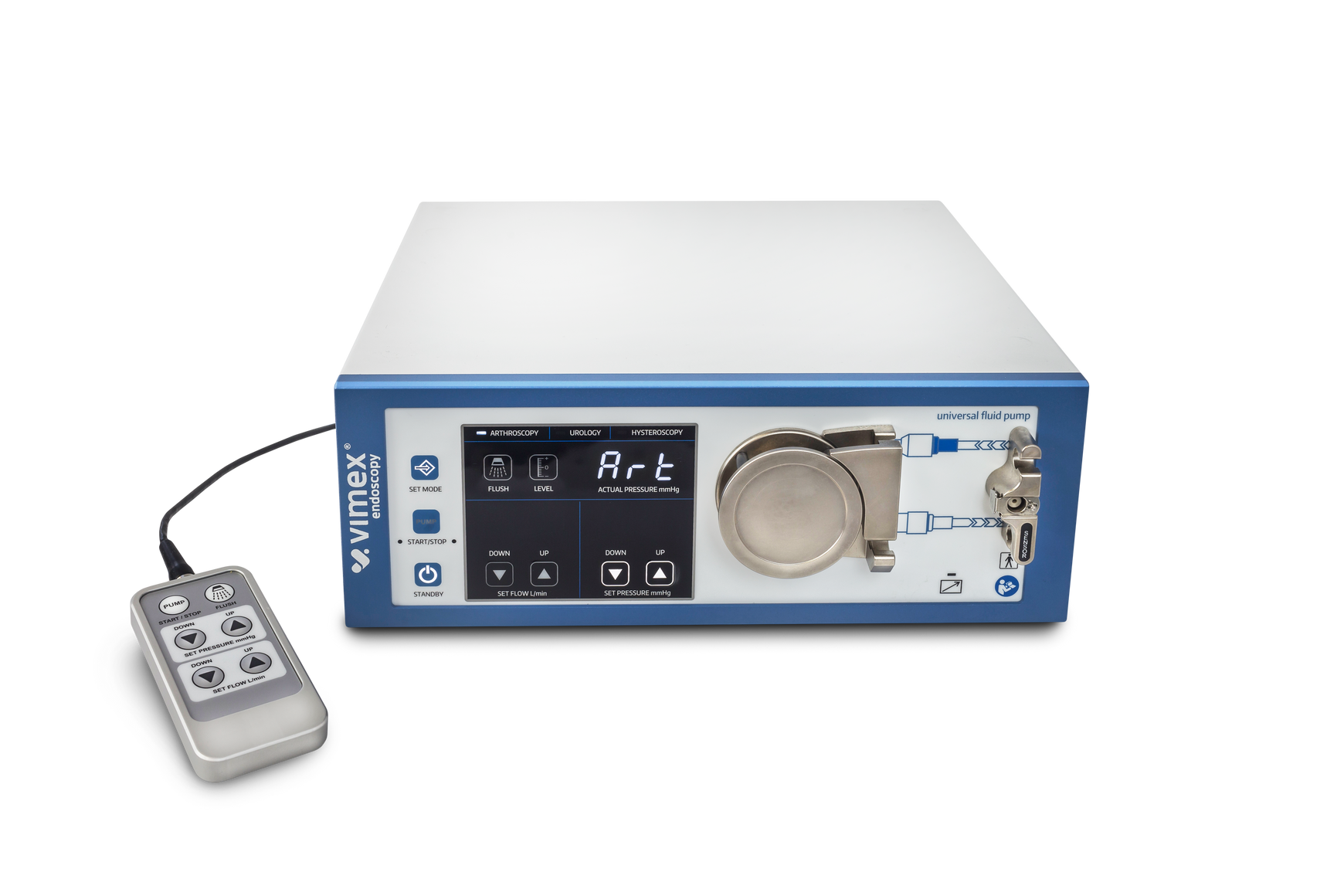

Vimex PV-5201 Fluid Pump
PV-5201 fluid-pump family for arthroscopy, urology and hysteroscopy, with three dedicated models and a universal model, LEVEL calibration and optional remote control.
The PV-5201 family delivers fluid to an operative field under controlled pressure. Choose a dedicated application model or the universal AUH model with arthroscopy, urology and hysteroscopy modes. The console provides a display, an intuitive menu and non-volatile memory for recent settings.
Key features
Four models
Universal AUH 5201-10; arthroscopy 5201-20; urology 5201-30; hysteroscopy 5201-40.
LEVEL calibration
The LEVEL function calibrates the measuring system for the setup described in the instructions for use.
FLUSH function
A dedicated function supports rinsing of the operative field. The arthroscopy specification lists up to 2.0 l/min for FLUSH.

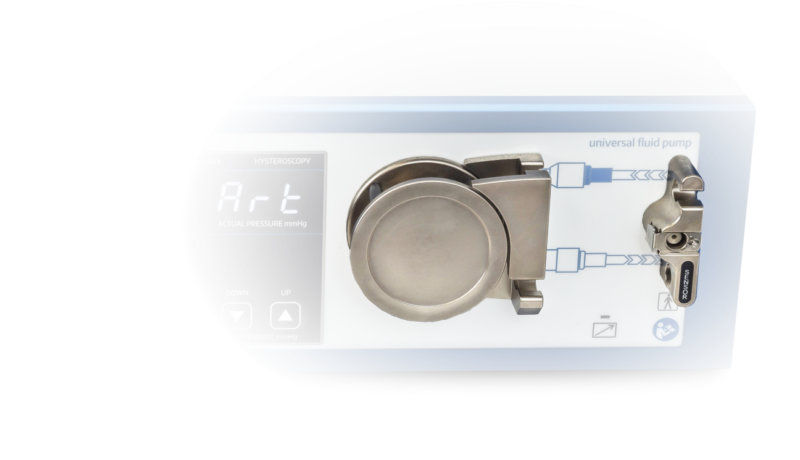

Tubing installation signals
Acoustic and visual indications assist with correct tubing installation.
Console or remote control

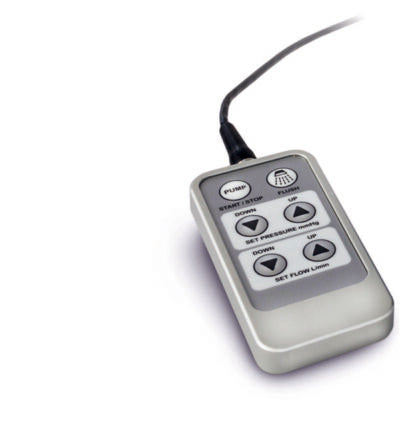

The console controls the pump. Remote controller 5201-50 is optional.
Tubing choices
Use a compatible single-use tubing set, or the day-use pump part with a separate single-use patient part, according to the applicable instructions.

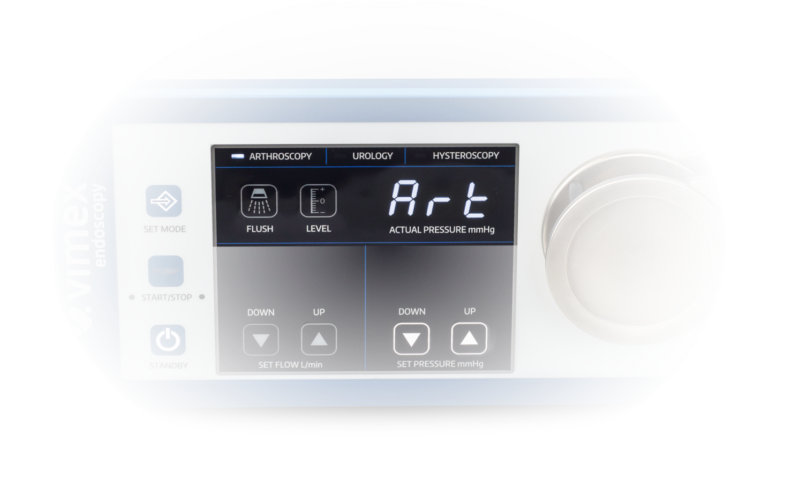

Control panel and optional remote
The manufacturer describes built-in sensors and a measuring system protected within the device. Specify remote controller 5201-50 if control away from the console is required; the remote shown in the overview photograph is optional.
Models and operating ranges
| Family reference | PV-5201 |
|---|---|
| Universal model | 5201-10; AUH, all three application modes |
| Arthroscopy model | 5201-20; 10–150 mmHg; 0.1–1.5 l/min; up to 2.0 l/min for FLUSH |
| Urology model | 5201-30; 10–150 mmHg; 0.1–1.0 l/min |
| Hysteroscopy model | 5201-40; 10–150 mmHg; 0.1–0.5 l/min |
| Universal model mode limits | Confirm the applicable mode settings in the supplied instructions for use |
Technical specifications
| Mains supply | 100–240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 65 VA |
| Dimensions, D × W × H | 306 × 330 × 120 mm |
| Net pump weight | 7.6 kg; not a shipping weight |
| Protection classification | Class I; Type BF |
| Enclosure protection | IPX1 |
| Operating temperature | +10 to +40 °C |
| Operating humidity | ≤70% relative humidity |
| Storage and transport temperature | −20 to +45 °C |
| Storage and transport humidity | ≤90% relative humidity, non-condensing |
| Manufacturer-listed standards | EN 60601-1; EN 60601-1-2, brochure version 2.1 EN |
Compatible tubing options
| Single-use tubing set | SUTS; complete set changed after each procedure according to its instructions |
|---|---|
| Day-use arrangement | DUPP day-use pump part plus SUPP single-use patient part; follow the specified replacement schedule |
| Catalogue tubing references | PV-5201SUTS, PV-5201DUPP and PV-5201SUPP; confirm the required version and supplied pack quantity |
Available variants
| 5201-10 | Universal AUH — 5201-10 |
|---|---|
| 5201-20 | Arthroscopy — 5201-20 |
| 5201-30 | Urology — 5201-30 |
| 5201-40 | Hysteroscopy — 5201-40 |
Configuration and supplied components
One pump in the selected application model. Confirm the final package, compatible tubing and pack quantities. Remote controller 5201-50 and disposable or day-use tubing must be specified separately unless explicitly included in the quotation. Photographs show illustrative configurations.
Handling and compatibility
For qualified healthcare professionals. Select the correct procedure mode and compatible fluid pathway. Follow the device and tubing instructions for setup, LEVEL calibration, monitoring, replacement and disposal. Do not reuse parts labelled for single use. Operating pressure and flow must follow the clinical protocol and instructions for the selected application.
Ordering information
Provide the product reference or range, quantity, delivery location and intended use. Specify the required model, configuration, accessories and consumables, existing equipment to be integrated, and any installation, commissioning, training or maintenance requirements. For configurable ranges, confirm the exact manufacturer references before ordering.
Delivery, spares and service
Contact Nass Ventures for pricing, availability, delivery arrangements, compatible spares and consumables, installation and after-sales support. The quotation will confirm the final supplied configuration, documentation, warranty terms and service arrangements.
