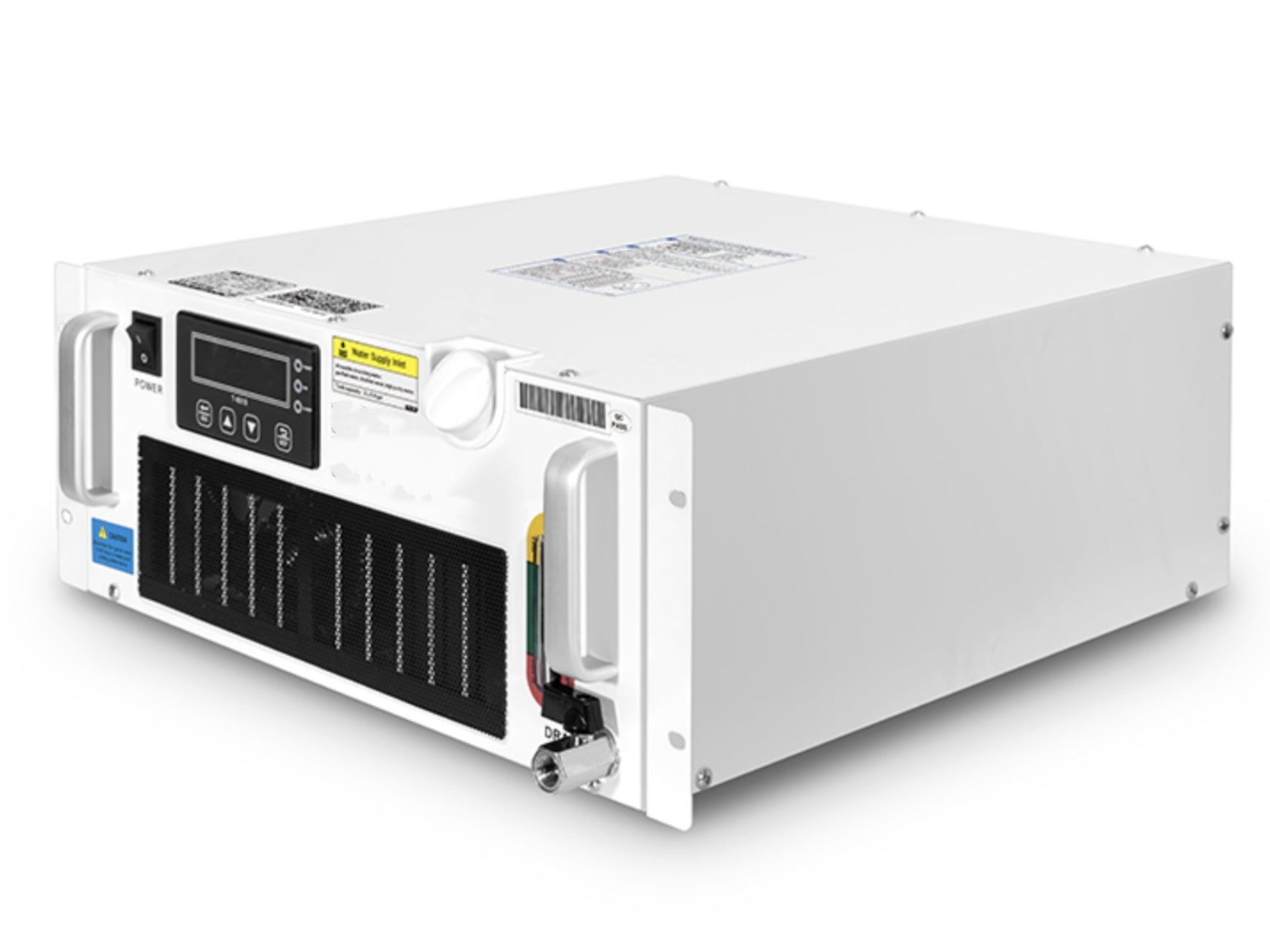

The rack mount water chiller stands at a compact 4U height, making it an ideal choice for 3W-5W UV laser and ultrafast laser applications. With its PID control technology, it offers exceptionally precise cooling, maintaining stability within a remarkable ±0.1°C range and a cooling capacity of up to 380W. The chiller's exceptional temperature stability is perfectly suited to meet the rigorous demands of laser processes.

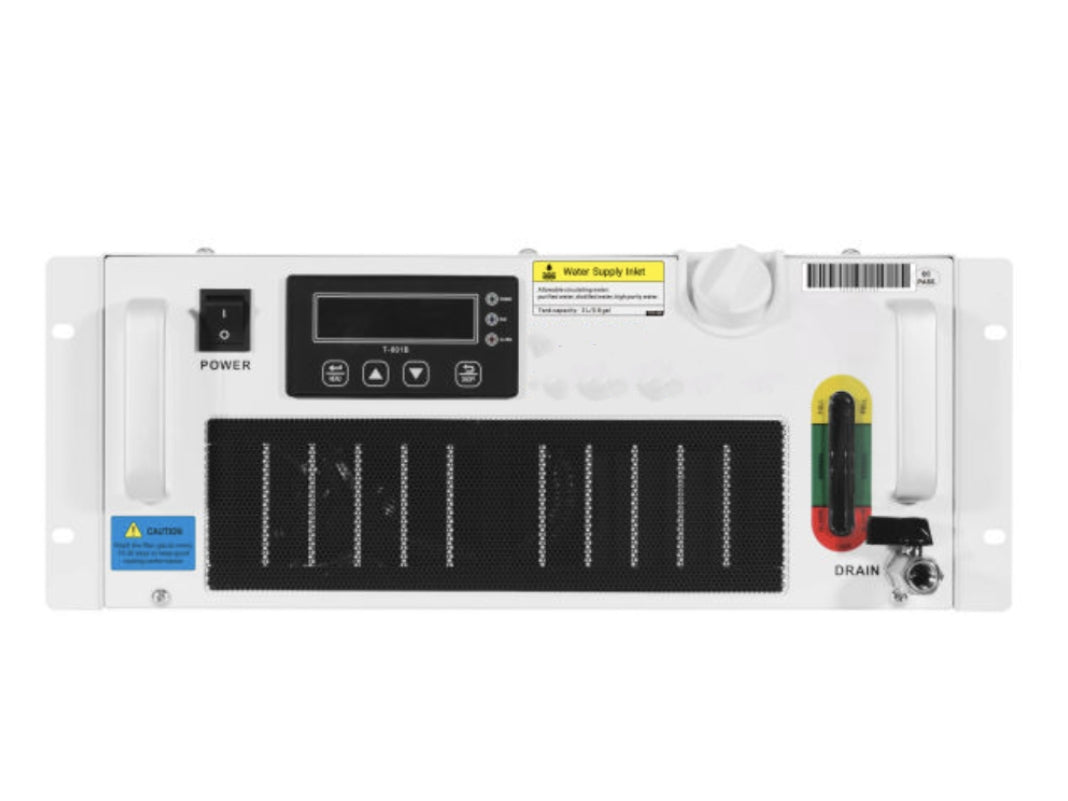

Featuring standard components like a robust water pump, high-performance cooling fan, and integrated front handles for enhanced mobility, the rack mount water chiller ensures ease of use. Its front-mounted water fill and drain ports further add to the convenience. The refrigerant used in this chiller complies with environmental standards. Despite its small, lightweight, and space-saving design, the water chiller delivers superior performance, making it the embodiment of a compact and high-precision laser cooling solution that exceeds your expectations.
Main Features:
1. Intelligent functions
- Low tank water level detecting
- Low water flow rate detecting
- Over water temperature detecting
- Heating of the coolant water at low ambient temperature
2. Self-check display
3. Easy routine maintenance
- Toolless maintenance of dustproof filter screen
- Quick-replaceable optional water filter
4. Communication function
- Equipped with RS485 Modbus RTU protocol.
Technical Data
| SKU |
CH0150 |
| Voltage |
AC 1P 220-240V |
| Frequency |
60Hz |
| Current |
0.5~2.5A |
| Max. power consumption |
0.9kW |
| Compressor power |
0.27kW |
| 0.36HP |
| Nominal cooling capacity |
1637Btu/h |
| 0.48kW |
| 412Kcal/h |
| Refrigerant |
R-134a |
| Precision |
±0.1℃ |
| Reducer |
Capillary |
| Pump power |
0.05kW |
| Tank capacity |
3L |
| Inlet and outlet |
Rp1/2" |
| Max. pump pressure |
12M |
| Max. pump flow |
13L/min |
| Net weight |
19Kg |
| Gross weight |
21Kg |
| Dimension |
49x48x18cm (LxWxH) |
| Package dimension |
59x53x26cm (LxWxH) |
The working current can be different under different working conditions.
The above information is for reference, for more detail or different chillers, please contact us now.
