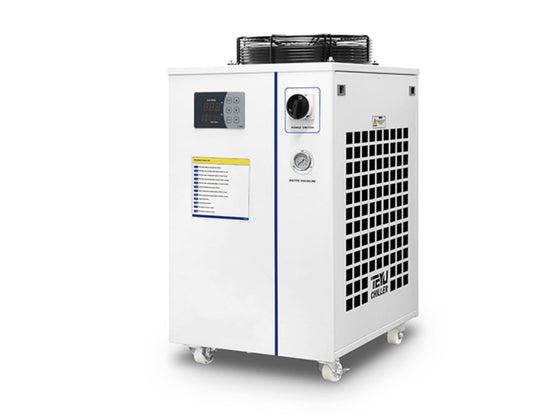

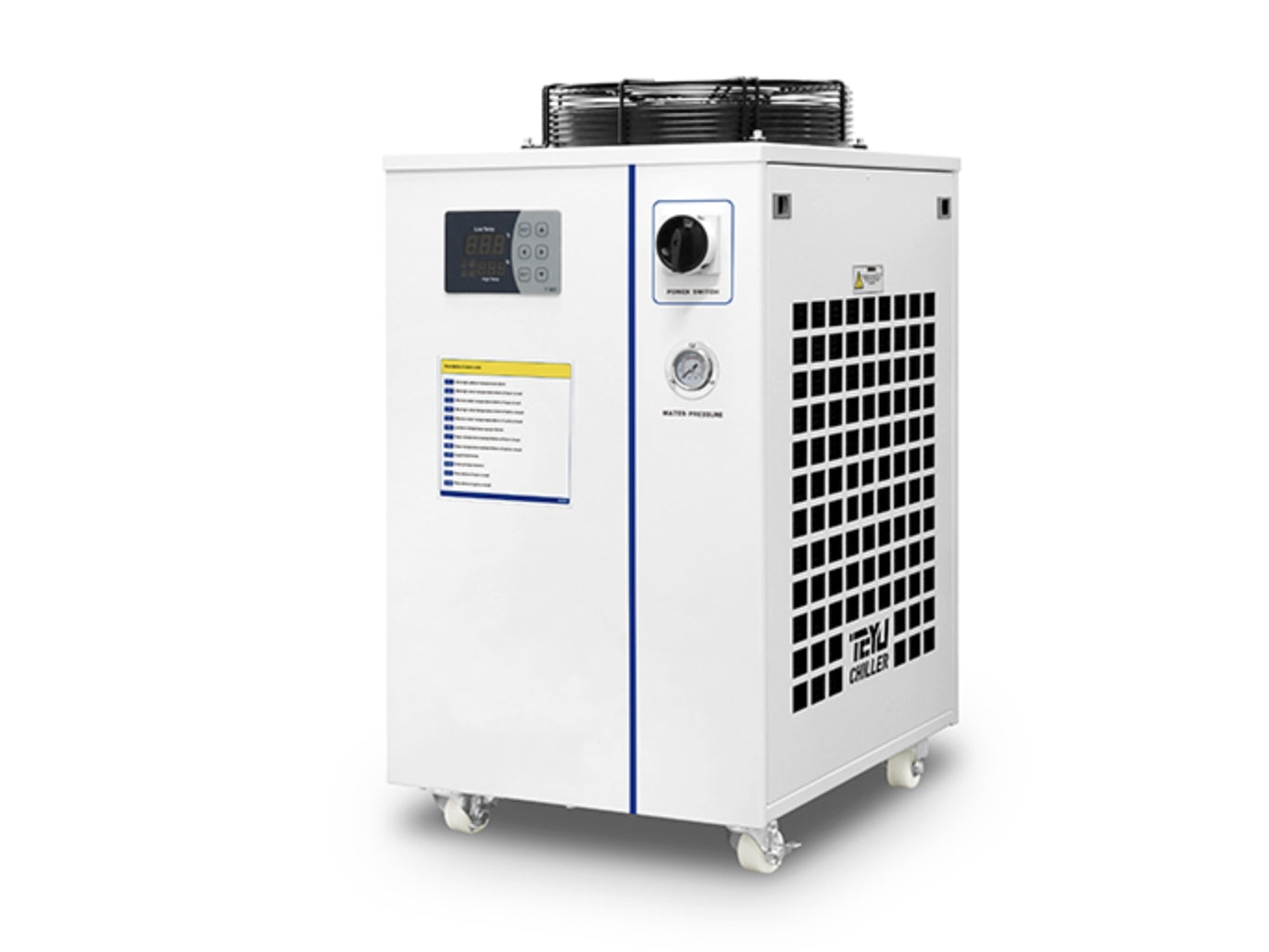

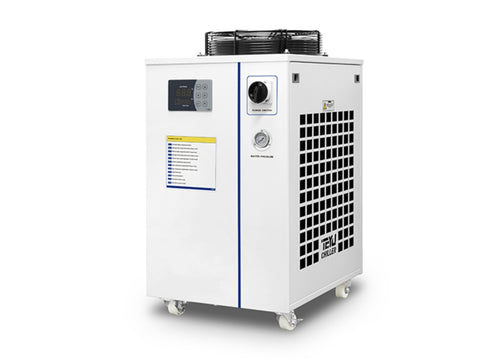

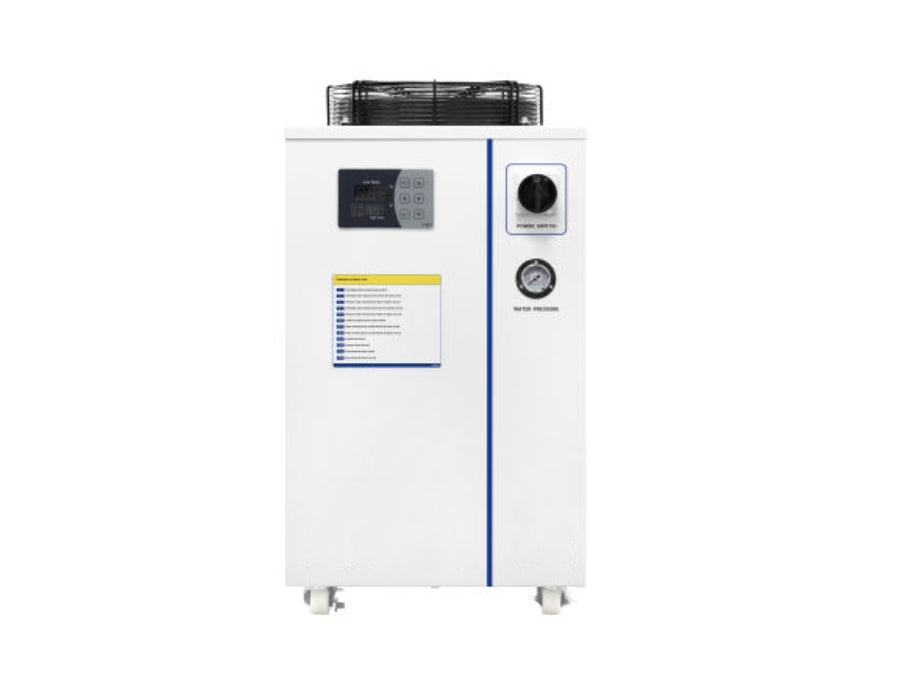

The air-cooled water chiller with the specific purpose of regulating the temperature of fiber laser metal cutters and welders, with a power rating of up to 2kW. What distinguishes the chiller is its dual-channel configuration, encompassing both the fiber laser and the optics within a single housing. This innovative design significantly reduces the space requirements of the water chiller when compared to the traditional two-chiller setup.
The industrial fiber laser cooling system is engineered for indoor use and boasts user-friendly serviceability by allowing easy removal of the side housings. It features a readily visible water level indicator and a convenient water refill port, simplifying the process of adding water. Additionally, multiple alarm systems are incorporated to enhance protection, thereby ensuring the stable and reliable operation of both the industrial chiller and the laser equipment.
Main Features:
- Dual cooling circuit
- Active cooling
- Temperature stability: ±0.5°C
- Temperature control range: 5°C-35°C
- Refrigerant: R-410a
- User-friendly controller interface
- Integrated alarm functions
- Back mounted fill port and visual water level
- Optimized for high performance at low temperatures
- Ready for immediate use
Technical Data
| SKU |
CH0121 |
| Voltage |
AC 1P 220-240V |
| Frequency |
60Hz |
| Current |
1.8~11.2A |
| Max. power consumption |
1.64kW |
| Heater power |
400W+600W |
| Precision |
±0.5℃ |
| Reducer |
Capillary |
| Pump power |
0.2kW |
| Tank capacity |
14L |
| Inlet and outlet |
Rp1/2"+Rp1/2" |
| Max. pump pressure |
40M |
| Rated flow |
1.5L/min+＞20L/min |
| Net weight |
61Kg |
| Gross weight |
73Kg |
| Dimension |
67x47x89cm (LxWxH) |
| Package dimension |
73x57x105cm (LxWxH) |
The working current can be different under different working conditions.
The above information is for reference, for more detail or different chillers, please contact us now.
