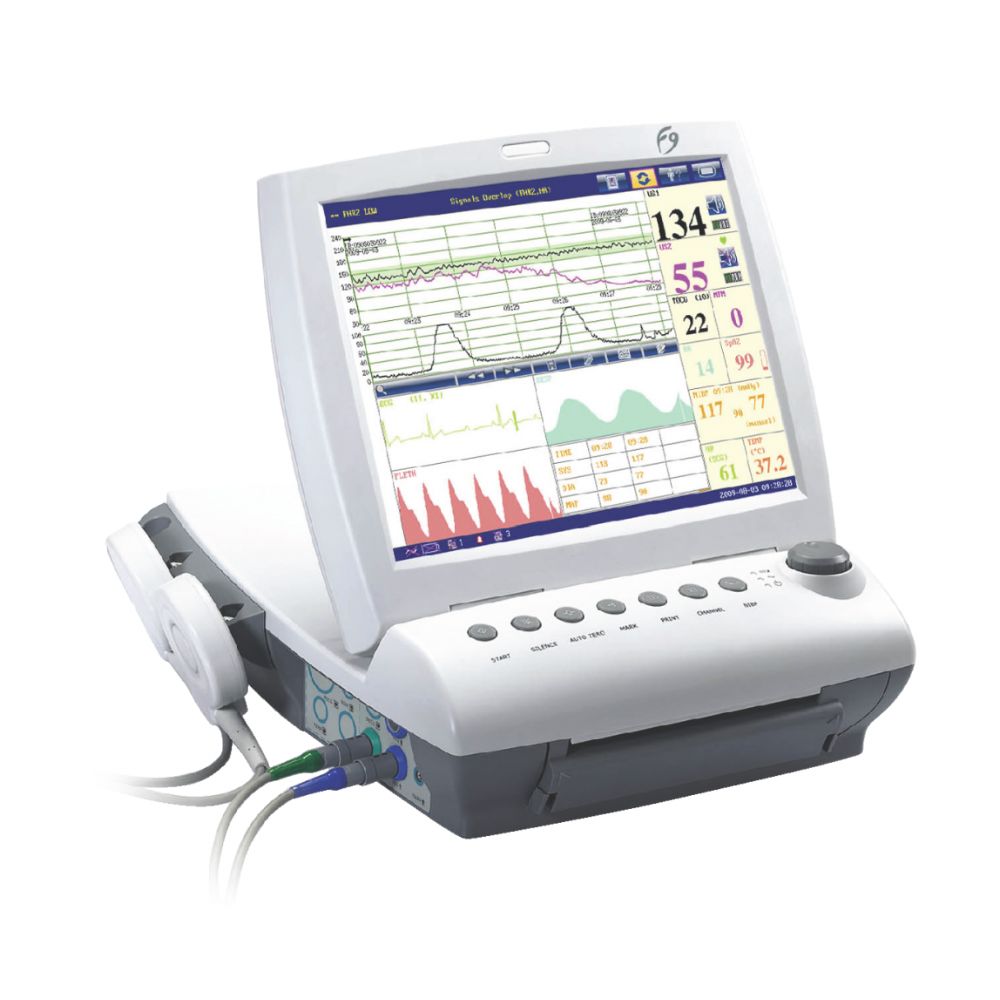

Edan F9 Fetal Monitor

The Edan F9 Fetal Monitor is a compact, user-friendly fetal and maternal monitoring system designed for obstetric departments, antenatal clinics, maternity units, labour wards, and delivery rooms. It combines professional CTG analysis, high-resolution display, built-in thermal printing, and flexible connectivity options to support efficient fetal and maternal care.

The F9 is suitable for monitoring singleton and twin pregnancies, offering fetal heart rate monitoring, TOCO uterine contraction monitoring, fetal movement registration, and optional advanced functions such as DECG, IUP, fetal stimulation, touch screen operation, lithium-ion battery, and wireless sensors. The monitor can also connect to a computer or central monitoring station for data transfer and review.

Product at a Glance

Feature	Details
Product Type	Fetal Monitor / CTG Monitor
Model	Edan F9
Manufacturer	Edan
Clinical Application	Obstetrics, antenatal monitoring, labour and delivery
Patient Category	Fetus / maternal monitoring
Display	12.1-inch high-resolution LCD screen
Monitoring Capability	Fetal heart rate, twin FHR, TOCO, fetal movement
CTG Analysis	Built-in professional CTG analysis system
Printing	Built-in thermal printer
Paper Width	Compatible with 150 / 152 mm thermal recording paper
Data Storage	60 hours of signal storage and playback
Connectivity	PC and central monitoring station connection
Mounting Options	Wall bracket or mobile cart
Weight	Approx. 5.5 kg

Key Features

Feature	Description
Professional CTG Analysis	Built-in analytical system for CTG monitoring and review
Twin Fetal Monitoring	Supports monitoring of twin fetal heart rates
TOCO Monitoring	Records uterine contractions using a compact waterproof TOCO sensor
Fetal Movement Monitoring	Supports automatic and manual fetal movement registration
High-Resolution Display	12.1-inch LCD screen for clear monitoring data and waveform display
Touch Screen Option	Optional touch screen interface for easier operation
Multiple Monitoring Interfaces	Fetus, fetus and mother, and mother display modes
Flexible Screen Layout	Display format can be adjusted with different waveform scale options
Waterproof Sensors	12-crystal waterproof fetal heart rate sensor and waterproof TOCO sensor
Built-in Thermal Printer	Supports real-time CTG printing using 150 / 152 mm paper
Fast Review Printing	Faster printing of saved recordings
Data Transfer Software	Insight software supports real-time and offline transfer to a computer
Central Monitoring	Can be connected to a central monitoring station
Twin Overlap Alarm	Alarm when fetal heart rate signals overlap in twin monitoring
Maternal Monitoring	Supports monitoring of maternal and fetal parameters
Post-Delivery Monitoring	Continuous maternal parameter monitoring after delivery

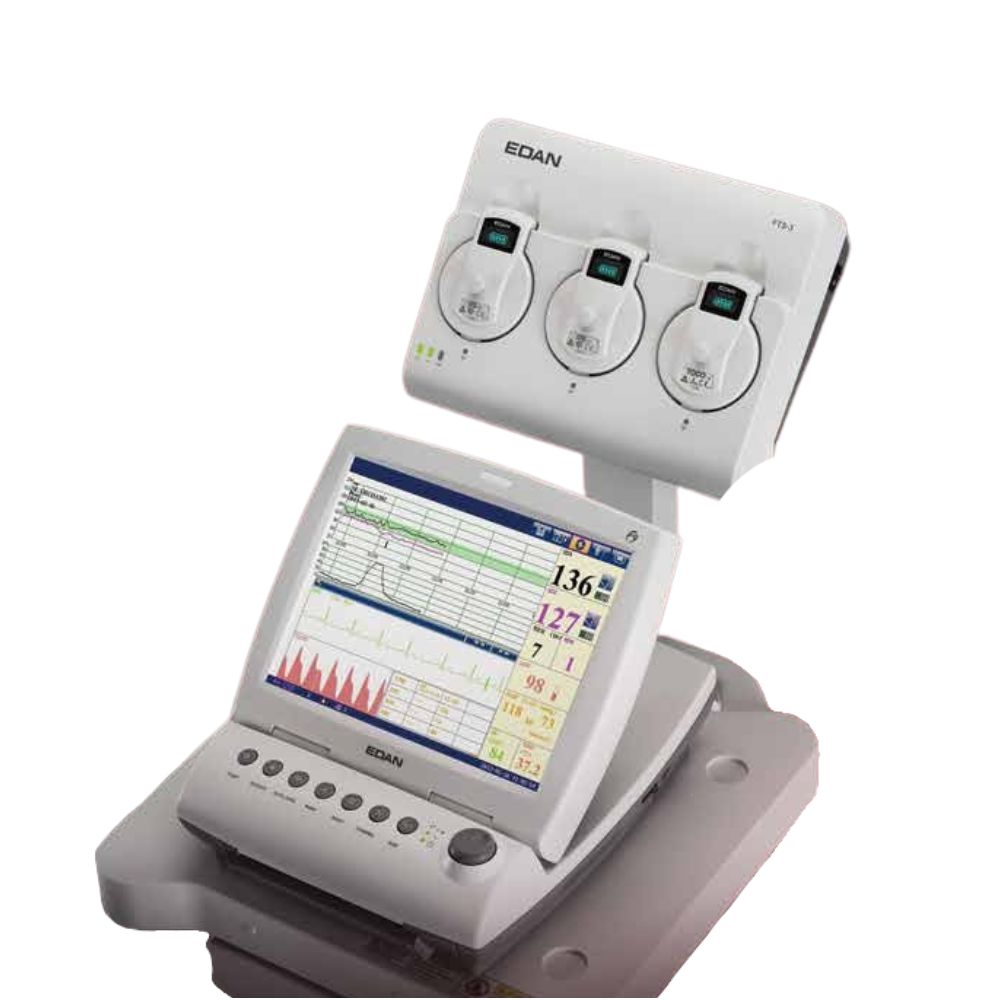

Wireless Sensor Option	Optional wireless sensors available
Mounting Flexibility	Can be used on a desk, wall bracket, or mobile cart

Standard Equipment

Equipment	Details
Twin Fetal Heart Rate Monitoring	Supported
TOCO	Uterine contraction monitoring
Fetal Movement Registration	Automatic and manual registration
Built-in Printer	Thermal printer for CTG documentation
Waterproof FHR Sensor	12-crystal fetal heart rate sensor
Waterproof TOCO Sensor	Compact TOCO sensor

Optional Accessories

Optional Accessory	Details
DECG	Direct fetal ECG measurement
IUP	Intrauterine pressure measurement
Fetal Stimulator	Optional fetal stimulation accessory
Touch Screen	Optional touch screen operation
Lithium-Ion Battery	Optional rechargeable battery
Wireless Sensors	Optional wireless monitoring sensors
Wall Bracket	Optional wall mounting solution
Mobile Cart	Optional trolley/cart mounting solution

Technical Specifications

General Information

Specification	Details
Product Name	Edan F9 Fetal Monitor
Product Type	Fetal cardiac monitor / CTG monitor
Country of Origin	China
Clinical Application	Obstetrics
Patient Category	Fetus / maternal monitoring
Number of Fetuses Monitored	Up to 2
Control Interface	Intuitive user interface
Software	Insight software for PC data transfer
Weight	Approx. 5.5 kg

Functional Capabilities

Function	Details
Fetal Heart Rate Monitoring	Supported
Twin Heart Rate Monitoring	Supported
TOCO Monitoring	Supported
Fetal Movement Marker	Supported
Built-in CTG Analysis	Supported
Maternal Parameter Monitoring	Supported
Continuous Post-Delivery Maternal Monitoring	Supported
DECG	Optional
IUP	Optional
Wireless Sensor Monitoring	Optional

Display

Specification	Details
Screen Size	12.1 inches
Screen Type	High-resolution LCD
Touch Screen	Optional
Display Interfaces	Fetus, fetus and mother, mother
Display Format	Adjustable
Screen Types	Three screen types with different curve sets and scales

Sensors

Specification	Details
FHR Sensor	12-crystal waterproof fetal heart rate sensor
TOCO Sensor	Compact waterproof TOCO sensor
Sensor Type	Waterproof
Wireless Sensors	Optional

Data Storage and Playback

Specification	Details
Signal Storage	60 hours
Playback	Supported
NIBP Record Replay	Up to 500 NIBP records
Maternal Parameter Record Replay	Up to 1440 maternal parameter records
PC Data Transfer	Real-time and offline transfer using Insight software

Printing

Specification	Details
Printer Type	Built-in thermal printer
Paper Compatibility	150 / 152 mm thermal recording paper
Print Function	Real-time and saved-record printing
Fast Printing	Faster printing of saved recordings
Start Button Printing	Data printing can be linked to the Start button

Connectivity

Specification	Details
Computer Connection	Supported
Central Monitoring Station	Supported
Data Transfer	Real-time and offline mode via Insight software

Power Supply

Specification	Details
Battery	Built-in battery
Lithium-Ion Battery	Optional

Installation and Mounting

Option	Details
Desktop Use	Supported
Wall Bracket	Optional
Mobile Cart	Optional

Monitoring Modes

Mode	Application
Fetus Mode	Fetal monitoring display
Fetus and Mother Mode	Combined fetal and maternal monitoring
Mother Mode	Maternal parameter monitoring

Clinical Applications

Department / Area	Application
Antenatal Clinic	Routine CTG and fetal assessment
Obstetrics Department	Fetal heart rate, TOCO, and fetal movement monitoring
Labour Ward	Continuous fetal and maternal observation
Delivery Room	Monitoring during labour and delivery
Maternity Unit	General fetal and maternal monitoring
Central Monitoring Station	Remote observation and data management

Product Identification

Item	Details
Manufacturer	Edan
Model	F9
Product Type	Fetal Monitor / CTG Monitor
Category	CTG Machines / Fetal Monitors
Department	Obstetrics & Gynaecology Equipment
Medical Device Code	119540 – Fetal Cardiac Monitor
Registration Certificate	RZN 2016/4564
Country of Origin	China
Website Category	Fetal Monitors, CTG Machines, Maternity Equipment, Obstetric Monitoring Equipment

Ordering Information

Item	Details
Product Name	Edan F9 Fetal Monitor
Recommended Use	Hospitals, maternity centres, antenatal clinics, obstetric departments, labour wards, and delivery rooms
Standard Functions	Twin FHR, TOCO, fetal movement registration, CTG analysis, built-in printer
Optional Add-ons	DECG, IUP, fetal stimulator, touch screen, lithium-ion battery, wireless sensors
Mounting Options	Wall bracket or mobile cart
Software Option	Insight software for PC data transfer
Installation and Training	Available on request
