General Meditech G6B (Wireless)

Write a review

₦0.00

Description : The General Meditech G6B Wireless Fetal Monitor is a modern fetal monitoring system designed to provide greater comfort, flexibility, and freedom of movement for mothers during antenatal monitoring and labour.

SKU :

Availability : 3 In Stock Sold Out 3

HURRY ! ONLY 3 LEFT IN STOCK.

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

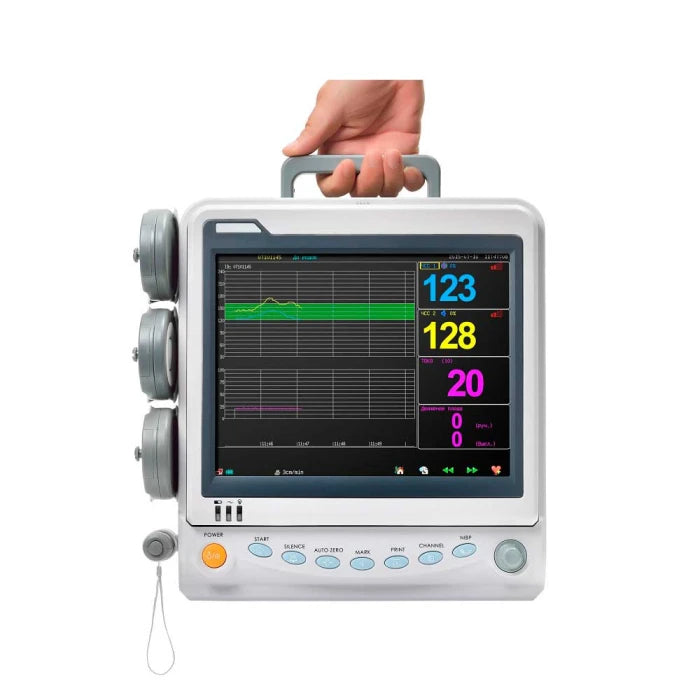

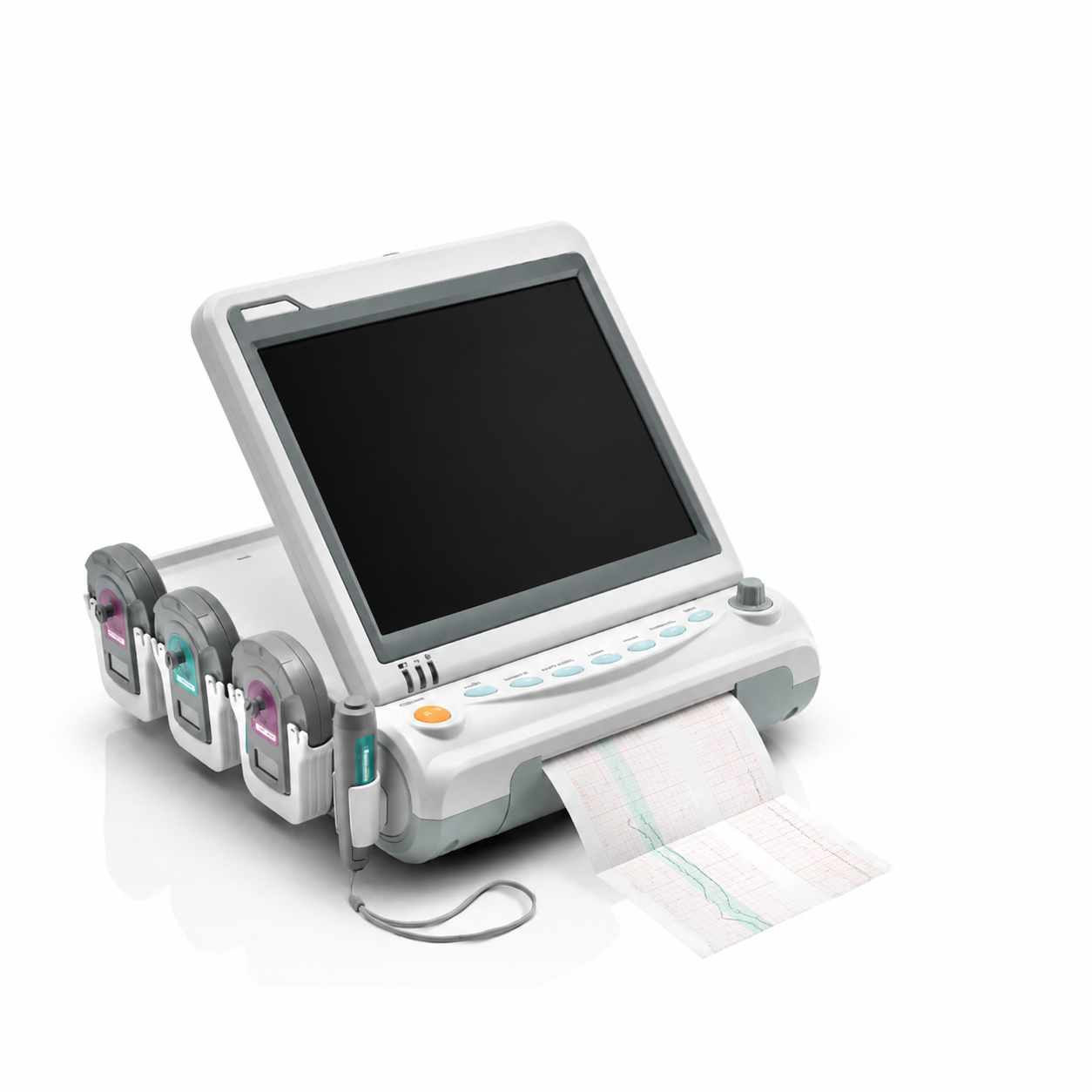

General Meditech G6B Wireless Fetal Monitor

The General Meditech G6B Wireless Fetal Monitor is a modern fetal monitoring system designed to provide greater comfort, flexibility, and freedom of movement for mothers during antenatal monitoring and labour. With wireless fetal heart rate and TOCO sensors, the system reduces cable restrictions and allows expectant mothers to move more freely while still being monitored safely and continuously.

This wireless configuration is especially suitable for maternity units, labour wards, delivery rooms, obstetric departments, and antenatal clinics where mobility, comfort, and reliable fetal monitoring are important. The G6B supports fetal heart rate monitoring, twin fetal monitoring, uterine contraction monitoring, fetal movement display, real-time CTG printing, data storage, and connection to hospital networks.

Product at a Glance

Feature	Details
Product Type	Wireless Fetal Monitor / CTG Monitor
Model	General Meditech G6B Wireless
Manufacturer	General Meditech
Clinical Application	Obstetrics, antenatal monitoring, labour and delivery
Monitoring Type	Wireless fetal heart rate and TOCO monitoring
Twin Monitoring	Two independent ultrasound channels for twins
Display	12.1-inch colour TFT LCD display
Printer	Built-in thermal printer
Sensor Display	Wireless sensors with OLED display
Mobility	Allows greater freedom of movement during monitoring
Connectivity	RJ-45, USB, VGA
Power Supply	AC mains and rechargeable internal battery
Country of Origin	China

Key Benefits

Benefit	Description
Complete Wireless Monitoring	Reduces cable restrictions during fetal monitoring
Improved Maternal Comfort	Allows mothers to move more freely before and during labour
Flexible Birthing Positions	Supports a wider range of positions during monitoring
Twin Monitoring Support	Two independent ultrasound channels allow monitoring of twins
Clear Sensor Feedback	OLED display on sensors provides local monitoring information
Reliable CTG Documentation	Built-in thermal printer supports real-time CTG trace recording
Hospital Network Ready	RJ-45 port allows connection to hospital local area networks
Data Export	USB port supports saving analysis results
External Display Support	VGA port allows connection to an external monitor
Battery Operation	Rechargeable internal battery supports mobile use

Clinical Applications

Department / Area	Application
Antenatal Clinics	Routine fetal assessment and CTG monitoring
Labour Wards	Wireless fetal monitoring during labour
Delivery Rooms	Continuous monitoring with improved movement flexibility
Obstetrics Departments	Twin fetal monitoring, TOCO, and fetal movement assessment
Maternity Units	General fetal surveillance and CTG documentation
Hospital Networks	Connection to local hospital systems for monitoring and data management

Technical Specifications

Fetal Heart Rate Monitoring

Specification	Details

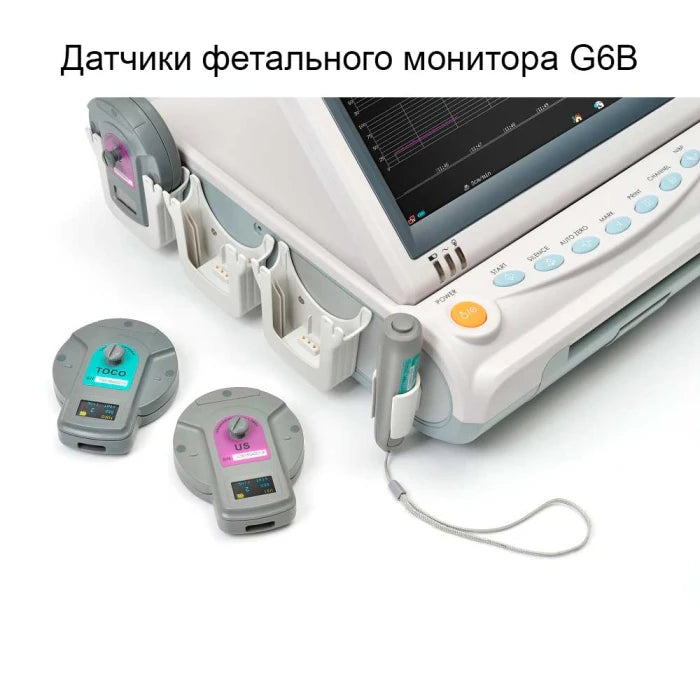

Sensor Type	Wireless ultrasound Doppler sensor
Sensor Display	OLED display
Number of Ultrasound Channels	Two independent channels for twin monitoring
Ultrasound Frequency	1 MHz, 1.5 MHz, 2 MHz
Frequency Accuracy	±1 kHz
Monitoring Range	30 to 240 bpm
FHR Recording	Beat-to-beat fetal heart rate recording
Signal Quality Indication	Audible and visual indication
Alarm Indication	Audible and visual alarms
Alarm Types	Tachycardia, bradycardia, and sensor signal loss
Alarm Thresholds	User-defined fetal heart rate alarm limits

TOCO / Uterine Contraction Monitoring

Specification	Details
Sensor Type	Outdoor wireless strain gauge TOCO sensor
Sensor Display	OLED display
Monitoring Range	0 to 100 pressure units
Resolution	1 pressure unit
TOCO Base Settings	0, 5, 10, 15, 20 pressure units
Reset Mode	Manual and automatic reset

Display

Specification	Details
Display Size	12.1 inches
Display Type	Colour TFT LCD
Display Angle	Adjustable tilt angle
Simultaneous Curves	Displays up to 3 curves simultaneously
Displayed Curves	FHR, TOCO, fetal movement and related monitoring data
Large Digit Mode	Allows parameters to be viewed from a distance

Thermal Printer

Specification	Details
Printer Type	Built-in thermal printer
Printing Method	Thermal dot structure
Paper Type	Z-type thermal paper
Paper Size	152 × 90 mm
Print Speed	1 cm/min, 2 cm/min, 3 cm/min
Trend Mode Print Speed	50 cm/min

Device Design

Feature	Details
Design Type	Monoblock device design
Control Type	Push-button control
Navigation	Multifunctional rotating joystick / rotating mouse
Network Port	RJ-45 port for hospital local area network connection
USB Port	For saving analysis results
VGA Port	For connecting an external monitor
Ground Connector	Included

Power Supply

Specification	Details
Input Voltage	100 to 240 V
Frequency	50 / 60 Hz
Internal Battery	Rechargeable high-energy battery
Nominal Battery Voltage	12 V

Functional Capabilities

Function	Details
Fetal Heart Rate Monitoring	Supported
Twin Fetal Monitoring	Supported
TOCO Monitoring	Supported
Fetal Movement Monitoring	Supported
Wireless Sensor Operation	Supported
CTG Printing	Supported
Alarm Monitoring	Supported
Hospital Network Connection	Supported
USB Data Saving	Supported
External Monitor Connection	Supported

Product Identification

Item	Details
Product Name	General Meditech G6B Wireless Fetal Monitor
Manufacturer	General Meditech
Model	G6B Wireless
Product Type	Wireless Fetal Monitor / CTG Monitor
Category	CTG Machines / Fetal Monitors
Department	Obstetrics & Gynaecology Equipment
Medical Device Code	119540 – Fetal Cardiac Monitor
Registration Certificate	FSZ 2012/12020
KTRU Code	26.60.12.129-00000250
Equipment Order	1130n
Country of Origin	China

Standard and Optional Configuration

Configuration Area	Details
Standard Monitoring	FHR, TOCO, fetal movement monitoring
Wireless Sensors	Wireless ultrasound Doppler and wireless TOCO sensors
Twin Monitoring	Two independent ultrasound channels
Built-in Printer	Thermal printer included
Display	12.1-inch colour TFT LCD display
Battery	Rechargeable internal battery
Network Interface	RJ-45 hospital network connection
Data Export	USB port for saving analysis results
External Display	VGA output for external monitor connection

Ordering Information

Item	Details
Product Name	General Meditech G6B Wireless Fetal Monitor
Recommended Use	Hospitals, maternity centres, antenatal clinics, labour wards, and delivery rooms
Main Benefit	Wireless fetal monitoring with improved maternal mobility
Suitable For	Antenatal monitoring, labour monitoring, twin fetal monitoring, CTG documentation
Installation Options	Desktop use, network integration, external monitor connection
Training	Available on request
Accessories	Supplied according to selected configuration
