FHR fetal monitor FC1400

FHR fetal monitor FC1400

Write a review
₦0.00

Bionet

The FC1400 monitor supports efficient clinical workflow with a clear display and intuitive function keys for easy measurements. It can connect to a central monitoring system for up to 16 beds using wired or wireless connectivity.

2 In Stock Sold Out 2

HURRY ! ONLY 2 LEFT IN STOCK.
Notify Me
wishlist
compare
Size Guide Print
Payment & Security
Payment methods
  • PayPal
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US

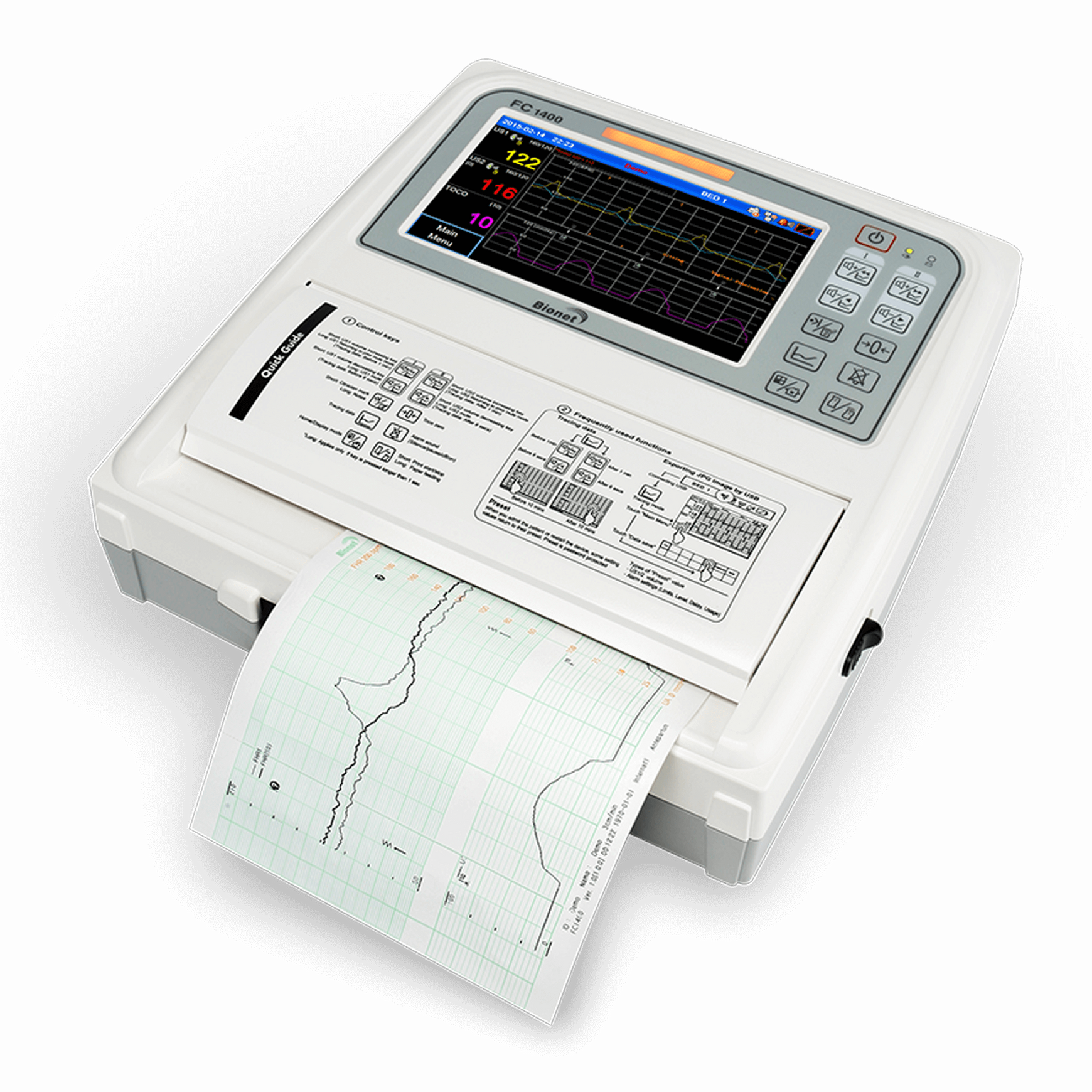

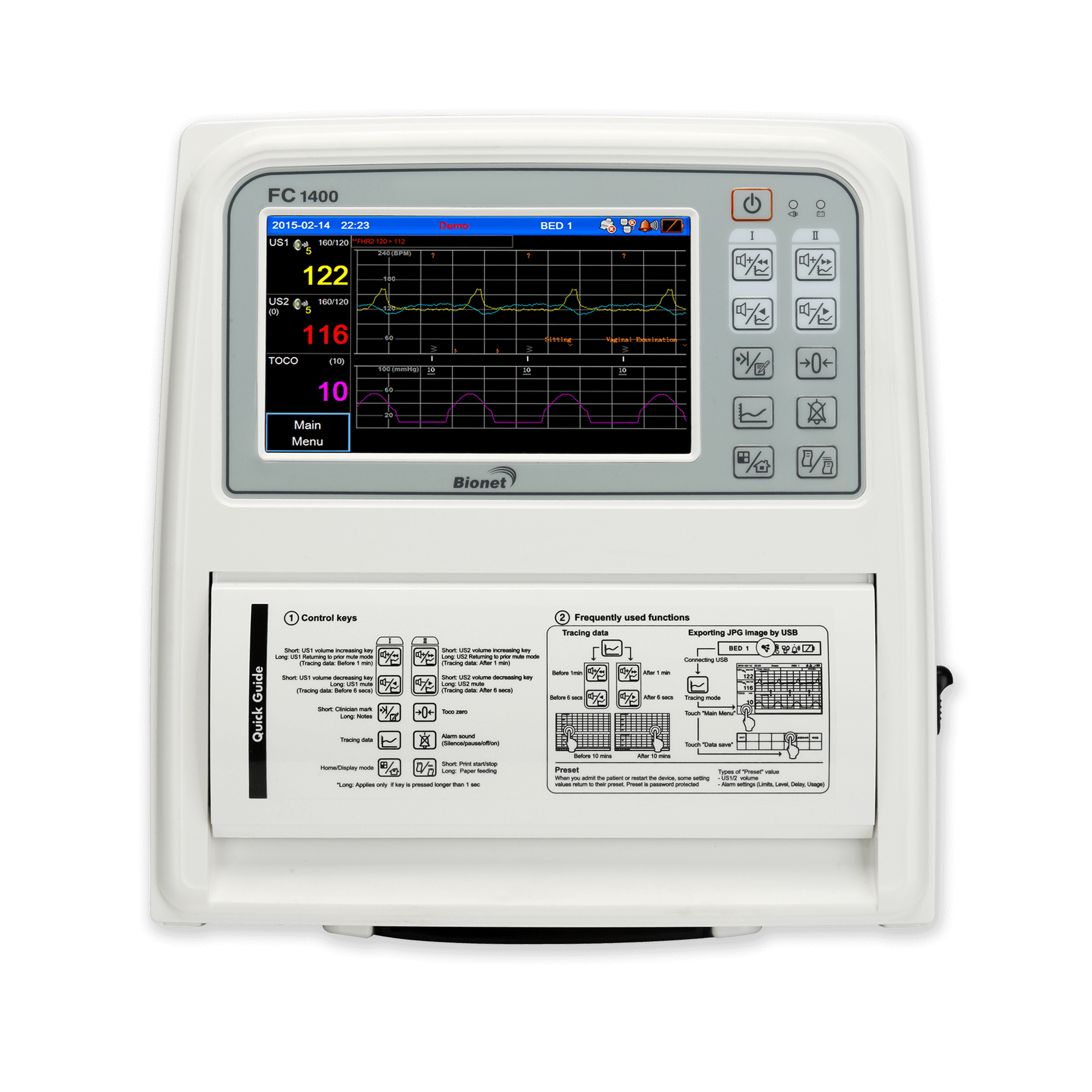

FC 1400 Fetal Monitor


The FC1400 is an antepartum touch screen fetal monitor which detects and displays twin fetus heart rates and uterine activity in real-time on the 7” color touch screen LCD monitor.
Touch interface, along with 10 smart keys for 16 functions, makes the operation easier and faster. Built-in printer provides easy-to-read B4 size printout for charting.
Onboard memory allows you to review and print up to 72 hours of internally stored data.
USB flash drive interface provides a simple way to move the test result to PC for EMR attachment.
Automatic fetal movement detection and TOCO zeroing reduces the need for staff involvement.
CTG (Cardiotocography) interpretation provides the silent recommendation for NST (Non-Stress Test).
The FC 1400 provides accurate and continuous obstetric measurements in the most rigorous clinical environments with a 3-year warranty.



Feature Specification
Dimension 296 (W) x 305.5 (H) x 97.5 (D) mm, approx. 2.6 kg
Display 7″ TFT wide LCD screen (800 X 480)
Recorder Method: Thermal array print
Type: Roll type
Print speed:
– Real time mode: 1, 2, 3 cm/min
– Trace mode: 20, 30 cm/min
Paper feeding function
Power Input: 100 – 240 VAC, 1.5 – 0.7 A, 50 – 60 Hz / Output: 18 VDC, 2.8A
Battery (Option) Li-ion: 4 hours (charging) / 2 hours (discharging)
External Link USB flash drive
Fetal Heart Rate Input Signal: Ultrasound pulsed doppler
Ultrasound frequency: 1.0 MHz, 975 KHz
Ultrasound power: FHR detection method: Autocorrelation
FHR range: 50~210 BPM
FHR accuracy: 120~160: ±1 BPM / Except 120~160 BPM: ±2 BPM
Uterine Contraction Input Source: External Transducer with load cell
Reference Control: One touch switch, auto zeroing
Measurement range: 0~99
Fetal Movement Measurement Detection source: Ultrasound pulsed doppler, event marker
Data Storage Storage for 72 hours
Auto CTG Analysis Average Baseline FHR
Number of UC
Number of Acceleration
Number of Deceleration: Late, Early, Variable
High/Low Episode
Short term Variability
Signal Loss
* CTG Analysis results is printed out every 10 minutes (Intermediate report)

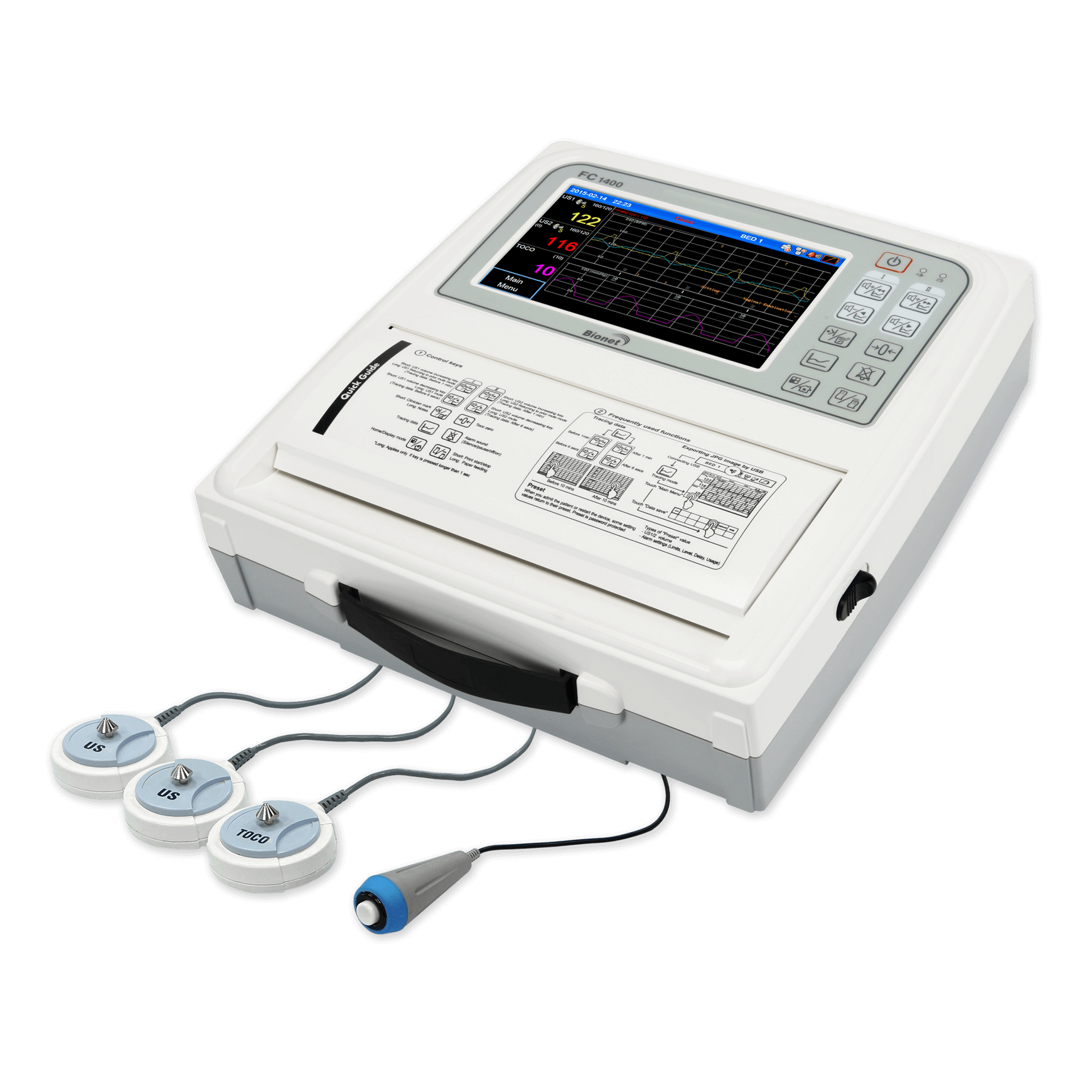

Standard Accessories Ultrasound doppler probe – 2 ea
UC probe – 1 ea
Event marker – 1 ea
Printer paper – 2 rolls
Power adaptor & cord – 1 ea
Ultrasound gel – 1 ea
Probe belt – 3 ea
Operation manual – 1 ea
Stand – 1 ea
Optional Accessories Rechargeable battery (1 ea), Cart
