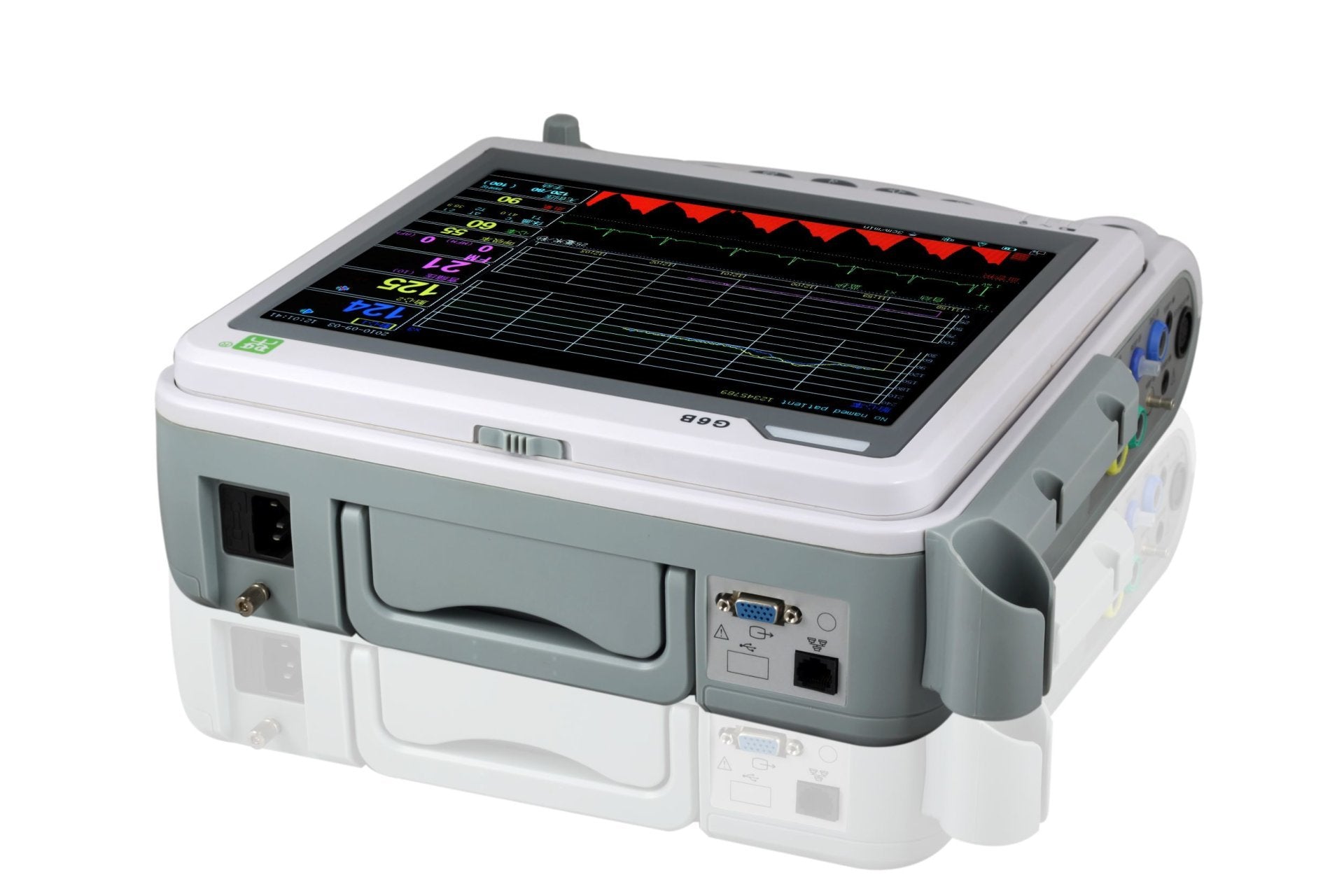

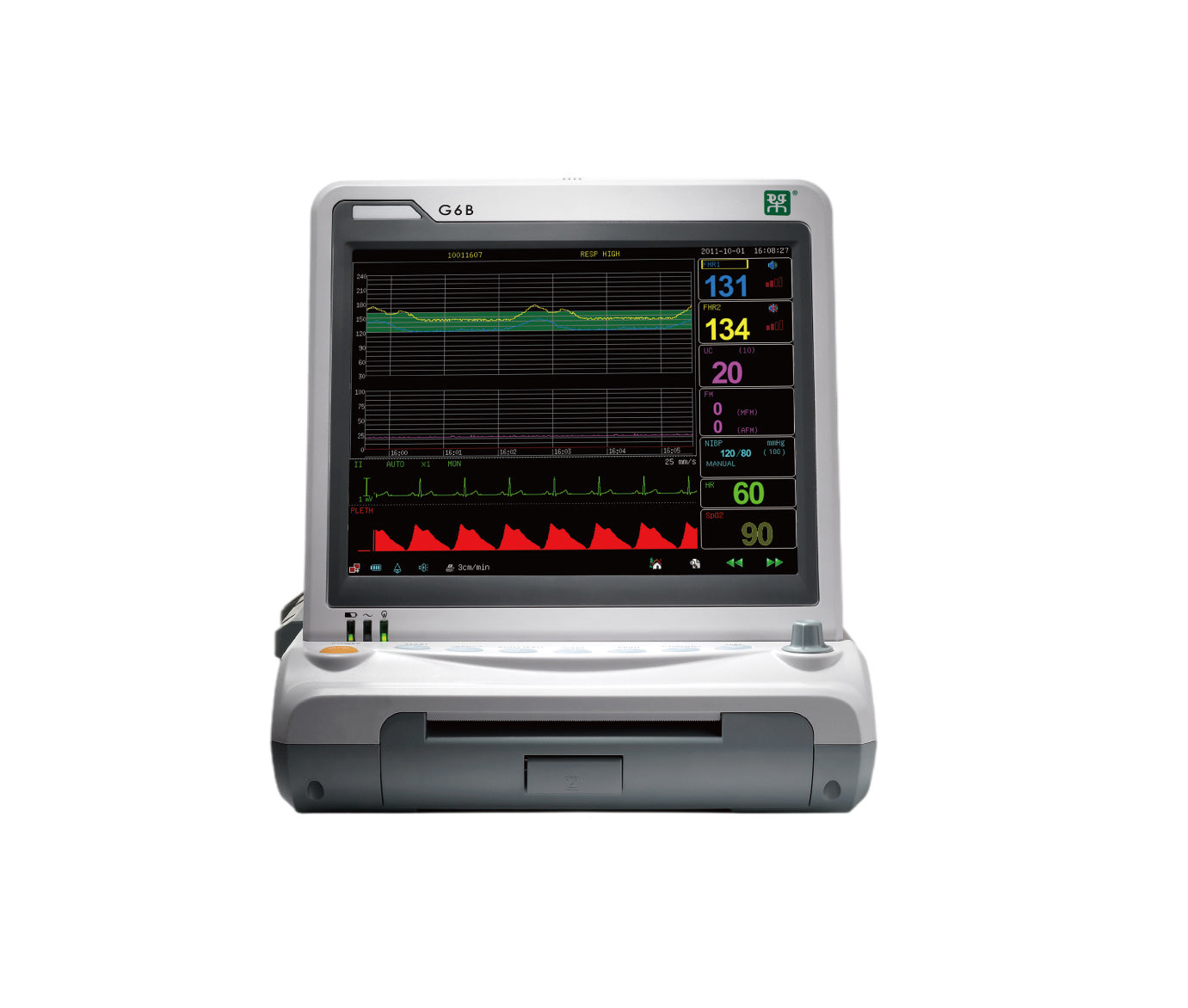

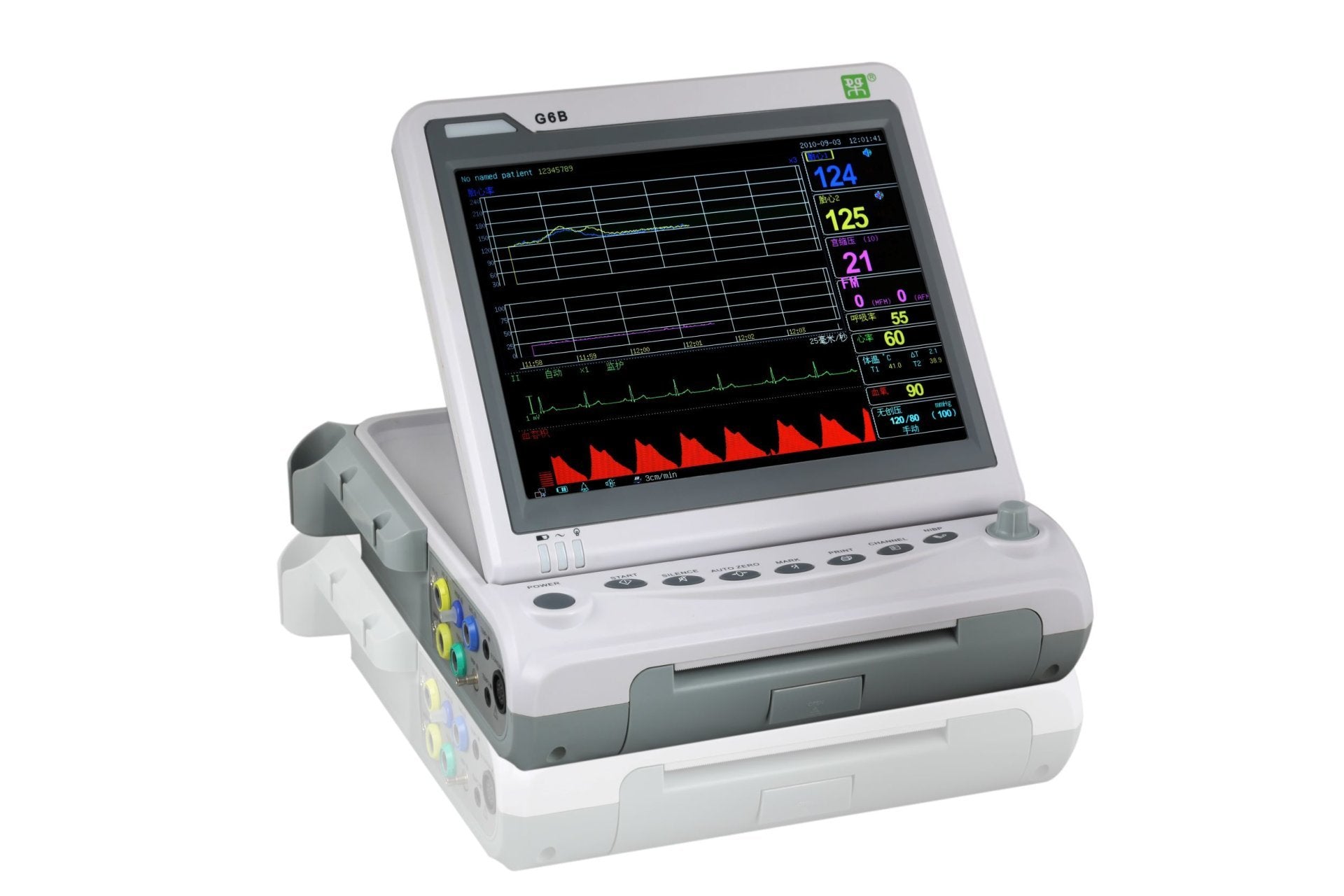

General Meditech G6B / G6B Plus Fetal/Maternal Monitor

The General Meditech G6B / G6B Plus is a portable fetal and maternal monitoring system designed for obstetric departments, maternity units, antenatal clinics, labour wards, and delivery rooms. It provides clear fetal monitoring data through a 12.1-inch foldable colour TFT LCD screen, allowing clinicians to view waveforms and numerical data simultaneously.

The G6B is suitable for routine fetal monitoring, while the G6B Plus adds maternal multi-parameter monitoring functions, including ECG, NIBP, SpO₂, pulse rate, respiration, temperature, rechargeable battery, and built-in printer. With CTG data storage, alarm review, real-time printing, fetal movement monitoring, and wired or wireless networking options, the G6B series offers a practical solution for modern maternity care.

Product at a Glance

Feature	Details
Product Type	Fetal / Maternal Monitor
Model	G6B / G6B Plus
Manufacturer	General Meditech
Display	12.1-inch foldable colour TFT LCD screen
Main Fetal Parameters	FHR, TOCO, fetal movement
Maternal Monitoring	Available on G6B Plus
CTG Storage	At least 450 hours CTG data storage

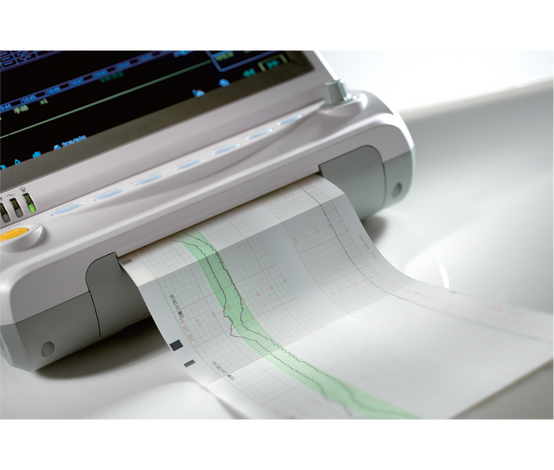

Printing	Built-in printer on G6B Plus
Battery	Built-in rechargeable battery on G6B Plus
Display Modes	Fetal, fetal & maternal, maternal
Connectivity	Wired and wireless networking options
Mounting Options	Wall mount and moving cart available
Clinical Use	Antenatal clinics, maternity wards, labour rooms, delivery suites

Key Features

Feature	Description

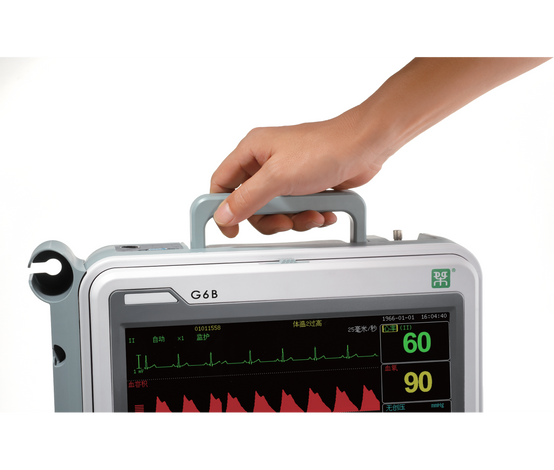

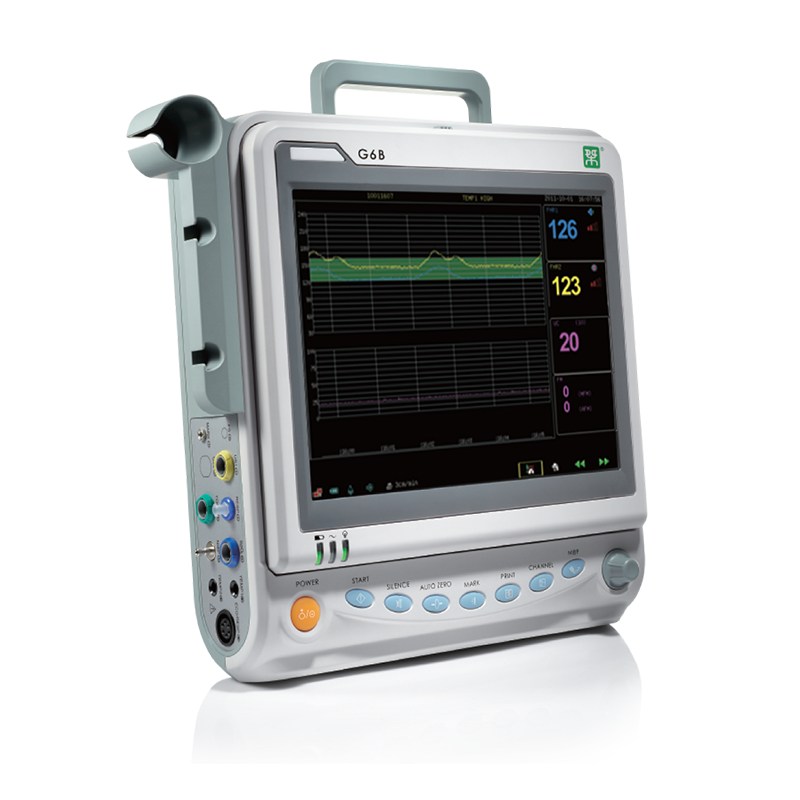

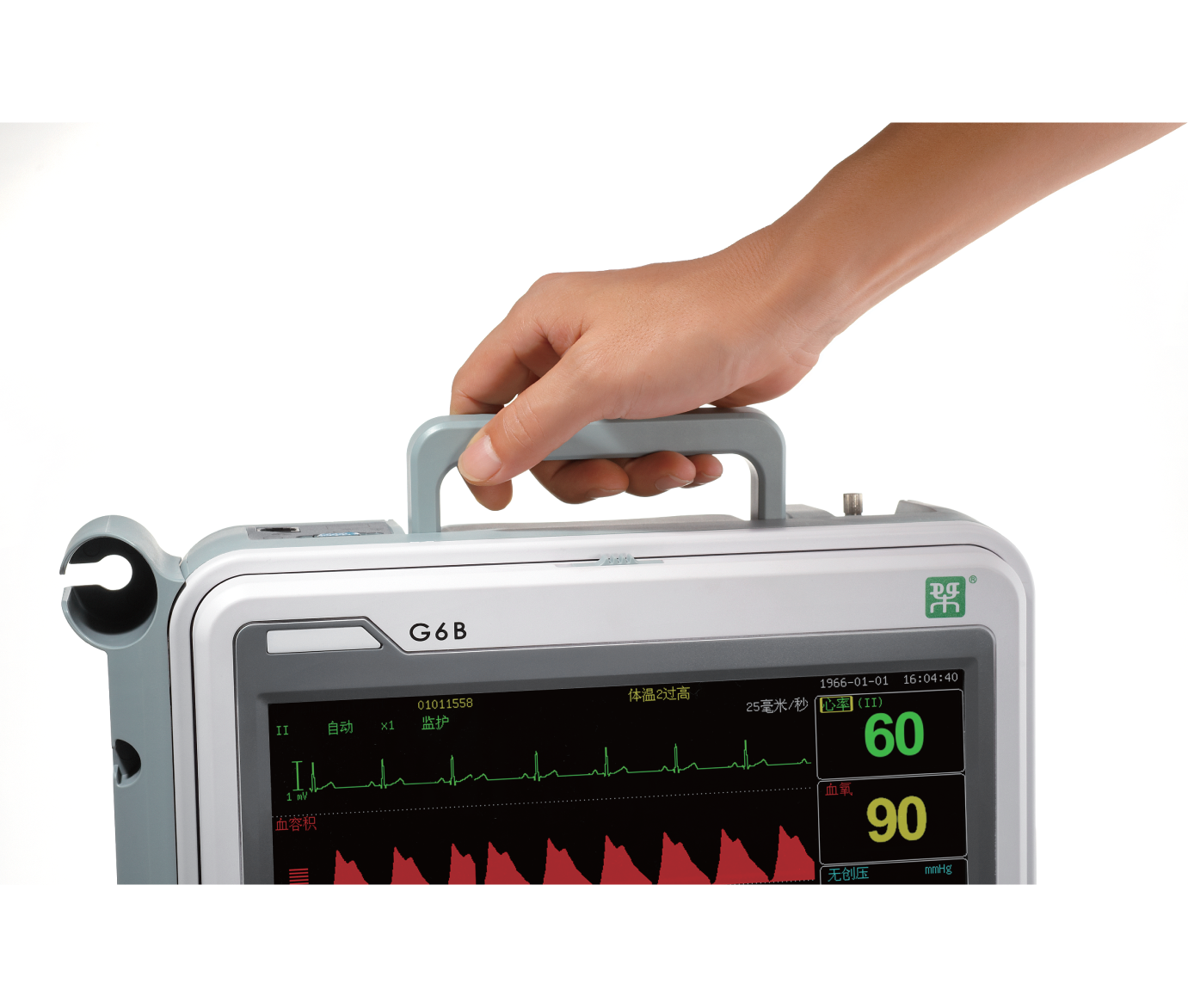

Portable Design	Compact unit with portable handle and all-in-one probe holder

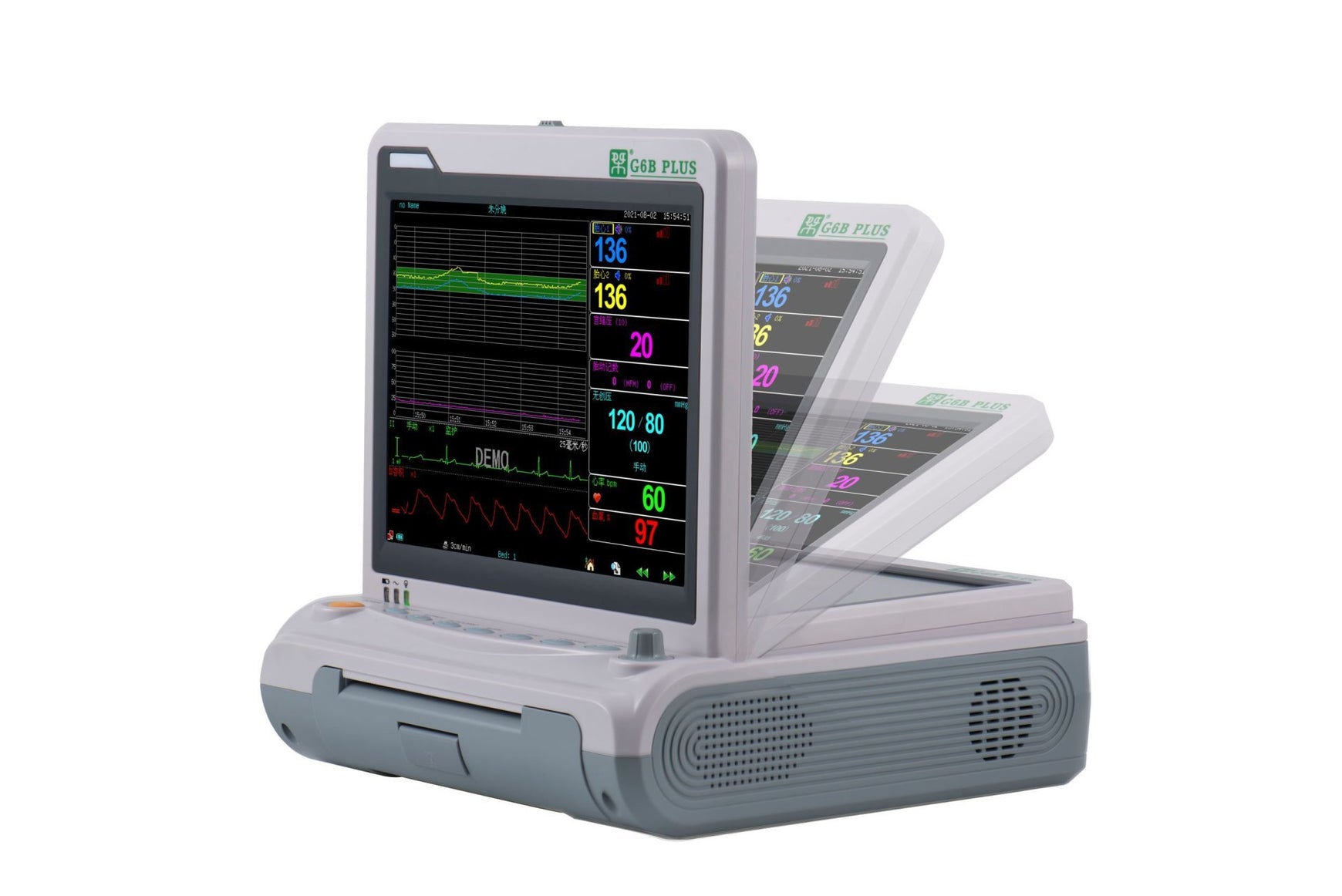

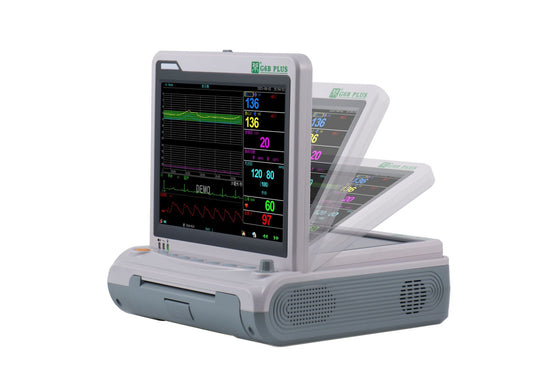

Foldable Display	12.1-inch colour TFT LCD screen for waveform and data display
Fetal Heart Rate Monitoring	Supports continuous fetal heart rate monitoring
TOCO Monitoring	Measures uterine contraction activity
Fetal Movement Monitoring	Supports automatic and manual fetal movement counting
CTG Storage	Stores at least 450 hours of CTG data in power-down memory
Data Protection	CTG data is retained after switch-off
Recall Printing	Stored data can be reviewed and printed
Alarm Review	Alarm events can be reviewed for clinical assessment
Patient ID Management	Supports automatic and manual patient ID generation
Fast Review Printing	25 mm/s high-speed review printing
Smart Alarm System	Light and sound alarms with adjustable alarm range and tone
Sensor-Off Alarm	Alerts users when the sensor is disconnected or not properly positioned
FHR2 Offset Printing	Supports offset printing for twin fetal heart rate monitoring
Multiple Display Modes	Fetal, fetal/maternal, and maternal display modes
Real-Time Printing	Supports real-time and timed printing
Event Remark	Allows clinical events to be marked during monitoring
Networking	Supports remote, wired, and wireless networking functions
Upgradeable System	Can be upgraded to maternal multi-parameter monitoring
Bracket Options	Various bracket, wall mount, and trolley solutions available

Technical Specifications

Fetal Heart Rate Monitoring

Specification	Details
Ultrasound Frequency	1 MHz, 1.5 MHz, 2 MHz ±1 kHz
Ultrasound Input Intensity	1.8 mW/cm²
FHR Range	30 to 240 bpm
Accuracy	±1 bpm
Alarm Limit	30 to 240 bpm
Alarm Tolerance	±5%

TOCO / Uterine Contraction Monitoring

Specification	Details
Measurement Range	0 to 100%
Resolution	1%
Zero Mode	Manual / Automatic
Automatic Zero Options	5, 10, 15, 20, adjustable
Pressure Tolerance	+6.7%

Fetal Movement Monitoring

Specification	Details
Monitoring Type	Automatic and manual fetal movement counting
Display	Fetal movement data and waveform display
Event Remark	Supported

ECG Monitoring

Specification	Details
Lead Selection	I, II, III, aVR, aVL, aVF, V
Heart Rate Range	10 to 300 bpm
Accuracy	±1 bpm or ±1%, whichever is greater
Sweep Speed	6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Gain Selection	×1/4, ×1/2, ×1, ×2, ×4, Auto
Calibration	±1 mV

NIBP Monitoring

Specification	Details
Method	Oscillometric method
Systolic Range	30 to 270 mmHg
Diastolic Range	10 to 200 mmHg
Mean Pressure Range	20 to 220 mmHg
Measurement Mode	Manual, automatic, continuous
Auto Measurement Cycle	0 to 480 minutes adjustable
Additional Functions	NIBP trend tabulation and supplementary venipuncture function

SpO₂ Monitoring

Specification	Details
Display Type	Waveform and data
Measurement Range	0 to 100%
Resolution	1 BPM
Pulse Rate Range	30 to 250 bpm
Accuracy	±1 bpm

Pulse Rate

Specification	Details
Measurement Range	30 to 250 bpm
Accuracy	±1 bpm or ±2%, whichever is greater

Respiration Monitoring

Specification	Details
Method	Thoracic impedance and nasal tube
Measurement Range	0 to 156 bpm
Accuracy	±1 bpm or ±5%, whichever is greater
Lead Selection	RA-LA, RA-LL, LA-LL

Temperature Monitoring

Specification	Details
Number of Channels	2 channels
Display	T1, T2, ΔT
Measurement Range	0°C to 50°C
Accuracy	±0.2°C
Sensor	Skin temperature sensor supplied as standard configuration

Configuration Options

G6B Standard Configuration

Parameter / Feature	Included
FHR	Yes
TOCO	Yes
Fetal Movement	Yes

G6B Optional Configuration

Optional Feature	Availability
Twin FHR	Optional
Fisher’s Auto Fetal Analysis	Optional
Fetal Awake-Up Alarm	Optional
Wireless Network	Optional
Wall Mount	Optional
Moving Cart	Optional
12 V Power Supply	Optional

G6B Plus Standard Configuration

Parameter / Feature	Included
FHR	Yes
TOCO	Yes
Fetal Movement	Yes
ECG	Yes
NIBP	Yes
SpO₂	Yes
HR / PR	Yes
Respiration	2-RESP
Temperature	2-TEMP
Rechargeable Battery	Yes
Built-in Printer	150 mm printer

G6B Plus Optional Configuration

Optional Feature	Availability
Twin FHR	Optional
Fisher’s Auto Fetal Analysis	Optional
Fetal Awake-Up Alarm	Optional
Wireless Network	Optional
Wall Mount	Optional
Moving Cart	Optional
12 V Power Supply	Optional

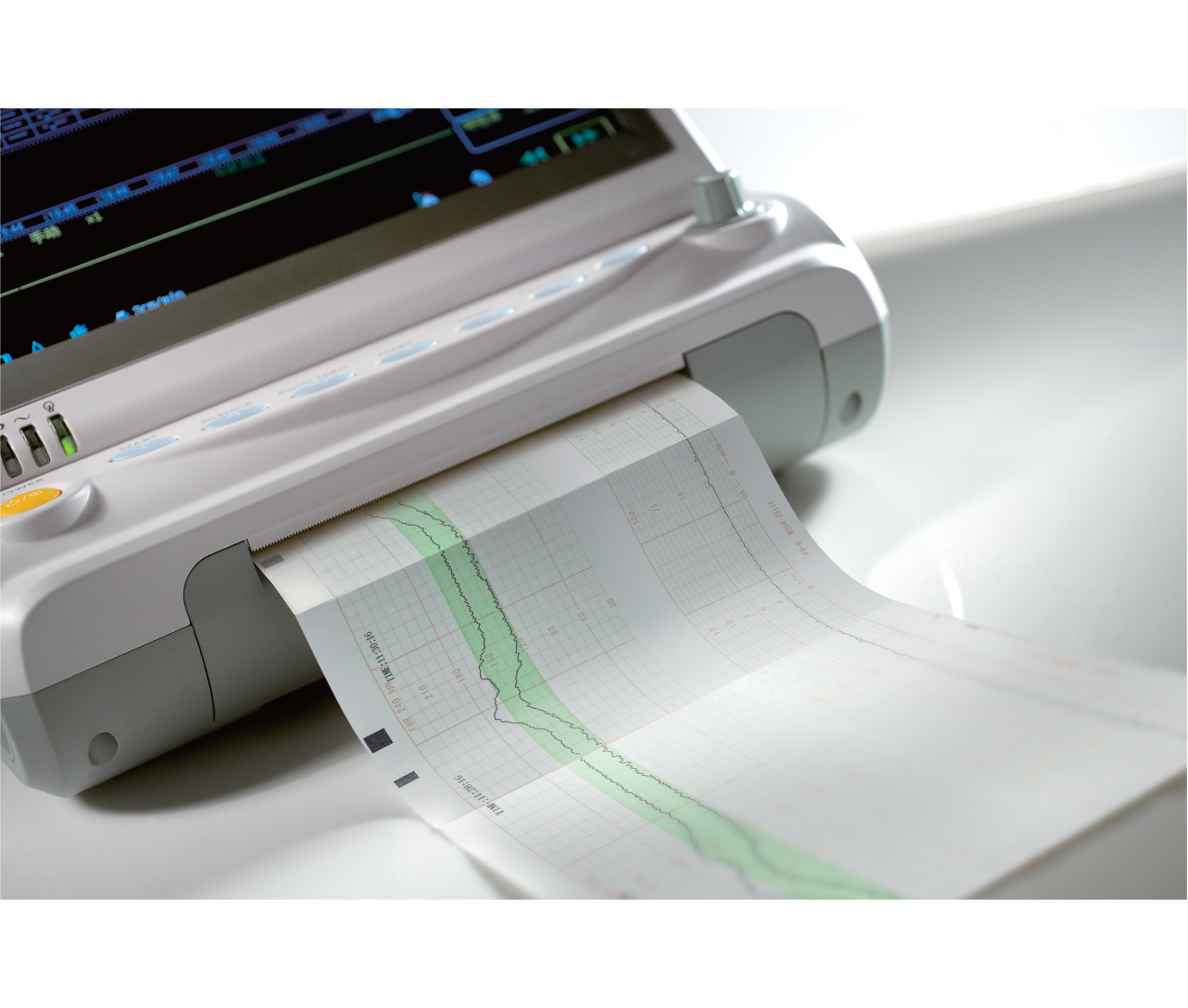

Display and Printing

Specification	Details
Screen Size	12.1 inches
Screen Type	Foldable colour TFT LCD
Display Content	Waveforms and data displayed simultaneously
Display Area Colour	Adjustable
Display Modes	Fetal, fetal & maternal, maternal
Printing Modes	Real-time printing and timing printing
Review Print Speed	25 mm/s
Printing Standards	American standard and national standard
Paper-Out Cache	Supported
Selectable Printing	Supported
Auto Shutdown Printing	Supported

Data Management and Alarms

Feature	Details
CTG Storage	At least 450 hours
Memory Type	Power-down memory
Data Retention	Data retained after switching off
Recall Printing	Supported
Alarm Review	Supported
Alarm Light	Located on top of the monitor
Alarm Type	Light and sound alarm
Adjustable Alarm Settings	Alarm range and tone adjustable
Sensor-Off Alarm	Supported
Monitor Abnormal Alarm	Supported
Patient ID	Automatic and manual generation
Data Search	Supported

Connectivity and Installation Options

Feature	Details
Network Communication	Independent network communication function
Remote Monitoring	Supported
Wired Networking	Supported
Wireless Networking	Optional
Wall Mount	Optional
Moving Cart	Optional
Bracket Solutions	Various bracket options available
Upgrade Path	Can be upgraded to maternal multi-parameter monitoring

Clinical Applications

Department / Area	Application
Antenatal Clinic	Routine fetal monitoring and CTG assessment
Obstetrics Department	FHR, TOCO, and fetal movement monitoring
Labour Ward	Continuous fetal and maternal monitoring support
Delivery Room	Real-time monitoring and documentation
Maternity Unit	General fetal and maternal observation
Hospital Wards	Maternal vital signs monitoring with G6B Plus configuration

Product Identification

Item	Details
Manufacturer	General Meditech
Model	G6B / G6B Plus
Product Type	Fetal / Maternal Monitor
Category	CTG Machines / Fetal Monitors
Department	Obstetrics & Gynaecology Equipment
Standard Model	G6B
Advanced Model	G6B Plus
Website Category	Fetal Monitors, CTG Machines, Maternity Equipment, Obstetric Monitoring Equipment

Ordering Information

Item	Details
Product Name	General Meditech G6B / G6B Plus Fetal/Maternal Monitor
Available Models	G6B, G6B Plus
Recommended Configuration	G6B Plus for combined fetal and maternal monitoring
Optional Add-ons	Twin FHR, Fisher’s auto fetal analysis, fetal awake-up alarm, wireless network, wall mount, moving cart
Recommended Use	Hospitals, maternity centres, antenatal clinics, obstetric departments, labour wards, and delivery rooms
Accessories	Supplied according to selected configuration
Installation and Training	Available on request
