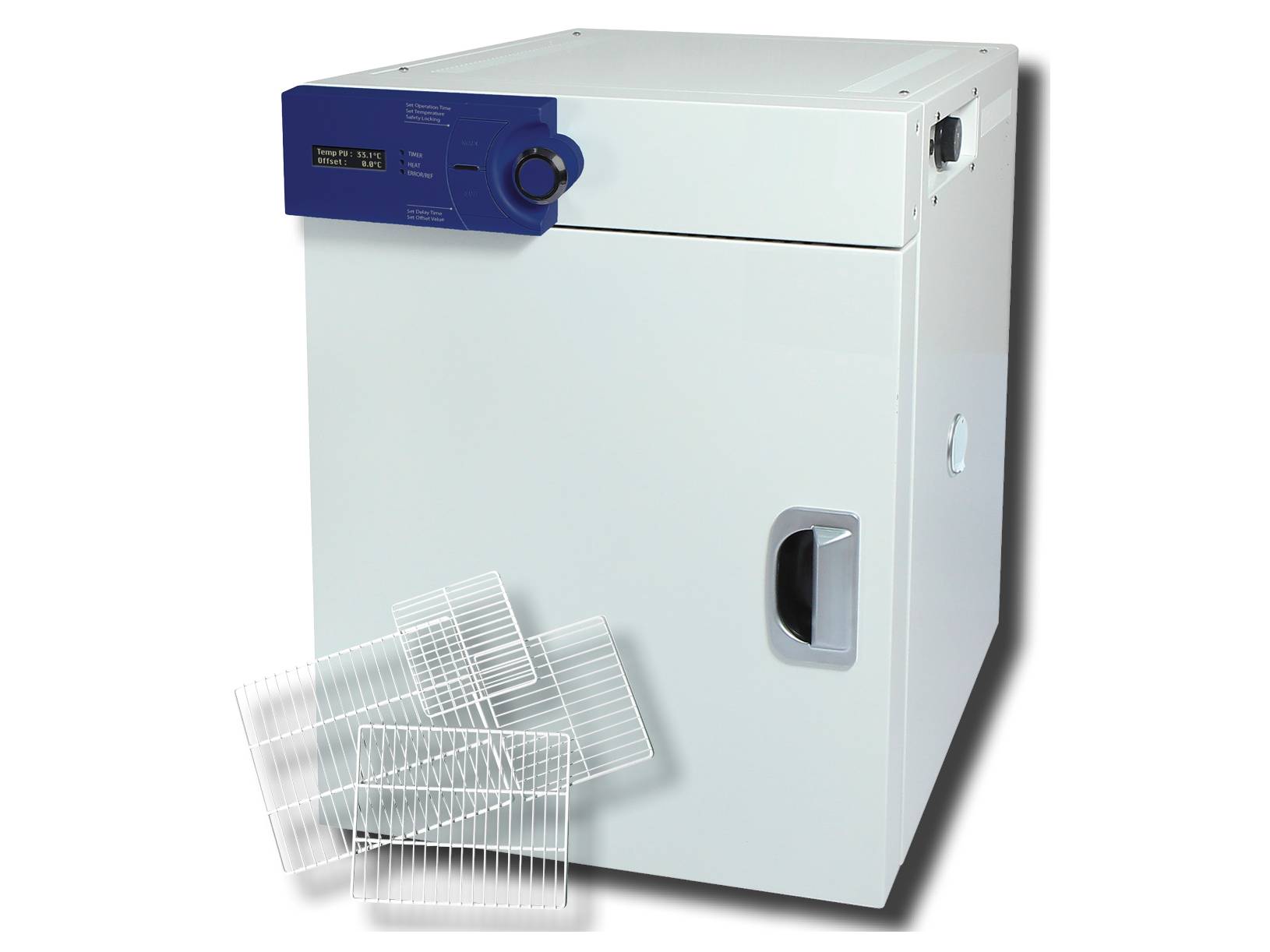

Witeg Incubators WIF Forced-Air 50/105/155 Liter 70°C
Buy Witeg products from PSTG Supplies at the best value.
Description
Ideal for:
- Microorganism culture, animal and plant cell culture, constant temperature, germination, etc.
Features:
- Optimized air flow by forced-air mechanism
- Temperature uniformity and accuracy by high performance 3-sided heating mechanism
- 2x PE-coated steel wire shelves included
- Ambient to 70°C of temperature range, accuracy of ±0.2°C at 37°C, ±0.3°C at 50°C
- Corrosion resistant stainless steel chamber, powder-coated body
- Inner tempered glass door with silicone packing offers easy observation without door opening

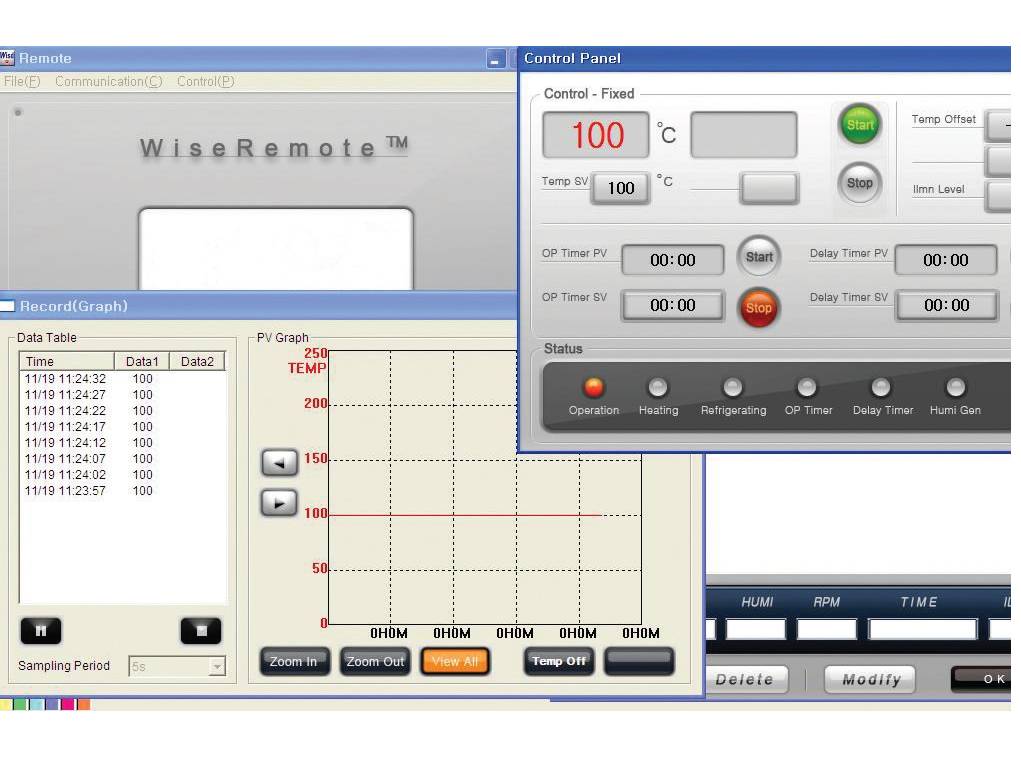

- RS232C interface for monitoring and controlling (WireRemote) storage function for the set values of temperature and timer
- Alarm function: error status and timer end
- Backlight LCD display
- CE & UL/CUL certified and unique serial number for tracing
Features
Jog-Dial controller:
- Ergonomic design for easy and convenient usage
- 2-way Jog-Dial knob provides simple setting of required temperature and time
- High quality illuminated LCD
- „MAIN“ and „SUB“ button to access all menus
Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.
Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

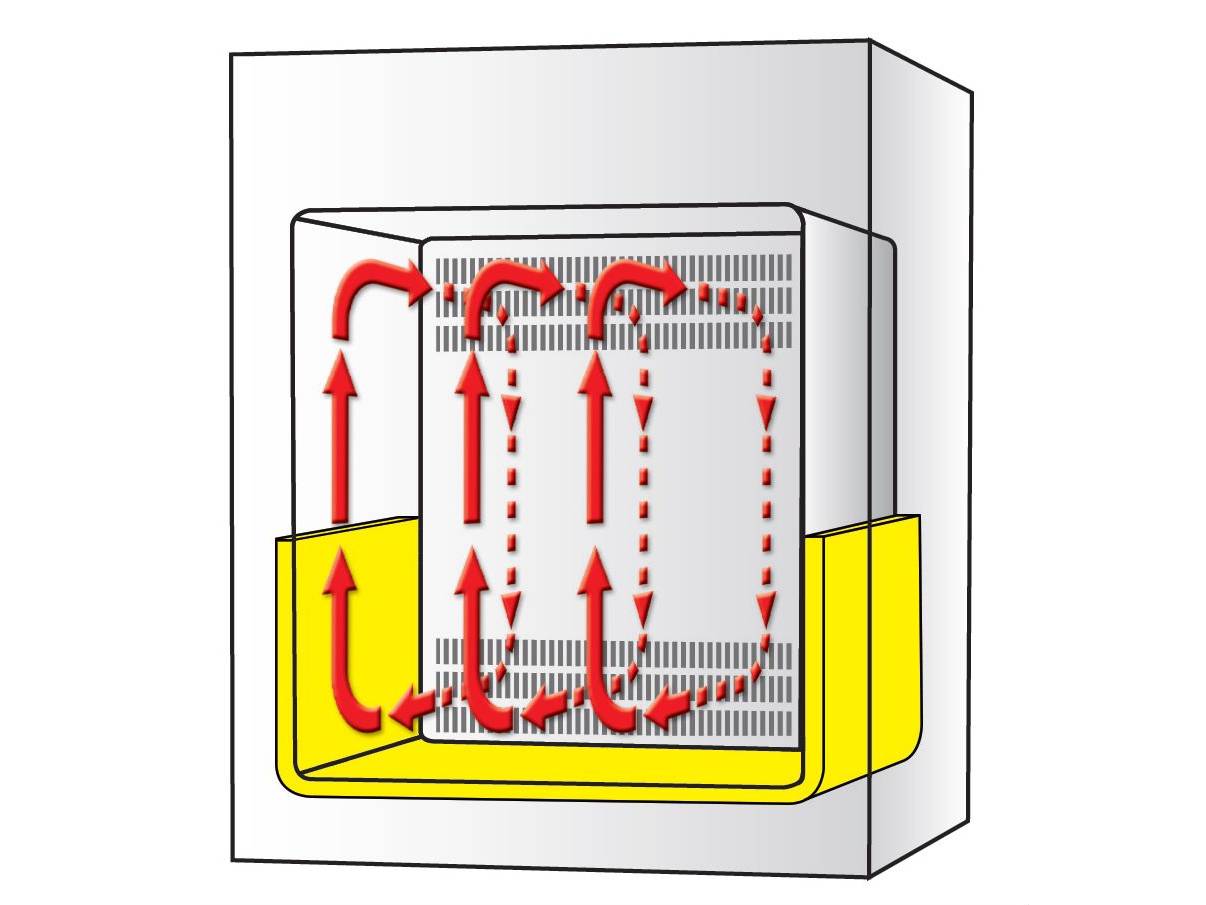

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.
Safety mechanism:
- Overheat and over-current protection
- Sensor error detection and locking mode
Controller:
- Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons
Technical data
| Width (inner) | 370 mm |
| Height (inner) | 419 mm |
| Length (outer) | 637 mm |
| Heating time | 17 min. to 37°C, 28 min. to 50°C |
| Weight | 46 kg |
| Heating power | 200 W |
| Hole diameter | Inner Ø35 mm |
| Power consumption | 216.3 W |
| Temperature control resolution | Control ±0.1°C |
| Temperature fluctuation | ±0.2°C at 37°C, ±0.3°C at 50°C |
| Recovery time | 3 min. to 37°C, 4 min. to 50°C |
| Length (inner) | 350 mm |
| Width (Outer) | 518 mm |
| Height (outer) | 700 mm |
| Shelves | 2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf) |
| Weight with packaging | 58 kg |
| Capacity | 50 l |
| Holes | 1 ventilation hole with stainless steel cap |
| Temperature variation | ±0.5°C at 37°C, ±0.9°C at 50°C |
| Temperature range | Room temperature +5°C - 70°C |
| Packing size | 628 x 752 x 775 mm |
| Controller | Temperature sensor PT100 |
Comparison
| SKU | Model | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Heating time | Shelves | Weight | Weight with packaging | Heating power | Capacity |
| DH.WIF03155 | WIF-155 230 V | 550 mm | 475 mm | 600 mm | 700 mm | 760 mm | 906 mm | 17 min. to 37°C, 30 min. to 50°C | 2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf) | 81 kg | 92 kg | 400 W | 155 l |
| DH.WIF03105 | WIF-105 230 V | 485 mm | 410 mm | 533 mm | 635 mm | 695 mm | 841 mm | 17 min. to 37°C, 30 min. to 50°C | 2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf) | 66 kg | 74 kg | 300 W | 105 l |
| DH.WIF03050 | WIF-50 230 V | 370 mm | 350 mm | 419 mm | 518 mm | 637 mm | 700 mm | 17 min. to 37°C, 28 min. to 50°C | 2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf) | 46 kg | 58 kg | 200 W | 50 l |
| SKU | Hole diameter | Holes | Power consumption | Temperature variation | Temperature control resolution | Temperature range | Temperature fluctuation | Packing size | Recovery time | Controller |
| DH.WIF03155 | Inner Ø35 mm | 1 ventilation hole with stainless steel cap | 438.1 W | ±0.4°C at 37°C, ±0.7°C at 50°C | Control ±0.1°C | Room temperature +5°C - 70°C | ±0.2°C at 37°C, ±0.3°C at 50°C | 731 x 810 x 1018 mm | 3 min. to 37°C, 4 min. to 50°C | Temperature sensor PT100 |
| DH.WIF03105 | Inner Ø35 mm | 1 ventilation hole with stainless steel cap | 302.9 W | ±0.4°C at 37°C, ±0.7°C at 50°C | Control ±0.1°C | Room temperature +5°C - 70°C | ±0.2°C at 37°C, ±0.3°C at 50°C | 710 x 731 x 1018 mm | 3 min. to 37°C, 4 min. to 50°C | Temperature sensor PT100 |
| DH.WIF03050 | Inner Ø35 mm | 1 ventilation hole with stainless steel cap | 216.3 W | ±0.5°C at 37°C, ±0.9°C at 50°C | Control ±0.1°C | Room temperature +5°C - 70°C | ±0.2°C at 37°C, ±0.3°C at 50°C | 628 x 752 x 775 mm | 3 min. to 37°C, 4 min. to 50°C | Temperature sensor PT100 |
