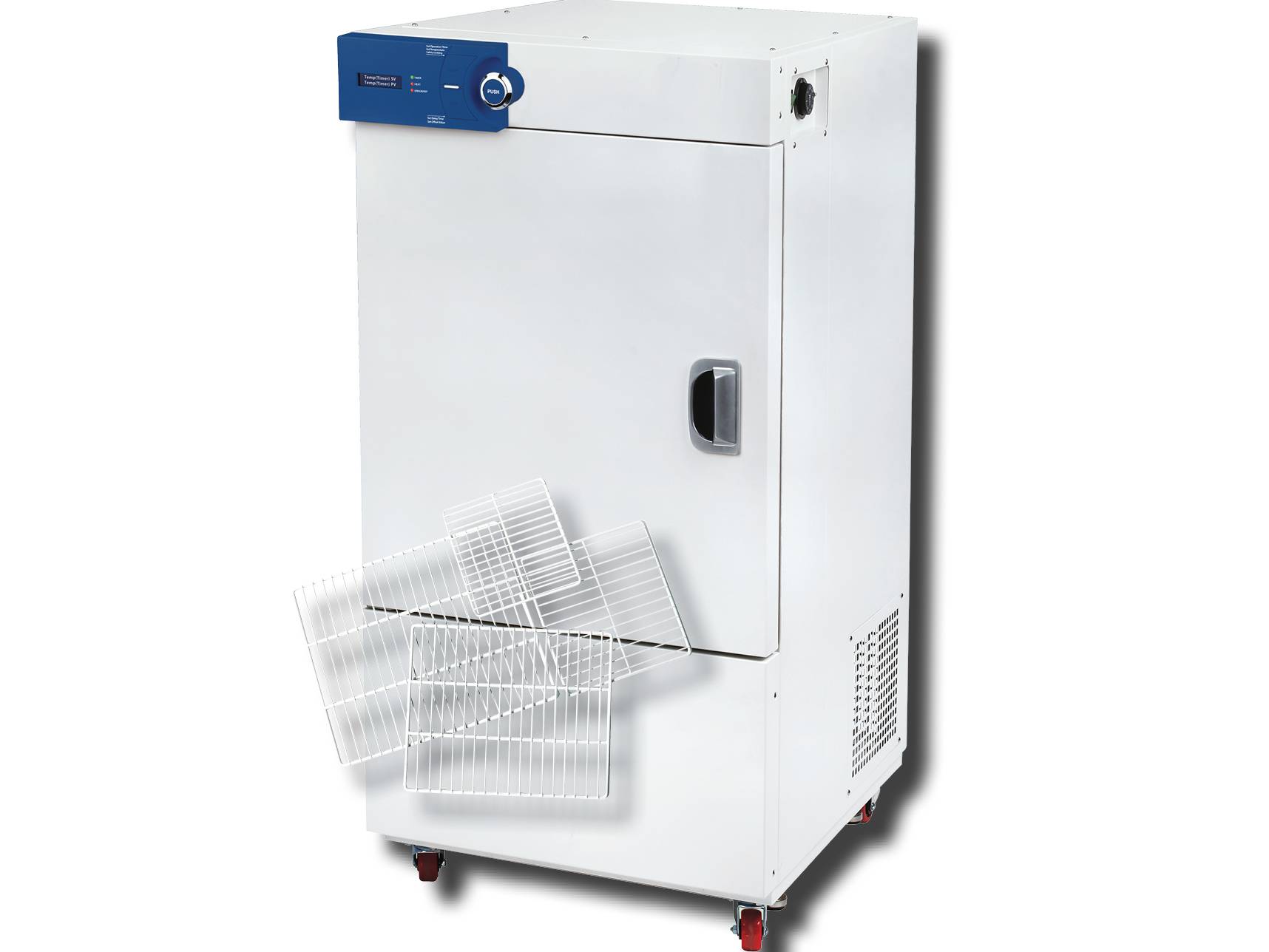

Witeg Incubators WIR B.O.D. 150/250/420/700 Liter 0-60°C
Buy Witeg products from PSTG Supplies at the best value.
Description
Ideal for:
- Animal and plant cell culture, constant temperature, germination test, BOD test, etc.
Features:
- CFC free refrigerant (R-404A)
- Intelligent refrigerator control prevents compressor overload
- Superior temperature uniformity by forced-air convection
- Stainless steel chamber, powder-coated body
- Tempered glass door to observe samples during incubation
- 3x PE-coated steel wire shelves included

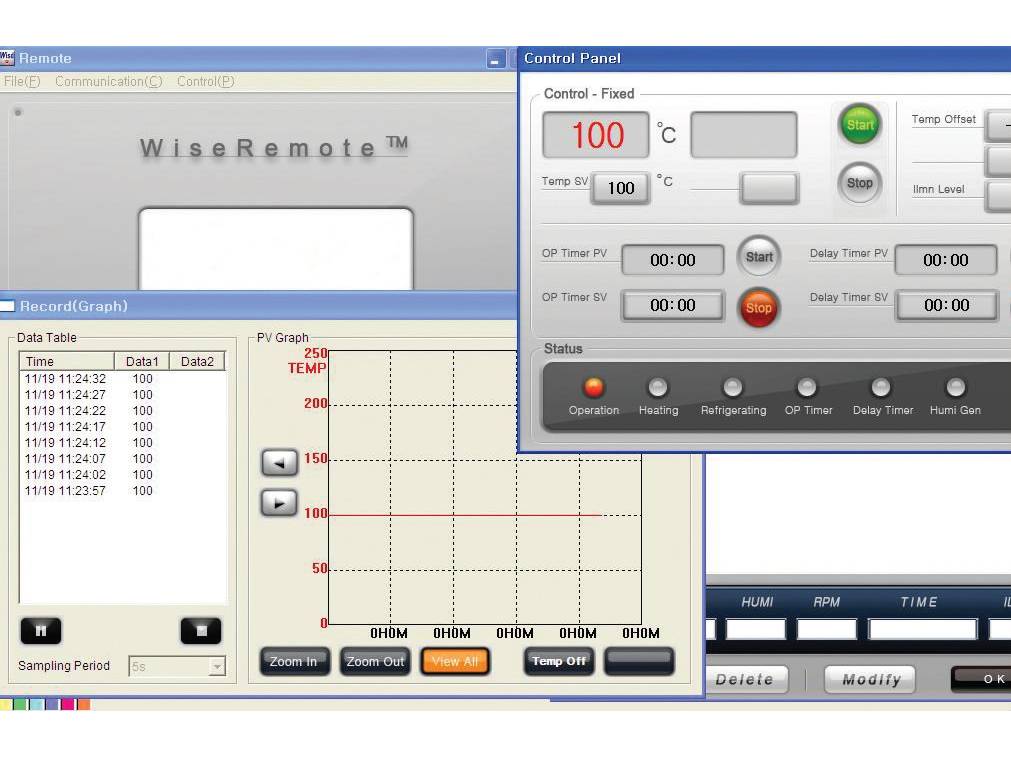

- RS232C interface for monitoring and controlling (WireRemote)
- Storage function for set values: timer and temperature
- Backlight LCD display
- CE & UL/CUL certified and unique serial number for tracing
Features
Jog-Dial controller:
- ergonomic design for easy and convenient usage
- 2-way Jog-Dial knob provides simple setting of required temperature and time
- high quality illuminated LCD
- „MAIN“ and „SUB“ button to access all menus
Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.
Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

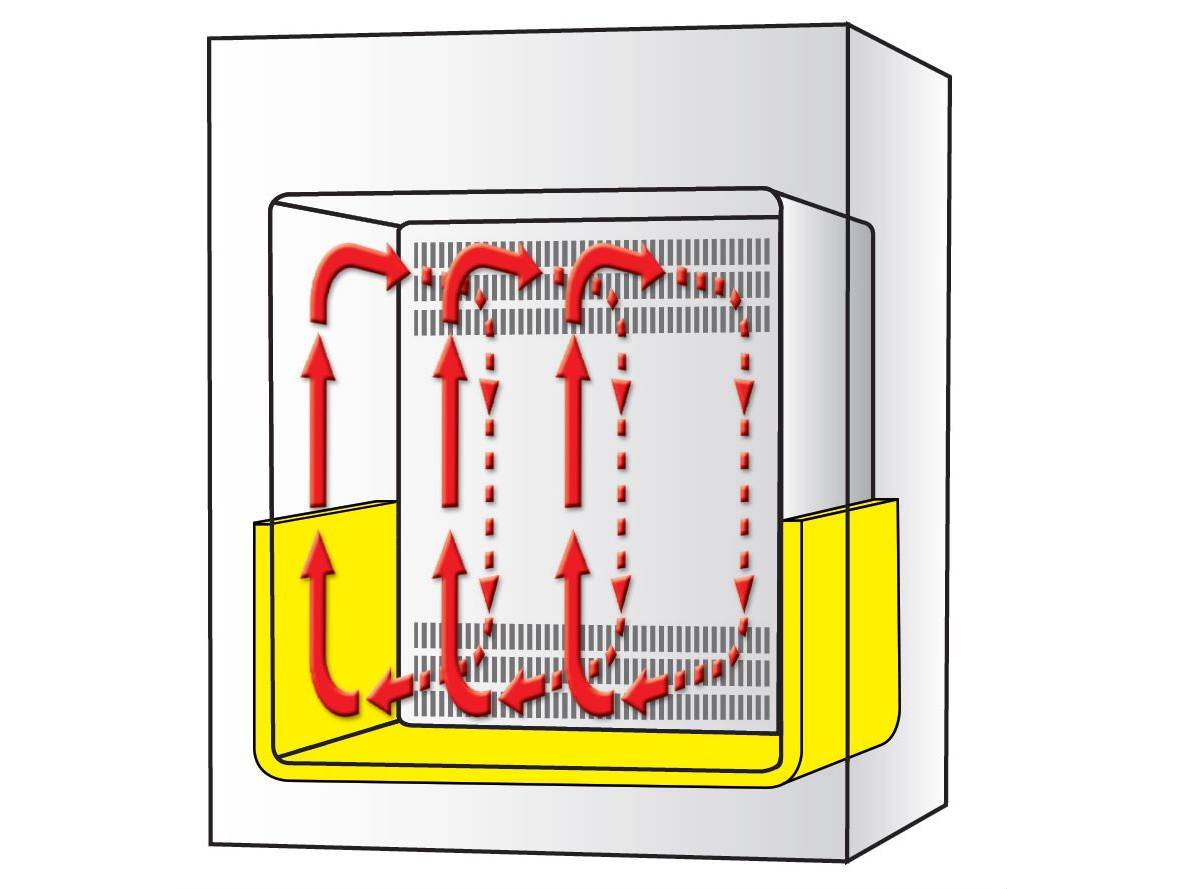

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.
Devices with 230 V power supply can also be supplied with 120 V on request.
Controller:
- Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons
Technical data
| Version | Forced-air convection |
| Length (inner) | 505 mm |
| Width (Outer) | 640 mm |
| Height (outer) | 1313 mm |
| Shelves | 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) |
| Weight with packaging | 191 kg |
| Capacity | 150 l |
| Refrigerant | R-404A (CFC-free refrigerant) |
| Temperature variation | ±0.5°C at 37°C, ±1.4°C at 50°C |
| Temperature accuracy | ±0.2°C to 37°C |
| Recovery time | 10 min. to 37°C, 12 min. to 50°C |
| Width (inner) | 505 mm |
| Height (inner) | 610 mm |
| Length (outer) | 832 mm |
| Heating time | 20 min. to 37°C, 20 min. to 50°C |
| Weight | 118 kg |
| Heating power | 700 W |
| Compressor | 190 W |
| Power consumption | 1600 W |
| Temperature range | 0°C - +60°C |
| Packing size | 900 x 1000 x 1650 mm |
| Controller | Temperature sensor PT100 |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Heating time | Shelves | Weight | Weight with packaging | Heating power |
| DH.WIR03150 | WIR-150 230 V | Forced-air convection | 505 mm | 505 mm | 610 mm | 640 mm | 832 mm | 1313 mm | 20 min. to 37°C, 20 min. to 50°C | 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) | 118 kg | 191 kg | 700 W |
| DH.WIR03250 | WIR-250 230 V | Forced-air convection | 505 mm | 505 mm | 1000 mm | 640 mm | 832 mm | 1703 mm | 20 min. to 37°C, 20 min. to 50°C | 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) | 157 kg | 217 kg | 1000 W |
| DH.WIR03420 | WIR-420 230 V | Forced-air convection | 705 mm | 605 mm | 1000 mm | 840 mm | 932 mm | 1753 mm | 35 min. to 37°C, 35 min. to 50°C | 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) | 202 kg | 277 kg | 1200 W |
| DH.WIR03700 | WIR-700 230 V | Forced-air convection | 800 mm | 700 mm | 1250 mm | 935 mm | 1027 mm | 2000 mm | 35 min. to 37°C, 35 min. to 50°C | 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) | 234 kg | 313 kg | 2000 W |
| SKU | Capacity | Compressor | Refrigerant | Power consumption | Temperature variation | Temperature range | Temperature accuracy | Packing size | Recovery time | Controller |
| DH.WIR03150 | 150 l | 190 W | R-404A (CFC-free refrigerant) | 1600 W | ±0.5°C at 37°C, ±1.4°C at 50°C | 0°C - +60°C | ±0.2°C to 37°C | 900 x 1000 x 1650 mm | 10 min. to 37°C, 12 min. to 50°C | Temperature sensor PT100 |
| DH.WIR03250 | 250 l | 250 W | R-404A (CFC-free refrigerant) | 1800 W | ±0.5°C at 37°C, ±1.4°C at 50°C | 0°C - +60°C | ±0.2°C to 37°C | 900 x 1000 x 2040 mm | 10 min. to 37°C, 12 min. to 50°C | Temperature sensor PT100 |
| DH.WIR03420 | 420 l | 370 W | R-404A (CFC-free refrigerant) | 2300 W | ±0.5°C at 37°C, ±1.4°C at 50°C | 0°C - +60°C | ±0.2°C to 37°C | 1100 x 1100 x 2140 mm | 12 min. to 37°C, 15 min. to 50°C | Temperature sensor PT100 |
| DH.WIR03700 | 700 l | 370 W | R-404A (CFC-free refrigerant) | 2400 W | ±0.5°C at 37°C, ±1.4°C at 50°C | 0°C - +60°C | ±0.2°C to 37°C | 1220 x 1220 x 2260 mm | 12 min. to 37°C, 15 min. to 50°C | Temperature sensor PT100 |
