XQ Manual SDM-1 Handheld Powder Dispenser
The manual Solids Dispenser SDM-1 can dispense calibrated volumetric doses (and multiples) of powders in a highly precise and repeatable fashion.
The SDM-1 comes with 5 volumetric dispensing disks (the dosing element) covering the dose volume range of 5mm³-300mm³. Additional dispensing disks can be supplied which are calibrated precisely to specific dose volumes. A calibration certificate is provided.
Note: Also, if an order is placed and no calibration information is sent to PSTG Supplies, the default disk selection will be the standard disk set.
Sample size requirement for Machine Calibration:
At least 20x of dosage requirements (e.g. 40 grams for a dosage of 2 grams);
Please fill out the Sample Request form HERE and include with your calibration sample sent to XQ Instruments.
-
Increased lab productivity and ease of use
The SDM-1 Solids Dispenser increases the speed of dispensing solid-powder samples while retaining the flexibility of freehand processing.
-
Continuous precision
Solid-powder sample portions are processed accurately with SDM-1 with each volume consistently within a tight tolerance eliminating errors of manual processing.
The SDM-1 powder dispenser increases lab productivity and at the same time ensures process accuracy in solids-powder dosing. Due to its compact handheld configuration, it is easy to integrate in the workflow and alleviates tedious repetitive powder measuring tasks.
SDM-1 can be calibrated typically for dosing from 5 mg up to 300 mg in a single dose (depending on material).
|
Dispensing head size |
Volume calibration range Single dose |
Maximum dose mass for a bulk density of 1.0 g-ml |
Compatible with Dispenser |
Reservoir size |
|
SDM-1 |
2.3mm³ - 300mm³ |
300mg |
SDM-1 |
40ml, 60ml; glass vials Bottles 2oz, 4oz |
|
Small head |
2.3mm³ - 300mm³ |
300mg |
SDH-1, SDB-1 |
40ml, 60ml; glass vials Bottles 2oz |
|
Mid-size head |
2.3mm³ - 715mm³ |
715mg |
SDH-1, SDB-1 |
150ml; PC tube |
|
Large Head |
5.0mm³ - 8,100mm³ |
8,1g |
SDH-1, SDB-1 |
200ml, 400ml, 1l ; PC tube |
|
XL Head |
10.0mm³ - 78,000mm³ |
78g |
SDB-2 |
5l; PC tube |
There are two options for receiving the dispenser disks for the SDM-1 Dispenser. Please specify when ordering:

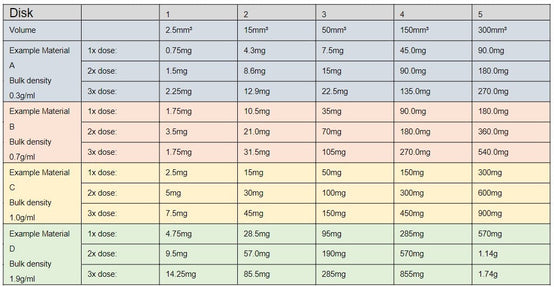

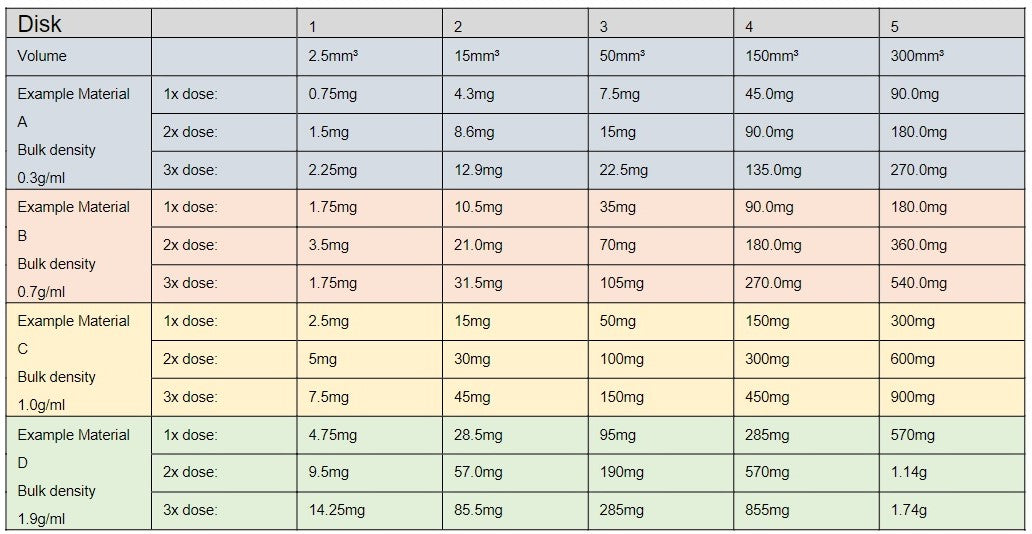

1. We can ship it with 5 standard disks covering the range from 2.5 mm3 to 300 mm3
(Please see chart above)
OR
2. We can calibrate one disk to a specific dose size based on your requirements.
Specifications
| Specifications | Descriptions. |
| Features | • Exchangeable volumetric dispensing disk. |
| Performance | • Calibrated dispensing based on volumetric approach to your specific requirement. |
| Dispensing advantages: | • Usable with different solids-powders |
| • Typical dispensing range from 5 to 250 mg | |
| • Standard glass vials as reservoir | |
| • High repeatability | |
| • High accuracy | |
| • Smallest volumes accessible | |
| • Easy to use and maintain | |
| Typical Dispensed Powders: | • Sodium Carbonate |
| • Sodium Ascorbate (Ascorbic Acid) | |
| • Sodium Bicarbonate | |
| • Sodium Chloride | |
| • Sodium Dithionite | |
| • Sodium Molybdate | |
| • Sodium Sulphite | |
| • Phytagel | |
| • Bacto Agar | |
| • Agar Noble | |
| • T.C. Grade Agar | |
| • Magnesium Sulfate | |
| • Glass beads (Density= 1.7 – 2.5 g-ml) | |
| • Silica Gel (SiliaFlash® F60) 40-63µm (0.040-0.063 mm) | |
| • Siliasphere Phenyl, 70A (Microbeads) | |
| • Methacrylic Polymer Resin | |
| • Dental Amalgam powder | |
| • Somatropin (human growth hormone) | |
| • Lidocaine Hydrochloride | |
| • Proteinase K | |
| • Carbon Black | |
| • Ammonium Chloride | |
| • Granular fish feed | |
| • Coal powder | |
| Specifications | • Size: 58 x 99 mm |
| • Weight: 160 g | |
| Warranty | 1 year |
