ZIEHM VISION RFD HYBRID EDITION
Advanced Mobile Hybrid C-Arm Solution for Cardiovascular and Vascular Procedures

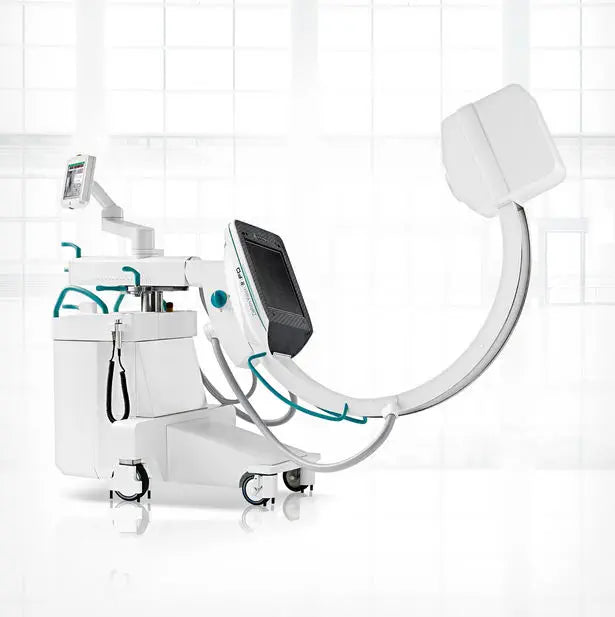

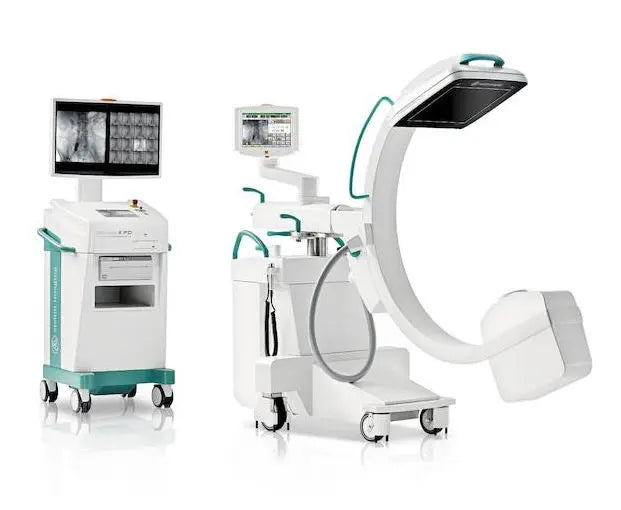

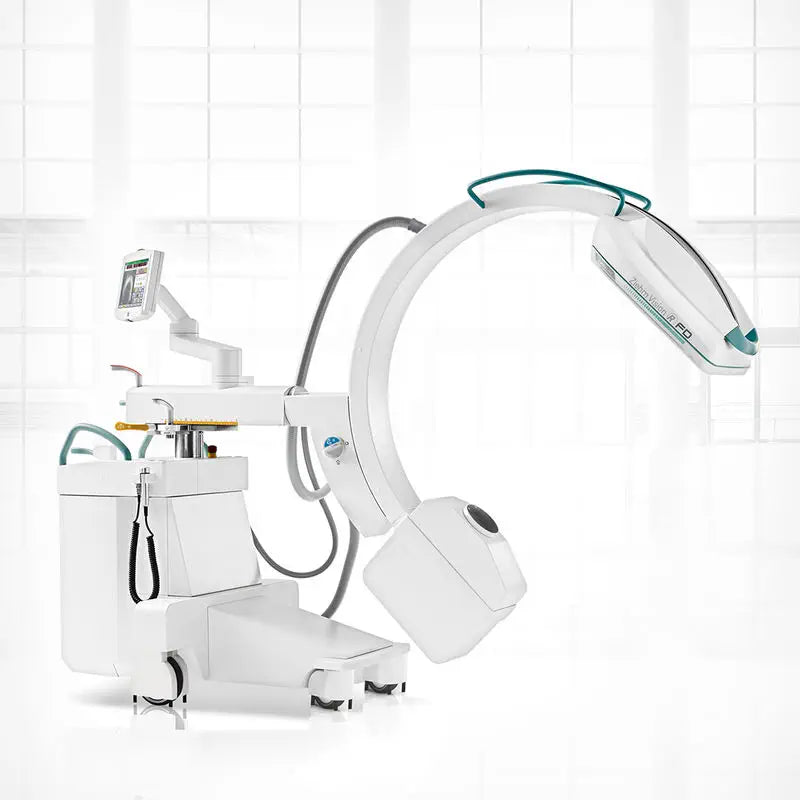

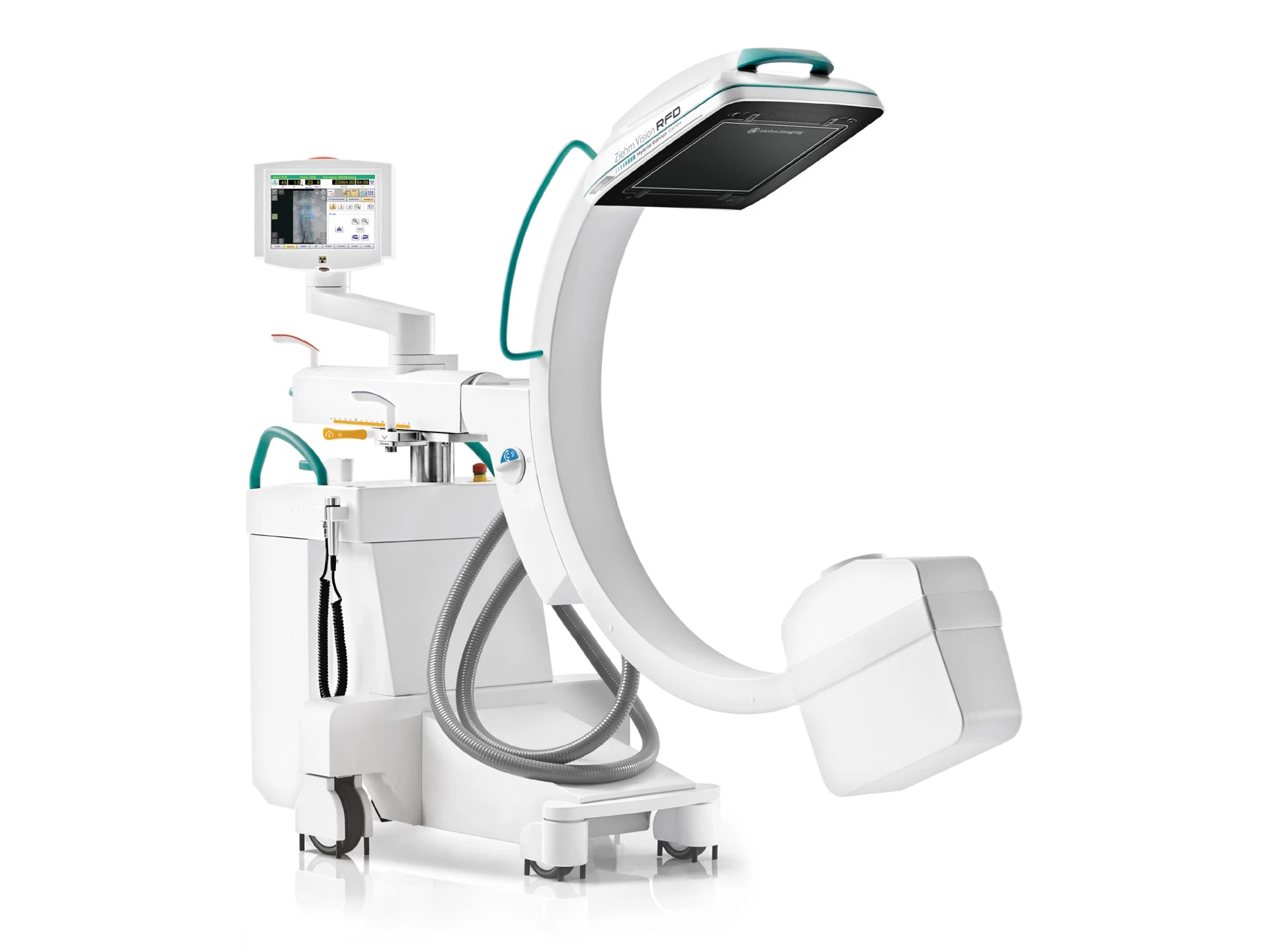

The Ziehm Vision RFD Hybrid Edition is a high-performance mobile hybrid C-arm designed to bring advanced imaging capability into the operating room without the cost and disruption of building a conventional hybrid OR. It is engineered for demanding cardiovascular, vascular, and hybrid procedures, combining premium image quality, flexible mobility, and workflow efficiency in one comprehensive mobile platform.
Built around advanced flat-panel imaging technology and a powerful pulsed monoblock generator, this system supports precise intraoperative visualization while helping clinicians work more efficiently in space-limited or multi-purpose surgical environments. Its mobile hybrid concept enables hospitals to expand procedural capabilities without major construction work or extensive room modification.
Key Benefits
- Mobile hybrid imaging solution for advanced cardiovascular and vascular procedures
- High-performance generator with up to 30 kW power output
- Advanced CMOS flat-panel technology for premium image quality
- QuantumStream imaging system with true 2k x 2k image chain on CMOS configuration
- Integrated energy storage for enhanced system performance
- Advanced Active Cooling for optimized generator temperature management
- 165° orbital movement for improved patient coverage and positioning flexibility
- Full control of four motorized axes for precise and efficient C-arm movement
- SmartVascular workflow for advanced vascular applications
- Supports endovascular navigation and vascular image fusion workflows
- Fast setup with no need for costly hybrid OR construction
- SmartDose concept designed to optimize image quality while minimizing radiation exposure
Designed for Hybrid Surgical Performance
The Ziehm Vision RFD Hybrid Edition helps transform a standard operating room into a more capable hybrid environment. Its mobile design allows flexible deployment when and where needed, making it particularly valuable for facilities seeking advanced imaging support without the expense of a fixed hybrid suite.
This system is especially suited for cardiovascular and endovascular procedures where image quality, navigation support, and workflow control are essential. With dedicated vascular workflow tools and available image fusion capability, it supports a higher level of precision during complex interventions.
Advanced Imaging and Generator Performance
The system is available with advanced flat-panel detector configurations and delivers excellent visualization for demanding procedures. The CMOS platform provides high-resolution imaging, premium image chain performance, and advanced image insights for enhanced procedural support.
- Latest CMOS flat-panel technology
- Available detector formats include 21 cm x 21 cm and 31 cm x 31 cm CMOS options
- Also available with 30 cm x 30 cm a-Si flat-panel configuration
- CMOS resolution up to 2k x 2k / 3k x 3k
- CMOS image chain with true 2k x 2k QuantumStream imaging
- Powerful pulsed monoblock generator
- Up to 30 kW generator output on CMOS configuration
Optimized Workflow and System Control
The Ziehm Vision RFD Hybrid Edition is designed to improve workflow efficiency in the OR. Four motorized axes allow precise positioning, while user control solutions help streamline operation during procedures. The system can be configured with dedicated control modules and workflow packages to support demanding vascular interventions.
- Full control of four motorized axes
- 165° orbital movement

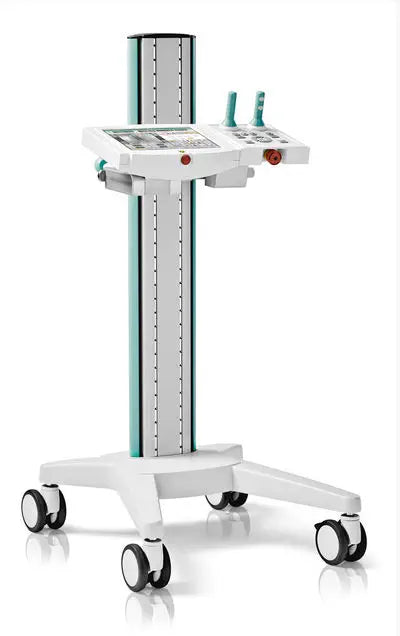

- Position Control Center for faster and more precise isocentric movement
- Remote Vision Center for synchronized control and viewing
- SmartVascular workflow package for complex vascular procedures
- Optional wireless dual footswitch for control of imaging functions
Hybrid OR Capability Without Construction Work
One of the key advantages of this system is the ability to introduce hybrid-style procedural capability without extensive room preparation. Hospitals can deploy the unit quickly, avoid long planning and construction phases, and reduce the operating costs typically associated with fixed hybrid OR installations.
- Fast and easy setup
- No major OR preparation required
- Helps avoid expensive and complex construction phases
- Reduced operating costs compared with conventional hybrid OR concepts
- Designed for flexible use across time and space within the hospital
Dose Management and Patient Safety
The Ziehm Vision RFD Hybrid Edition incorporates the SmartDose concept to support high image quality with reduced radiation exposure. Advanced anatomical programs and beam filtration technologies are designed to automatically balance image quality and dose efficiency. Dedicated functions are also available to help reduce exposure during pediatric procedures.
- SmartDose concept for dose-optimized imaging
- Automatic optimization of image quality and radiation dose
- Advanced anatomical programs
- Beam filtration to reduce patient entrance dose
- Dedicated functionality to support reduced exposure in pediatric cases
Navigation and Image Fusion Options

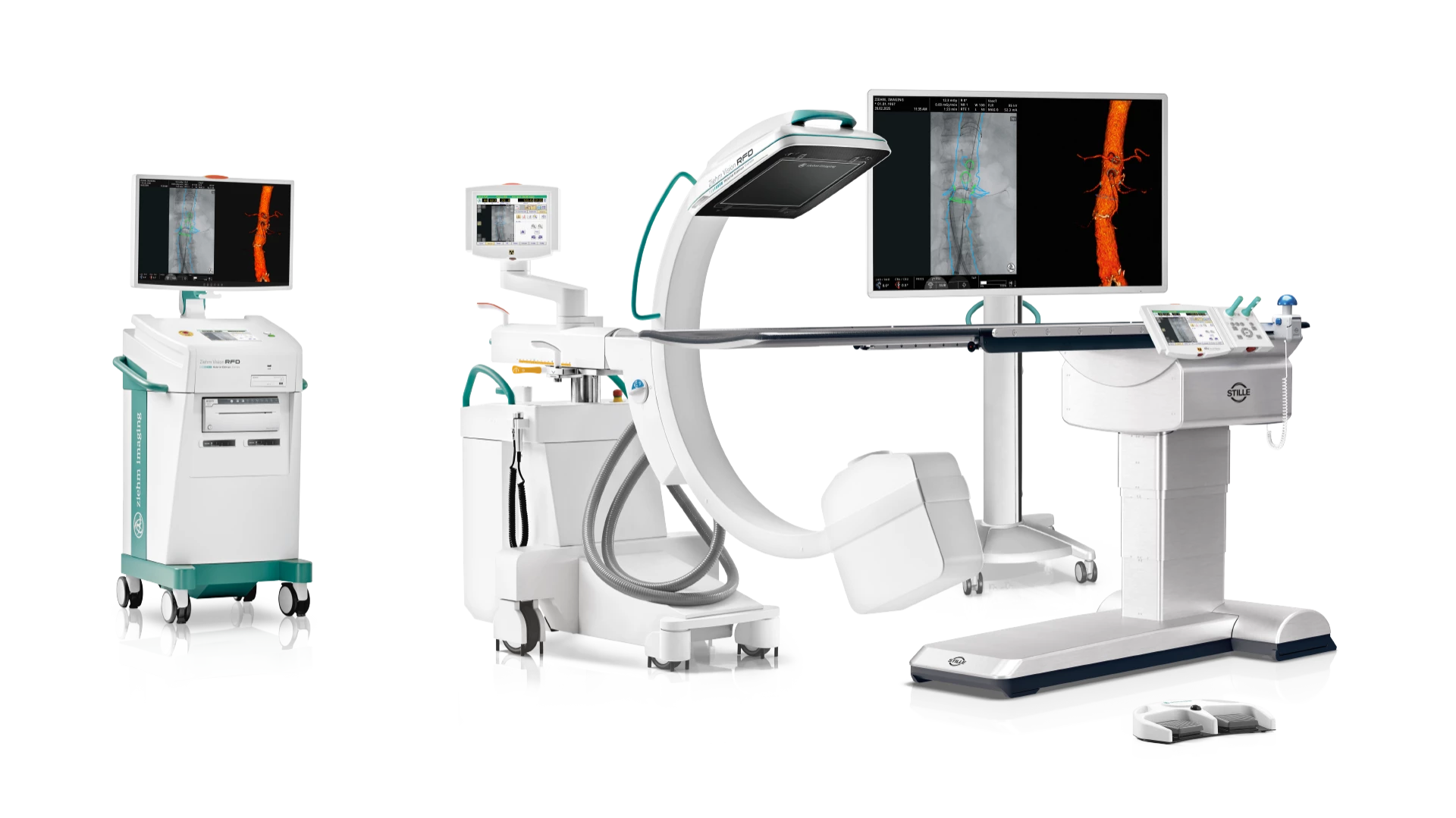

For advanced vascular and endovascular procedures, the system supports image fusion and navigation workflows. It can be configured either with integrated endovascular navigation or as a stand-alone solution with Therenva EndoNaut, helping improve procedural precision and supporting more confident intraoperative decision-making.
- Integrated Endovascular Navigation available on CMOS configuration
- Stand-alone vascular image fusion with Therenva EndoNaut
- Supports advanced endovascular planning and navigation workflows
- Designed to improve precision in demanding hybrid procedures
Selected Upgrade Options
- Position Control Center (PCC) and Distance Control
- Remote Vision Center (RVC)
- 3D image fusion with Therenva EndoNaut
- Wireless Dual-Plus Footswitch
- Anatomical Marking Tool (AMT)
- HIPAA Security Option
- Enhanced Vessel Visualisation (EVV)
- Endovascular case planning with Therenva EndoSize
- CO2 Package
- SmartVascular Workflow
- Cardio Packages for mobile cath lab applications
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Mobile hybrid C-arm |
| Imaging Technology | CMOS flat-panel (21 cm x 21 cm / 31 cm x 31 cm) or a-Si flat-panel (30 cm x 30 cm) |
| Resolution | CMOS: 2k x 2k / 3k x 3k; a-Si: 1.5k x 1.5k |
| Image Chain | CMOS: true 2k x 2k with QuantumStream; a-Si: 1k x 1k |
| Image Insights | Available on CMOS configuration |
| Generator Power | CMOS: 30 kW; a-Si: 25 kW |
| Orbital Movement | 165° |
| Motorized Axes | Full control of 4 motorized axes |
| Vascular Image Fusion | Integrated Endovascular Navigation or Therenva EndoNaut stand-alone solution |
| Advanced Active Cooling | Included |
| Ziehm Usability Concept | Included |
| SmartDose | Included |
Applications
The Ziehm Vision RFD Hybrid Edition is ideal for hospitals and specialist centers seeking a flexible mobile imaging platform for:
- Cardiovascular surgery
- Endovascular procedures
- Hybrid surgical workflows
- Vascular interventions
- Advanced intraoperative imaging in the OR
Why Choose the Ziehm Vision RFD Hybrid Edition?
This system offers a practical route to hybrid OR-level capability in a mobile platform. It combines premium image quality, powerful generator performance, advanced navigation options, and efficient workflow control in a design that can be deployed without the construction demands of a conventional fixed hybrid suite. For facilities seeking flexibility, precision, and high-end mobile imaging performance, the Ziehm Vision RFD Hybrid Edition is a compelling solution.
